DDSS072
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Exterior Door
Stainless Steel
Silver, Black, Gold, Polish Brass, AB, etc.
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

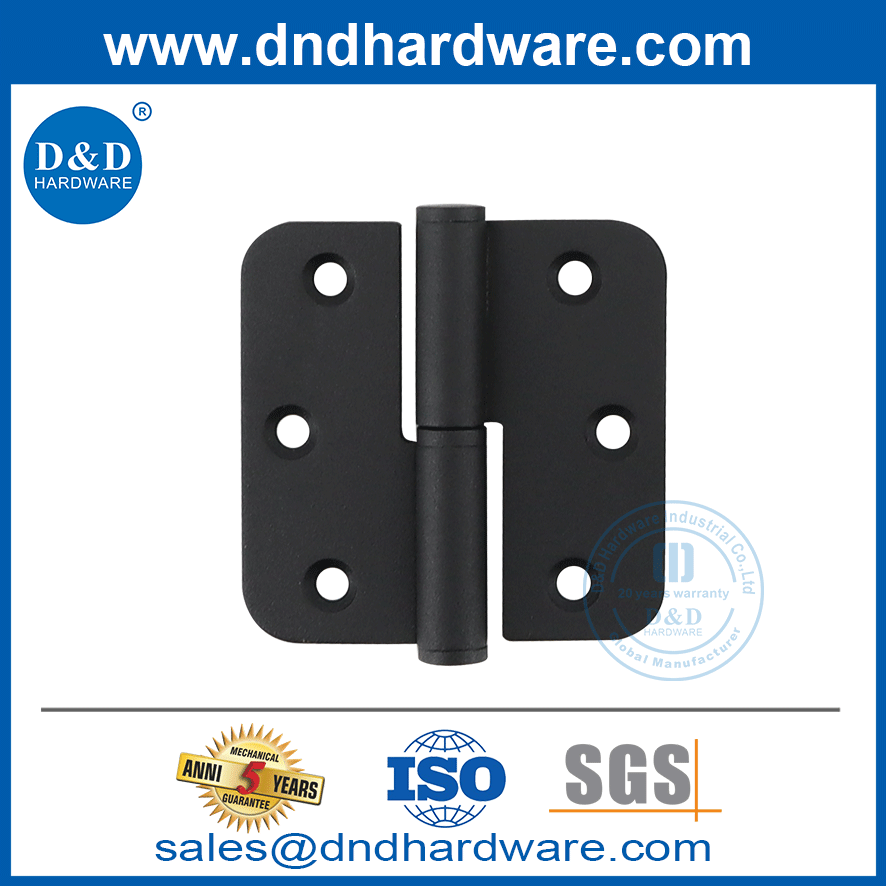

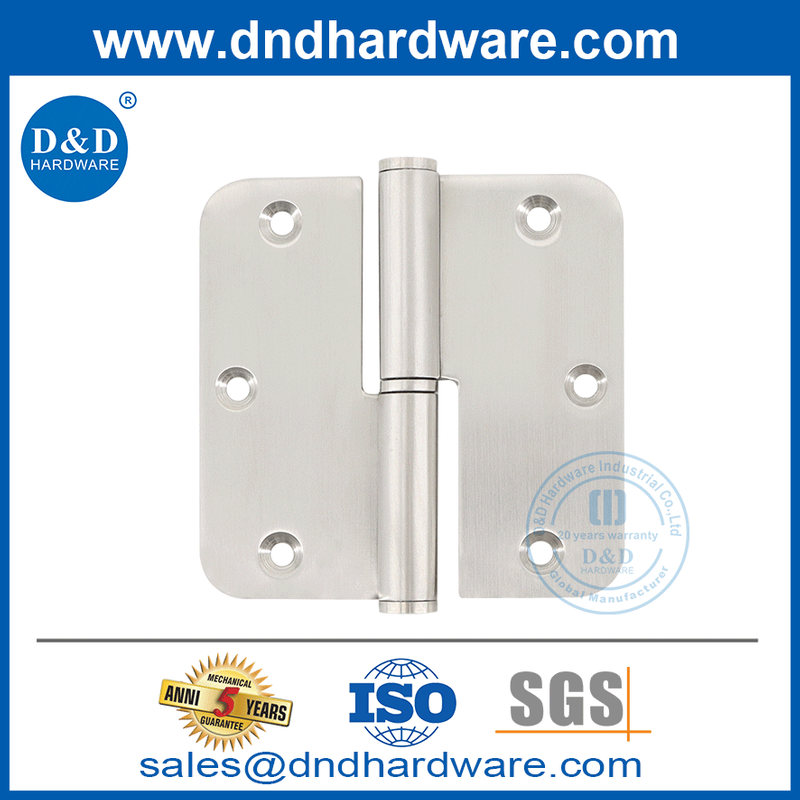

SS304 Round Corner Lift-off Door Hinge Easy Install Internal Detachable Hinge-DDSS072

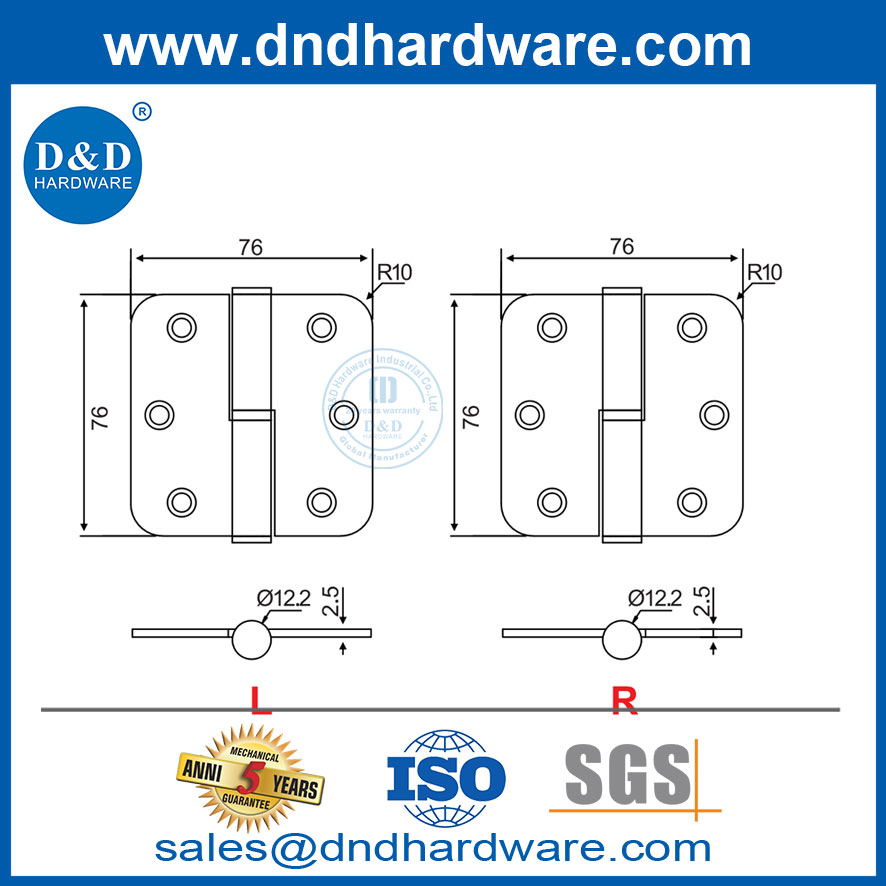

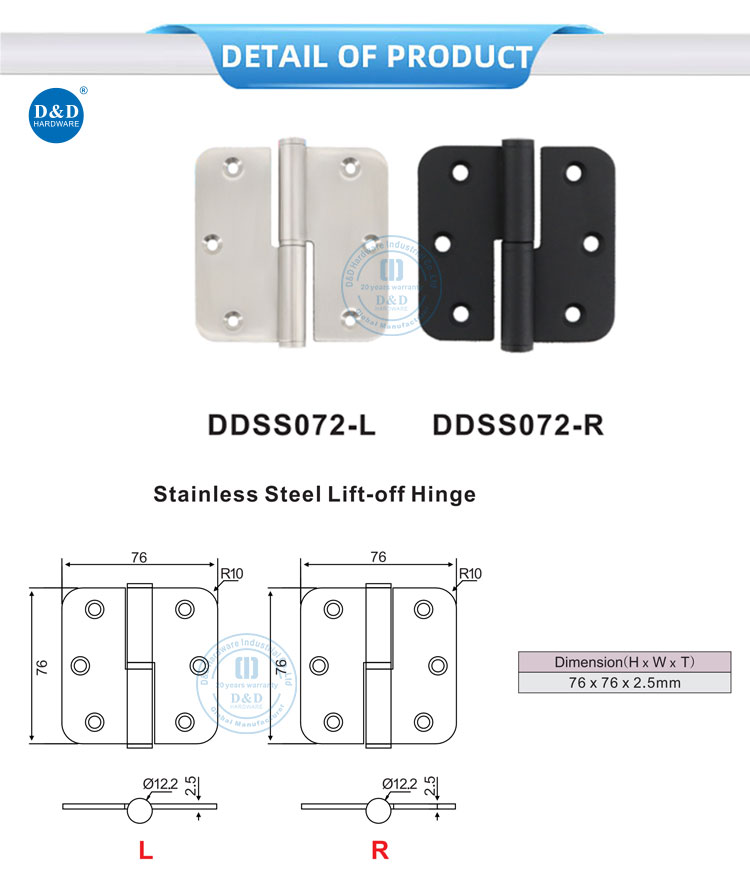

D&D DDSS072 is a compact American-style lift-off door hinge made from corrosion-resistant SS304 stainless steel. Its internal detachable two-part structure, R10 rounded corners and 76 × 76 × 2.5 mm dimensions enable quick installation and convenient door removal without fully dismantling the hinge. Available in left- and right-hand configurations, this separable hinge is ideal for wooden interior doors, cabinets, access panels and maintenance doors.
Product Overview
| Product name | SS304 Round Corner Lift-off Door Hinge Easy Install Internal Detachable Hinge |
| Product Model | DDSS072 |
| Size | 76x76x2.5mm |
| Material | Stainless Steel 201, 304 or 316 |
| Fitting | Flat tip, ball bearing, fix pin, screws, |
| Finish | Satin stainless steel,Polished stainless steel,Polished brass,Chromeplated(polish chrome plate&satin chrome plate), Antique brass, Antique copper, Matt black,Physical Vapor Deposition |
| Suitable for | Wooden door, Metal door, fire rated door etc. |
Packaging & Shipping
| MOQ | 200 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
