Glass Door Hardware Accessories
D&D Glass Hinge can be made in stainless steel or brass. Available in a variety of finishes,such as satin,polish,chrome plate, etc.. The hinge is available in 90°, 135° and 180° and close automatically when the door is held at 25° approximately. It can be fitted on doors of 8mm,10mm and 12mm thickness.
D&D Glass Patch Fitting consisting of cover, casting and insert.It has a stainless steel 304 cover and a casting aluminum inside. Various styles of glass patch fittings are available, such as bottom patch fitting,over panel patch fitting,top patch fitting,patch fitting lock and corner patch fitting.Suitable for 10-12mm thinkness doors.

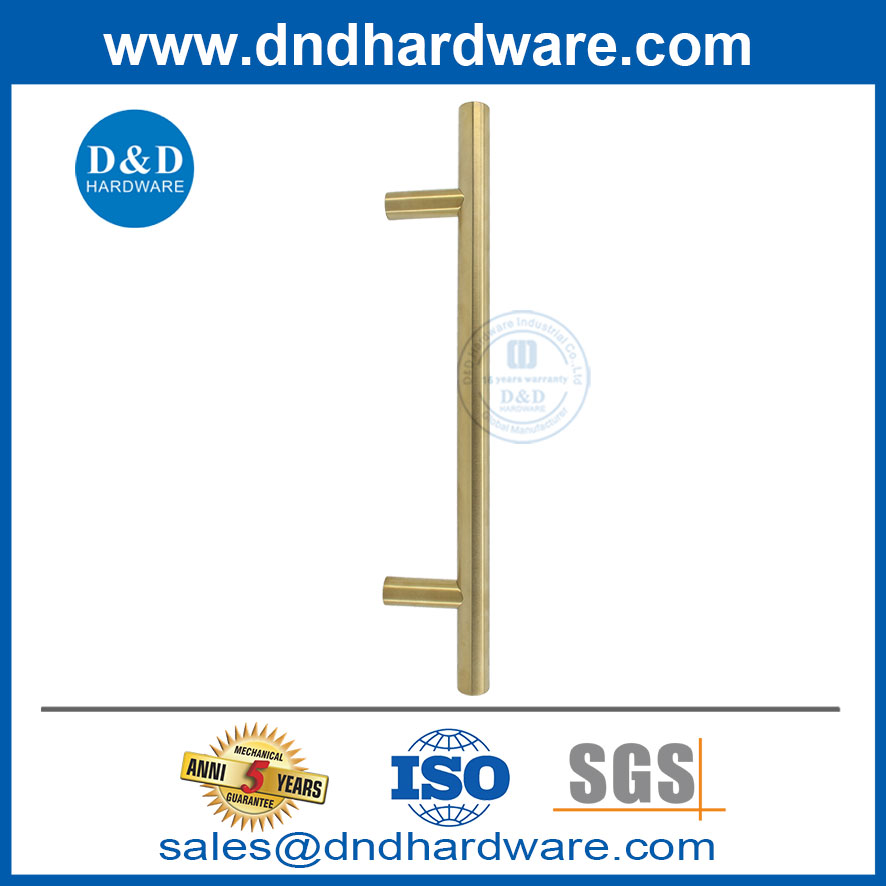

D&D Glass Door Pull Handle is available in a wide range of styles and can be made in many different sizes. It is avaliable in T bar pull handle,mitred pull handle,c shaped pull handle,cranked pull handle etc.. It is made of stainless steel 304/316. Suitable for use on glass doors in office, meeting rooms and hotel lobby.
D&D Floor Spring has a stainless steel 304 cover with casting iron interior.The floor spring to be used with glass patch fitting. The floor spring can also be called hydraulic door closer. It can be positioned when the door is opened to 90 degree. Available in different load-bearing styles and sizes.

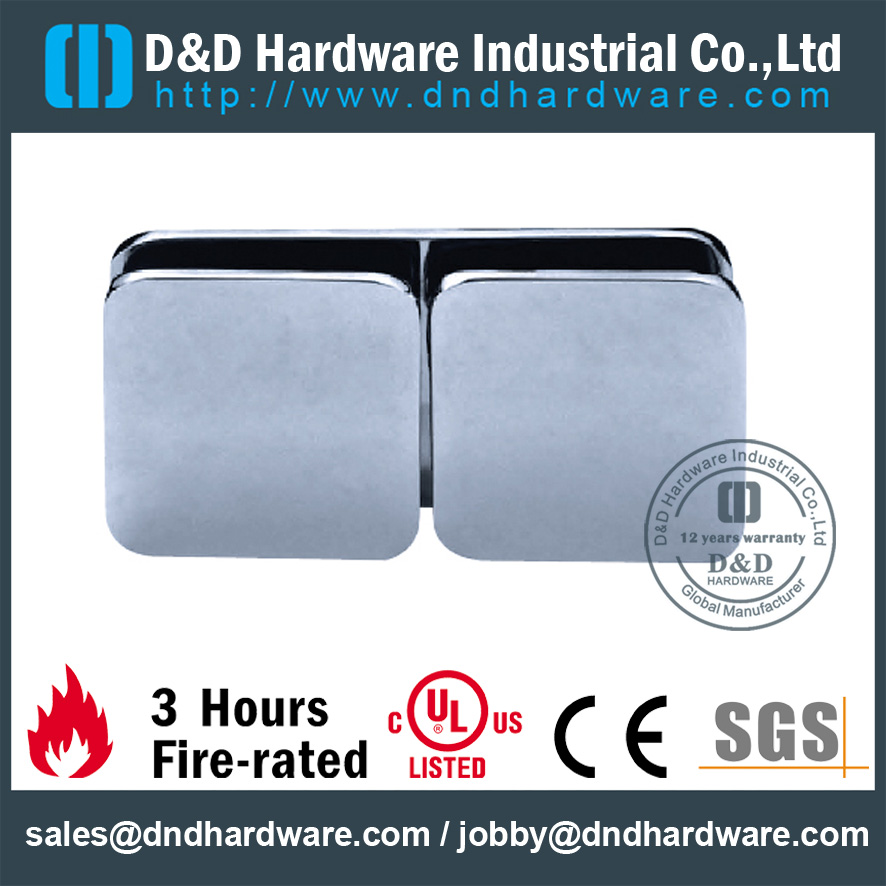

D&D Glass Clip can be made in stainless steel 304/316 or brass. Available in a variety of finishes such as satin, polished and chrome plated. Also available in a wide range of styles. The glass clips suitable for use on glass bathroom door to make the door more secure.

Related Glass Door Hardware Product

Glass door handle

How To Install Floor Spring
1. Draw a line so that the centre of the floor spring pivot coincides with the door clamp pivot.
2. According to the manual and the real thing, open a hole in the ground, the size of the hole should be tight with the ground spring shell, not loose.
3.  Put the floor spring into the open hole and set it right.
4. Lift up the door with the door clip installed, so that the spindle of the floor spring is inserted into the spindle hole of the door.
5. Adjust the screws in the three directions of the floor spring. Keep the door vertical and the up and down axis of rotation coincident.
6. Adjust the closing speed of the door.
7. Cover the decorative cover of the floor spring.
Custom Your Glass Door Hardware

Store entrance - Single frameless glass door without overhead panel

Door design consideration mainly as below:
1, Where the building and inner door located
2, Where the interior door located
3, Number of times a door opens and closes

Main concern points for this configuration are:
1, user-friendly
2, Security

Door opening & closing description:
Push or pull to opening the door when unlock.
Use key to lock or unlock the patch fitting lock on either side.

This configuration is suitable for below applications:


 Office building

 5-star hotel

 Shopping mall

 Hotel

 Government building

 High-end club





Associate door hardware
Glass Bottom patch fitting-DDPT001
Bottom side-hung leaf corner fitting with mount for flat conical spindle with installation materials for glass thicknesses 10-12 mm
Top patch fitting pivot-DDPP203
Upper pivot bearing with pivot bearing bolt (15 mm dia.)
Glass Top patch fitting-DDPT003
Top side-hung leaf corner fitting with mount for pivot bearing bolts (15 mm dia.)
With installation materials for glass thicknesses 10 -12mm.
Glass Patch fitting lock-DDPT004
Patch fitting lock with square dead bolt, with installation materials for glass thickness 10-12 mm, with Euro-profile cylinder and strike plate/recess.
Glass door pull handle-DDPH001
Glass door pull handle, dia. 25Xctc450xL600xH80mm, stainless steel 304 material in Satin finish.
Match with floor spring if needed the door to be self-closing-DDFS222
Floor spring,size305x146x51.5mm,stainless steel 304 cover,inside casting iron.

Store/Public entrance - frameless glass door without overhead panel – double door configuration

Door design consideration mainly as below:
1, Where the building and inner door located
2, Where the interior door located
3, Number of times a door opens and closes

Main concern points for this configuration are:
1, user-friendly
2, Security

Door opening & closing description:
Push or pull to opening the door when unlock.
Use key to lock or unlock the patch fitting lock on either side.

This configuration is suitable for below applications:

 Office building  5-star hotel  Shopping mall  hotel
 Government building  High-class club
Associate door hardware
Glass Top patch fitting DDPT003
Top side-hung leaf corner fitting with mount for pivot bearing bolts (15 mm dia.)
With installation materials for glass thicknesses 10 -12mm.
Top patch fitting pivot-DDPP204
Upper pivot bearing with heavy duty pivot bearing bolt.
Glass Bottom patch fitting DDPT001
Bottom side-hung leaf corner fitting with mount for flat conical spindle with installation materials for glass thicknesses 10-12 mm.
Glass Patch fitting lock DDPT004
Patch fitting lock with square dead bolt, with installation materials for glass thickness 10-12 mm, with Euro-profile cylinder and strike plate/recess.
Glass door pull handle DDPH001 x 2sets
Glass door pull handle, dia. 25Xctc450xL600xH80mm, stainless steel 304 material in Satin finish.
CONTROLING -Floor spring DDFS208 x2sets
Double action floor spring, size 268x113x48mm, max. door weight up to 100kg, Door width 800-1000mm, 90° hold-open, open in both directions, max. opening 116°, adjustable closing speed, two-stage speed adjustment, position can be adjusted horizontally/vertically, not permissible for use on fire and smoke protection doors.
PROTECTING -Door stop DDDS001 x 4 pieces
D&D 44mm diameter x 25mm height, half-moon type floor mounted comes with screws for fixing, in SUS304 stainless steel material, SSS finish, pack with suitable screw pack.
D&D Hardware
Glass Door Hardware FAQ
Q: Do you accept OEM or ODM?
A: Yes, We are professional in OEM and ODM.
We are cooperating with famous brands for OEM and ODM.

Q: Could you send me sample before l place an order?
A: Yes, offer samples for your evaluation, you provide the Courier account for freight collect.

Q: How long can l expect to get the sample?
A:Regular samples can be finished in 7 days,if for OEM samples will be 10 days to 15 days.

Q: What's the guarantee of your products?
A: 5 Year Mechanical Guarantee.

Q: What is the Minimum Order Quantity?
A: MOQ is 500 sets per item.
D&D Hardware
Glass Door Hardware Project
Building owners understand that keeping down maintenance costs necessitates vigilance through charge of building systems to handle support efficiency.

D&D key systems improve control by restricting access through optimized key management to central areas of those buildings. only the right personnel are authorized minimizing potential misuse of services and possible liability.

Conference room, office, showroom, Stairwells, pipe chases, electrical, rooms, custodial equipment, communicating closets, elevator controls, pipes and HVAC are every area requiring protection, and D&D hardware gets the retrofit capability to secure most of these areas.
Building owners understand that keeping down maintenance costs necessitates vigilance through charge of building systems to handle support efficiency

D&D key systems improve control by restricting access through optimized key management to central areas of those buildings. Only the right personnel are authorized minimizing potential misuse of services and possible liability

Stairwells pipe chases. electrical rooms. custodial equipment, communicating closets, elevator controls, pipes and HVAC are every area requiring protection, and D&D hardware gets the retrofit capability to secure most of these
areas
Most government entities possess a wonderful demand for security along with a superior degree of flexibility. The
system has to be field proven, safe and easy to administrate.

Police stations, courts, fire emergency first responders are all services with very specific security requirements It is important that the system can be accommodated to accommodate the situation and also some other hazards
that they may encounter.

Military facilities cover a broad selection of activities, large geographical footprint, and buildings using different operational requirements. Offices, training centres and exercise are as need high security protection against unauthorized access.
