DDFS500
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Outer Door
Stainless steel
SSS, PSS, PVD, AB, AC, MB
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

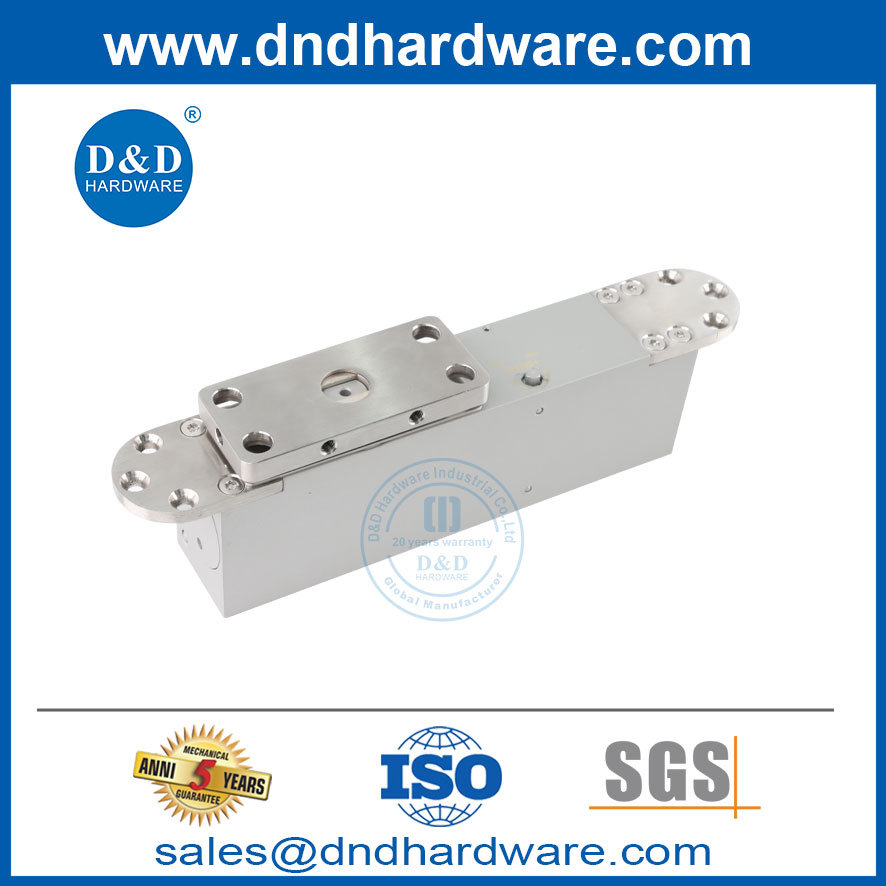

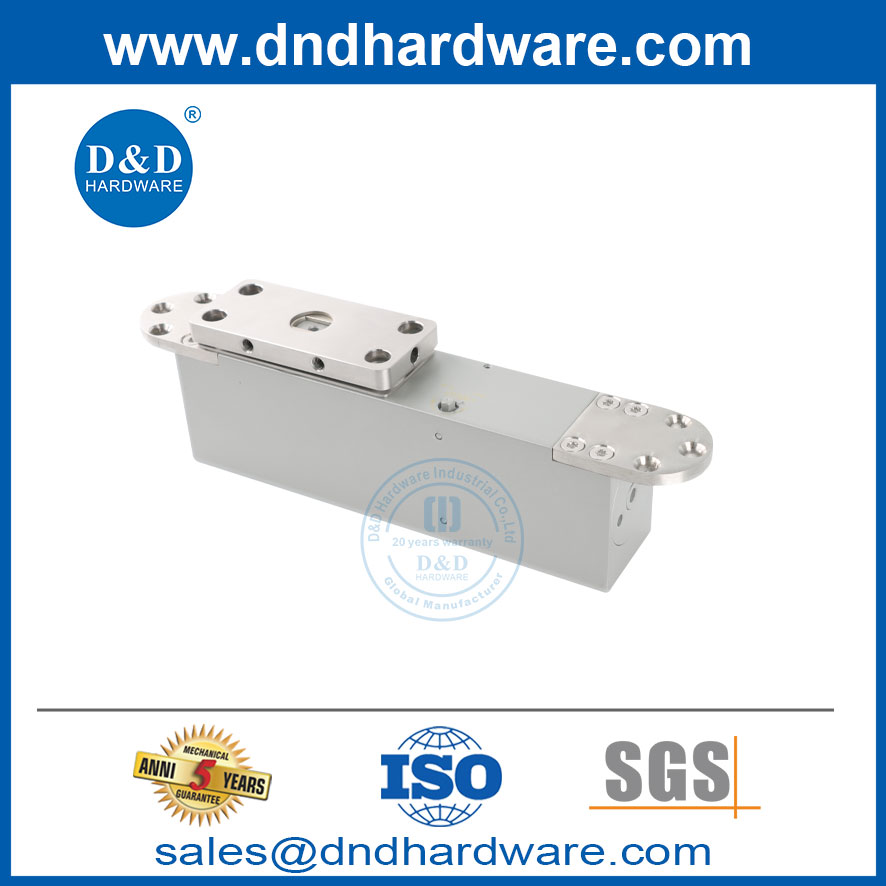

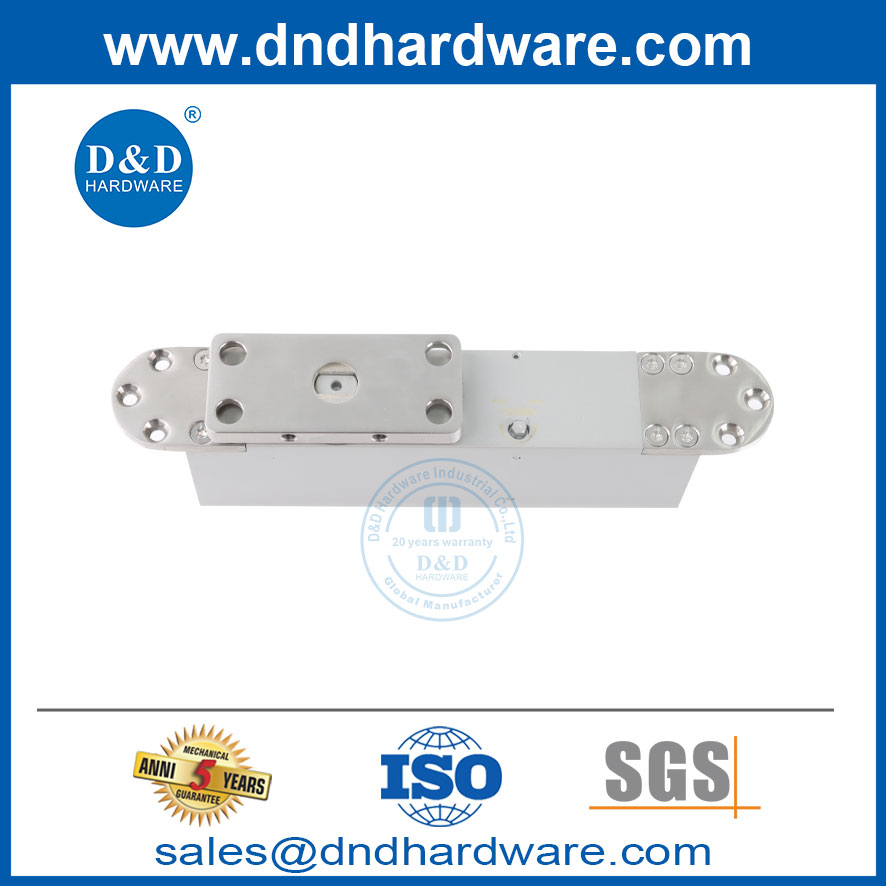

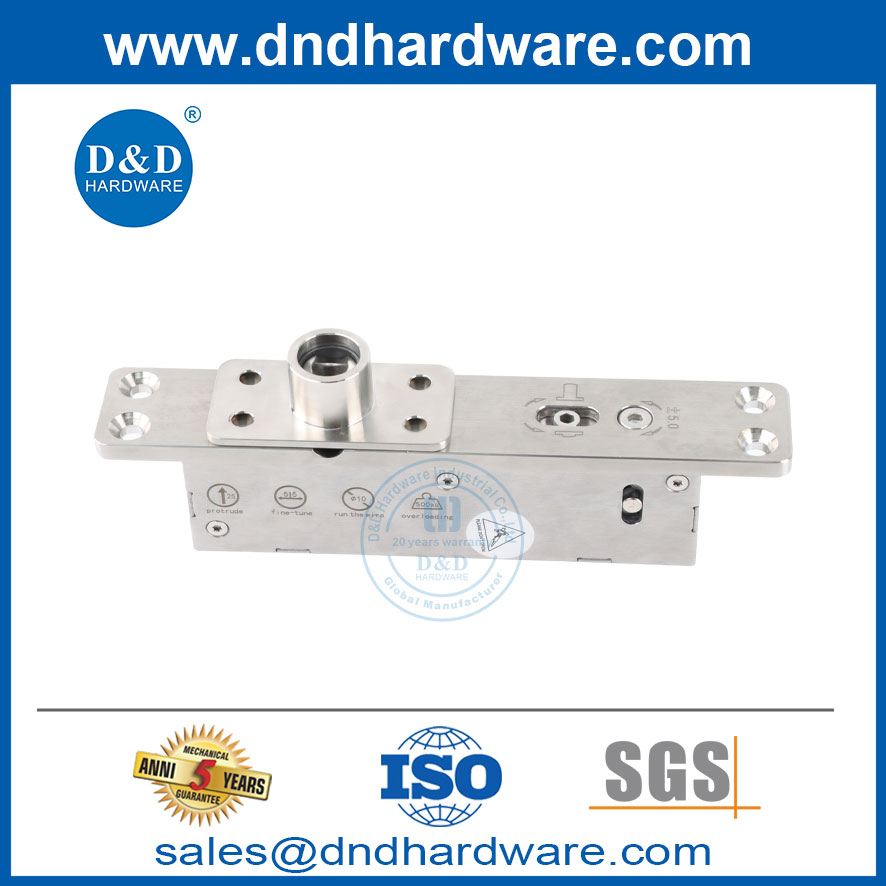

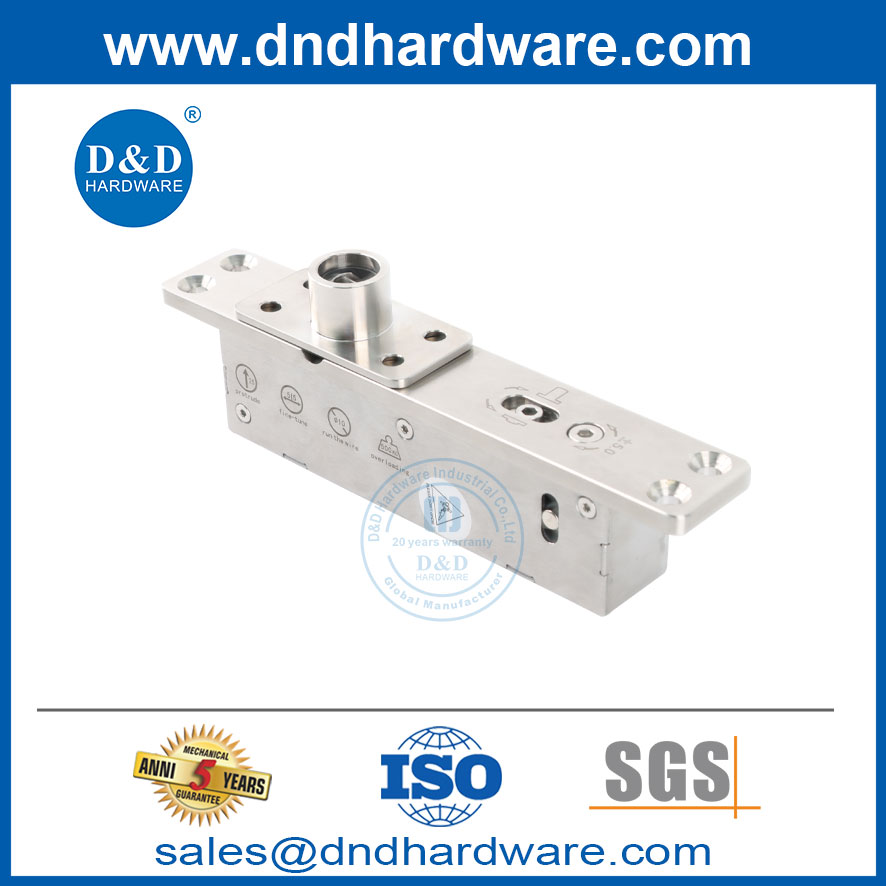

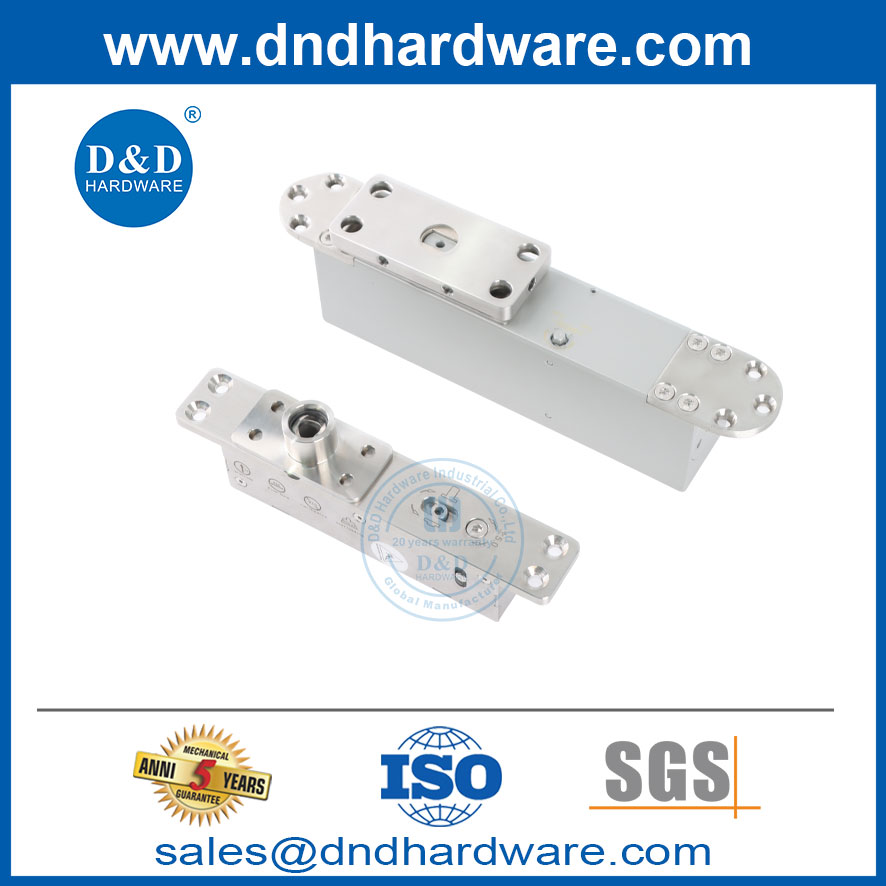

DDFS500 — Heavy Duty Hydraulic Concealed Floor Spring Door Closer with 90° Hold Open
D&D DDFS500 is a heavy-duty hydraulic concealed floor spring designed for controlled closing of commercial wooden and metal doors. Installed below the door, its compact metal body remains largely concealed to maintain a clean entrance appearance. The floor spring supports doors from 800 to 1200 mm wide and covers a door-weight range of 60–500 kg, making it suitable for large and heavy entrance doors. It provides single-speed hydraulic adjustment, controlled closing and latching action, a 90° hold-open position and a maximum opening angle of 125°. With a working life of at least 500,000 cycles and an operating temperature range from -20°C to 50°C, DDFS500 suits hotels, offices, shopping centers, public buildings and other high-use commercial entrances.
| Product name | Heavy Duty Hydraulic Concealed Floor Spring Door Closer 90° Hold Open for Commercial Door |
| Product Model | DDFS500 |
| Material | Stainless Steel 304 |
| Size | 270x45mm |
| Door Width Range | 800-1200 mm |
| Door Weight | 60-500 kg |
| Hold-Open | 90 Degree Hold-Open |
| Opening Angle | ≤125° |
| Suitable for | Glass door, Wooden door, Aluminium door etc. |
| MOQ | 300 PCS |
| Package | 1 set / white box in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated, UL Listed
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
