ANSI GRADE 2 DOOR HINGE with UL Listed -D&D HARDWARE

DATA SHEETS

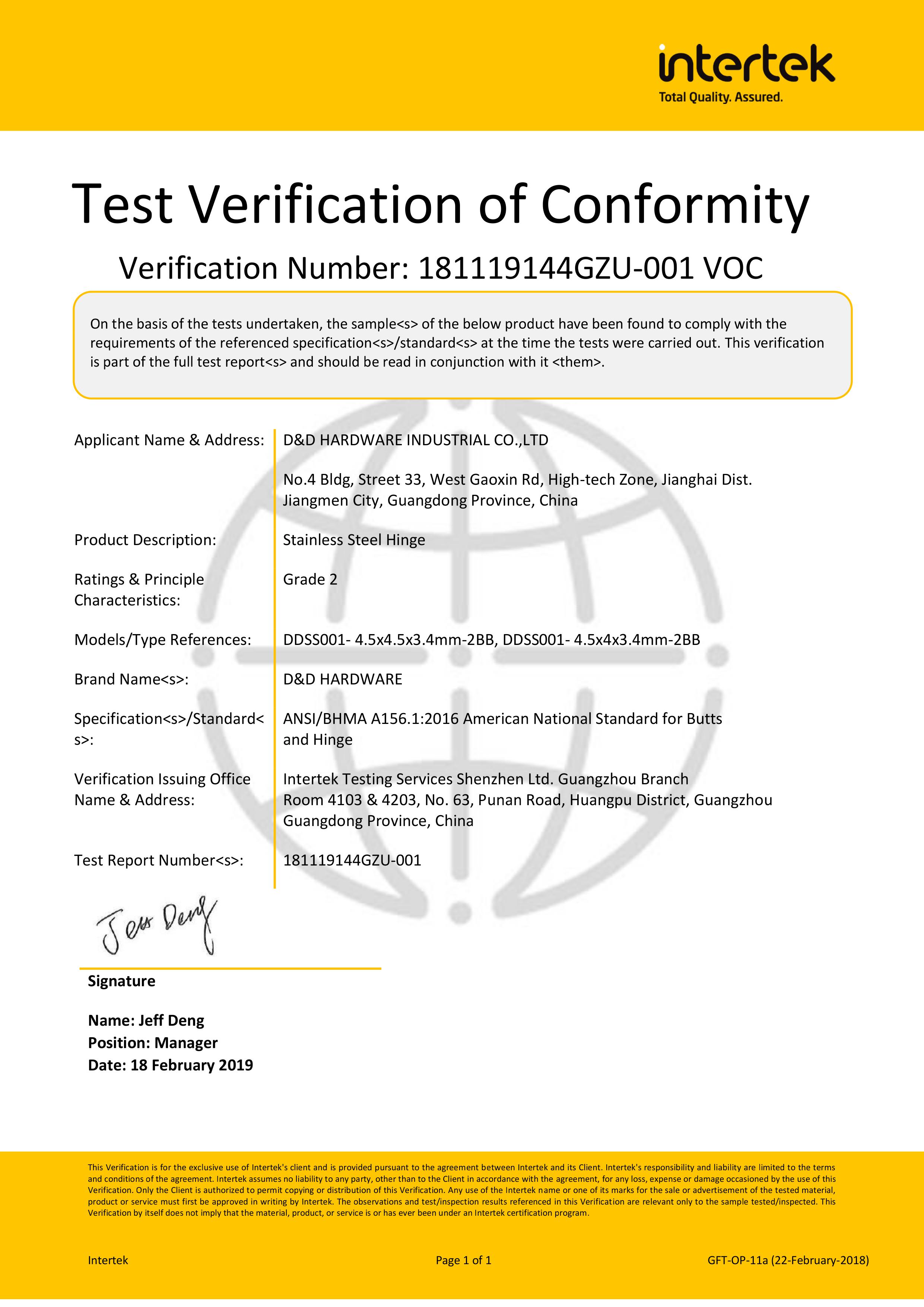

ANSI/BHMA A156.1:2016

AMERICAN NATIONAL STANDARD FOR

BUTTS AND HINGES

The Fire Protection Association (NFPA) Publication No. 80, standard for fire doors and windows, specifies the hardware requirements for fire-resistant openings with building hardware. All hardware to be installed on fire-proof openings must be listed for use on fire-proof openings.

If ANSI A156 hinges or other hinges are used, they shall meet the requirements of ANSI A156.

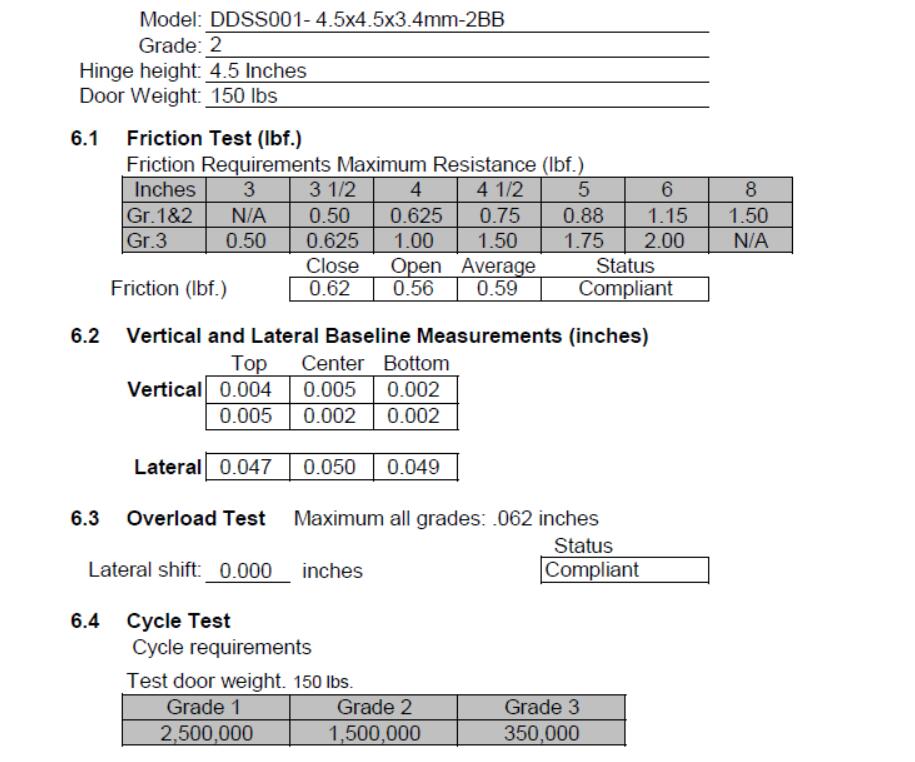

Model:  DDSS001- 4.5x4.5x3.4mm-2BB

Grade:  2

Hinge height:  4.5 Inches

Door Weight:  150 lbs



ANSI Grade 2 Door Hinge with UL Listed, Fire Rated Door Hinge,

4.5"x 4.0" x 3.4 mm-2BB and  4.5"x 4.5" x 3.4 mm-2BB,

★ Suitable for Metal Doors, Wood Doors, Fire Resistant Doors

★ Tested to over 1,500,000 cycles = Durability= 5 Year Mechanical Guarantee

★ For Hollow Metal Doors,  Fire rated Doors, Steel Doors, Wooden Doors etc.

★ Suitable for Education, Healthcare, Hospitality and Commercial Applications.

★Direct Supply Chain, Manufacture & Export, support our customer to Win the Market.

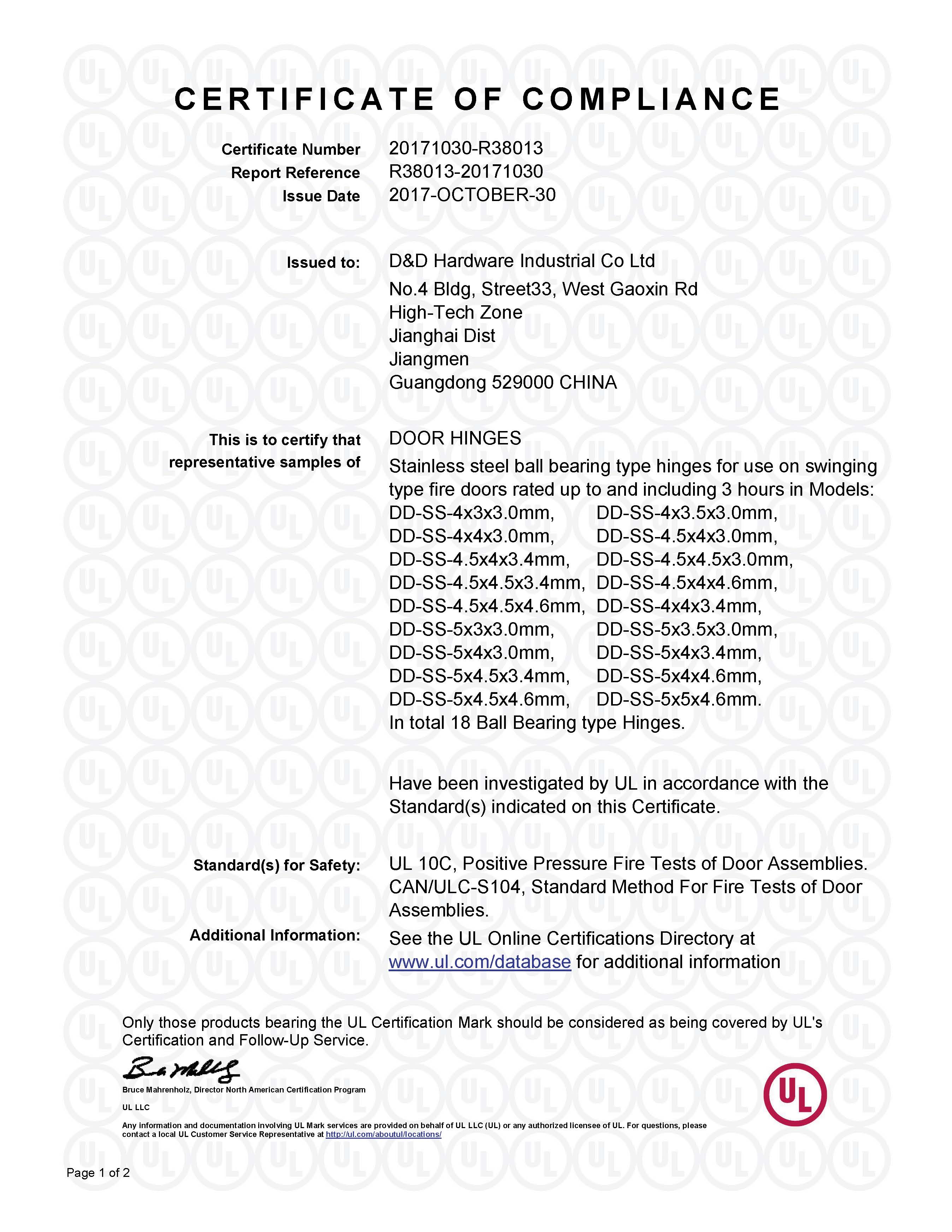

D&D's fire rated door hinges meet UL testing requirements and have the highest performance for education, healthcare, hospitality, residential and commercial applications. D&D can also provide detailed and professional hardware matching solutions according to different situations.

For further information about fire door hinge or any of our services, click here.
