DDCH021
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Exterior Door
Zinc Alloy and Aluminum Alloy
Pearl Chrome, Antique Bronze, Antique Copper, Painting
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

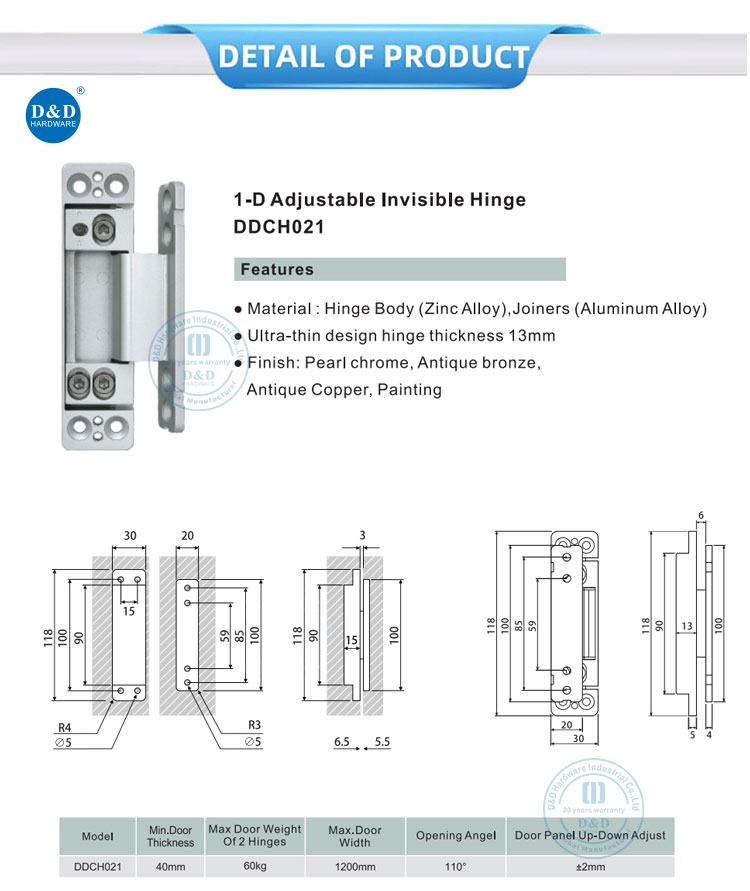

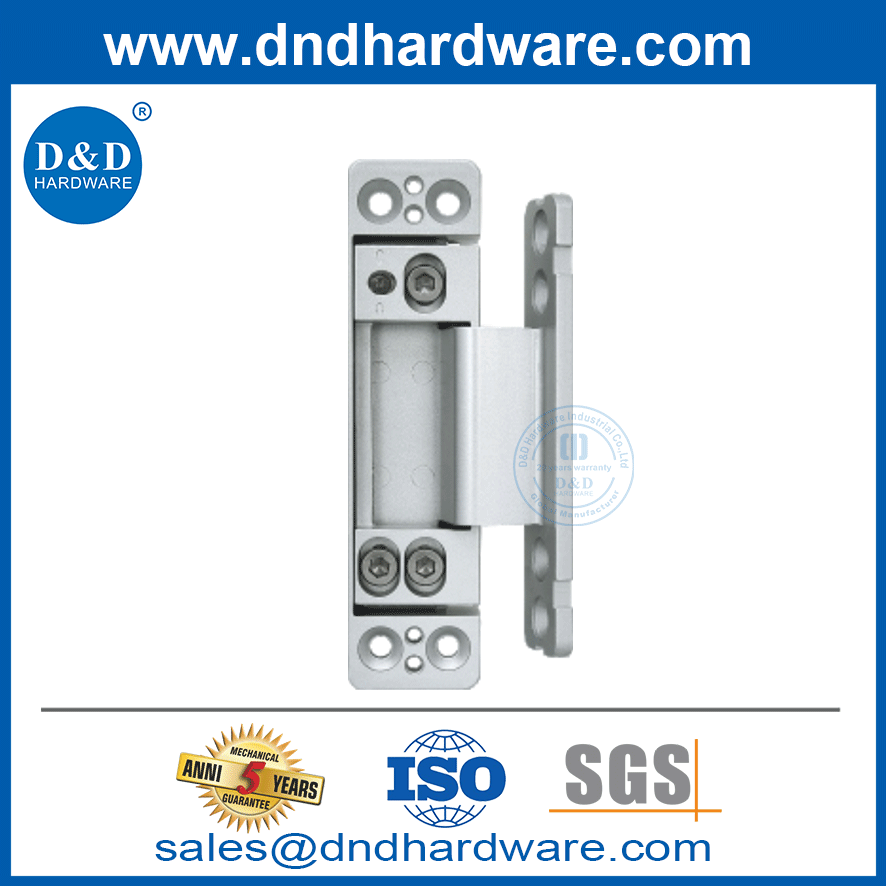

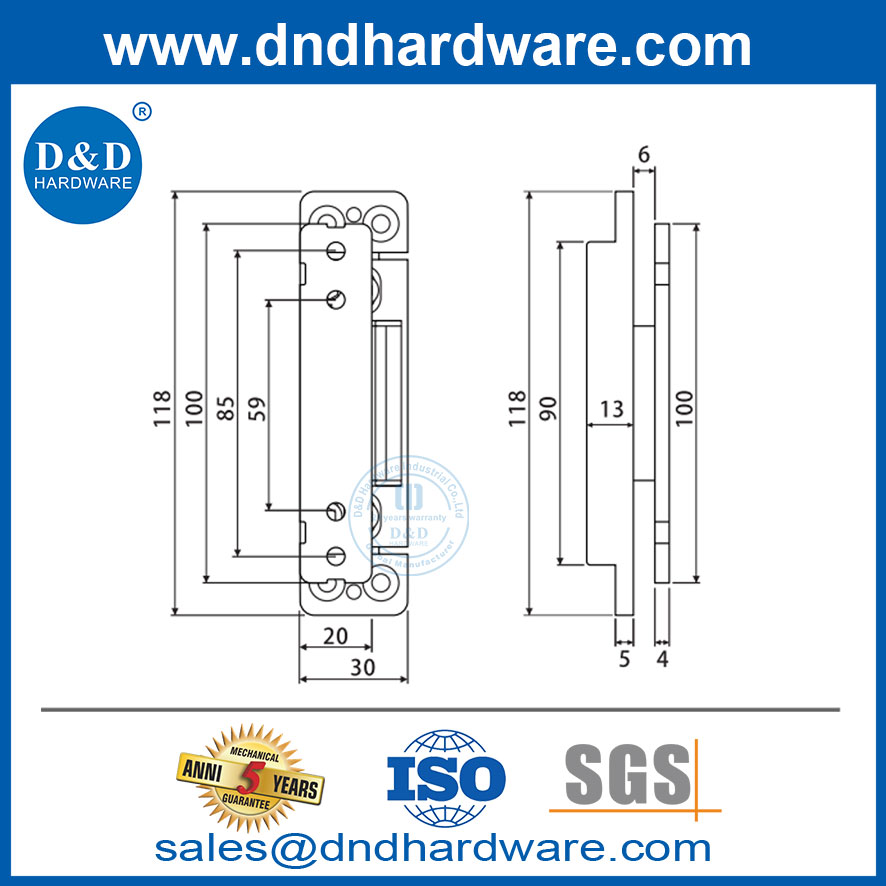

Zinc Alloy 1D Adjustable Hidden Door Hinge Ultra Thin 13mm Concealed Hinge-DDCH021
D&D DDCH021 is an ultra-thin 1D adjustable concealed door hinge made from zinc alloy with aluminum-alloy connecting parts. Its slim 13 mm body remains hidden when the door is closed and supports vertical adjustment for accurate alignment. With a 110° opening angle and up to 60 kg capacity using two hinges, it is suitable for solid wood, aluminum-wood and minimalist interior doors.
Product Overview
| Product name | Zinc Alloy 1D Adjustable Hidden Door Hinge Ultra Thin 13mm Concealed Hinge |
| Product Model | DDCH021 |
| Material | Zinc Alloy and Aluminum Alloy |

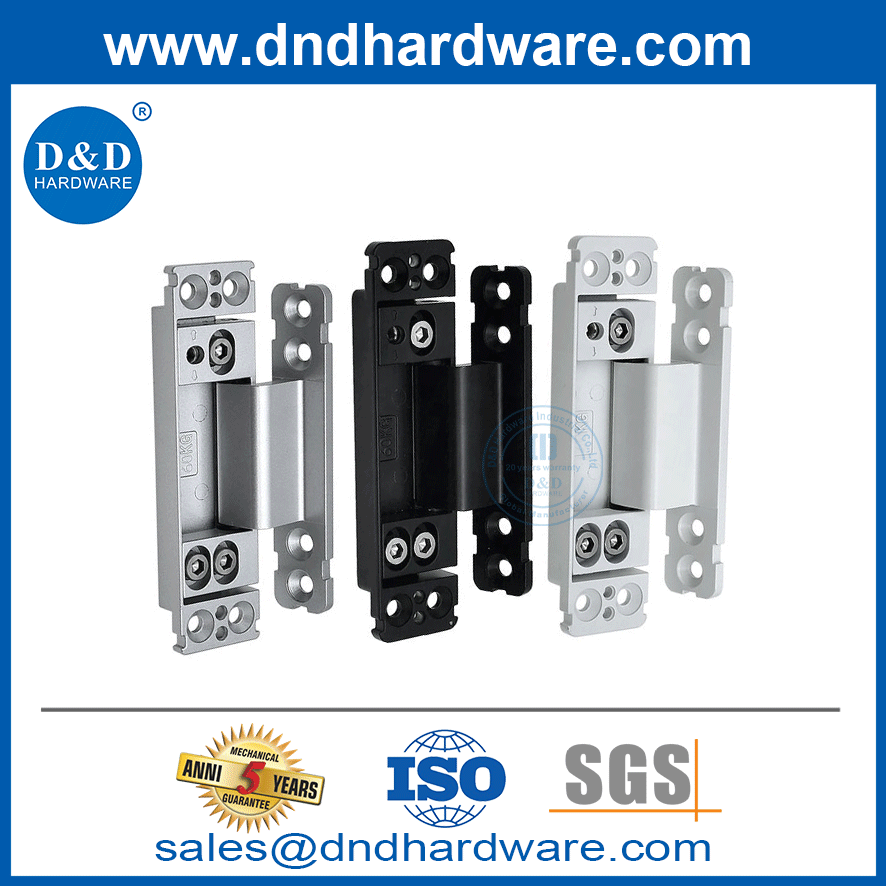

| Finish | Pearl Chrome, Antique Bronze, Antique Copper, Painting |
| Suitable for | Wooden door, Metal door, fire rated door etc. |
Packaging & Shipping
| MOQ | 200 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated, UL Listed
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
