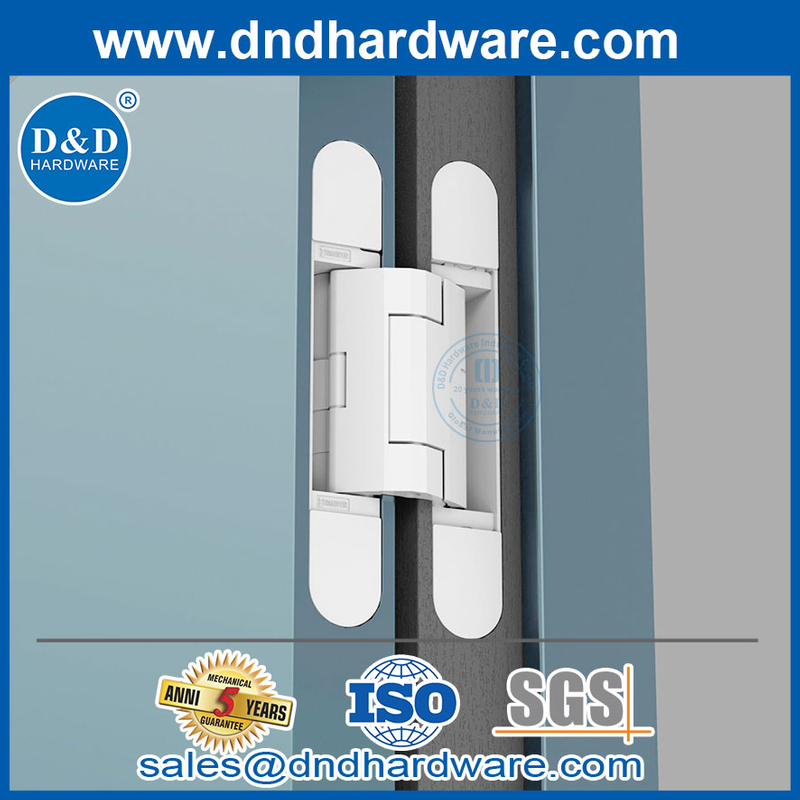

Heavy Load Hydraulic Free Stop Concealed Hinge Factory Wholesale 2D Adjustable Invisible Door Hinge-DDCHSL04

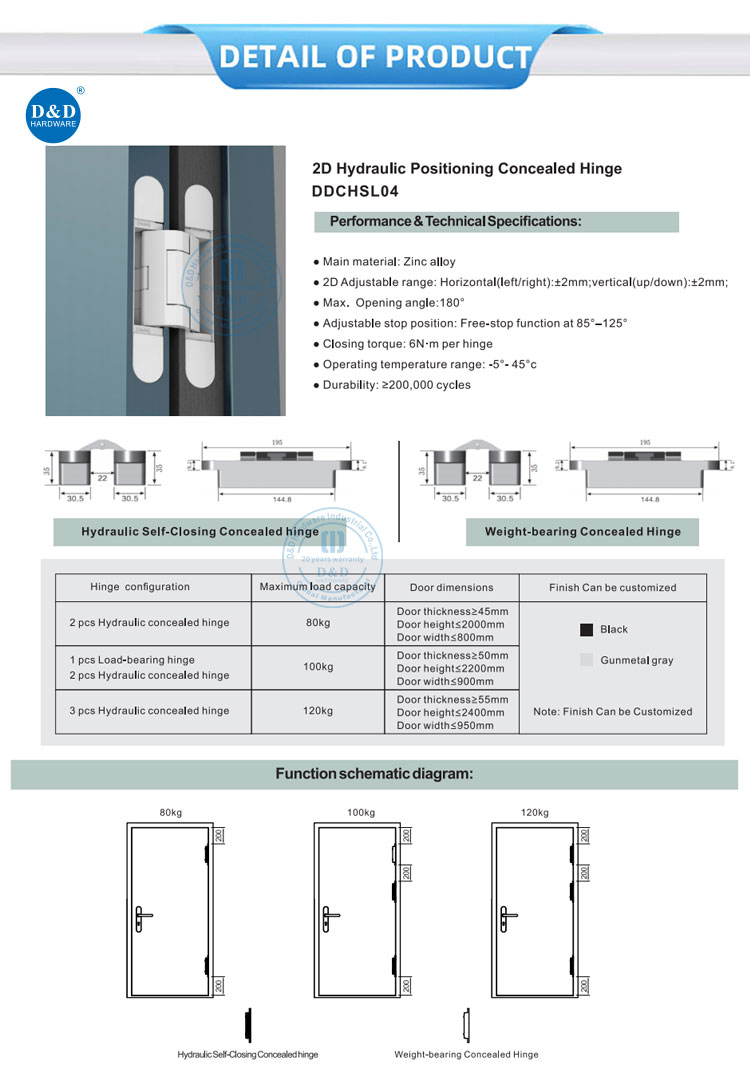

D&D DDCHSL04 is a heavy-load 2D hydraulic concealed hinge made from zinc alloy for commercial door systems. It offers ±2 mm horizontal and vertical adjustment, controlled self-closing and free-stop positioning between 85° and 125°. Opening to 180° and supporting configurations up to 120 kg, it is ideal for wide hotel, office and commercial doors.
Product Overview
| Product Name | Heavy Load Hydraulic Free Stop Concealed Hinge Factory Wholesale 2D Adjustable Invisible Door Hinge |
| Product Model | DDCHSL04 |
| Material | Zinc Alloy |
| Finish | Black, Gunmetal Gray or Customized |
| Suitable for | Wooden door, Metal door, fire rated door etc. |
Packaging & Shipping
| MOQ | 200 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated, UL Listed
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
