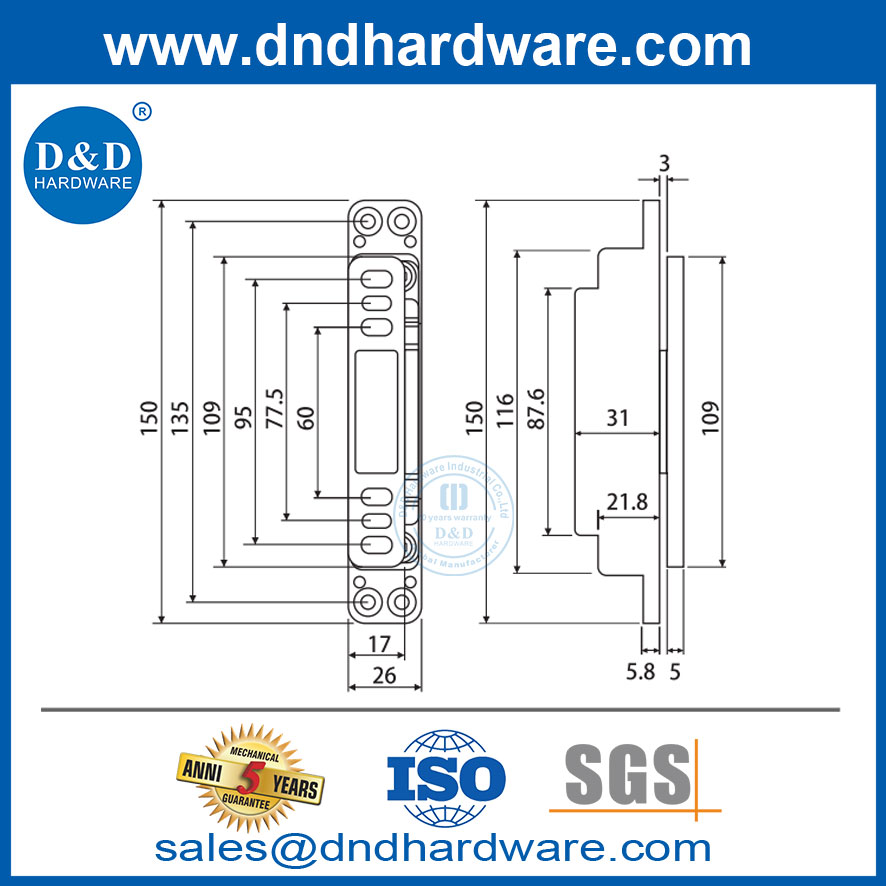

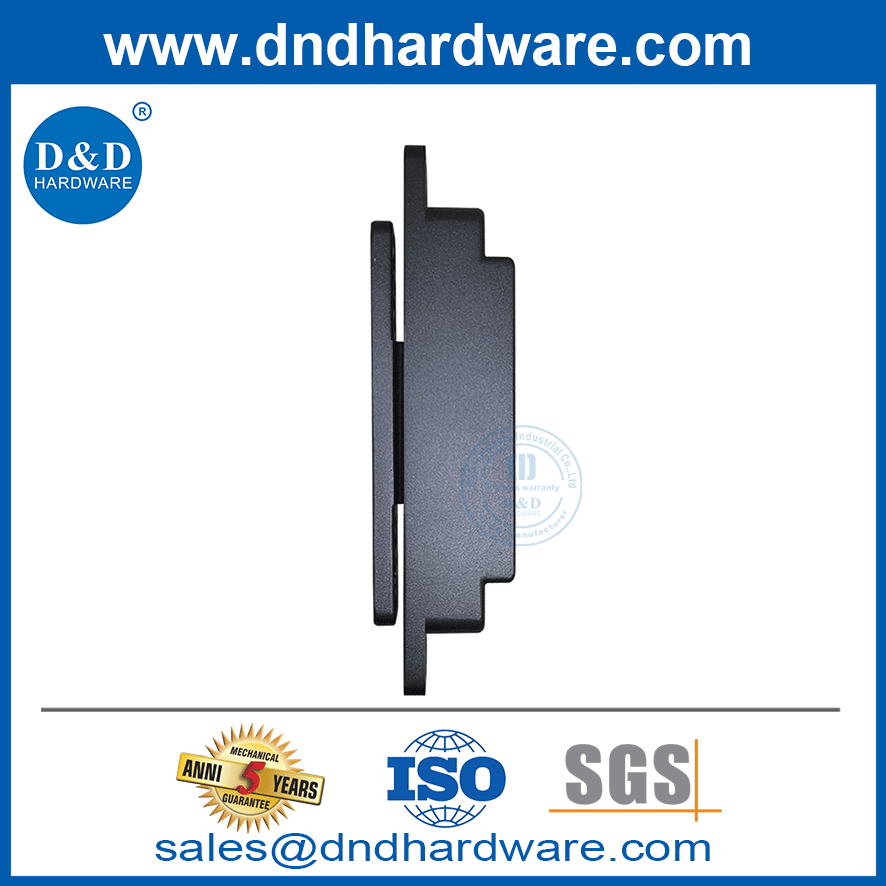

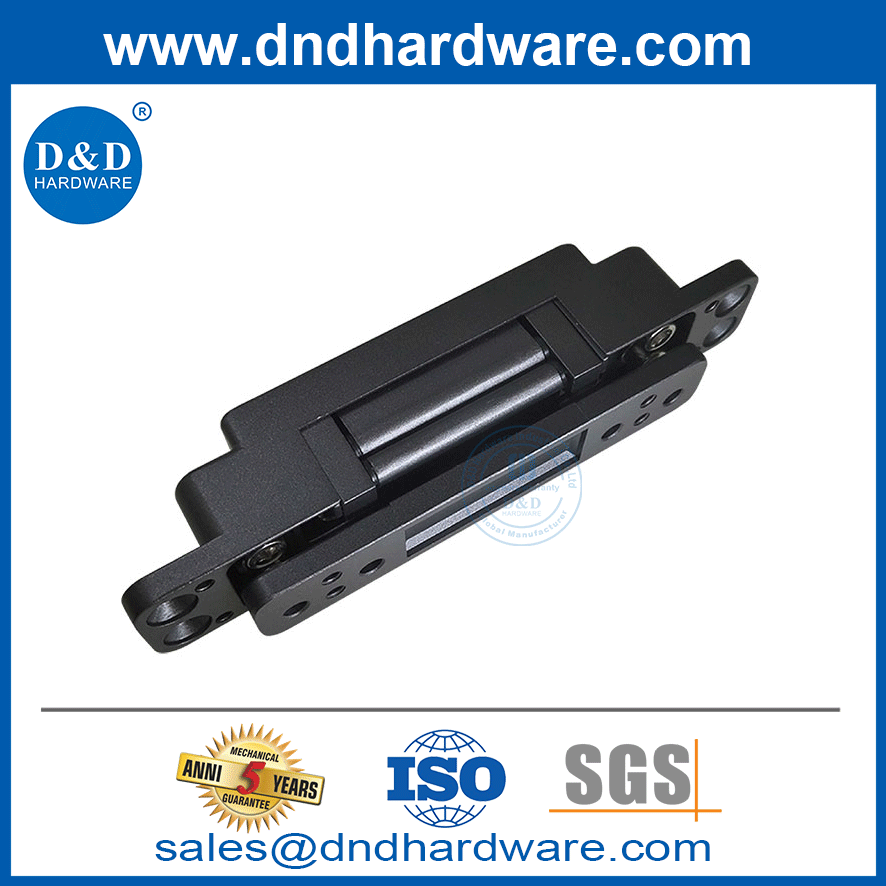

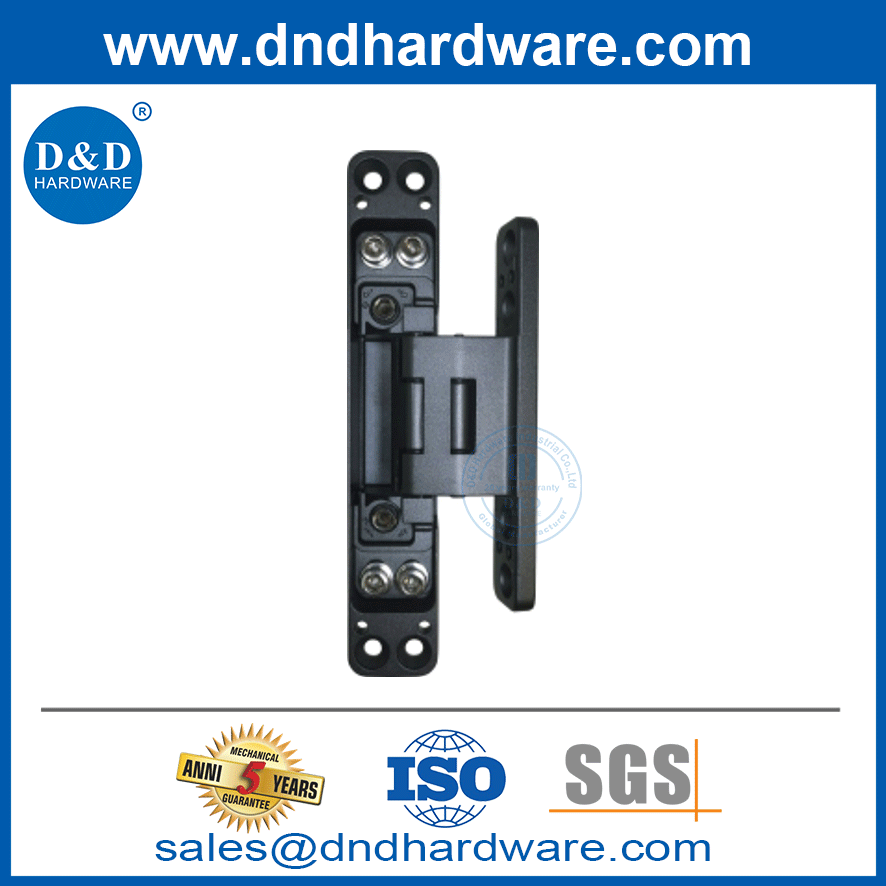

Minimalist 3D Adjustable Concealed Hinge 110° Zinc Alloy Invisible Hinge for Wood Door-DDCH022

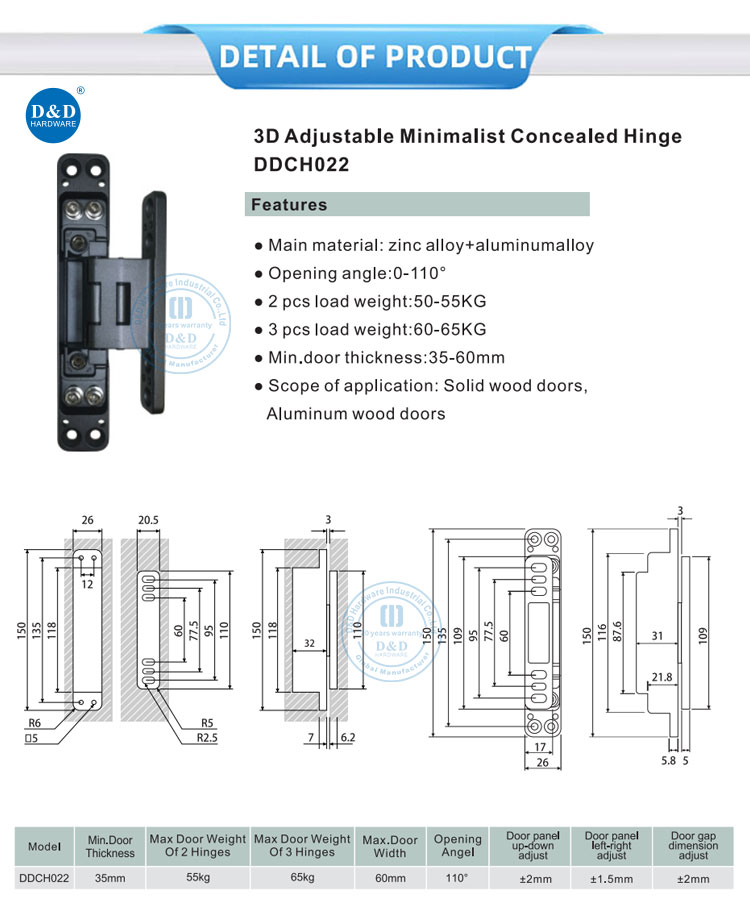

D&D DDCH022 is a minimalist 3D adjustable concealed hinge manufactured from durable zinc and aluminum alloys. It provides vertical, horizontal and depth adjustment for precise door alignment without removing the door. Designed for 35–60 mm thick doors, it opens to 110° and supports up to 55 kg with two hinges or 65 kg with three, making it ideal for solid wood and aluminum-wood doors.
Product Overview
| Product Name | Minimalist 3D Adjustable Concealed Hinge 110° Zinc Alloy Invisible Hinge for Wood Door |
| Product Model | DDCH022 |
| Material | Zinc Alloy and Aluminum Alloy |
| Finish | Pearl Chrome, Antique Bronze, Antique Copper, Painting |
| Suitable for | Wooden door, Metal door, fire rated door etc. |
Packaging & Shipping
| MOQ | 200 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated, UL Listed
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
