DDCH026
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Exterior Door
Zinc Alloy and Aluminum Alloy
Pearl Chrome, Antique Bronze, Antique Copper, Painting
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

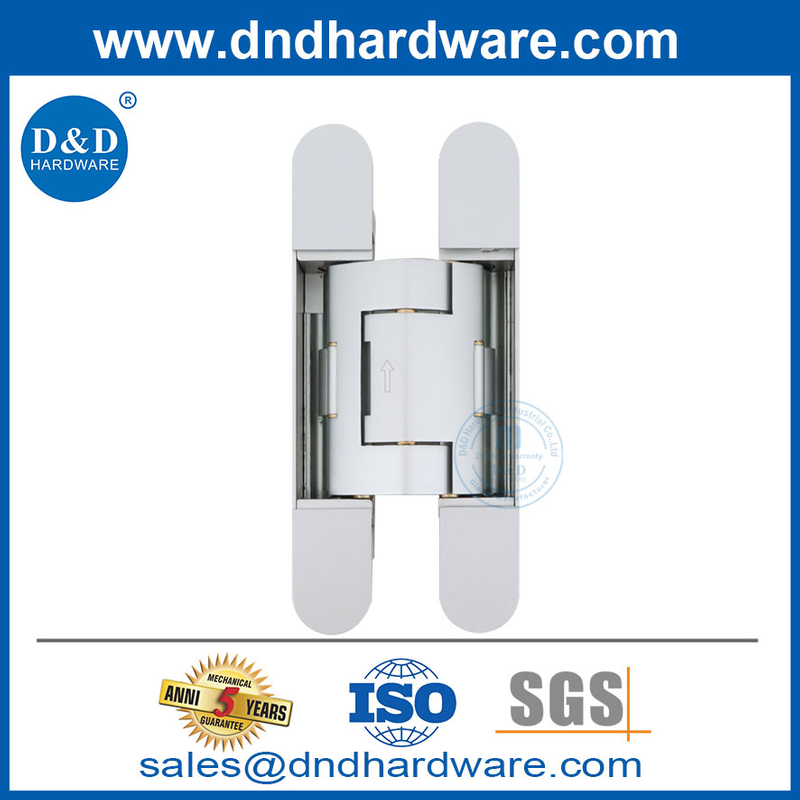

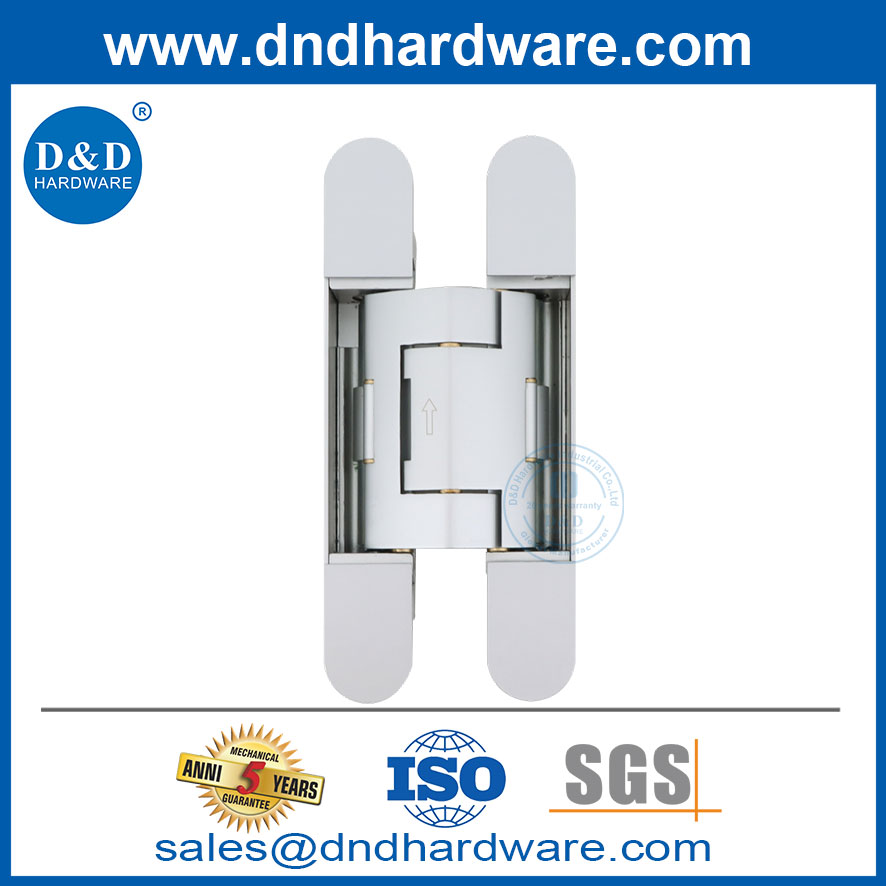

Hydraulic Soft-Close 2 Ways Adjustable Concealed Hinge 180 Degree Invisible Door Hinge-DDCH026

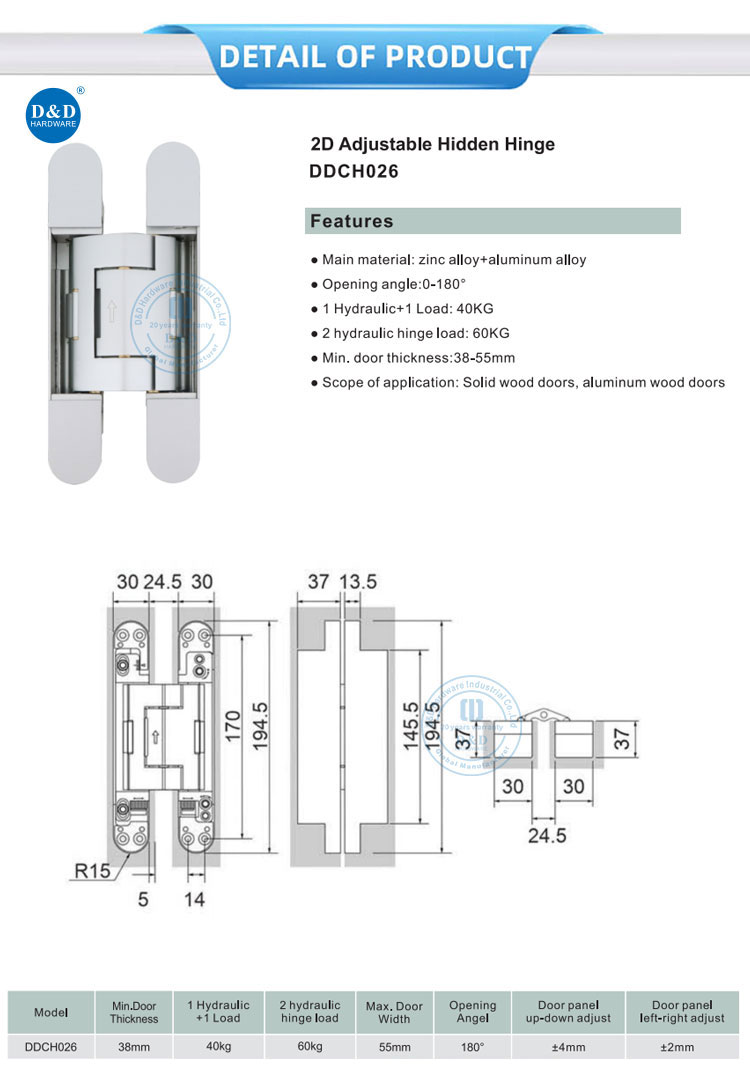

D&D DDCH026 is a 2D adjustable hydraulic concealed hinge made from high-strength zinc and aluminum alloys. Its integrated damping system provides quiet, controlled closing, while the 180° opening angle offers flexible door access. Suitable for doors 38–55 mm thick, it supports 40 kg with one hydraulic and one load hinge or 60 kg with two hydraulic hinges.
Product Overview
| Product Name | Hydraulic Soft-Close 2 Ways Adjustable Concealed Hinge 180 Degree Invisible Door Hinge |
| Product Model | DDCH026 |
| Material | Zinc Alloy and Aluminum Alloy |
| Finish | Pearl Chrome, Antique Bronze, Antique Copper, Painting |
| Suitable for | Wooden door, Metal door, fire rated door etc. |
Packaging & Shipping
| MOQ | 200 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated, UL Listed
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
