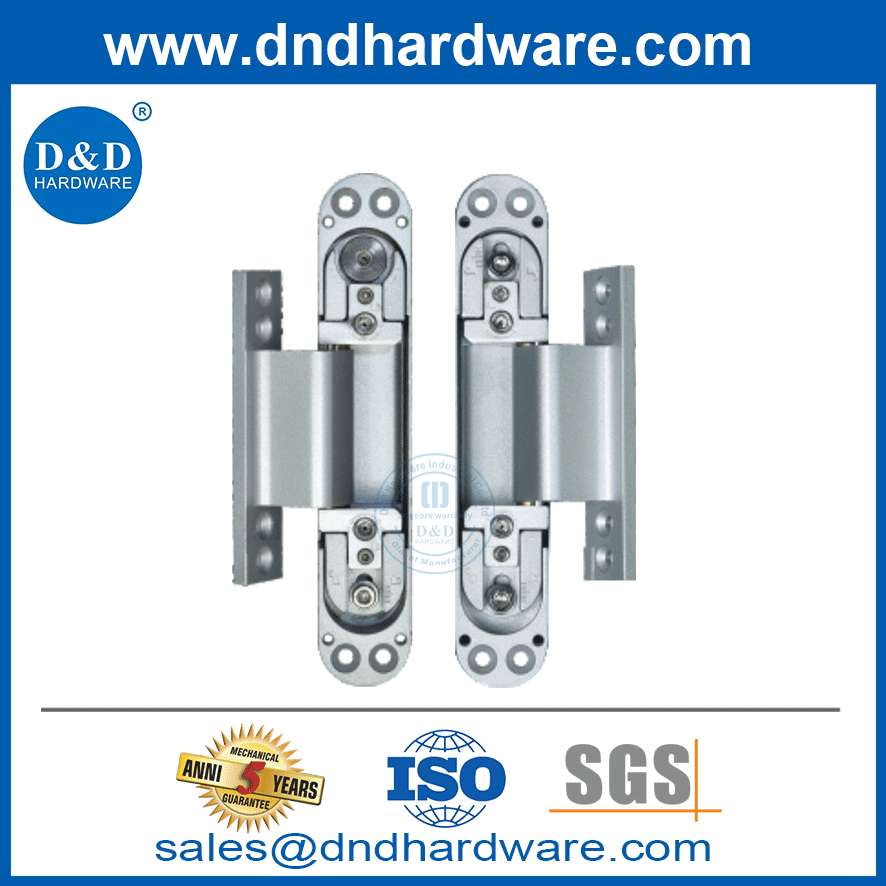

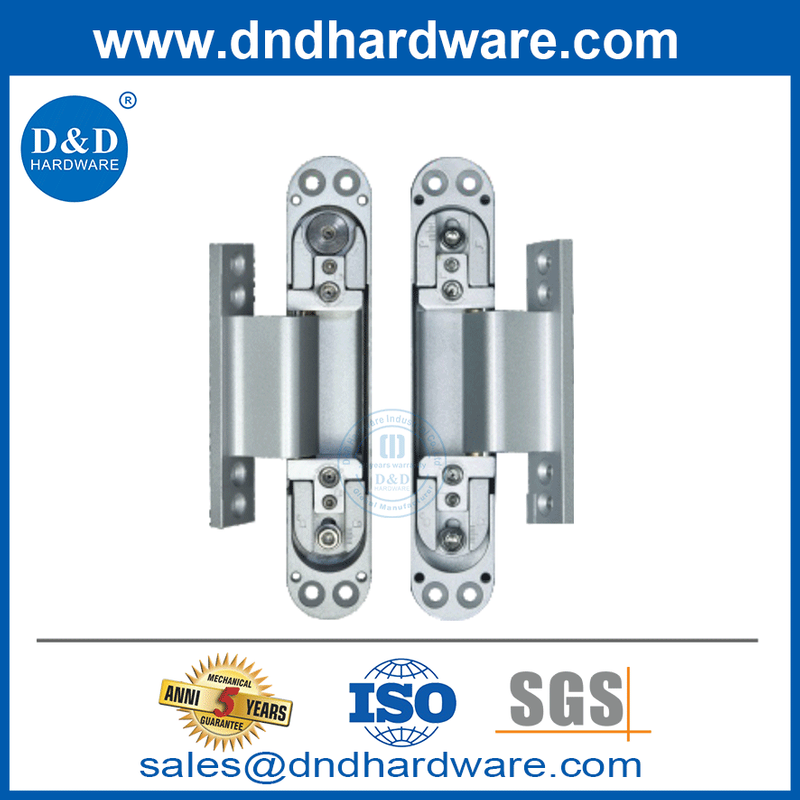

2D Adjustable Concealed Door Hinge Zinc Alloy Heavy Duty Hidden Hinge-DDCH023

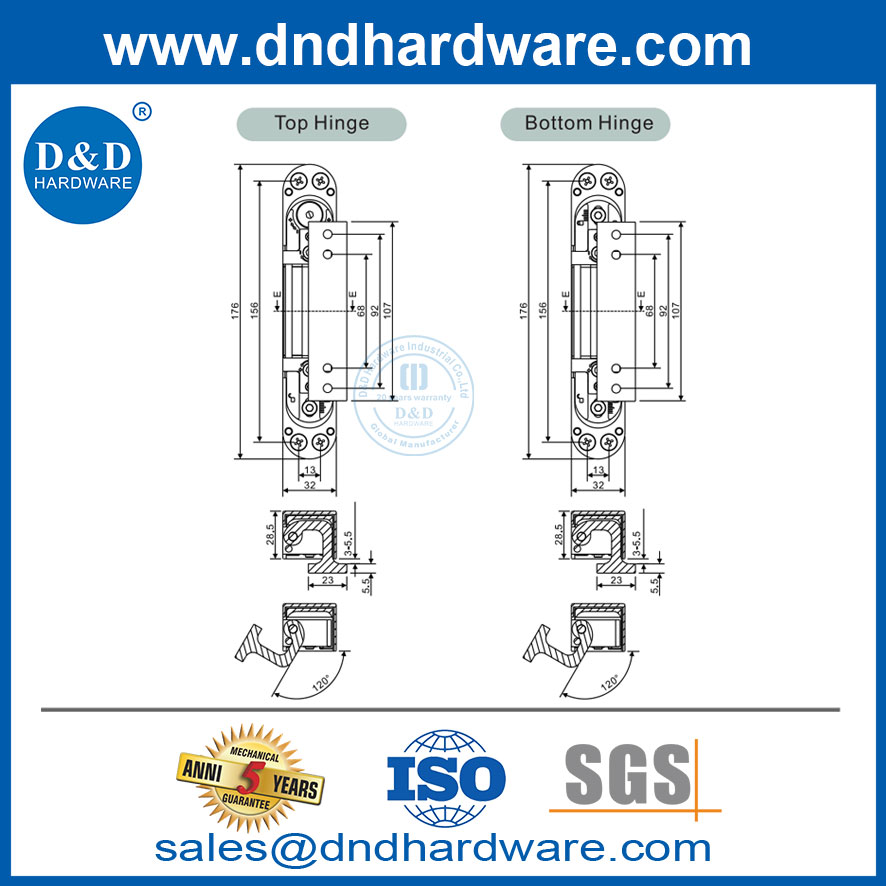

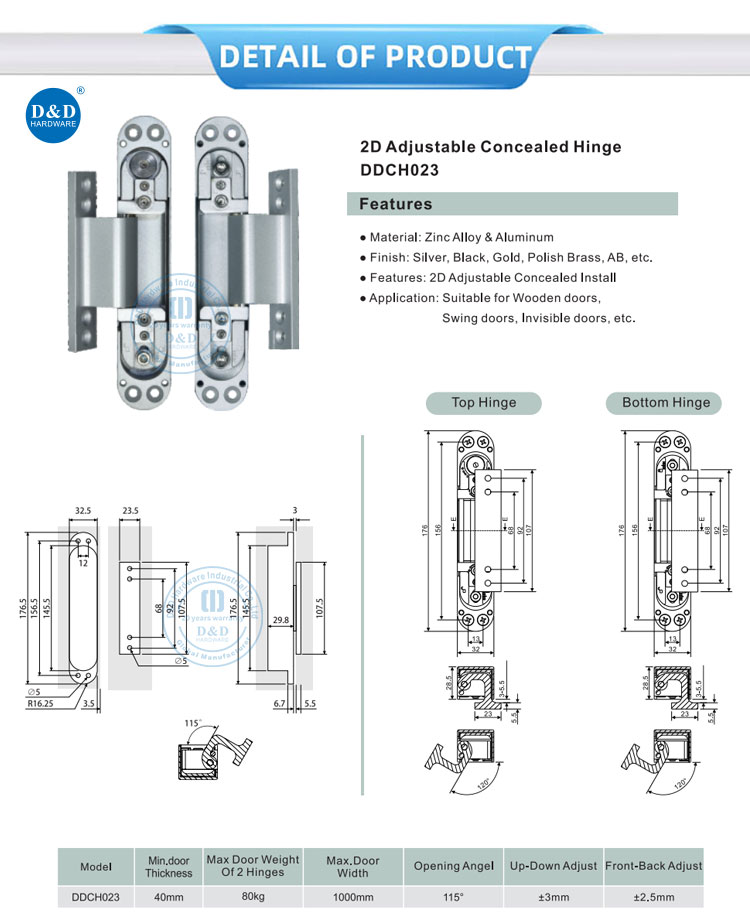

D&D DDCH023 is a heavy-duty 2D adjustable concealed hinge made from zinc alloy and aluminum. Its hidden installation provides a clean door edge, while ±3 mm vertical and ±2.5 mm horizontal adjustment simplify fitting and alignment. Supporting doors up to 80 kg and 1000 mm wide with a 115° opening angle, it suits wooden swing doors and modern invisible doors.
Product Overview
| Product Name | 2D Adjustable Concealed Door Hinge Zinc Alloy Heavy Duty Hidden Hinge |
| Product Model | DDCH023 |
| Material | Zinc Alloy and Aluminum |
| Finish | Silver, Black, Gold, Polish Brass, AB, etc. |
| Suitable for | Wooden door, Metal door, fire rated door etc. |
Packaging & Shipping
| MOQ | 200 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated, UL Listed
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
