English
 |
DDCHSL06-3D
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Exterior Door
Zinc Alloy
Black, Gunmetal Gray or Customized
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

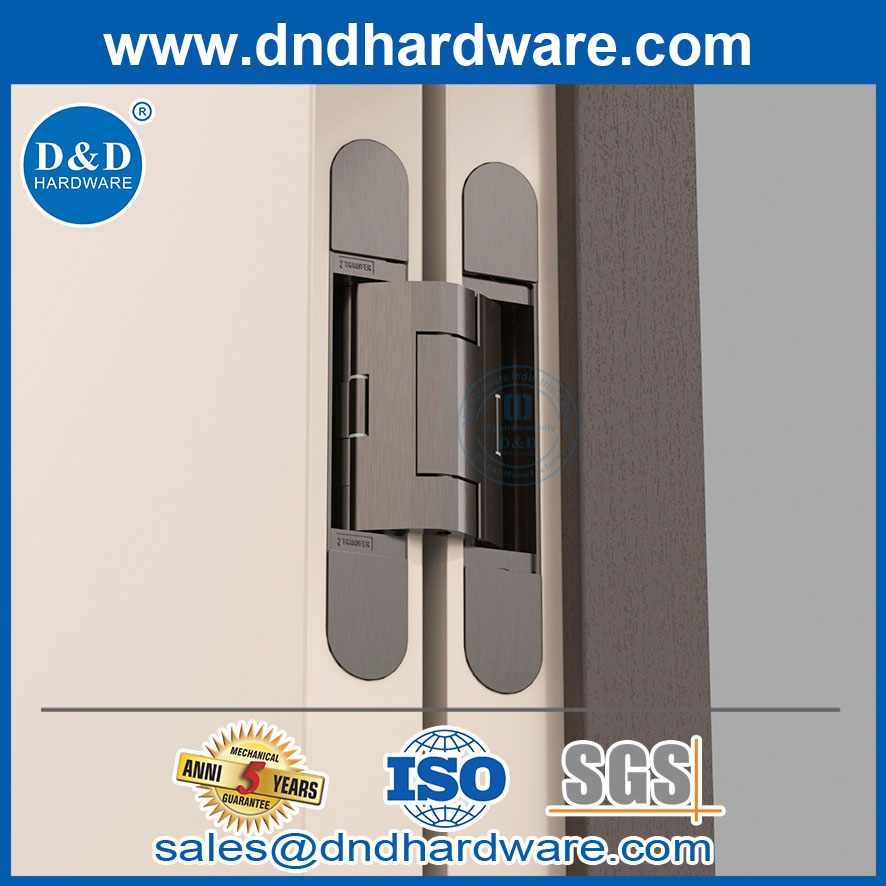

Zinc Alloy 3 Ways Adjustable Hydraulic Self Closing Concealed Hidden Door Hinge-DDCHSL06-3D

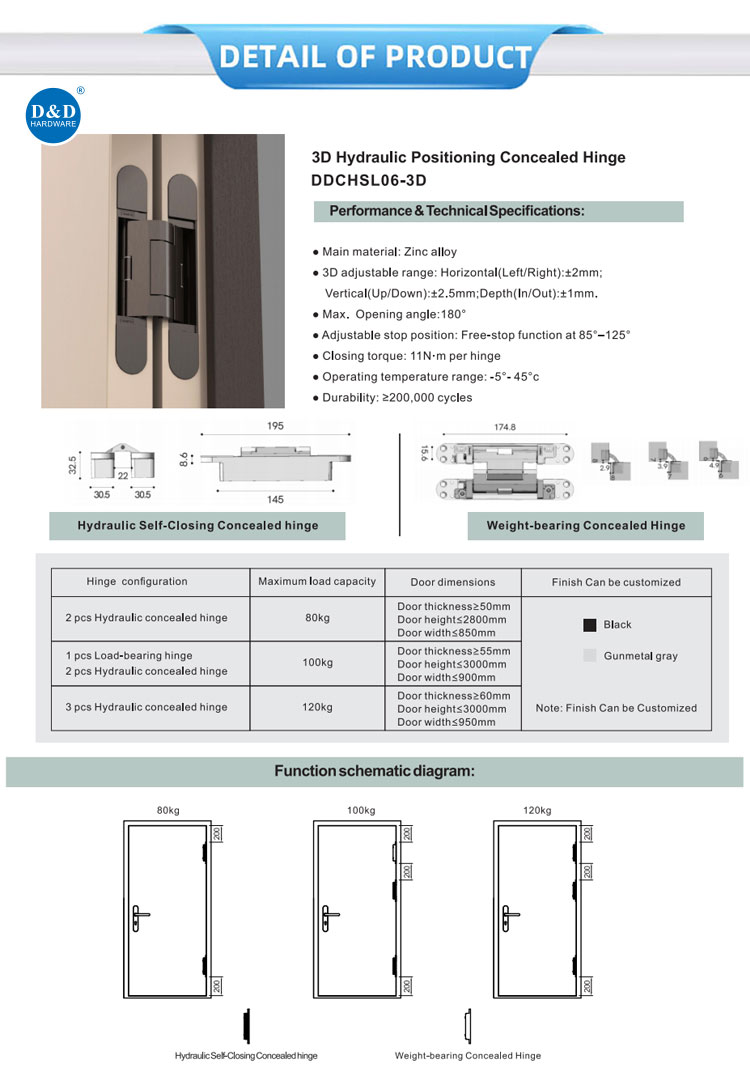

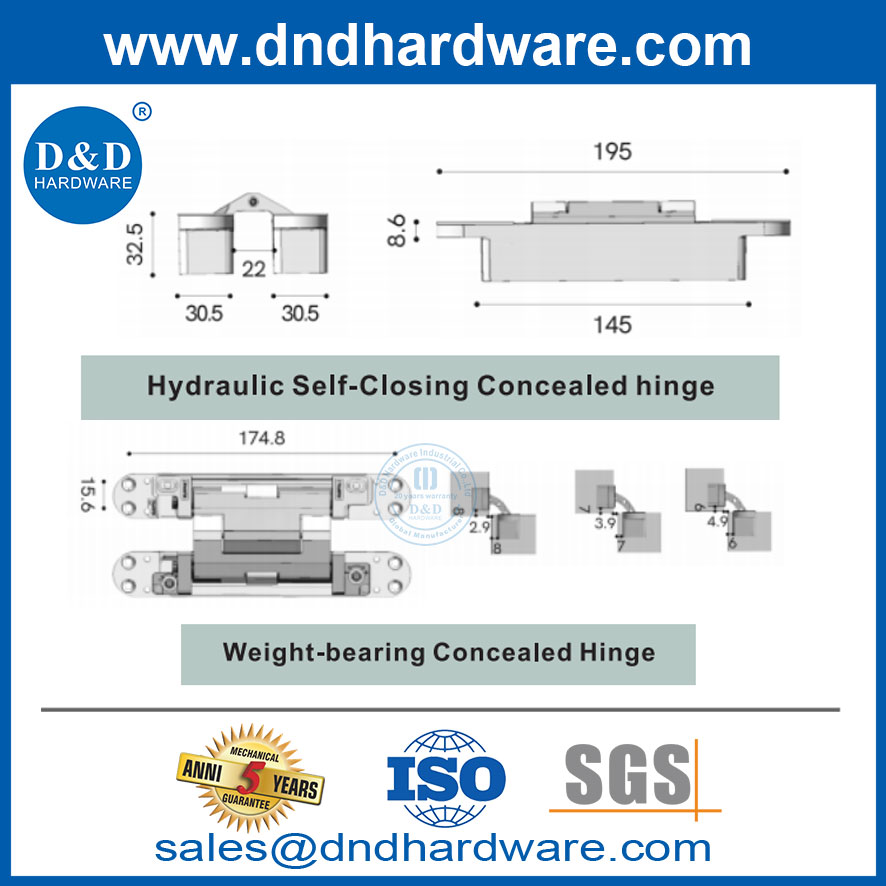

D&D DDCHSL06-3D is a zinc-alloy 3D hydraulic concealed hinge designed for accurate alignment and controlled closing of heavy doors. It provides ±2 mm horizontal, ±2.5 mm vertical and ±1 mm depth adjustment, plus a 180° opening and 85°–125° free-stop range. With 11 N·m torque and configurations up to 120 kg, it suits commercial wooden doors.
Product Overview
| Product Name | Zinc Alloy 3 Ways Adjustable Hydraulic Self Closing Concealed Hidden Door Hinge |
| Product Model | DDCHSL06-3D |
| Material | Zinc Alloy |
| Finish | Black, Gunmetal Gray or Customized |
| Suitable for | Wooden door, Metal door, fire rated door etc. |
Packaging & Shipping
| MOQ | 200 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated, UL Listed
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
Contact us
