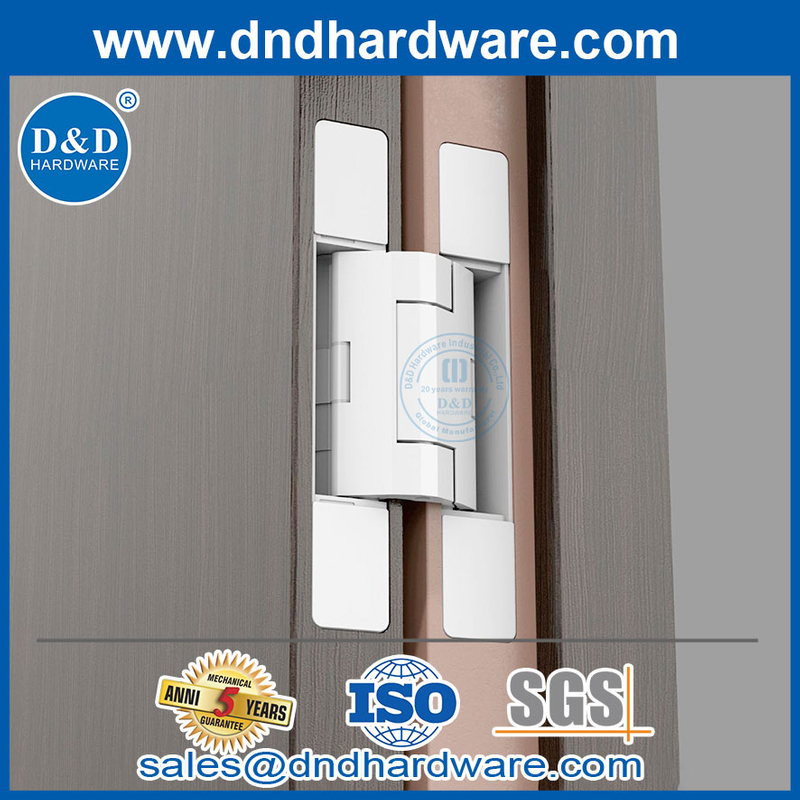

Heavy Duty Self-Closing Hydraulic Invisible Hinge 2 Ways Adjustable 180 Degree Concealed Hinge-DDCHSL03

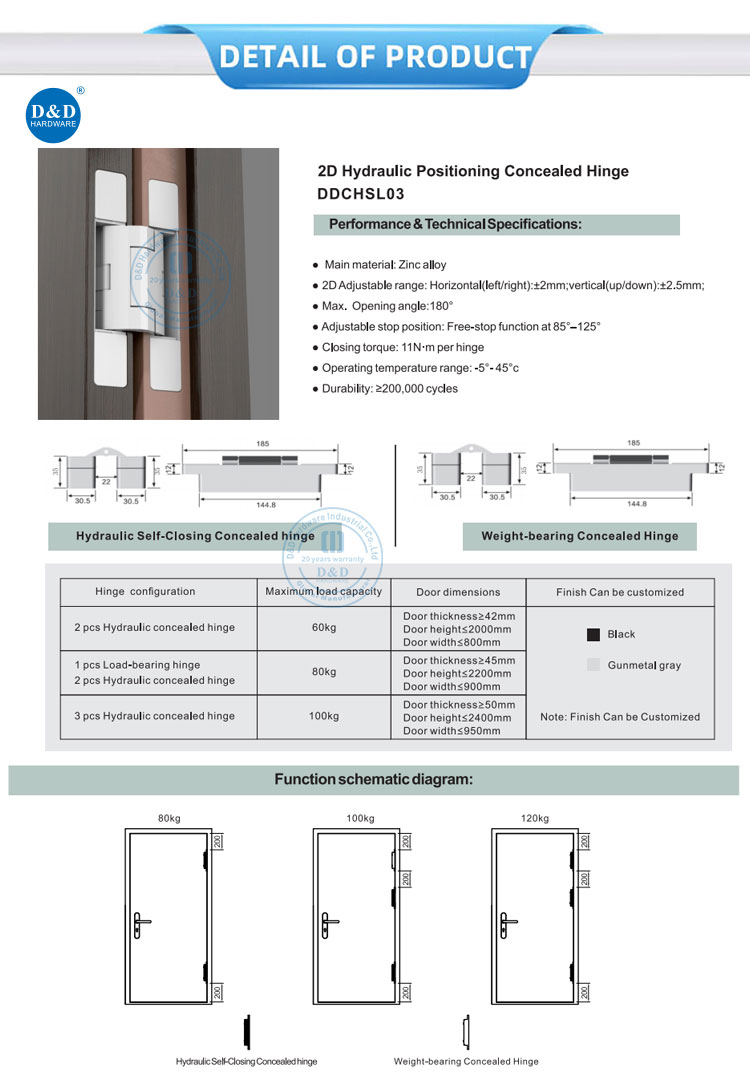

D&D DDCHSL03 is a heavy-duty zinc-alloy hydraulic concealed hinge with 2D adjustment and controlled self-closing performance. Its 11 N·m closing torque provides stronger door control, while the 180° opening and 85°–125° free-stop range improve everyday access. Suitable configurations support doors from 60 to 100 kg in hotels, offices and commercial interiors.
Product Overview
| Product Name | Heavy Duty Self-Closing Hydraulic Invisible Hinge 2 Ways Adjustable 180 Degree Concealed Hinge |
| Product Model | DDCHSL03 |
| Material | Zinc Alloy |
| Finish | Black, Gunmetal Gray or Customized |
| Suitable for | Wooden door, Metal door, fire rated door etc. |
Packaging & Shipping
| MOQ | 200 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated, UL Listed
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
