DDCH008-G80
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Exterior Door
UL Listed
Zinc Alloy and Aluminum Alloy
Silver, Black, Gold, Polish Brass, AB, etc.
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

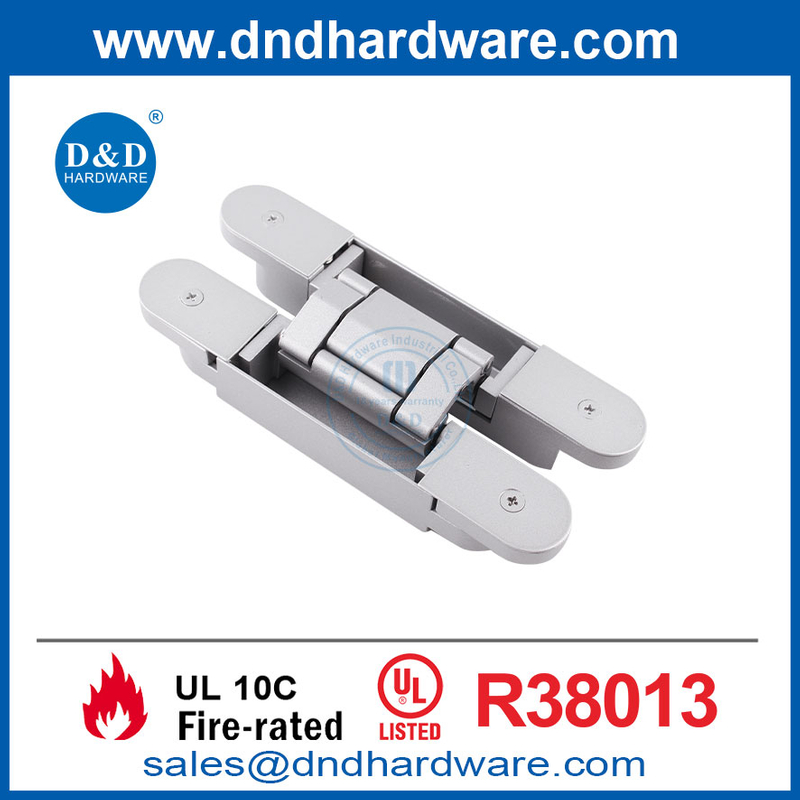

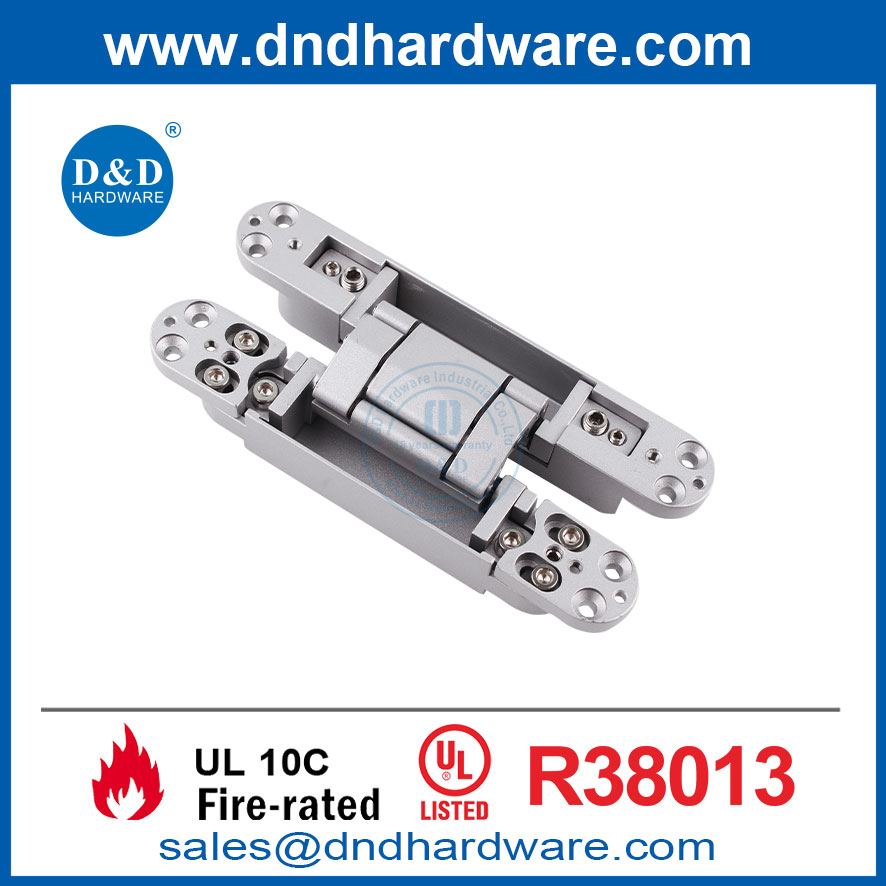

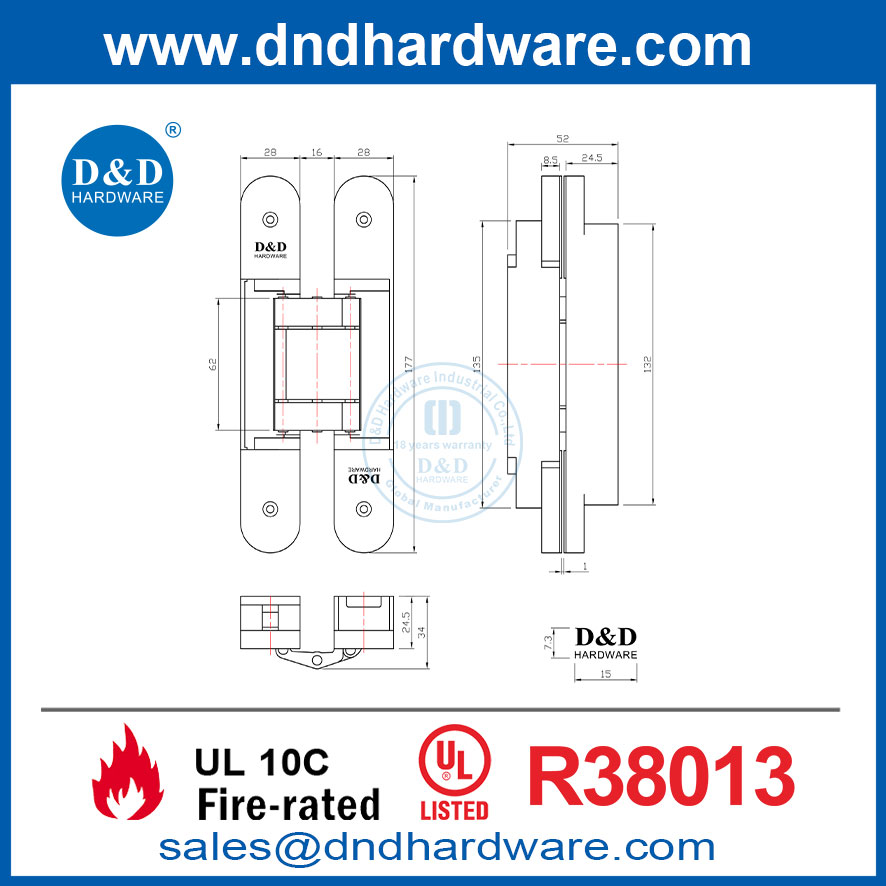

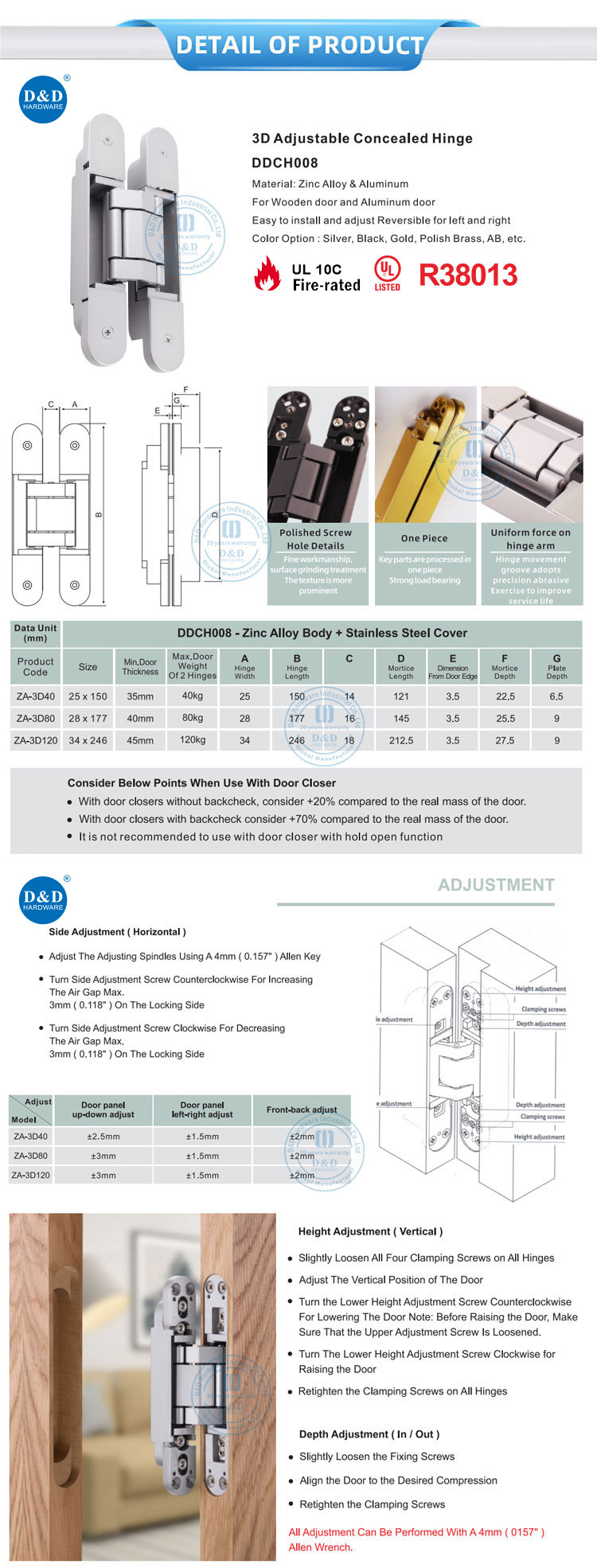

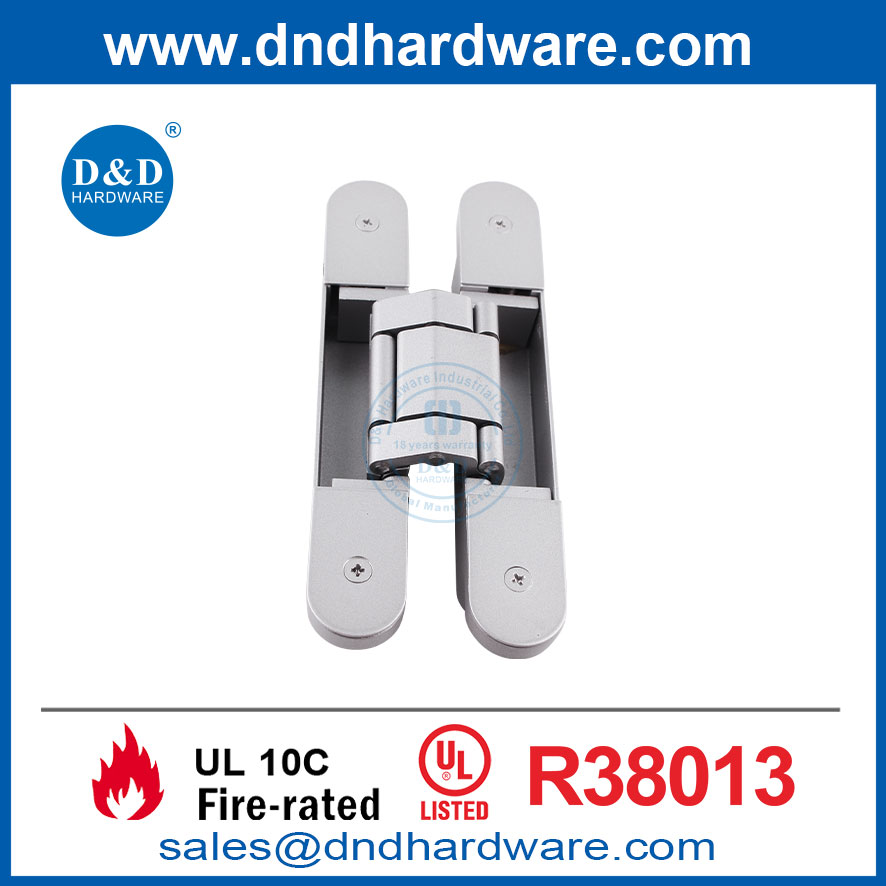

UL Heavy Duty Concealed Hinges 80kg Zinc Alloy Invisible Door Hinges-DDCH008-G80
Engineered for superior structural performance, the silver DDCH008-G80 sets the standard for heavy-duty concealed hinges. This 80kg zinc alloy invisible door hinge is fully UL certified for fire resistance, making it essential for commercial projects requiring strict safety compliance. Designed for solid wooden or aluminum doors with a minimum 40mm thickness, its precision-machined components offer excellent wear resistance and uniform force across the hinge arm. The universal reversible configuration fits any door swing orientation, while independent 3D adjustments enable contractors to quickly achieve flawless, flush-to-wall gap alignment.
Product Overview
| Product name | UL Heavy Duty Concealed Hinges 80kg Zinc Alloy Invisible Door Hinges-DDCH008-G80 |
| Product Model | DDCH008-G80 |
| Certification | UL 10C (File Number:R38013) |
| Material | Zinc Alloy and Aluminum Alloy |
| Fitting | Screws |
| Finish | Silver, Black, Gold, Polish Brass, AB, etc. |
| Suitable for | Wooden door, Steel door, folding door etc |
Packaging & Shipping
| MOQ | 200 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
