Butts and Hinges with ANSI/BHMA A156.1

Views:99     Author:Site Editor     Publish Time: 2017-12-20      Origin:Site

Butts and Hinges with ANSI/BHMA A156.1

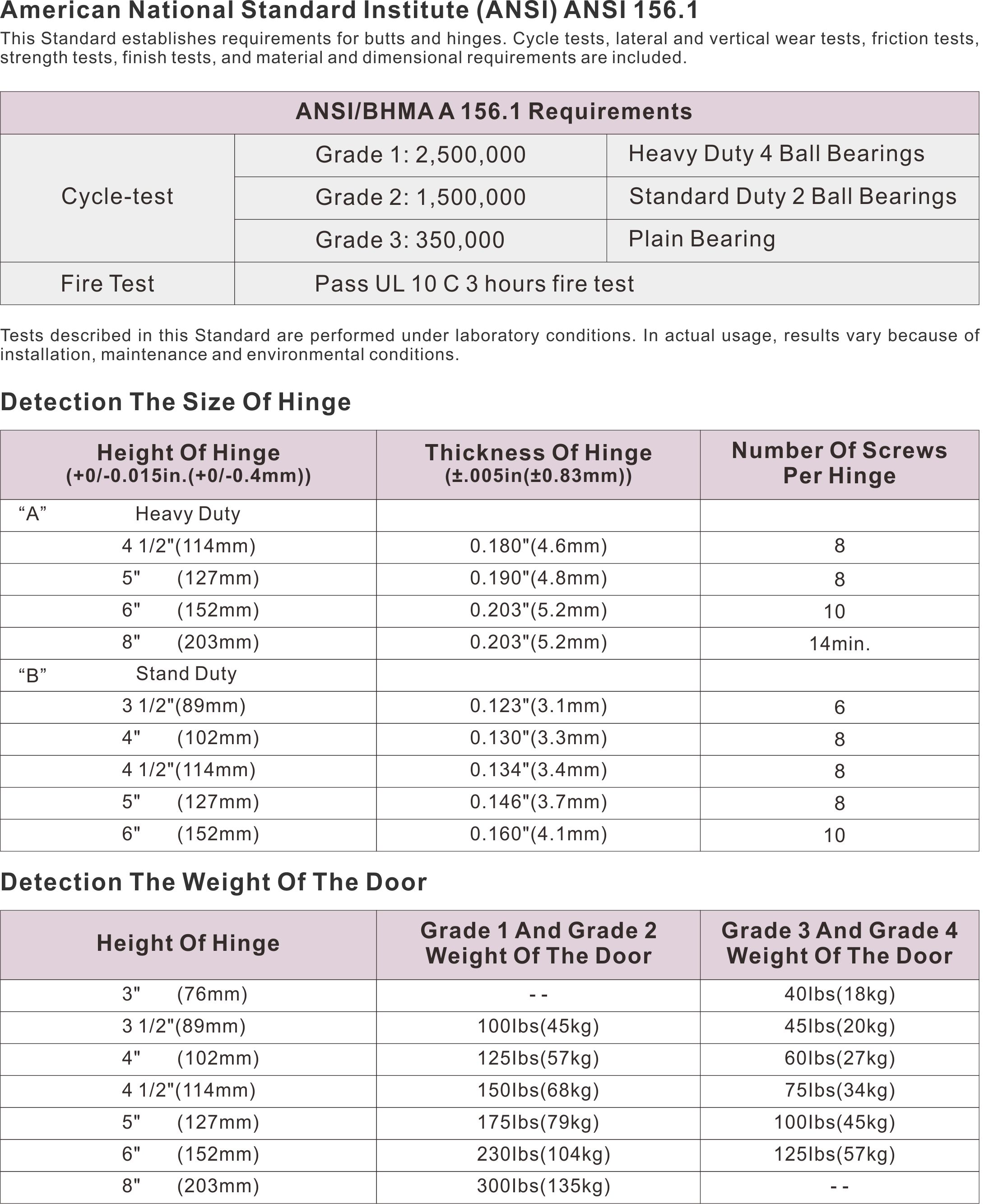

American National Standard Institute (ANSI) ANSI 156.1


ANSI 156.1


Grade 1: 2,500,000

Grade 2: 1,500,000

Grade 3: 350,000

Fire Test

Pass UL 10 C 3 hours fire test


Salt Spray Test 200 hours


1.1 This Standard establishes requirements for lightweight, standard weight, heavy weight and detention hinges. Cycle tests, lateral and vertical wear tests, friction tests, strength tests, finish tests, and material and dimensional requirements are included.

1.2 Tests described in this Standard are performed under laboratory conditions. In actual usage, results vary because of installation, maintenance and environmental conditions.

1.3 Consult NFPA 80-2010 for Fire Doors and Windows concerning hinge requirements for fire doors.

D&D Hardware provides high quality, durable hardware products to distributors and manufacturers. Our products include ANSI Door Hinges, Mortise LocksLock Cylinders, Lever Handles, Door Stopers, Door Bolts etc.


D&D continue to improve the processing techniques and upgrade the processing equipments, So that we can keep on providing higher quality products with more competitive price.
