DDCH008-G120
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Exterior Door
UL Listed
Zinc Alloy and Aluminum Alloy
Silver, Black, Gold, Polish Brass, AB, etc.
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

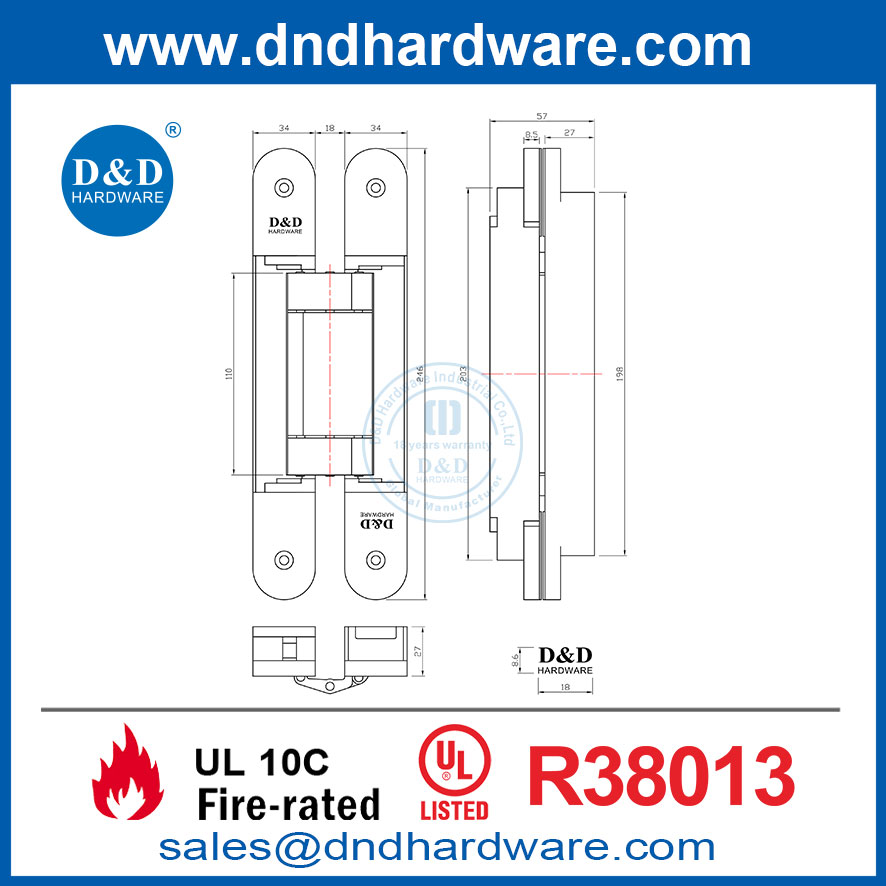

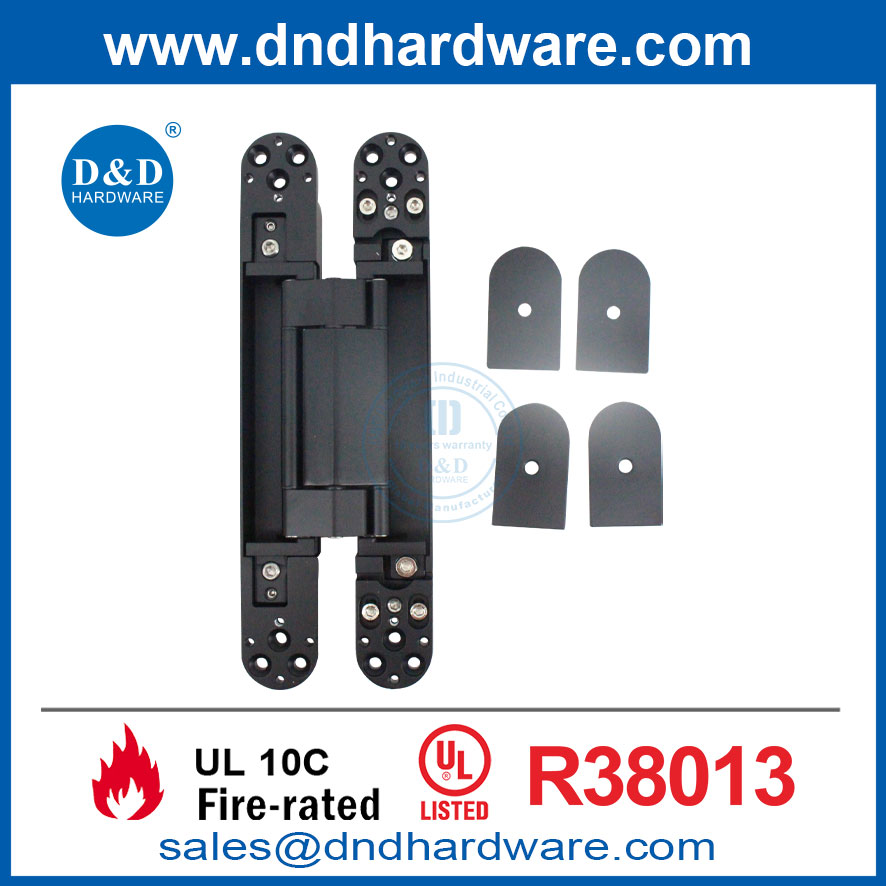

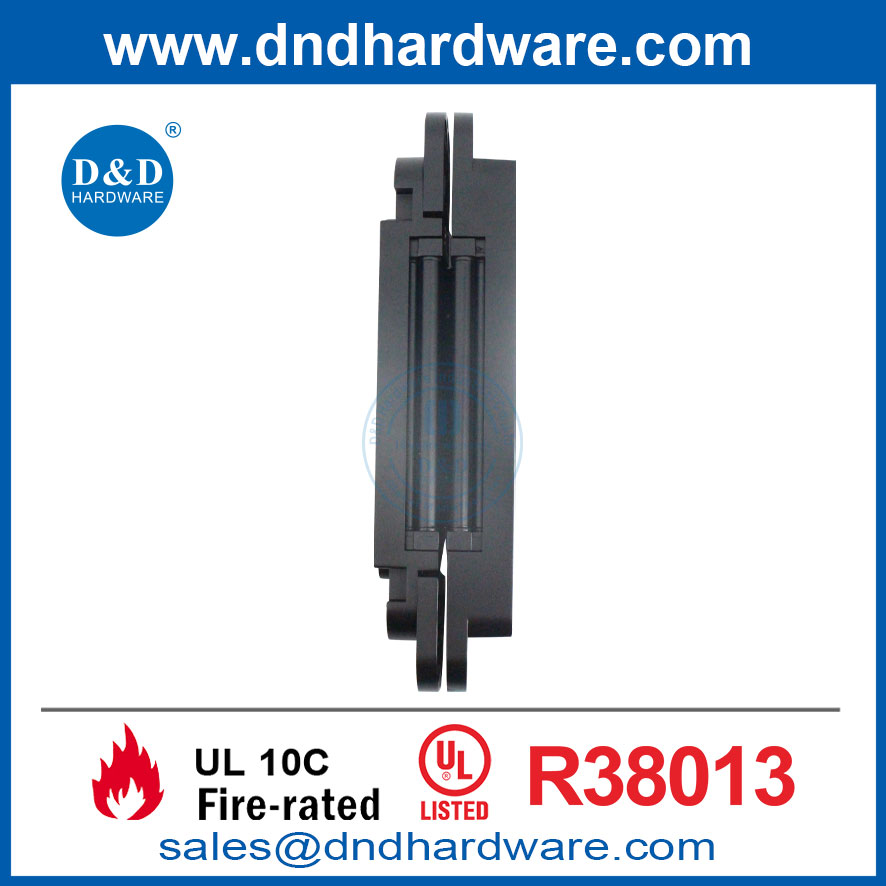

UL Listed Black Concealed Hinges 180 Degree Hidden Hinge for Heavy Doors-DDCH008-G120
The black DDCH008-G120 stands as a high-capacity hardware solution engineered for massive architectural openings. As a UL Listed black concealed hinge, it permits a wide 180-degree hidden hinge opening angle while sustaining a maximum door weight of 120kg (per 2 hinges). This zinc alloy model is precision-crafted for solid timber or heavy metal doors with a minimum thickness of 45mm. Certified under UL Listed R38013 for rigorous fire safety compliance, its internal mechanics ensure uniform force on the hinge arm to prevent heavy door sagging. The matte black finish offers a bold architectural statement, accompanied by an independent 3-way calibration system for exact alignment.
Product Overview
| Product name | UL Listed Black Concealed Hinges 180 Degree Hidden Hinge for Heavy Doors-DDCH008-G120 |
| Product Model | DDCH008-G120 |
| Certification | UL 10C (File Number:R38013) |
| Material | Zinc Alloy and Aluminum Alloy |
| Fitting | Screws |
| Finish | Silver, Black, Gold, Polish Brass, AB, etc. |
| Suitable for | Wooden door, Steel door, folding door etc |
Packaging & Shipping
| MOQ | 200 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
