DDCH008-G120
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Exterior Door
UL Listed
Zinc Alloy and Aluminum Alloy
Silver, Black, Gold, Polish Brass, AB, etc.
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

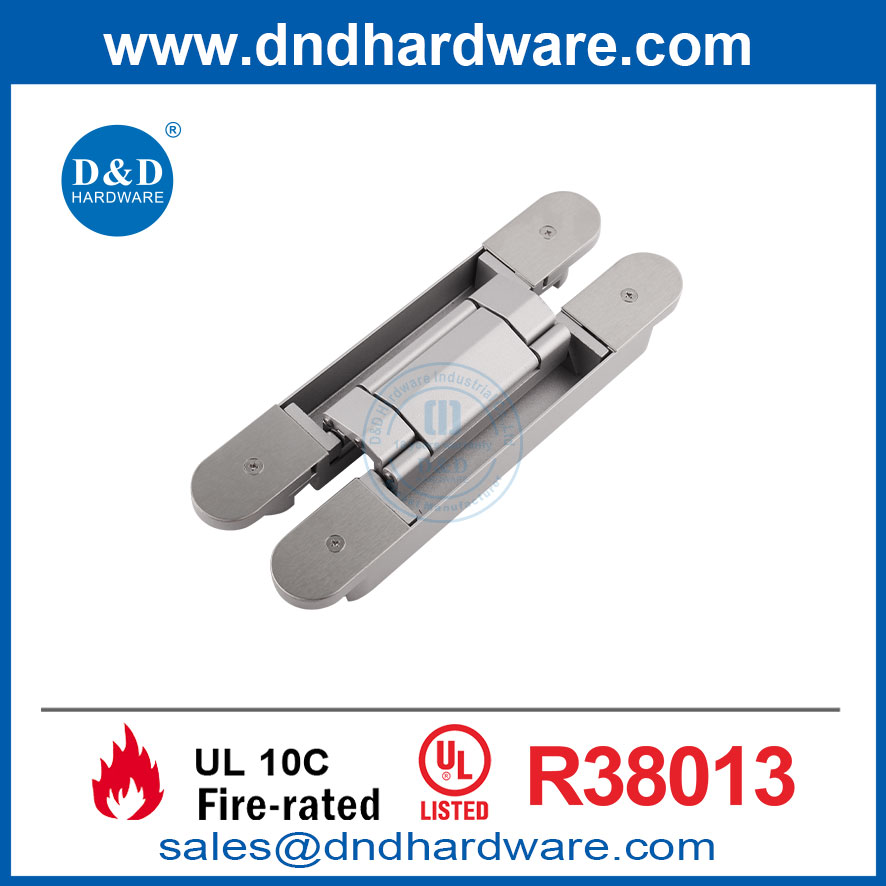

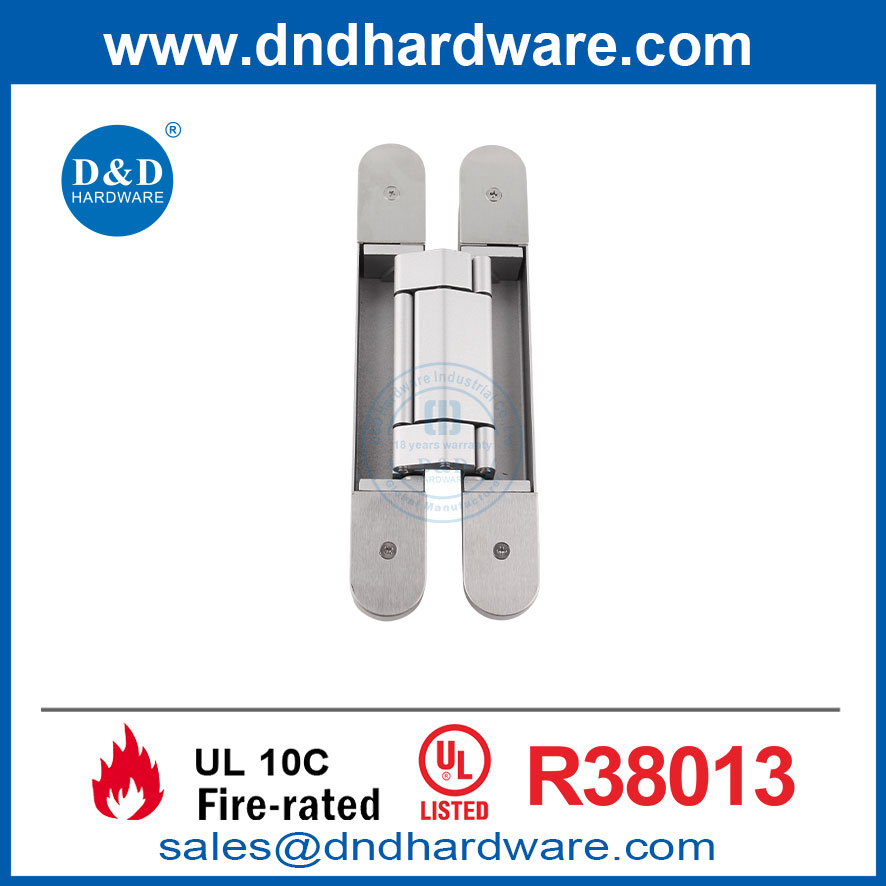

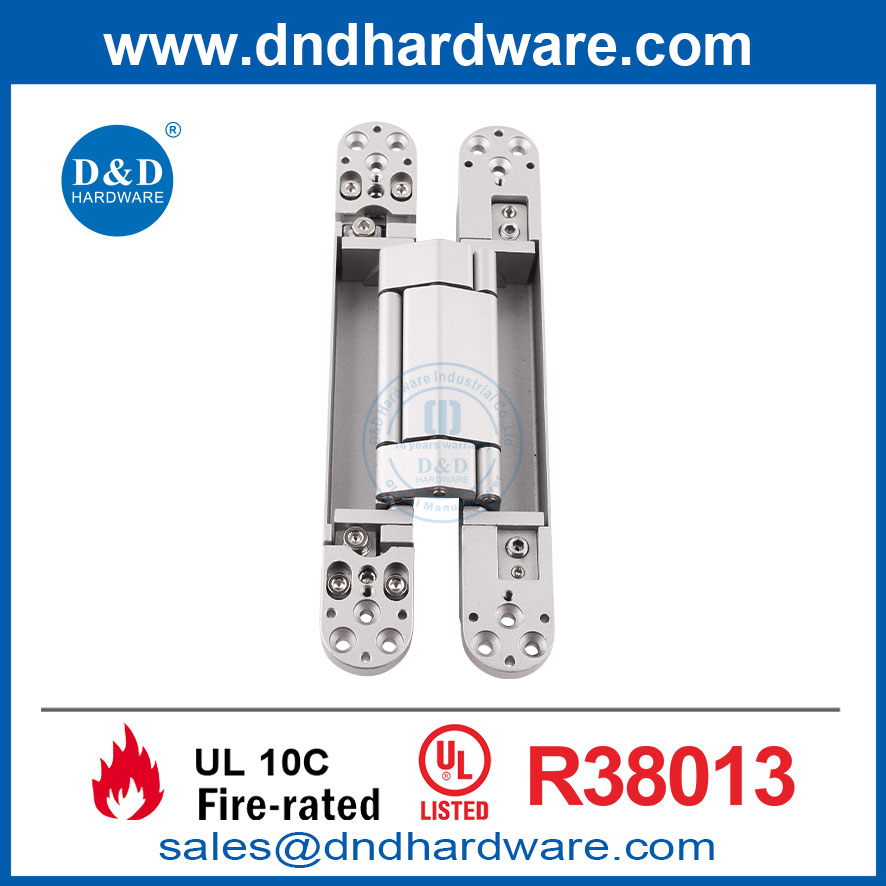

UL Listed Fire Rated 3D Concealed Exterior Door Hinges Heavy Load 120 KG-DDCH008-G120
Uncompromising structural integrity defines the silver DDCH008-G120 with a Satin Cover. Specially rated for demanding environments, this UL Listed fire-rated 3D concealed exterior door hinge is optimized for heavy loads up to 120kg. It provides exceptional wear resistance for external gates or heavy main entries with a minimum thickness of 45mm. The inclusion of a premium stainless steel satin cover ensures sleek aesthetics while protecting the internal zinc alloy housing. Offering precise 3-way technical calibration (horizontal, vertical, and depth), this reversible model guarantees a perfectly aligned flush finish, meeting the toughest commercial engineering benchmarks.
Product Overview
| Product name | UL Listed Fire Rated 3D Concealed Exterior Door Hinges Heavy Load 120 KG-DDCH008-G120 |
| Product Model | DDCH008-G120 |
| Certification | UL 10C (File Number:R38013) |
| Material | Zinc Alloy and Aluminum Alloy |
| Fitting | Screws |
| Finish | Silver, Black, Gold, Polish Brass, AB, etc. |
| Suitable for | Wooden door, Steel door, folding door etc |
Packaging & Shipping
| MOQ | 200 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
