DDCH011
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Exterior Door
UL Listed
Zinc Alloy and Aluminum Alloy
Silver, Black, Gold, Polish Brass, AB, etc.
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

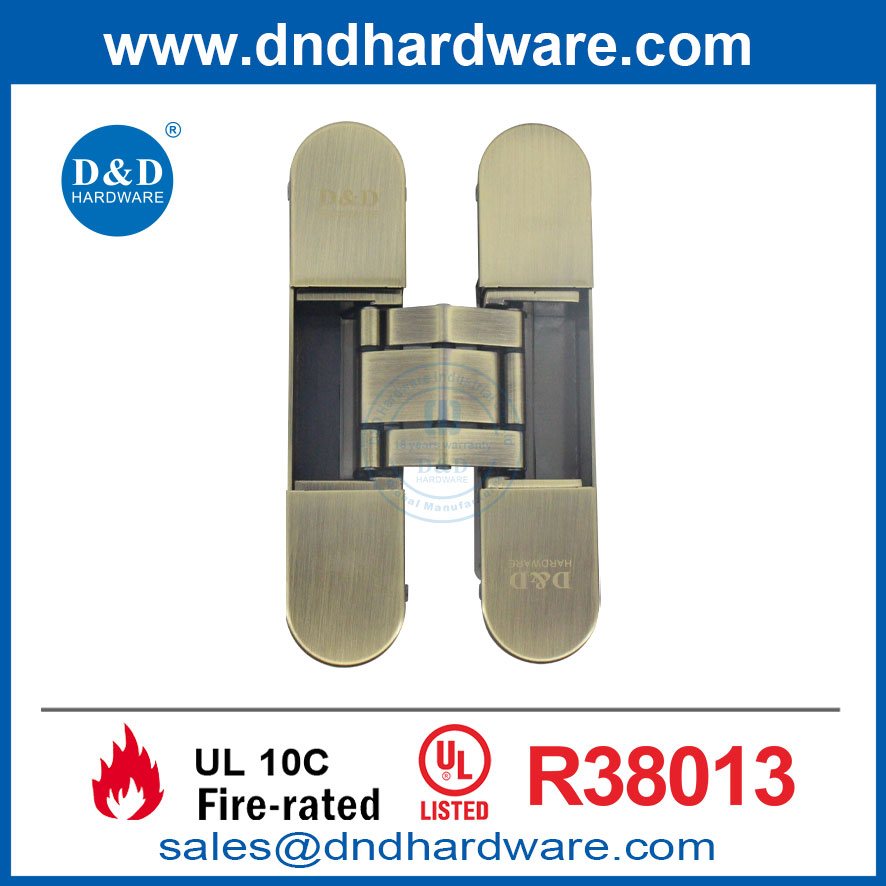

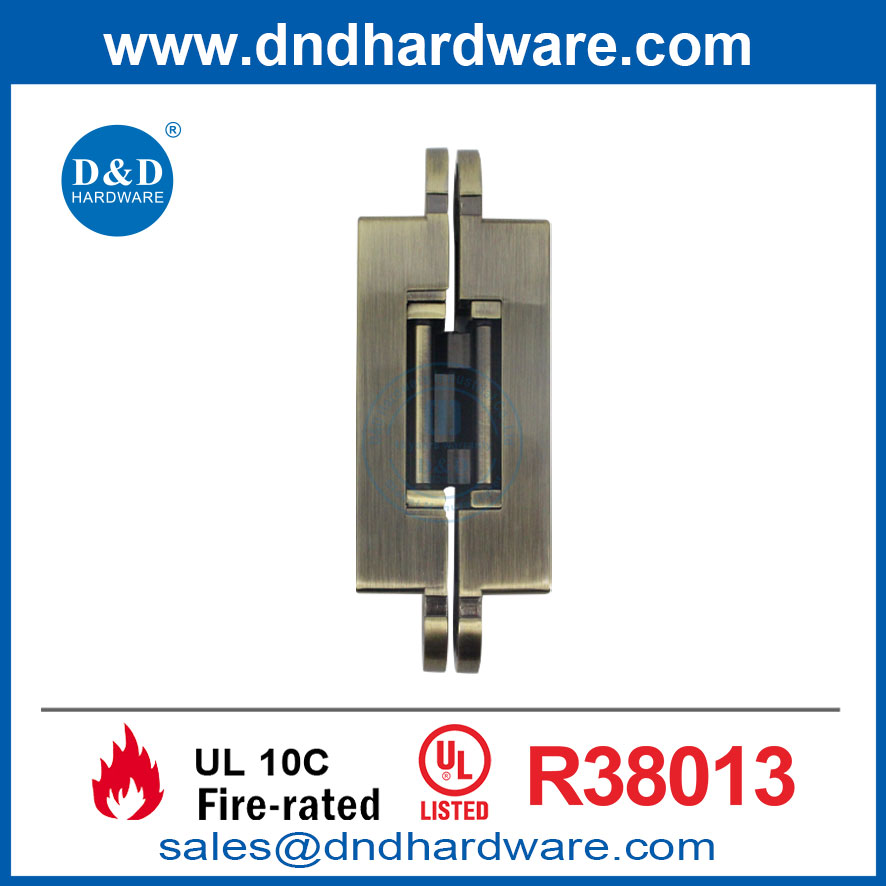

UL Listed Fire Rated 180 Degree Antique Bronze Concealed Hinges for Hidden Doors-DDCH011

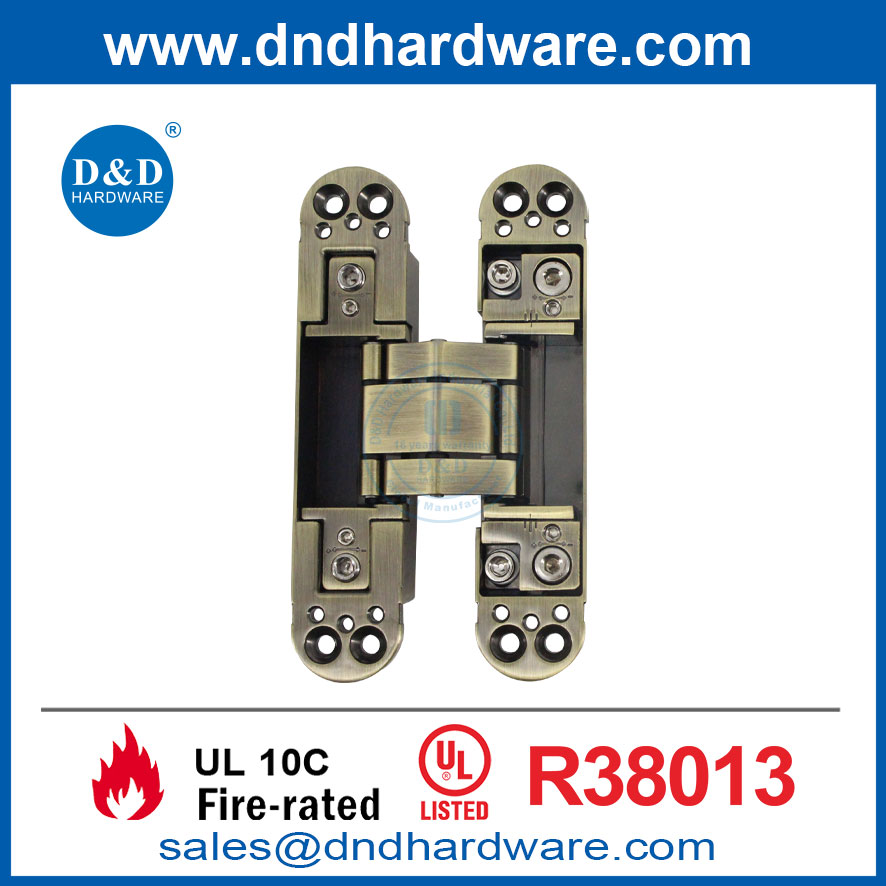

Blended with timeless elegance and certified safety, the DDCH011 in antique bronze is ideal for bespoke heritage or high-end hospitality designs. This UL Listed fire rated 180 degree antique bronze concealed hinge delivers a completely invisible appearance for modern hidden doors while maintaining historic aesthetics. Built from premium zinc alloy and aluminum, it accommodates heavy timber and metal doors up to 100kg (45mm thickness). Complete with matching protective covers to eliminate visible screws, this non-handed hinge offers precise 3-way gap dimension tuning to secure a perfectly flush, seamless wall alignment.
Product Overview

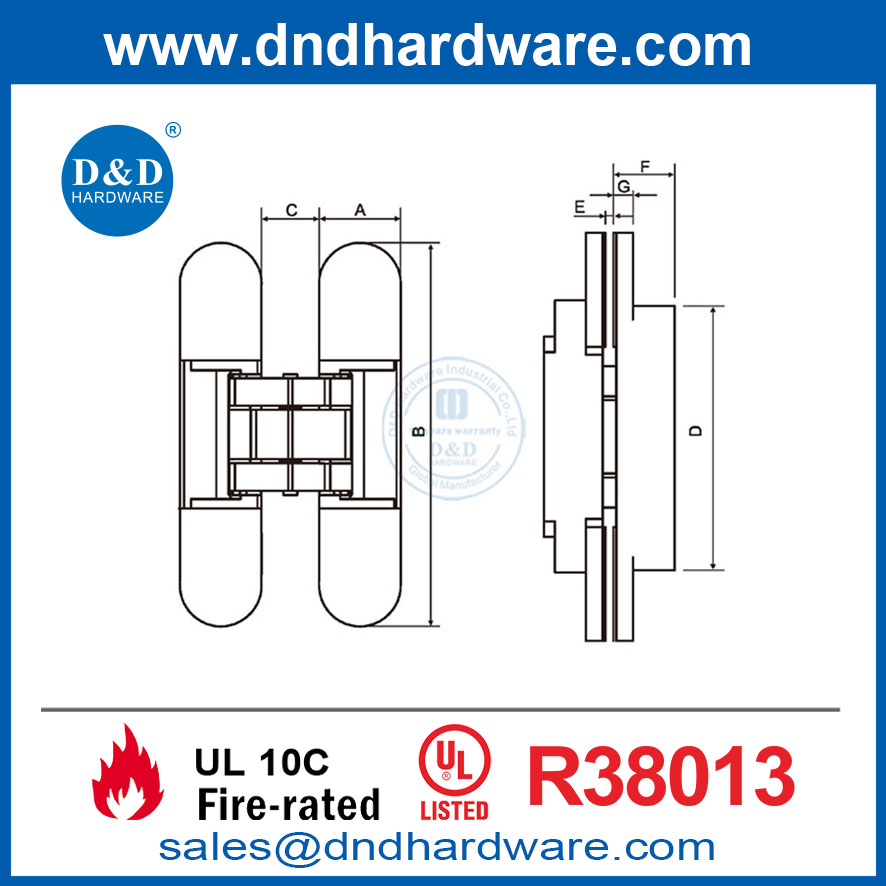

| Product name | UL Listed Fire Rated 180 Degree Antique Bronze Concealed Hinges for Hidden Doors-DDCH011 |
| Product Model | DDCH011 |
| Certification | UL 10C (File Number:R38013) |
| Material | Zinc Alloy and Aluminum Alloy |
| Fitting | Screws |
| Finish | Silver, Black, Gold, Polish Brass, AB, etc. |
| Suitable for | Wooden door, Steel door, folding door etc |
Packaging & Shipping
| MOQ | 200 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
