Fire safety stands as a paramount concern in any type of building, be it residential, commercial, educational, or industrial. Among the array of fire protection systems, fire doors are of crucial importance, as they significantly slow down the dissemination of flames and smoke, safeguard escape routes, and provide occupants with sufficient time for safe evacuation. Nevertheless, a fire door cannot fulfill its intended purpose independently. It depends on a set of specifically engineered and certified components, collectively referred to as fire door hardware.
This comprehensive beginner's guide will delve into the definition of fire door hardware, elaborate on its significance, and explain how CE and UL certifications contribute to ensuring safety and adherence to regulations.
Fire door hardware refers to the mechanical, electromechanical, and safety components installed on a fire-rated door, enabling it to function properly under normal use and during a fire emergency. These components are specially engineered to withstand high temperatures, maintain structural integrity, and support the fire door’s ability to compartmentalize fire.
Fire door hardware must allow:
-Safe and reliable daily use
-Automatic closure during fire
-Controlled access or exit
-Fire resistance for the duration the door is rated (30, 60, 90, 120 minutes or longer)
Because fire doors are part of a certified fire protection system, every piece of hardware must also be fire-rated, installed correctly, and tested to relevant global safety standards such as CE (EN standards) in Europe and UL certification in North America.
Fire door hardware is far from being a mere decorative or supplementary element; it constitutes an integral and indispensable life - safety system. In the intricate web of fire protection measures within a building, each component of the fire door assembly plays a crucial role. If even a single part of this assembly fails to function as intended, the entire fire door's ability to withstand fire can be severely compromised, potentially leading to the loss of its fire rating. This rating is a critical indicator of the door's performance under fire conditions, and its loss can have far - reaching consequences.
Life Safety
The primary and most fundamental function of fire door hardware is to safeguard human lives. When a fire breaks out, the hardware ensures that fire doors close firmly and remain shut. This containment action is vital as it prevents the fire, along with the accompanying smoke and toxic gases, from spreading freely throughout the building. By creating these isolated compartments, fire door hardware effectively buys precious time for the occupants. In a fire emergency, every second counts, and the additional time provided by properly functioning fire door hardware can be the difference between a safe escape and a tragic outcome. For example, in a multi - story residential building, fire doors with reliable hardware can prevent the fire from quickly engulfing the entire structure, allowing residents on upper floors to evacuate safely.
Legal Compliance
In the realm of building construction and safety, regulations are put in place to ensure the well - being of occupants and the overall integrity of the structure. Most building codes across the globe explicitly mandate the use of certified fire doors and their associated hardware. These codes are based on extensive research and industry best practices, aiming to set a minimum standard for fire safety. Using non - fire - rated components in a fire door assembly is a serious violation of these regulations. Such non - compliance can result in a range of severe penalties, including hefty fines. In more extreme cases, it may even lead to the shutdown of the building until the necessary corrections are made. Moreover, non - compliant use of fire door hardware can significantly increase the liability of the building owners, managers, and contractors in the event of a fire - related incident.
Property Protection
Beyond human life, fire door hardware also plays a crucial role in protecting property. Fires can cause extensive damage to assets within a building, ranging from valuable equipment and inventory to irreplaceable documents and personal belongings. Additionally, the structural components of the building, such as beams, columns, and floors, are at risk of being weakened or destroyed by the intense heat of a fire. Critical building systems, including electrical, plumbing, and HVAC, can also be severely affected. Fire door hardware, by slowing down the spread of fire, helps to limit the area of damage. This not only reduces the financial losses associated with property damage but also minimizes the disruption to business operations or daily life in the case of residential buildings. For instance, in an industrial facility, fire doors with reliable hardware can prevent a fire in one production area from spreading to other parts of the plant, protecting expensive machinery and raw materials.
Building Functionality
Certified fire door hardware is designed to ensure the smooth and reliable operation of fire doors on a daily basis. On a normal day, these doors should open and close effortlessly, allowing for easy movement of people and goods within the building. The hardware also provides secure locking mechanisms, which are essential for maintaining the security of the building and its contents. In terms of access control, certified hardware can be integrated into a building's overall security system, ensuring that only authorized personnel can enter certain areas. During an emergency, such as a fire, the hardware plays a critical role in facilitating safe egress. It allows occupants to quickly and easily open the fire doors and exit the building without any hindrance. This dual functionality of ensuring daily convenience and emergency safety makes certified fire door hardware an essential component of any well - designed building.
Fire door assemblies typically include several mandatory or optional components. Below are the most important ones:
Hinges allow the door to swing smoothly and support its weight. Fire-rated hinges:
-Withstand expansion under heat
-Maintain door alignment during fire
-Prevent the door from dropping or twisting
Relevant certifications:
-single-axis hinges: CE EN1935 200,000 cycles + EN1634 fire rated 192/260mins + EN1670 corrosion resistance 240 hours
-UL Listed Fire-Rated Hinges tested to UL10C, fire rated 3 hours, file NO.R38013
-ANSI/BHMA A156.1 and ANSI/BHMA A156.18, ANSI Grade 1 2,500,000 cycles, ANSI Grade 2 1,500,000 cycles
-3D adjustable concealed hinges: BS EN1935 200,000 cycles + EN1634 fire rated 132mins + EN1670 corrosion resistance 48 hours
A door closer automatically shuts the door after use. During a fire, this is one of the most critical components because an open fire door cannot stop fire spread.
Fire-rated door closers:
-Ensure consistent closing force
-Work even after exposure to high heat
-Support smoke and fire containment
Relevant certifications:
-CE EN1154 500,000 cycles + EN1634 fire rated 120/180mins + EN1670 corrosion resistance 96 hours
-UL Listed Closers tested to UL10C, fire rated 3 hours, file NO.R40717
-Fire rated door coordinators
These locks secure the door but are engineered to function even during extreme heat.
Fire-rated locks:
-Have steel or brass internal components
-Include fire-resistant latches that do not deform
-Work together with fire-rated cylinders and handles
Relevant certifications:
-CE EN12209 mortise lock 200,000 cycles + EN1634 fire rated 111/260mins + EN1670 corrosion resistance 240 hours
-UL Listed Mortice Locksets fire-rated to UL10C fire rated 3 hours, file NO.R40901
Cylinders allow keyed entry and locking. Fire-rated cylinders:
-Use heat-resistant solid brass materials
-Maintain shape so the lock does not jam
-Support master key systems for emergency access
Relevant certifications:

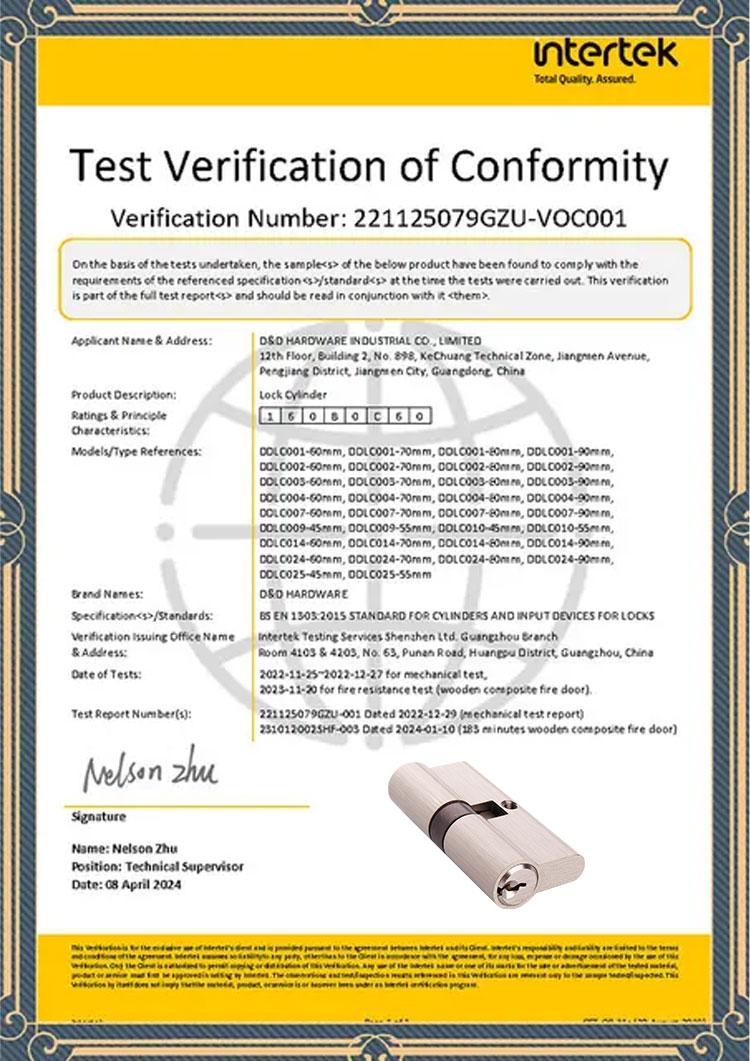

-BS EN1303 cylinders, test to 100,000 cycles + EN1634 fire rated 183mins + EN1670 corrosion resistance 96 hours
-UL Listed cylinders for fire doors
Fire-rated handles withstand heat without deforming and ensure the door can be opened quickly during normal use.
Relevant certifications:
-BS EN1906 200,000 cycles + EN1634 fire rated 183/260mins + EN1670 corrosion resistance 240 hours
-UL Listed fire door handles

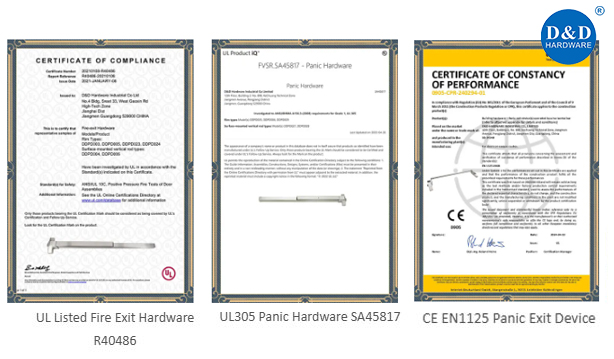

For emergency exits in public buildings, panic bars allow fast and safe evacuation with a simple push.
Relevant certifications:
-CE EN1125 (panic exit devices) 200,000 cycles + EN1634 fire rated 132/240mins + EN1670 corrosion resistance 240 hours
-UL 10C fire exit hardware, fire rated 3 hours, file NO.R40486
-UL305 emergency exit hardware, file NO.SA45817
(7) Fire-Rated Door Viewers
Door viewers (peepholes) used on fire doors must resist heat transfer and maintain fire integrity.
Relevant certifications:
UL Listed Door Viewers, UL 10C fire-rated for 20 minutes or up to 1.5 hours
When exposed to heat, these seals expand to fill gaps around the door, blocking flames and smoke.
Relevant certifications:
-EN fire-resistant test reports
-UL fire door assembly compliance
To ensure full fire safety compliance:
✔ Use only hardware with CE or UL fire certification
✔ Match the fire rating (e.g., 60, 90, 120 minutes)
✔ Ensure all components are compatible and certified as a system
✔ Always install hardware according to the manufacturer’s instructions
✔ Conduct regular inspections and maintenance
✔ Keep all documentation, certificates, and DoP (Declaration of Performance)
If any component is replaced with a non-certified part, the entire fire door may fail in an emergency.
Fire door hardware is an essential part of a building’s fire protection system. Each component—hinges, locks, closers, cylinders, panic devices, and seals—works together to ensure the door performs exactly as required during a fire. The use of CE-certified or UL-listed fire-rated hardware guarantees compliance, reliability, and life-saving performance.
Whether you are an architect, contractor, building manager, or homeowner, understanding fire door hardware is crucial for ensuring safety, preventing fire spread, and protecting people and property. Using properly certified hardware is not only a legal requirement but also a responsible choice that can save lives.
