A specification-led approach to fire safety, access control, high-traffic durability and procurement efficiency.
OUTCOME One coordinated CE / BS EN hardware package, an integrated four-level master key system and one accountable supply partner—from technical review through delivery. |
Project requirement | Selected approach | Customer value |
Building type | Modern bank headquarters | Hardware matched to public, controlled-access and service areas |
Primary priorities | Fire safety, security, durability, finish consistency and budget control | Fewer compliance, coordination and lifecycle risks |
Standards route | CE / BS EN solution selected after reviewing specifications and budget | Performance aligned with the project without unnecessary overspecification |
Supply model | Complete hardware schedule from one manufacturer | Simpler procurement, installation coordination and maintenance |
Access control | Customized four-level master key hierarchy | Controlled departmental access with fewer keys to manage |
A bank headquarters cannot treat every opening as the same specification. Public banking halls need dependable hardware for frequent use. Offices and meeting rooms require controlled access and consistent operation. Fire doors must preserve the intended performance of the complete door assembly. Emergency exits need intuitive egress hardware, while utility rooms require secure, maintainable locking.
The client wanted to avoid the common project risks created by fragmented sourcing: mismatched components, inconsistent finishes, duplicated supplier coordination, uncertain certification coverage and more complicated after-sales support. The commercial objective was equally clear—meet the specification and local acceptance requirements without paying for performance the project did not need.
D&D reviewed each door application as a working system. The lock, hinge, closer, lever, cylinder and exit device were selected according to the opening's function, traffic level, security need and fire-door requirement. This reduced the risk of choosing individually compliant components that were unsuitable when combined on a specific opening.
D&D presented both UL-listed and CE / BS EN hardware routes. The choice was not based on a generic claim that one standard is universally better. It was based on the applicable project specification, local requirements, door construction, intended use and budget. Following that review, the client selected the CE / BS EN package.
Different departments and service teams needed different permissions. A four-level master key structure was therefore designed around operational authority—from building-wide control to individual doors—rather than simply supplying cylinders as isolated products.
The hardware schedule standardized compatible models and finishes across repeated door types. Combined with D&D's factory-direct manufacturing model, this helped control procurement cost while preserving the specified certification and performance requirements.
D&D supplied a coordinated architectural door hardware package supported by engineering review, product selection, hardware scheduling and installation guidance. The solution drew on more than 18 years of manufacturing experience, ISO 9001 production systems, third-party certification and in-house verification.
Door application | Representative D&D hardware set |
Fire doors | DDML009 fire-rated mortise lock; 4.5 × 4 × 3.0 mm CE stainless steel ball-bearing hinges; DDDC013 door closer; DDTH001 lever handle; DDLC004 euro-profile single cylinder with thumbturn |
Office doors | DDML009 mortise lock; DDTH001 lever handle; 4 × 3 × 3.0 mm stainless steel hinges; DDDC013 door closer |
Emergency exits | DDPD025-CE panic exit device; DDPD012 outside trim; CE ball-bearing hinges; DDDC020BC heavy-duty door closer; DDDR003 concealed door coordinator |
Meeting rooms | DDML009 mortise lock; DDTH001 lever handle; door closer |
Utility rooms | DDML013 deadbolt lock; stainless steel hinges; DDLC004 single cylinder with thumbturn |
Hall entrance | DDPT patch fitting set; DDFS002 floor spring; stainless steel pull handle |
Note: A final hardware set should always be verified against the approved door schedule, door and frame construction, fire-door listing, local code and authority having jurisdiction.
The project used the CE / BS EN route, while D&D's broader portfolio also supports UL / ANSI specifications. This gave the project team a clear choice between standards pathways rather than forcing a single catalogue solution.
Portfolio route | Representative referenced standards |
CE / BS EN | Hinges: EN 1935 and EN 1634; mortise locks: EN 12209 and EN 1634; lever handles: EN 1906 and EN 1634; cylinders: EN 1303 and EN 1634; panic hardware: EN 1125 and EN 1634; door closers: EN 1154 and EN 1634 |
UL / ANSI | Butt and concealed hinges: UL 10C; mortise locks: UL 10C with ANSI-grade options; panic hardware: UL 10C / UL 305 with ANSI-grade options; door closers: UL 10C with ANSI-grade options; push/pull plates: ANSI/BHMA A156.6 |
D&D's referenced fire-performance portfolio includes products tested up to 260 minutes under EN 1634 and up to three hours under UL 10C. The applicable rating remains product-, configuration- and assembly-specific and should be confirmed in the relevant certification documentation.
Access level | Purpose |
GGMK — Great Grand Master Key | Highest authority; opens all locks included in the designed system |
GMK — Grand Master Key | Controls multiple departments or major operational groups |
MK — Master Key | Controls a defined zone, floor or department |
Individual key | Operates a designated lock for restricted local access |
The result was easier day-to-day key management, clearer access boundaries and reduced dependence on large numbers of individual keys. The hierarchy also gave facilities teams a more maintainable framework for future changes.
Certification demonstrates the performance of tested samples and configurations. Project buyers also need confidence that production shipments remain consistent. D&D supplements third-party testing with batch-level controls and random sampling in its in-house laboratory.
·Hinge load-bearing and cycle testing
·Mortise-lock operation and cycling checks
·Lever-handle torque and return-spring verification
·Cylinder durability testing
·Door-closer durability and closing-force checks
·Panic-device durability testing
This process is designed to identify production variation before shipment and to improve consistency between approved samples and mass-produced hardware. For the customer, the practical value is lower risk of rework, delayed acceptance, premature replacement and fragmented warranty responsibility.
Following installation and commissioning, the supplied system passed the project's inspection and local acceptance process. During the initial operating period, the project reported no hardware failures. The completed solution delivered:
·Hardware aligned with the applicable fire-door and project requirements
·Smooth operation in high-frequency public and office areas
·Consistent architectural finishes across multiple door types
·Simplified maintenance through standardized specifications
·Improved access management through the integrated master key system
· Reduced sourcing complexity and better cost control through one-stop supply
CUSTOMER VALUE The strongest result was not a single product. It was a coordinated system that balanced compliance, operational security, maintainability and commercial control. |
For a bank, office tower, hospital, hotel, school or government facility, the following checks can prevent costly specification and procurement errors:
Buyer check | Question to resolve before ordering |
Applicable standard | Does the project require CE / BS EN, UL / ANSI or another locally accepted route? |
Assembly compatibility | Are hardware certifications valid for the intended door, frame, rating and installation configuration? |
Opening function | What must each opening achieve for egress, security, accessibility, traffic and hold-open control? |

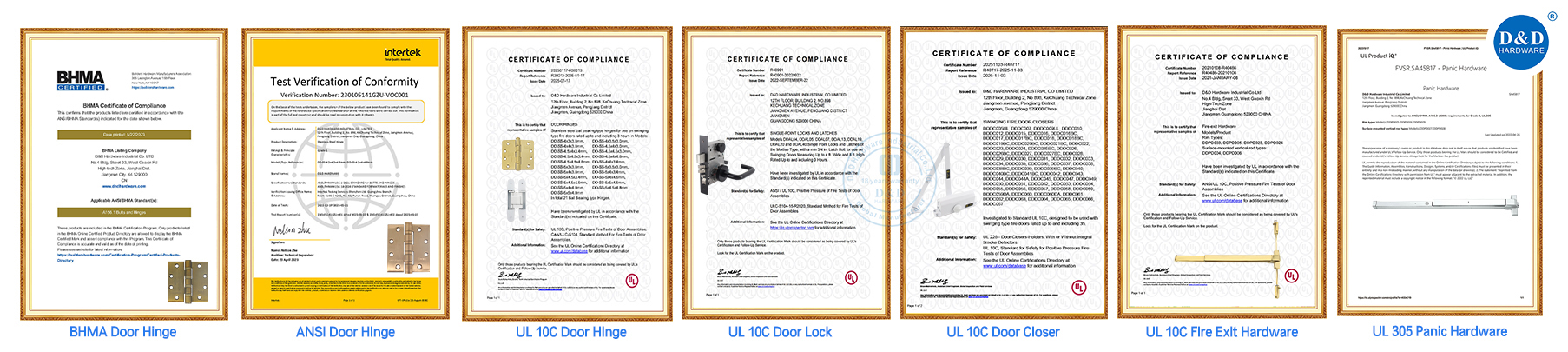

Evidence | Can the supplier provide current certificates, listings, test reports and model coverage? |
Keying plan | Who needs access to which zones, and how will lost keys or future changes be managed? |
Quality consistency | How does the supplier verify that production matches approved samples? |
Lifecycle support | Are drawings, installation guidance, spares and replacement identification available? |
D&D combined internationally recognized certification coverage with a factory-direct, engineering-led supply model. For this customer, that meant one partner could coordinate the hardware schedule, finishes, master key system, technical documents and production quality controls.
·18+ years of architectural hardware manufacturing experience
·UL, ANSI/BHMA, CE and BS EN product options for different specification routes
·Complete hardware scheduling for metal, wooden and fire-rated door applications
·Customized master key systems, finishes, OEM branding and packaging
·Technical drawings, installation guidance and project-stage engineering support
· Factory-direct supply focused on certified performance and procurement value
One supplier can coordinate the package, but every opening still requires a function-specific hardware set. Fire rating, traffic, security, accessibility, egress and door construction must be reviewed individually.
Choose the standards route required by the project specification, local regulation and authority having jurisdiction. Product availability or price alone should not determine the route. In this project, the CE / BS EN solution offered the appropriate balance after technical and budget review.
A planned hierarchy limits access by role while allowing authorized managers to operate groups of locks. It reduces key volume, clarifies responsibility and makes future access changes easier to manage.
Request certificates or listing evidence, model coverage, relevant test reports, product data sheets, approved drawings, the opening schedule, installation instructions, finish samples and a clearly documented keying schedule.
