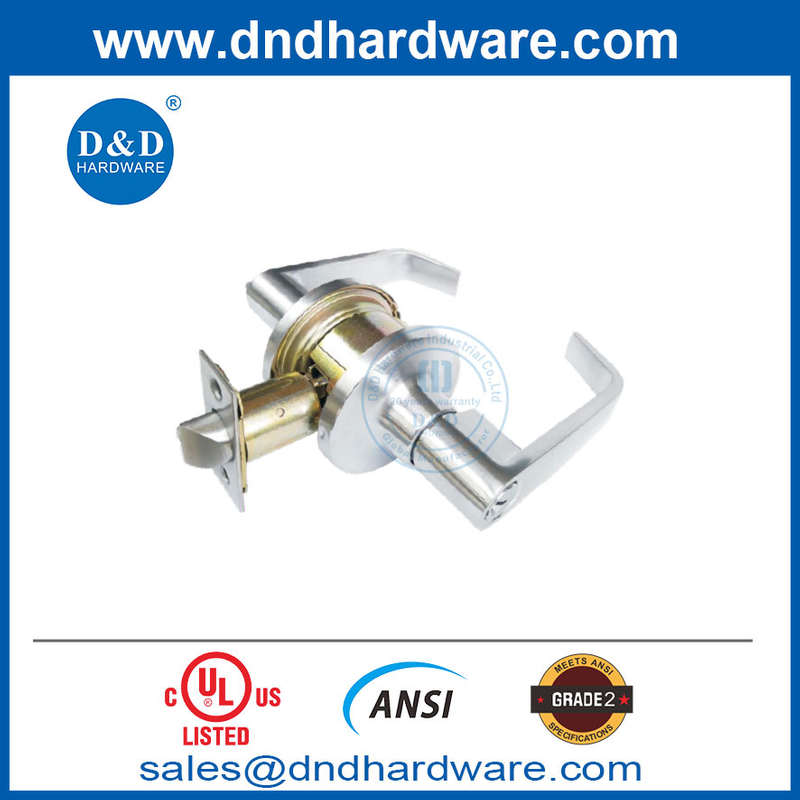

UL Listed ANSI Grade 2 Tubular Lever Lockset for Commercial Doors-DDLK030

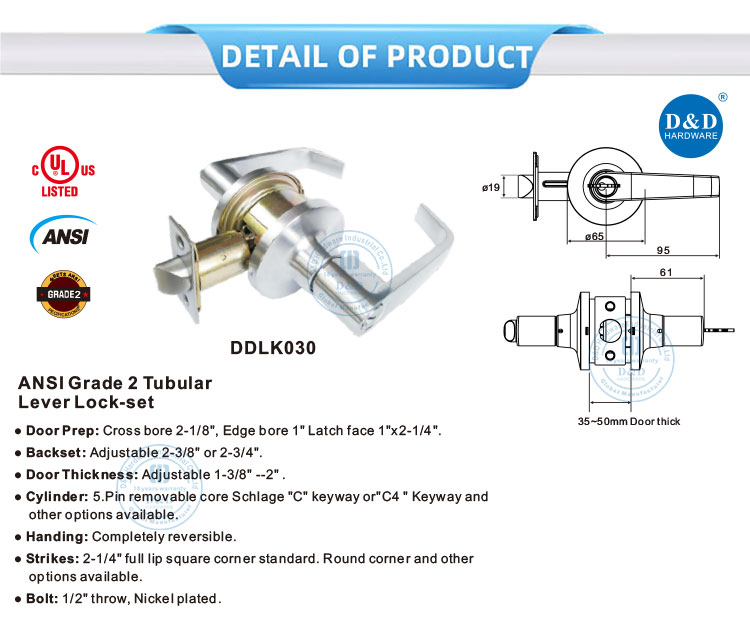

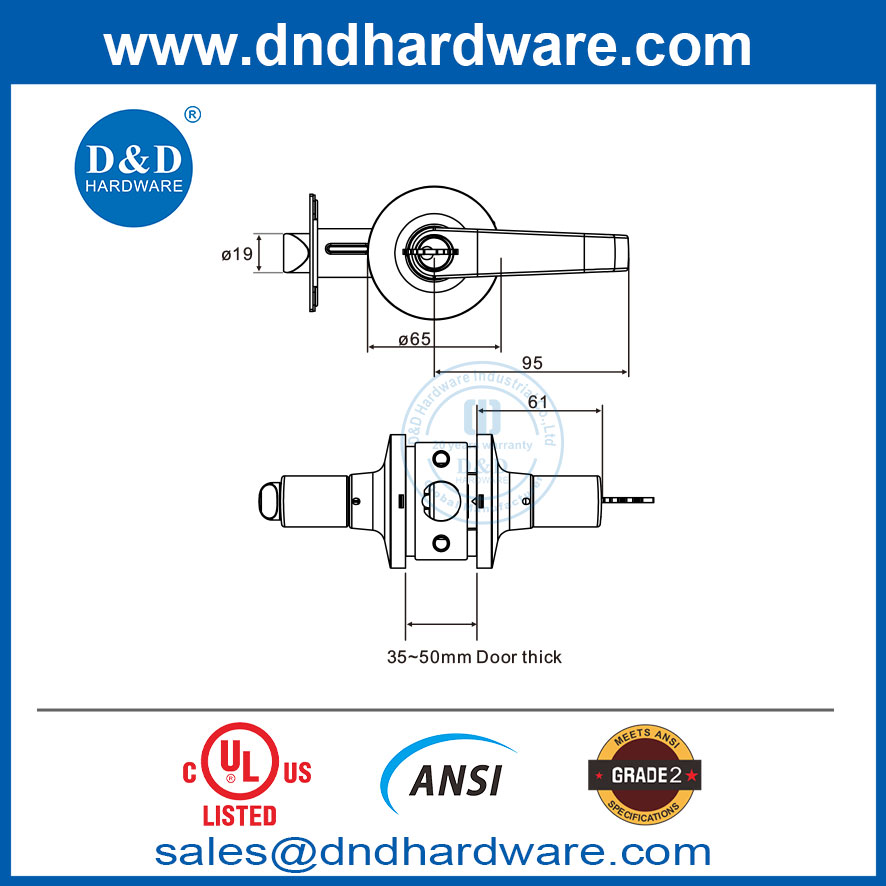

D&D DDLK030 is a UL Listed ANSI Grade 2 tubular lever lockset designed for commercial doors requiring dependable mechanical locking and convenient lever operation. It features a fully reversible design, an adjustable 2-3/8" or 2-3/4" backset and compatibility with doors approximately 35–50 mm thick. A five-pin cylinder is available with Schlage C or C4 keyway options, while the nickel-plated latch bolt provides a 1/2" throw. Designed for standard bored-door preparation, DDLK030 suits offices, hotels, apartment buildings and general commercial interiors.
| Product name | UL Listed ANSI Grade 2 Tubular Lever Lockset for Commercial Doors |
| Certification | UL 10C,ANSI Grade 2, Fire Rated 3 hours |
| Product Model | DDLK030 |
| Material | Zinc Alloy & Stainless steel 304 |
| Finish | Polished Brass,Polished Brass Satin Finish,Satin Nickel,Satin Chrome,Chrome Plate,Physical Vapor Deposition,Oil Rubbed Bronze,Matt Black, Antique Brass, Antique Copper |
Accessories | Brass insert, rosette with base , escutcheon with base, spindle, wooden screws, bamboo screws , allen key |
Suitable for | Wooden door, Metal door, fire rated door |
| MOQ | 300 PCS |
| Package | 1 set / white box in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
