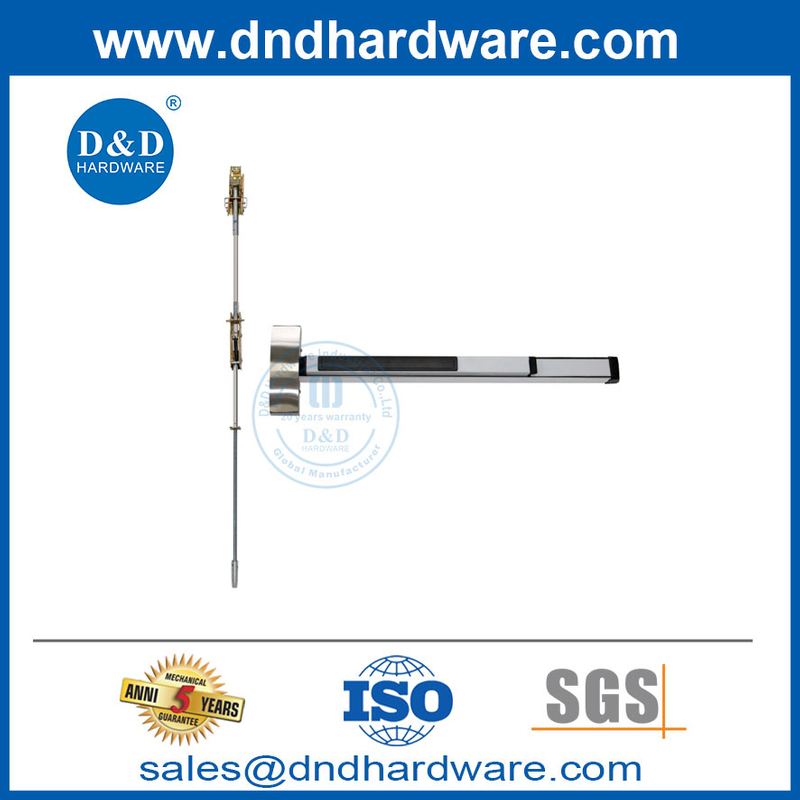

Stainless Steel Concealed Vertical Rod Panic Exit Device for Commercial Emergency Doors-DDPD051

Product Highlights:

1. Concealed Vertical Rod Design
   The vertical rods are installed within the door, reducing visible hardware and creating a cleaner appearance for architectural and commercial entrances.

2. Secure Two-Point Latching
   Upper and lower latching points secure the door at both ends while releasing simultaneously when users press the touch bar.

3. Heavy-Duty SUS304 Construction
   SUS304 stainless steel provides reliable structural strength and corrosion resistance for frequently operated emergency doors.

4. Wide Door Compatibility
   The 840 mm push bar can be field-cut for doors from 650 to 1100 mm wide, with a maximum supported door weight of 200 kg.

5. Single- and Double-Door Application
   Suitable for single doors and coordinated double-door openings, with compatible exterior trims or lever handles available for access from the opposite side.

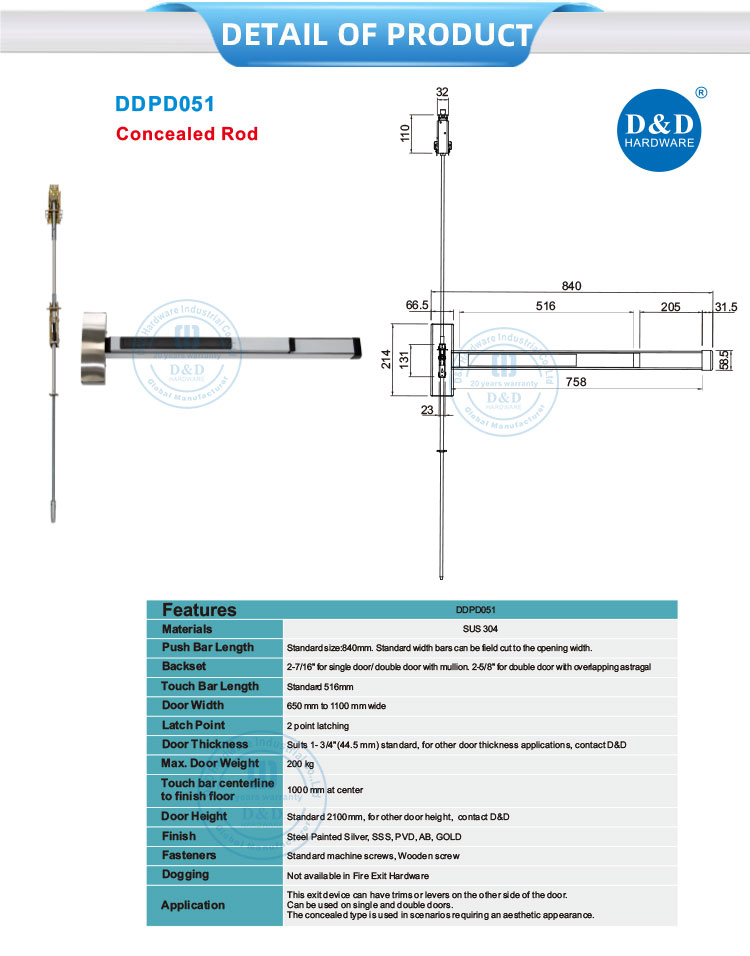

Additional Specifications:

• Material: SUS304 stainless steel

• Device type: Concealed vertical rod exit device

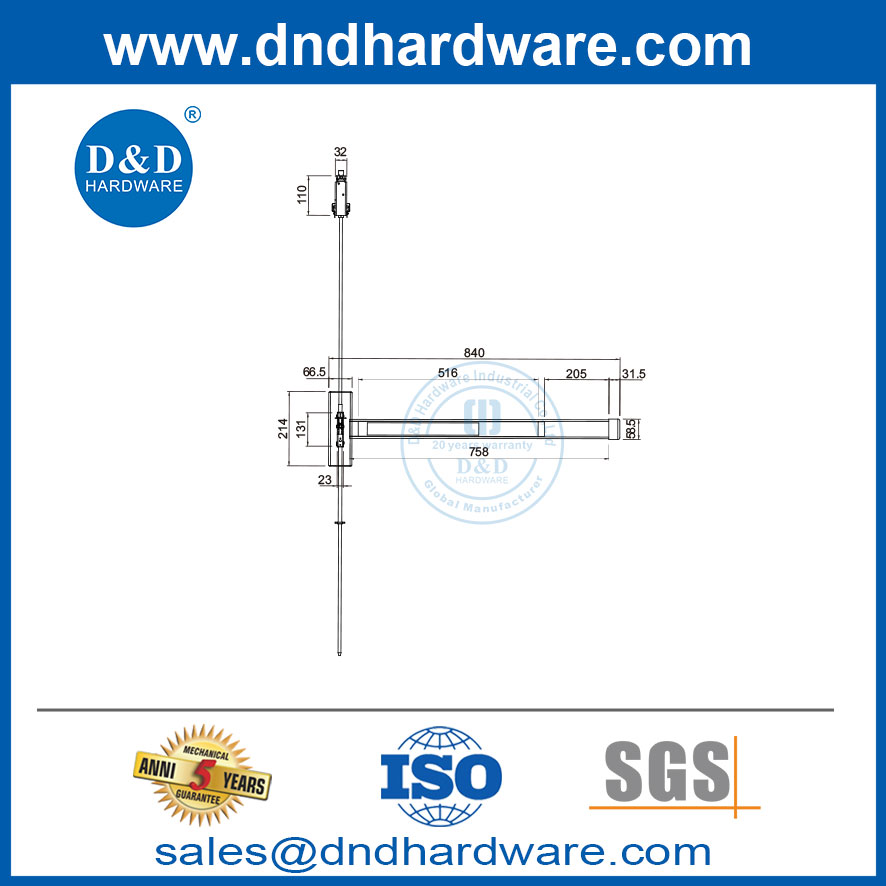

• Standard push bar length: 840 mm

• Touch bar length: 516 mm

• Door width: 650–1100 mm

• Standard door height: 2100 mm

• Standard door thickness: 44.5 mm

• Maximum door weight: 200 kg

• Latching: Two-point

• Touch bar centerline: 1000 mm above finished floor

• Backset: 2-7/16" for single doors or double doors with a mullion; 2-5/8" for double doors with an overlapping astragal

• Finishes: Steel Painted Silver, SSS, PVD, AB and Gold

• Fasteners: Machine screws and wood screws

• Dogging: Not available for fire exit hardware configurations

D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.

More door hardware items include:
1. Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2. Concealed Hinge- BS EN1935, EN1634 Fire Rated, UL Listed
3. Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
