Complete Hardware Solutions for BS 476 Hollow Metal Doors

In the demanding field of commercial construction and fire safety, the integrity of a fire-rated hollow metal door is only as strong as its weakest component. For manufacturers and contractors specifying doors to the rigorous British Standard BS 476, selecting the correct hardware is not merely a matter of functionality — it is a critical life-safety requirement. A single non-compliant hinge, lock, or closer can compromise the entire fire door assembly, voiding its certification and putting lives at risk.

D&D HARDWARE is an ISO9001 certified manufacturer with 18 years of dedicated experience in producing fire-rated door hardware. We offer a complete range of CE-certified products — from hinges and locks to closers, handles, cylinders, and panic exit devices — all individually fire-tested to EN1634 and engineered to integrate seamlessly into BS 476 hollow metal door assemblies.

Why Is CE Certified Hardware Essential for BS 476 Fire Doors?

The BS 476 standard is the foundational British Standard for evaluating the fire resistance of building elements, including hollow metal doors used in commercial, industrial, and institutional buildings. It defines the testing methodology that determines how long a door assembly can maintain its integrity and insulation properties when exposed to fire.

However, a fire-rated door is a complete assembly — the door leaf, frame, and every piece of hardware must work together as a unified system. If any single hardware component fails during a fire, the entire assembly is compromised. This is precisely why CE certification on door hardware is not optional but essential. CE-marked hardware has been independently tested and certified to European harmonized standards, providing documented proof of fire performance, mechanical durability, and corrosion resistance.

Key Principle: A BS 476 fire-rated hollow metal door is only as fire-resistant as its least-rated hardware component. Every hinge, lock, closer, and handle must carry independent CE fire test certification to EN1634.

CE Certification Documents and Precision Testing lnstruments for Fire Rated Door Hardware

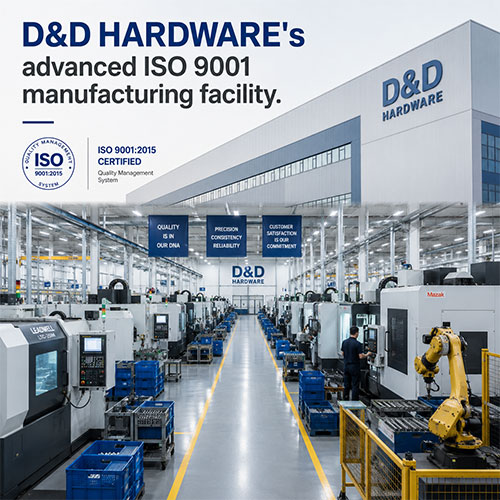

D&D HARDWARE ISO9001 Certified Manufacturing Facility with CNC Precision Equipment

What Hardware Does a BS 476 Hollow Metal Door Require?

A fully compliant BS 476 hollow metal fire door assembly typically requires seven categories of hardware, each serving a distinct function in the door's operation and fire performance.

The following outlines the essential components and the European standards that govern their performance:

Door Hinges are the structural backbone of the door, bearing its full weight while enabling smooth operation. For fire doors, hinges must be tested to BS EN1935 for mechanical endurance and EN1634 for fire resistance.

Concealed Hinges offer the same structural integrity with an aesthetically clean appearance, hiding the hinge mechanism within the door and frame.

Mortise Locks provide the primary security function and must maintain their locking mechanism even under extreme heat, tested to BS EN12209.

Door Closers are critical for ensuring the door returns to a fully closed position after every use — a non-negotiable requirement for fire doors — and are tested to BS EN1154.

Lever Handles must withstand heavy daily use while remaining operable during emergencies, tested to BS EN1906.

Lock Cylinders provide the keying mechanism and must retain their integrity under fire conditions, tested to BS EN1303.

Finally, Panic Exit Devices enable rapid egress in emergencies and are tested to BS EN1125.

What Are the Exact Specifications of D&D CE Series Door Hardware?

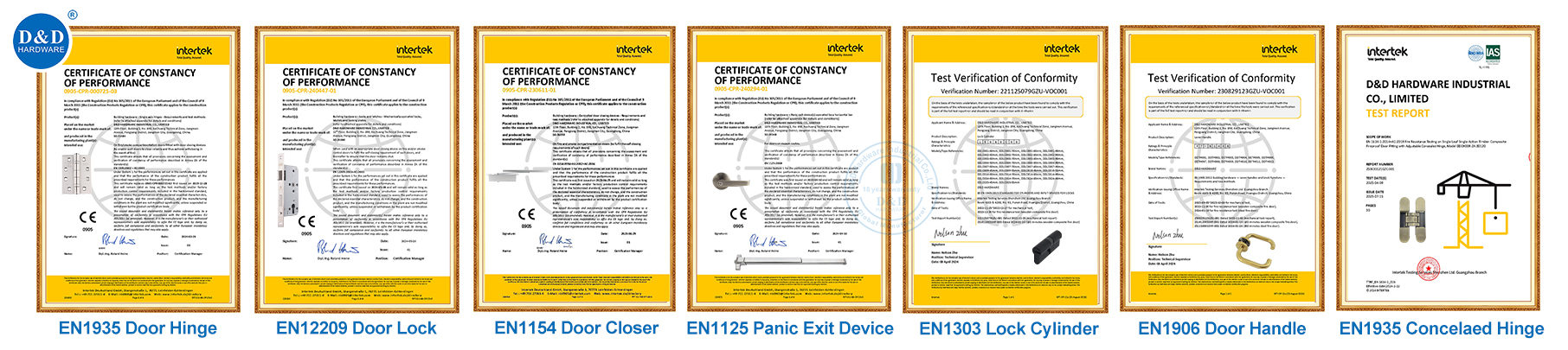

The D&D CE Series represents our complete range of fire-rated hardware, each product independently tested and certified to the relevant European standards. The table below provides a detailed overview of every product's performance credentials:

Picture	Product	Mechanical Standard	Endurance Test	EN1634 Fire Rating	EN1670 Corrosion
	Door Hinge	BS EN1935	200,000 cycles	260 mins	240 hours
	Concealed Hinge	BS EN1935	200,000 cycles	132 mins	48 hours
	Door Lock	BS EN12209	200,000 cycles	260 mins	240 hours
	Door Closer	BS EN1154	500,000 cycles	120 / 180 mins	96 hours
	Door Handle	BS EN1906	300,000 cycles	260 mins	240 hours

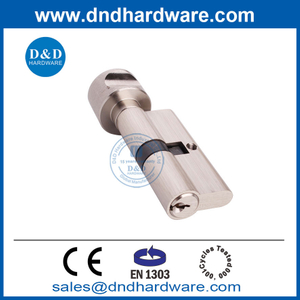

	Lock Cylinder	BS EN1303	100,000 cycles	183 mins	96 hours
	Panic Exit Device	BS EN1125	200,000 cycles	132 / 240 mins	240 hours

How Does EN1634 Fire Testing Validate Hardware Performance?

EN1634-1 is the European standard for fire resistance testing of door and shutter assemblies. During the test, a complete door assembly — including all hardware — is mounted in a test furnace and exposed to a standardized fire curve that reaches temperatures exceeding 1,000°C. The test measures three critical criteria: Integrity (E), which assesses whether flames or hot gases penetrate the assembly; Insulation (I), which measures the temperature rise on the unexposed face; and Radiation (W), which evaluates heat radiation levels.

D&D hardware undergoes this rigorous testing process at accredited third-party laboratories. Our door hinges, for example, have achieved fire ratings of up to 260 minutes — far exceeding the typical 60 or 120-minute requirements of most commercial specifications. This exceptional performance provides architects and door manufacturers with significant safety margins and specification flexibility.

Why Does Corrosion Resistance Matter for Fire Door Hardware?

Fire door hardware is often installed in environments that accelerate corrosion — coastal buildings, swimming pool facilities, hospitals, food processing plants, and industrial settings. Corroded hardware can seize, weaken, or fail to operate correctly, potentially preventing a fire door from closing during an emergency.

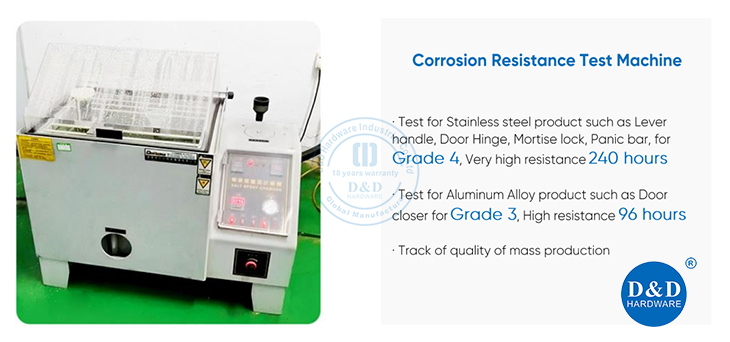

EN1670 defines the corrosion resistance grades for building hardware through salt spray testing. D&D CE Series products are engineered with premium stainless steel materials and advanced surface treatments to achieve up to 240 hours of salt spray resistance (Grade 4, the highest classification). This ensures reliable, long-term performance even in the most aggressive environments.

How Does D&D Hardware Ensure Consistent Manufacturing Quality?

Quality at D&D HARDWARE is not an afterthought — it is embedded in every stage of our manufacturing process. Our ISO9001 certified quality management system governs everything from raw material procurement to final inspection and packaging. With 18 years of continuous refinement, our production processes deliver consistent, repeatable quality across millions of units.

Our facility features advanced CNC machining centers, automated assembly lines, and a dedicated in-house testing laboratory where we conduct lifecycle endurance tests, dimensional inspections, and functional verification. Every batch of products undergoes statistical quality control (SQC) sampling, and full traceability is maintained from raw material to finished product.

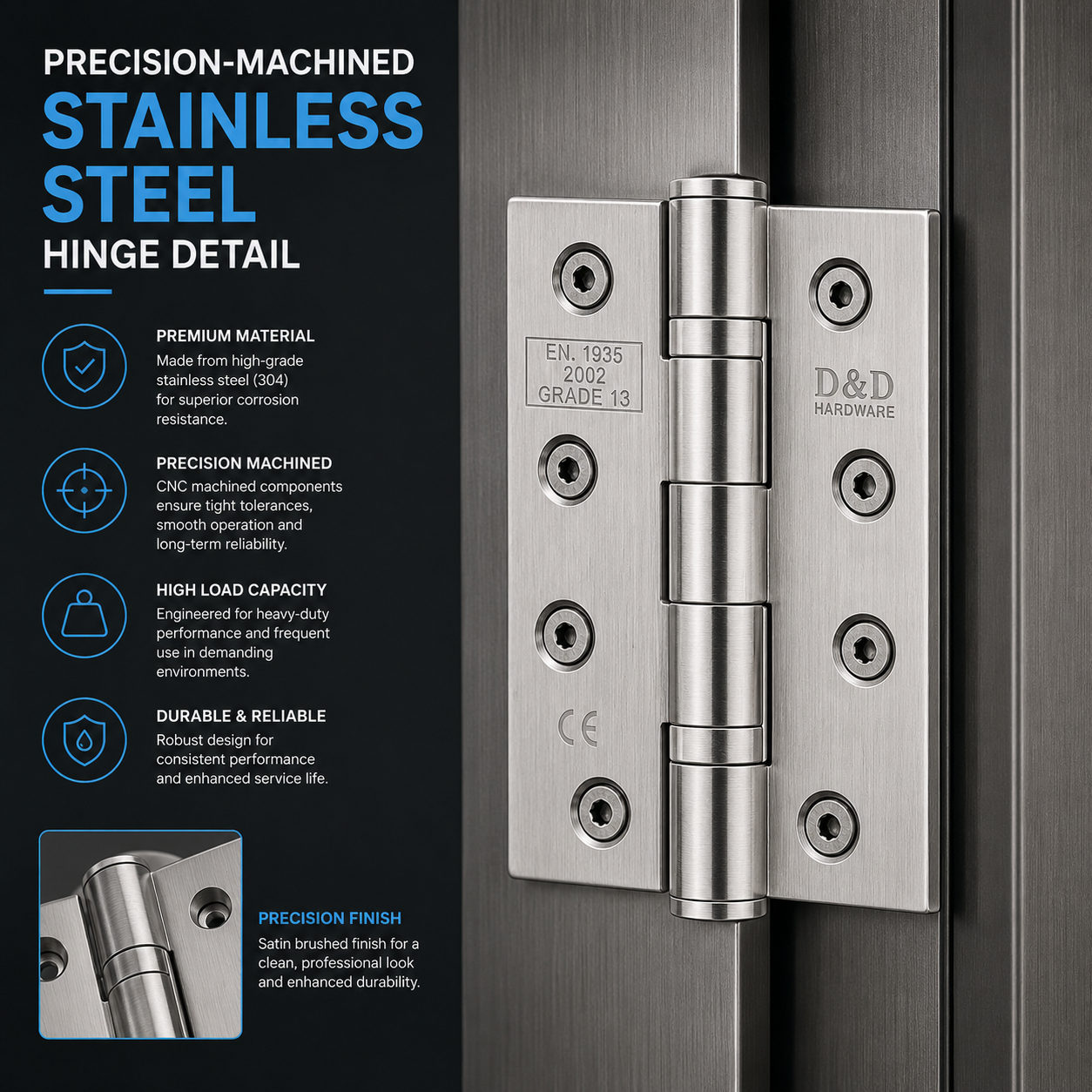

Machined Stainless Steel Fire Rated Door Hinge —Close-up Detail

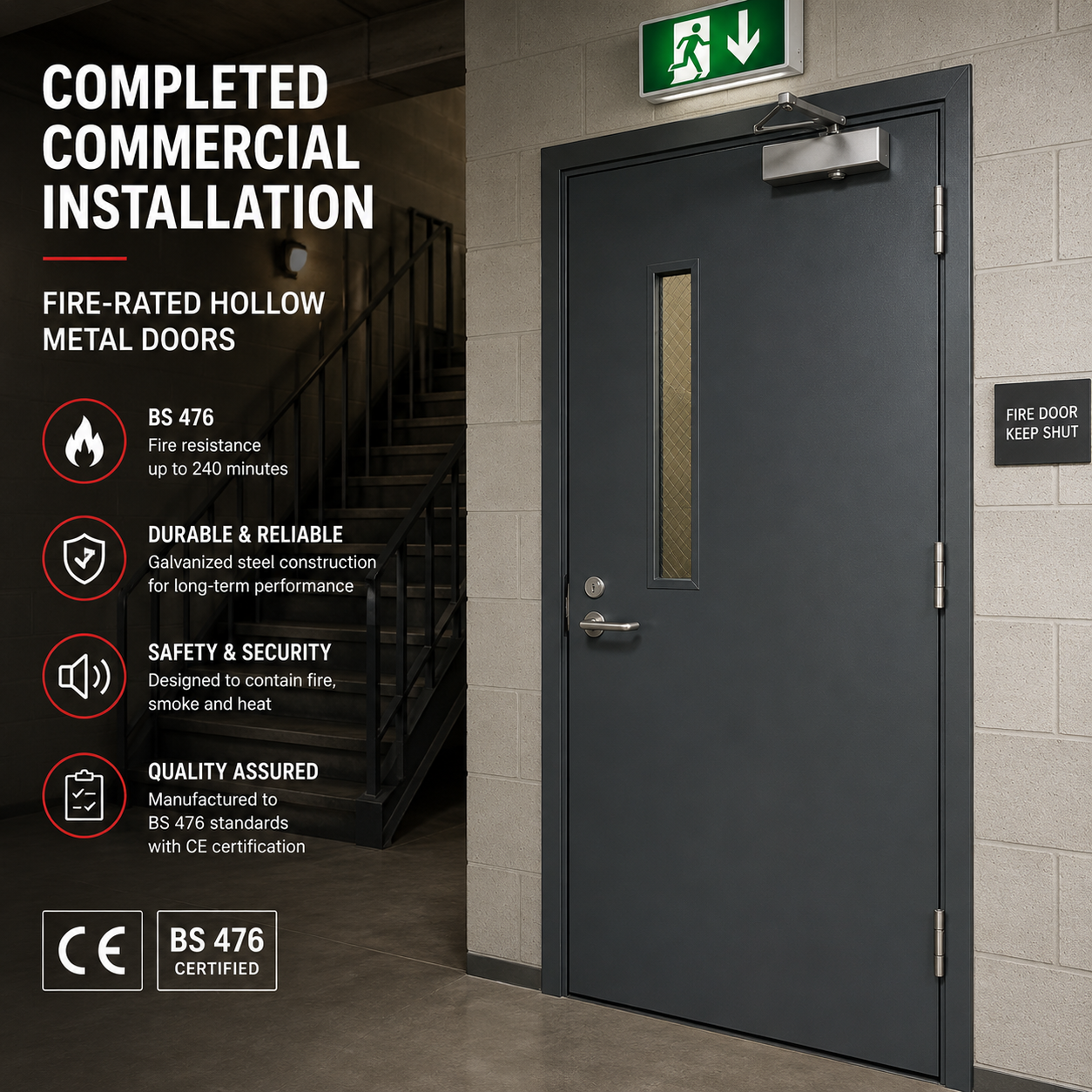

Commercial Building Corridor with Fire Rated Hollow Metal Doors and D&D Hardware

What Are the Advantages of Sourcing Complete Hardware from One Manufacturer?

Specifying fire door hardware from multiple suppliers introduces complexity, compatibility risks, and potential compliance gaps. When you source a complete hardware package from D&D HARDWARE, you benefit from:

Guaranteed Compatibility: All components are designed and tested to work together as a cohesive system, eliminating fitment issues and ensuring optimal performance.

Simplified Compliance: A single source of CE certification documentation streamlines the approval process for building inspectors and fire safety officers. Consistent Aesthetics: Matching finishes and design language across all hardware components create a professional, unified appearance. Streamlined Procurement: One supplier, one order, one shipment — reducing administrative overhead and lead times. Technical Support: Our engineering team provides comprehensive hardware scheduling, specification assistance, and after-sales support.

Frequently Asked Questions

What hardware is required for a BS 476 fire-rated hollow metal door?

A BS 476 fire-rated hollow metal door requires a complete set of CE-certified hardware including fire-rated hinges (BS EN1935), mortise locks (BS EN12209), door closers (BS EN1154), lever handles (BS EN1906), lock cylinders (BS EN1303), and panic exit devices (BS EN1125). All components must be individually fire-tested to EN1634 to maintain the integrity of the door assembly.
