Commercial Automatic Door Operator Intelligent Electric Swing Door Opening Closer-DDDC076‑E

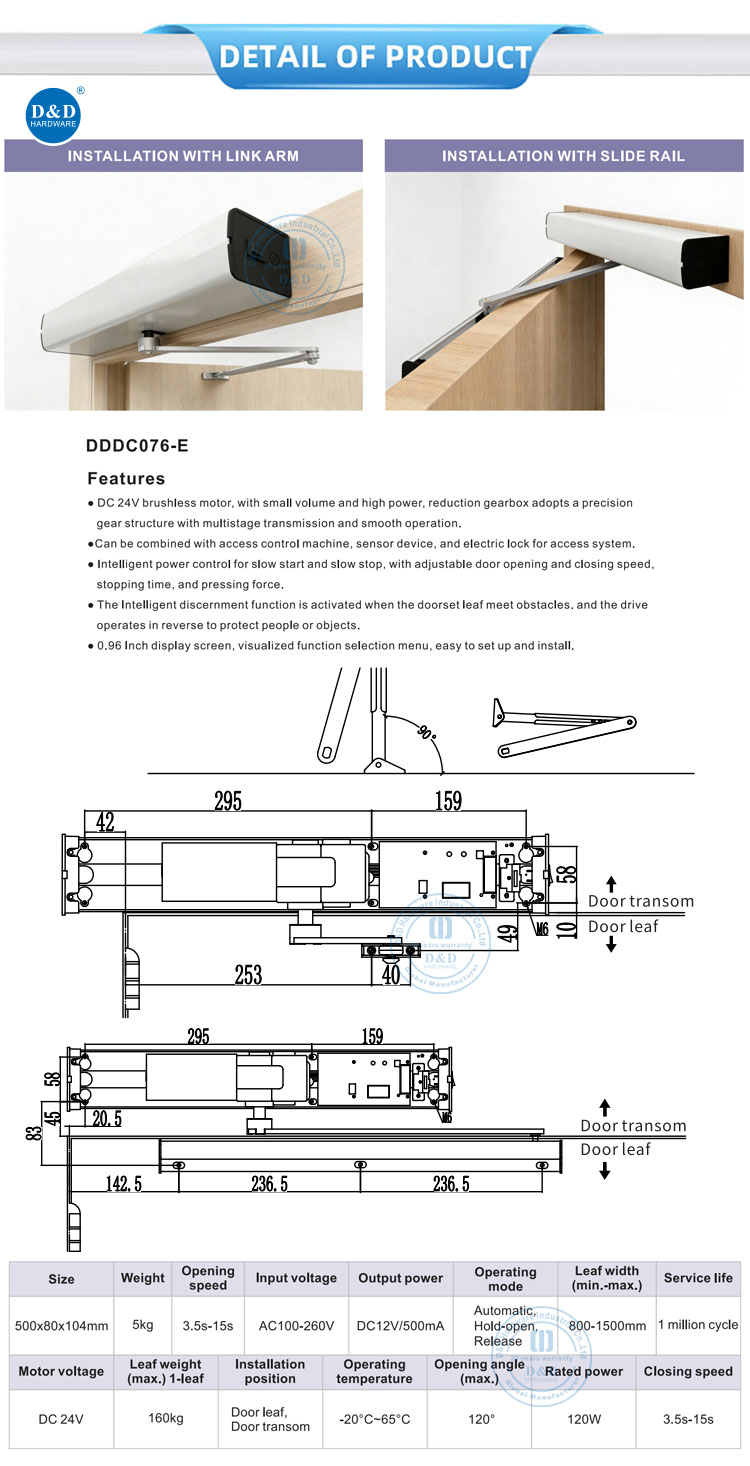

D&D DDDC076-E is a heavy-duty intelligent electric swing door operator for wide commercial entrances. Its DC 24V brushless motor, precision gearbox and electronic controller deliver smooth automatic opening and controlled closing for door leaves 800-1500 mm wide and up to 160 kg. The 500 x 80 x 104 mm unit accepts AC 100-260V input, supplies DC 12V/500mA auxiliary output and supports automatic, hold-open and release modes. With adjustable 3.5-15 second operating speed, a maximum 120-degree opening angle and a one-million-cycle service-life rating, it is suitable for hotels, healthcare facilities, offices, retail entrances and public buildings.
| Product name | Commercial Automatic Door Operator Intelligent Electric Swing Door Opening Closer |
| Product Model | DDDC076‑E |
| Material | Aluminum alloy |
| Finish | Sliver color |
Max.opening Angle | 120 degree |
| Size | 500x80x104mm |
Opening Speed | 3.5s-15s |
| Suitable for | Wooden door, Metal door, fire rated door . |
| MOQ | 200 PCS |
| Package | 1 set / white box in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated, UL Listed
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
