DDDC047
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Outer Door
UL 10C certified for 3-hour fire doors (File No. R40717)
Aluminum alloy
Jiangmen /Guangzhou / Shenzhen , China
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

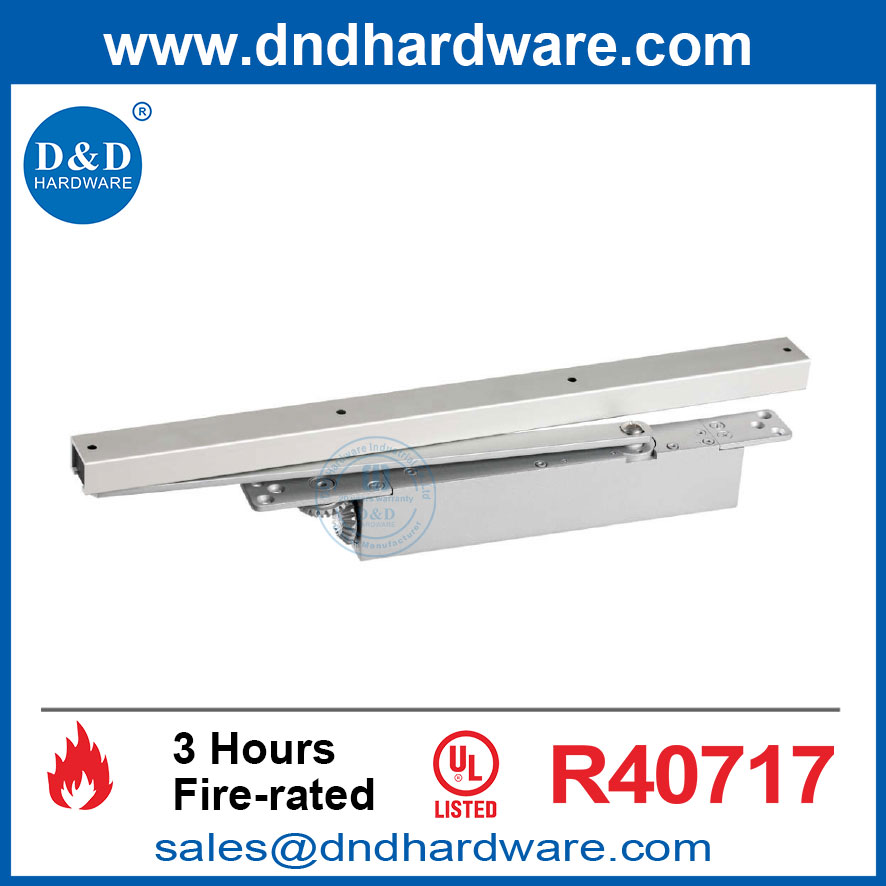

UL Listed Fire Rated Cam Action Door Closer Heavy-Duty Hydraulic Concealed Door Closer-DDDC047

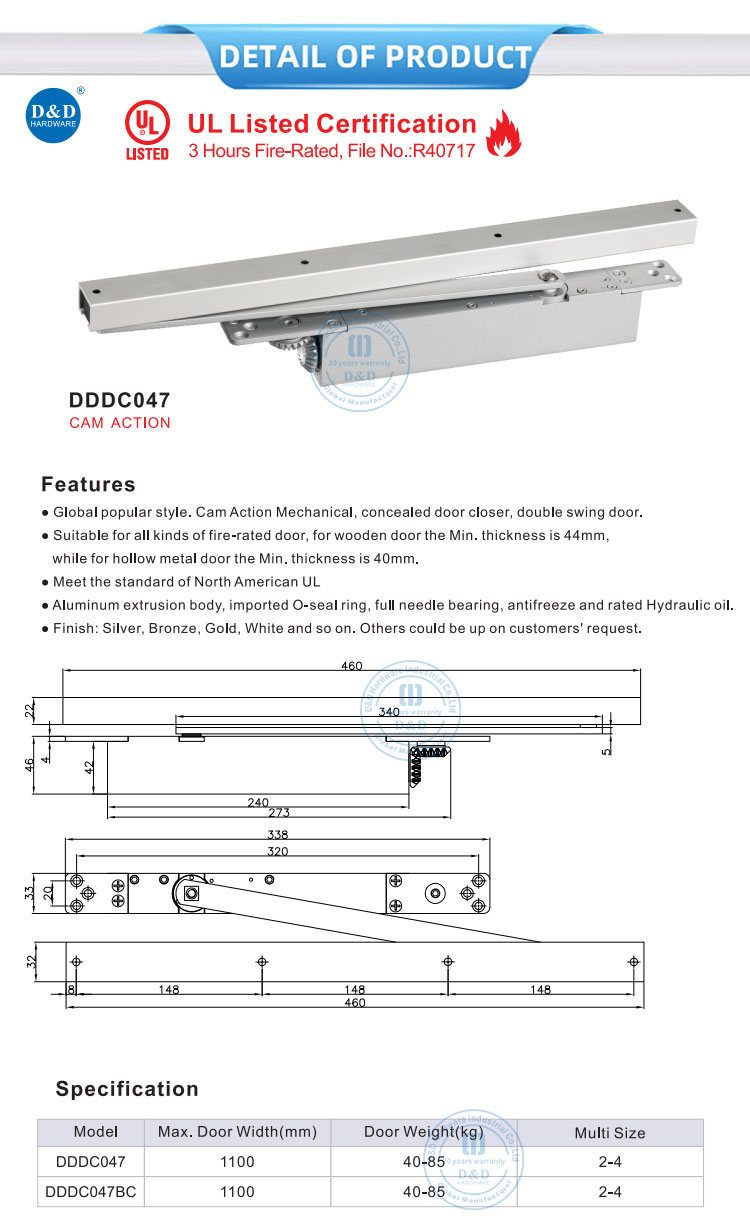

D&D DDDC047 is a UL Listed cam-action concealed door closer for single- or double-swing commercial doors. Its aluminum extrusion body, imported O-ring seals, full needle bearings and low-temperature-rated hydraulic oil support stable operation in demanding environments. Designed for doors up to 1100 mm wide and 40-85 kg, the adjustable size 2-4 mechanism provides efficient opening and controlled closing. It can be specified for fire-rated wooden doors with a minimum 44 mm thickness and hollow metal doors with a minimum 40 mm thickness, making it suitable for hotels, offices, hospitals and public buildings.
| Product name | UL Listed Fire Rated Cam Action Door Closer Heavy-Duty Hydraulic Concealed Door Closer-DDDC047 |
| Product Model | DDDC047 |
| Material | Aluminum alloy |
| Finish | Sliver color |
Max.opening Angle | 120 degree |
Speed control | two way speed adjustable |
| Suitable for | Wooden door, Metal door, fire rated door . |
| MOQ | 200 PCS |
| Package | 1 set / white box in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated, UL Listed
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
