Smart Automatic Swing Door Operator Closer for Commercial Entrance Door-DDDC075‑E

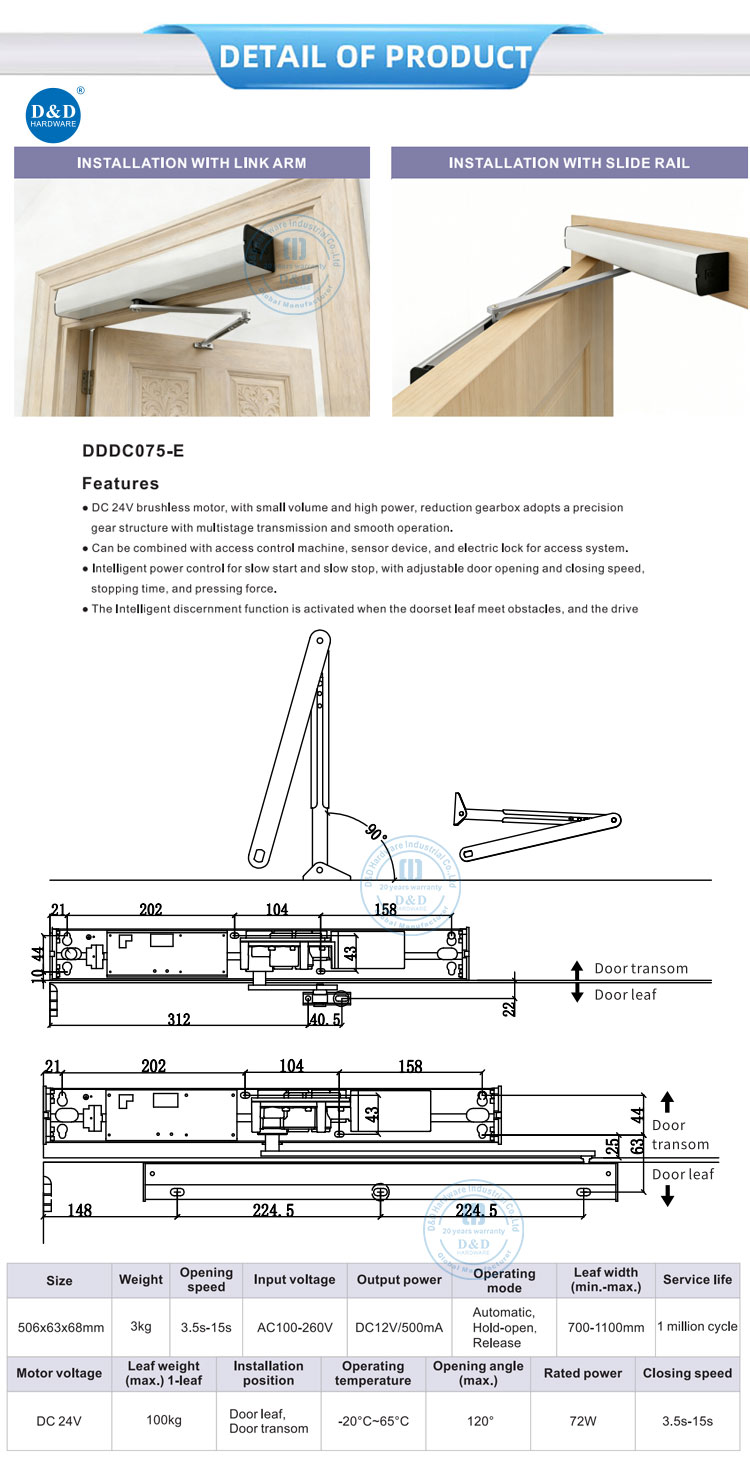

D&D DDDC075-E is a compact automatic swing door operator for commercial entrance doors. A DC 24V brushless motor and precision multistage gearbox provide smooth, low-noise opening and closing, while the controller supports automatic, hold-open and release modes. The 506 x 63 x 68 mm operator accepts AC 100-260V input, delivers DC 12V/500mA auxiliary output and works with door leaves 700-1100 mm wide and up to 100 kg. Adjustable opening and closing speeds, a maximum 120-degree opening angle and a rated service life of one million cycles make it suitable for offices, hotels, clinics, retail spaces and accessible entrances.
| Product name | Smart Automatic Swing Door Operator Closer for Commercial Entrance Door-DDDC075‑E |
| Product Model | DDDC075‑E |
| Material | Aluminum alloy |
| Finish | Sliver color |
Max.opening Angle | 120 degree |
| Size | 506x63x68mm |
Opening Speed | 3.5s-15s |
| Suitable for | Wooden door, Metal door, fire rated door . |
| MOQ | 200 PCS |
| Package | 1 set / white box in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated, UL Listed
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
