Fire Rated Exit Door Hardware

Fire Exit Hardware is an exit device which is tested for both panic and fire conditions and is required to be used on fire doors where panic hardware is required by code or desired for durability. Since fire doors require positive-latching, fire exit hardware does not incorporate mechanical dogging. If a push/pull function is desired for a fire door, electric latch retraction hardware may be installed, as long as the latch projects automatically upon fire alarm.


The International Building Code (IBC) and NFPA 101 – The Life Safety Code contain similar requirements for locations where panic hardware is installed:


1.Panic hardware shall be listed in accordance with UL 305;

2.Fire exit hardware shall be listed in accordance with UL 10C and UL 305;

3.The actuating portion of the releasing device shall extend at least one-half of the door leaf width; and

4.The maximum unlatching force shall not exceed 15 pounds (67 N).

5.If balanced doors are used and panic hardware is required, the panic hardware shall be the push-pad type and the pad shall not extend more than one-half the width of the door measured from the latch side.


Fire rated exit door hardware is top-rated for fire rated door. The UL certificate fire rated exit door hardware can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of fire rated exit door hardware become old and bad. The fire rated exit door hardware is smooth and easy to install and use, it can bring you high security and beauty for your door.

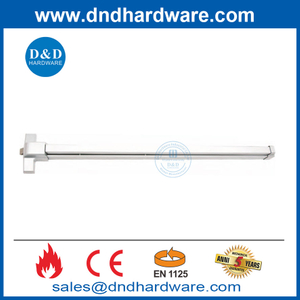

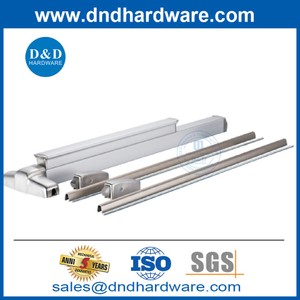

1.Fire Rated Panic Bar

UL Panic Device DDPD003-D&D Hardware



Double-leaf Fire Door Solutions DDPD004-D&D Hardware



Single-leaf Panic Exit Device DDPD005-D&D Hardware


Panic Exit Device DDPD006-D&D Hardware


SS304 Panic exit device DDPD021-D&D Hardware


Stainless steel Panic exit device DDPD022-D&D Hardware


2.Fire Rated Lever Trim

Lever Trim- D&D Hardware



D&D Hardware Supplier of high quality hardware for Fire Rated Doors, Wooden Doors, Metal Doors, Escape Doors, Single Fire Rated Flush Doors, Double Doors, Security Doors, Louver Steel Doors etc.


Our products which include
Panic Exit Device, Lever HandlesMortise LocksLock Cylinder, Door HingesDoor CloserDoor BoltsDoor Stopers, etc.


All our products strictly according to international Standard, such as the ANSI, BS EN/CE, UL, BHMA standard.


More fire rated door hardwares, click here
