When you look at a door closer, you will find several important parts that work together to control how the door moves. Each part has a specific job. The table below lists the main components and their functions:
Part | Function |
|---|---|
Heavy Duty Cast Body | Holds all internal parts and keeps hydraulic fluid under pressure. |
Arm Spindle | Connects the arm and helps the door move. |
Rack and Pinion | Changes turning motion into straight motion to compress the spring. |
Needle Bearings | Make the arm spindle move smoothly with less friction. |
Spring | Stores energy to help the door return to a closed position. |
Learn about the main parts of a door closer, such as the body, arm, and spring. This helps you make sure it works well and is easy to take care of.
Pick the right arm type for your door. This helps control how the door shuts and locks. It keeps people safe and makes things work better.
Check and oil your door closer often. This stops common problems and helps it last longer.
Use the adjustment screws to change how fast and hard the door closes. This helps meet safety rules and makes the door easier to use.
The door closer body holds all the inside parts together. It is made from strong metals like die-cast aluminum or stainless steel. This helps it last a long time, even in busy places. D&D HARDWARE makes bodies that do not rust and work well in wet or salty air. Some models have smooth surfaces for clean rooms. Others have powder coatings to make them tougher. The body keeps the hydraulic fluid inside and supports the spring and moving parts.
Tip: For doors used a lot, pick a strong body that is easy to take care of.

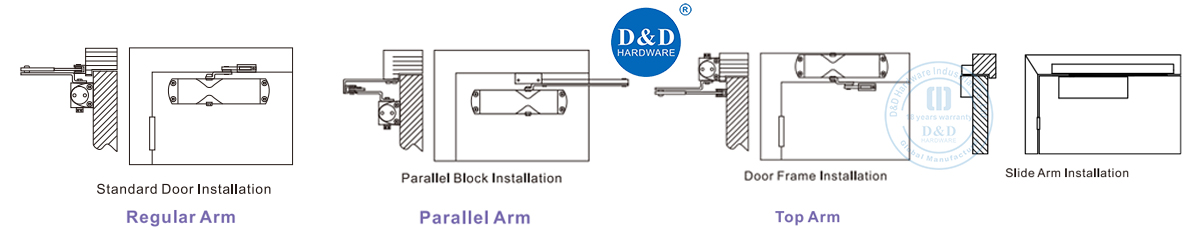

The arm links the body to the door and frame. There are different arm shapes and ways to install them. Each type works best in certain places. D&D HARDWARE, as a door closer supplier, provides multiple arm configurations to match different mounting conditions and power efficiency. The table below shows common arm styles and how they work:
Installation Type | Description | Efficiency |
|---|---|---|
Regular | Mounted on the door face with the shoe on the frame. Provides the most power efficiency. | High |
Top Jamb | Mounted on the push side of the door, with the closer on the frame and the shoe on the door. Needs enough clearance. | Moderate |
Parallel Arm | Installed on the door with the arm on the underside of the frame. Less efficient than Regular or Top Jamb. | Low |
Pick the arm type that fits your door's spot and how much closing power you need.
The spring inside stores energy when you open the door. It lets out this energy to close the door gently. D&D HARDWARE uses strong metals like stainless steel and brass for springs. These springs last longer and work in many places. Some springs are made for ADA rules and fire safety. Strong springs are needed for heavy doors and busy spots.
The hydraulic chamber controls how fast and hard the door moves. D&D HARDWARE, as a professional door hardware manufacturer, uses temperature-stable oil so the door closes softly and does not slam across seasons. The chamber has a piston that moves through the oil. This slows the door as it shuts. This helps keep people and things safe from fast-moving doors.
Note: You can change how fast hydraulic door closers shut and add a backcheck for more safety.
Adjustment screws help you set how your door closer works. You can change how fast and hard the door closes. D&D HARDWARE makes screws that are simple to use. The table below explains the main types:
Adjustment Type | Function Description |
|---|---|
Backcheck | Prevents the door from opening too quickly, protecting against slamming. |
Sweep (Main Speed) | Controls the speed from the open position to just before latching. |
Latching Speed | Sets the speed for the final inches of closing. |
Use these screws to make your door closer work just right for you.
Mounting brackets hold the door closer body and arm in place. There are different kinds, like surface-mounted, hidden, and floor-mounted brackets. D&D HARDWARE has brackets for wood, metal, and glass doors. Surface-mounted brackets are easy to put on and fit most doors. Hidden brackets look nicer and are good for fancy places. Floor-mounted brackets are best for heavy or glass doors.
Overhead door closers are good for busy areas and let you change the speed.
Hidden door closers go inside the door or frame for a neat look.
Floor spring door closers are strong and hidden, great for glass or metal doors.

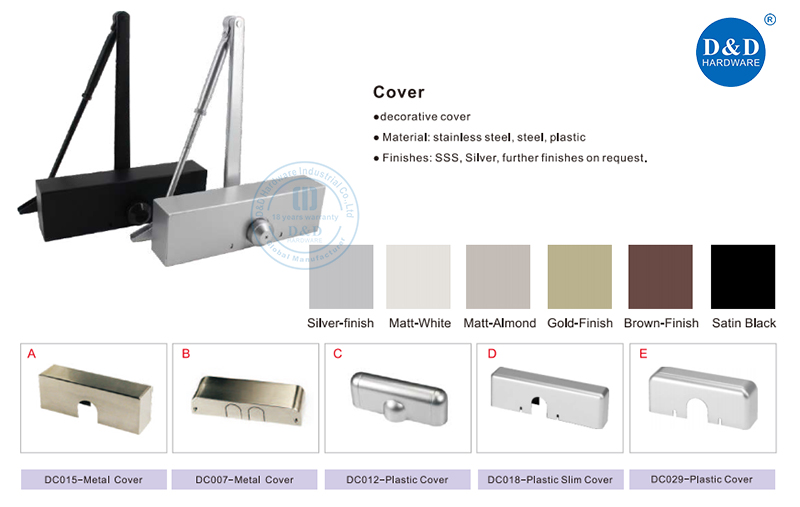

The cover protects the inside parts and makes the door look nice. D&D HARDWARE has covers made from cast iron and aluminum. These are strong but not too heavy. You can pick from many finishes to match your door. Powder coating makes the cover last longer and keeps it safe from damage. Some covers are made to blend in with the door for a simple look.
The cover keeps dust and dirt out of the parts.
You can choose a style that matches your building.
Fancy covers are made for special projects.
Some door closers have extra parts to help with setup and how they work. D&D HARDWARE gives you many of these extras to make sure your door closer fits your needs. The table below lists some common extras:
Component | Description |
|---|---|
Mounting Plates | Hold the door closer body on the bracket, with the arm fixed to the door. |
Hinge Pin Door Closers | Replace the hinge pin in standard hinges and close the door automatically. |
Parallel Arm Brackets | Used for specific series; some come without screws. |
Thru Bolt Assemblies | Include bolts and nuts for secure mounting. |
Sex Bolts | Provide strong connections with a screw and sleeve. |
Radius Corner Lever Flush Bolts | Feature rounded corners and long rods, available in different finishes. |
You might also get wrenches, paint, rods, shoes, sliders, and pins in your kit. These parts help you put in and take care of your door closer easily.
Reminder: D&D HARDWARE door closers meet top safety and quality rules like UL, CE, SGS, and RoHS. You can count on these products in offices, schools, hospitals, and more.
You rely on the body of a door closer to keep all the important parts safe and working together. The body uses strong materials like die-cast aluminum, which makes it tough and light. Precision manufacturing helps the body last longer and work well in busy places.
You get consistent and controlled door movement in schools, offices, and hospitals.
The body helps prevent damage and keeps your building secure.
Choosing the right door closer body can lower your maintenance costs and help you follow safety rules.
The main job of the door closer arm is to control how the door closes and latches, making sure it happens in a safe and steady way.
You can trust the arm to help keep people safe by stopping the door from slamming shut.
The spring inside the door closer controls how much force you need to open the door and how fast it closes. You can adjust the spring to make the door easier to open or to slow down the closing speed.
Aspect | Requirement |
|---|---|
Opening Force | You need to open accessible doors with only a small amount of force. |
Closing Speed | The door must close slowly to meet safety and accessibility standards. |
Hydraulic control uses special fluid to manage how fast the door closes. When you open the door, a piston moves through the fluid, slowing the door as it shuts. You can use adjustment screws to fine-tune the speed and make sure the door closes gently every time.
You use adjustment screws to set how quickly or slowly the door closes. These screws let you control the main speed, the latching speed, and even add a backcheck to stop the door from opening too fast. This helps you make the door closer work just right for your space.
Mounting brackets and covers play a big part in keeping your door closer working well.
Proper installation of the arm and correct alignment help the door close smoothly.
The right fasteners and following the instructions make sure your door closer lasts a long time.
The cover protects the inside parts from dust and damage, keeping everything running smoothly.
With D&D HARDWARE, you get door closers designed for smooth, safe, and reliable operation in any setting. As a professional manufacturer and supplier in China, we support project-based solutions from sampling to mass production and global shipping.
When you push a door open, the door closer starts working right away. The arm moves with the door, and the spindle turns inside the body. This action compresses the spring, storing energy for later. The hydraulic fluid flows through small channels, which slows down the movement and keeps the door from swinging too fast. You feel a smooth resistance as the door opens. D&D HARDWARE door closers use strong materials and smart design, so you get reliable performance whether you are at home, in school, or in a busy office.
Tip: A well-designed door closer makes opening heavy doors easier and safer for everyone.
After you let go of the door, the stored energy in the spring starts to work. The spring pushes the arm and spindle, which moves the door back toward the frame. The hydraulic chamber controls how fast the door closes, so it does not slam shut. Adjustment screws let you set the speed and force to match your needs. The door closer makes sure the door latches securely, which helps keep your building safe.
Door closers help doors close properly and latch every time.
They stop doors from slamming, which protects the door and hardware.
You prevent unauthorized access because doors do not stay open.
D&D HARDWARE door closers work in many places, from hospitals to schools, and always keep safety in mind.
You see mechanical and hydraulic parts working together in every door closer. The table below shows how each part helps control the door:
Component | Function |
|---|---|
Heavy-duty cast body | Holds hydraulic fluid and stands up to heavy use. |
Arm spindle | Connects the closer to the door and helps it move. |
Rack and pinion | Changes spinning motion into straight motion to compress the spring. |
Hydraulic fluid system | Controls how fast the door closes by slowing the movement. |
Spring | Stores energy and releases it to close the door gently. |
D&D HARDWARE door closers have UL certification and years of industry experience. You can trust them to work well in many environments, from humid coastal areas to busy city buildings.
Door closers can have problems after being used for a while. If you know what to look for, you can fix things early. Here is a table that shows common problems, why they happen, and how to fix them:
Problem | Possible Causes | Solutions |
|---|---|---|
Door slams shut too fast | Incorrect speed setting, oil leak, broken spring | Adjust speed, check for leaks, replace spring |
Door closes too slowly | Over-adjusted valve, cold oil, worn parts | Adjust valve, seasonal check, replace if worn |
Door doesn't latch completely | Misadjusted latch, misaligned strike, weak closer | Adjust latch, realign, upgrade closer |
Oil leakage | Worn seals, damage, aging | Replace with quality closer |
Strange noises | No lubrication, loose screws, worn parts | Lubricate, tighten screws, replace if needed |
Loose arm | Improper install, loose screws, heavy use | Tighten or reinstall screws |
Too much force needed | High spring tension, wrong size, bad install | Adjust tension, use correct size, reinstall |
Affected by temperature | Oil thickens or thins with weather | Adjust valves, use temperature-stable closer |
Tip: D&D HARDWARE door closers are made for easy care and long life. You can fix most problems fast.
You can keep your door closer working well with easy steps. Checking it often and fixing small things stops bigger issues. Here are some tips to help you:
Maintenance Tip | Description |
|---|---|
Regular Inspection | Look for damage and fix problems early |
Lubrication | Use silicone oil on moving parts |
Adjustment and Tension Setting | Check and set tension for smooth closing |
Weather Sealing | Change old seals for better protection |
Door Alignment | Make sure the door lines up right |
Cleanliness | Keep the closer and area clean |
Professional Maintenance | Get experts to check for best results |
Note: D&D HARDWARE makes door closers that are simple to take care of. These tips help your closer last longer.
You should look for signs that your door closer or its parts need to be changed. Here are some clear signs:
The door closes weakly or not at all.
You cannot adjust the closer right.
You see oil leaks or fluid loss.
The closer makes loud or odd noises.
You see damage or heavy wear.
You need to fix it often.
The door does not line up or latch right.
Security or energy savings get worse.
The closer is very old.
A grade 1 door closer can last 30 years or more. Grade 2 closers last at least 10 years. Grade 3 closers work for about 3 years. If you see any of these signs, think about getting a new closer for safety and smooth use.
D&D HARDWARE door closers are easy to fix and change, so your doors stay safe and work well for a long time.
If you know what each part of a door closer does, it is easier to fix problems. You can find issues early and keep doors working well.
You learn how the arm, mounting bracket, and hydraulic mechanism help the door move.
You stop common problems and help your door closer last longer.
You make sure your building stays safe and secure.
Choose D&D HARDWARE as your door closer manufacturer and supplier in China for durable, compliant, and maintainable products with OEM/ODM support and global shipping.
You rely on the spring and hydraulic chamber for smooth door movement. These parts control closing speed and force.
Part | Role |
|---|---|
Spring | Stores energy |
Chamber | Controls speed |
You turn the adjustment screws to set closing speed and latching force.
Tip: Use a screwdriver and follow the instructions from D&D HARDWARE for best results.
You can install a door closer on most wooden, metal, or glass doors. D&D HARDWARE offers models for different weights and types.
You should check your door closer every six months. Clean, lubricate, and adjust as needed.
Regular care helps prevent problems and keeps your door working smoothly.
