Did you know that not all door closers are created equal? Whether it's a busy storefront or a quiet office hallway, choosing the right door closer can make all the difference in ensuring smooth, reliable operation. But what exactly makes a door closer suitable for a specific setting?
In this article, we'll break down the importance of door closer grades and how they impact performance, durability, and efficiency. We'll explain the basic function of a door closer and why understanding the grade of a door closer is crucial for different building environments.
By the end, you'll know which grade is best for your doors, from heavy-duty commercial entrances to light-duty interior spaces. Let's dive into the world of door closer grades and find out how to choose the right one for your needs!
Door closers play an essential role in ensuring doors close properly and safely. But how can you tell if the door closer you choose will meet the demands of your space? That's where door closer grades come in.

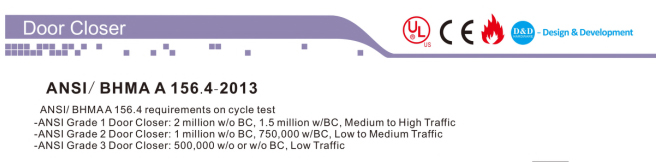

The ANSI/BHMA 156.4 standard is the guideline used to evaluate and grade door closers. It's set by two key organizations: ANSI (American National Standards Institute) and BHMA (Builders Hardware Manufacturers Association). These organizations define performance testing for door closers, ensuring they meet specific durability and operational standards.
The standard specifies how long door closers should last and what conditions they must endure, such as door cycles, operation speeds, and closing force. By following this standard, manufacturers ensure their products are safe, reliable, and suitable for various environments.
The ANSI and BHMA standards help set the grading criteria. They test how many times a door can open and close without losing performance, which is crucial when selecting the right door closer for a specific building or area.
This grading system helps architects, builders, and facility managers choose the right closer for their needs. For example, a Grade 1 door closer is designed for heavy-duty use, while a Grade 3 door closer is meant for lighter, less frequent use.
Door closer grades are assigned based on performance and durability. The grade tells you how many cycles the closer has been tested to endure. One cycle is simply the door being opened fully and then closing again.
The higher the grade, the more cycles the door closer can handle, meaning it will last longer in environments where doors are used frequently.
Understanding these grades helps you pick the right door closer, making sure it will stand up to the demands of its environment, whether it's a busy store or a quiet office.
When it comes to door closers, not all are built the same. They come in three main grades: Grade 1, Grade 2, and Grade 3. Each grade is designed for different levels of usage and specific environments. Let's take a closer look at what each grade means and where it works best.
A Grade 1 door closer is the most durable and high-performing option. It's designed for high-traffic environments and can withstand frequent use without losing performance.
What defines a Grade 1 door closer?
It's tested to handle 2 million cycles at 60% efficiency.
Built to handle heavy-duty applications where doors are frequently opened and closed, like in commercial spaces.
Suitable environments and applications:
Public buildings like hospitals, schools, or malls.
Commercial entrances that experience a lot of foot traffic.
Key benefits:
Durability and reliability in high-traffic settings.
Ideal for buildings that need constant door operation, ensuring long-lasting performance even in tough conditions.
Grade 2 door closers are designed for medium-duty use. They offer a balance between performance and cost, making them perfect for environments with moderate foot traffic.
What defines a Grade 2 door closer?
Tested for 1 million cycles at 50% efficiency.
Ideal for spaces where the doors are used often but not as much as in high-traffic areas.
Suitable environments and applications:
Restrooms, hallways, or office doors in commercial buildings.
Medium-traffic areas where the door is used regularly but not constantly.
Benefits and considerations:
These closers are more cost-effective than Grade 1 models, while still providing reliable performance for medium-traffic spaces.
Great for environments where you need durability but don't require the heavy-duty specifications of a Grade 1.
If your building experiences light foot traffic, a Grade 3 door closer might be all you need. These are designed for low-duty use and are perfect for interior doors or spaces with less frequent door activity.
What defines a Grade 3 door closer?
Tested for 500,000 cycles at 50% efficiency.
Suitable for environments where doors aren't used frequently, such as storage rooms or offices.
Suitable environments and applications:
Interior doors in low-traffic areas, like offices or private spaces.
Low-traffic spaces where doors are rarely opened and closed.
Limitations:
Not suitable for high-traffic areas, as they are designed for lighter use.
To ensure long-term performance, it's important to install them in environments where door use is minimal.
| Grade | Number of Cycles | Performance | Suitable for |
|---|---|---|---|
| Grade 1 | 2 million cycles | High durability | Public buildings, commercial entrances |
| Grade 2 | 1 million cycles | Medium durability | Restrooms, hallways, office doors |
| Grade 3 | 500,000 cycles | Low durability | Interior doors, low-traffic spaces |
These grades allow you to choose the best door closer depending on how often your doors will be used, ensuring you get the right durability and performance for your space.
Knowing the grades of door closers can save you more than just time. It can also save money, improve building safety, and help keep your doors in good condition for years. Here's why understanding door closer grades is crucial.
Choosing the right door closer based on its grade helps ensure durability and avoid unnecessary replacements. By picking a closer that matches your door's usage, you're investing in long-term performance rather than dealing with frequent repairs or replacements.
Ensuring durability and avoiding unnecessary replacements:
A Grade 1 door closer may seem expensive upfront but saves money in the long run for high-traffic areas. These closers last longer, requiring fewer replacements.
A Grade 3 closer might be cheaper, but it won't handle heavy-duty use as well as a higher-grade closer. Choosing the wrong grade can result in quicker wear and higher maintenance costs.
How to ensure doors remain functional without premature wear:
By selecting the correct grade for your environment, you reduce the likelihood of malfunction. A Grade 1 for high-traffic doors ensures reliable function, while a Grade 2 for moderate use keeps costs lower but still performs well.
Door closers aren't just about convenience. They also contribute to energy efficiency and safety in buildings, making them a key component of building systems.
The role of door closers in controlling room temperature:
By ensuring that doors close properly, door closers help maintain consistent indoor temperatures. For instance, they prevent heated or cooled air from escaping, reducing the load on HVAC systems and improving energy efficiency.
Safety benefits, especially for fire-rated doors:
Door closers are essential for fire-rated doors as they ensure the door remains closed in an emergency. A properly closing door helps contain smoke and fire, preventing them from spreading throughout the building. This is critical for building safety and can potentially save lives in the event of a fire.
| Type of Door | Energy Efficiency Impact | Safety Benefit |
|---|---|---|
| Fire-rated doors | Prevents air loss, improving HVAC efficiency | Contain fire and smoke during emergencies |
| High-traffic doors | Helps maintain indoor temperature | Ensures door closes securely to prevent unauthorized access |
| Interior doors | Contributes to energy savings in controlled environments | Keeps areas separate, especially in commercial settings |
Door closers do more than keep doors in place; they play an important role in maintaining building efficiency and ensuring safety in critical situations.
When selecting a door closer, it's not just about the door's grade. The size of the door and how often it's used both play a huge role in determining which closer will work best. Let's break down how these factors influence your choice.
The weight and size of a door significantly affect how a closer will perform. Larger, heavier doors need more force to open and close, so a more powerful door closer is required.
Impact of door weight and size on the closer's functionality:
Bigger doors need stronger springs and higher-grade closers.
A heavy door creates more resistance and requires a closer capable of handling that pressure, especially when closing the door.
Recommendations for matching door closers with door sizes:
Small doors (24"–28"): Use a Grade 3 door closer, as they don't require heavy-duty closing power.
Medium doors (28"–36"): A Grade 2 door closer is typically suitable for these sizes.
Large doors (36"–48"): Choose a Grade 1 door closer, as the increased weight and size demand a more durable option for consistent performance.
| Door Size | Recommended Grade | Reasoning |
|---|---|---|
| 24"–28" | Grade 3 | Lightweight, minimal force required |
| 28"–36" | Grade 2 | Moderate force needed for medium-weight doors |
| 36"–48" | Grade 1 | Heavy doors need high durability and force |
The frequency of door use, or door traffic, is just as important in choosing the right door closer. If a door is opened and closed frequently, it's going to wear out a lower-grade closer much faster.
Door cycles per day: High-traffic vs. low-traffic doors:
High-traffic doors experience thousands of cycles per day, demanding a Grade 1 closer to handle the constant use.
Low-traffic doors experience far fewer cycles, so a Grade 3 closer will last much longer in these conditions.
Real-world examples of traffic estimates and their impact on performance:
Convenience store entrances: 5,000 cycles per day, meaning a Grade 1 closer is necessary for durability.
Office hallway doors: 100–200 cycles per day, where a Grade 2 closer would be ideal.
Home bathroom doors: 25 cycles per day, a Grade 3 closer is enough to last for years.
| Traffic Level | Daily Cycles | Recommended Grade | Environment |
|---|---|---|---|
| High traffic | 1,000–5,000 cycles | Grade 1 | Retail, public entrances |
| Medium traffic | 100–500 cycles | Grade 2 | Office spaces, hallways |
| Low traffic | 25–100 cycles | Grade 3 | Residential, storage rooms |
By matching the door closer to both the door size and expected traffic levels, you can ensure your doors perform efficiently and last longer, saving on replacement costs down the road.
When selecting a door closer, you might hear the terms spring size and door closer grade being used. These two factors are closely related, but they measure different things. Let's dive into how spring size plays a crucial role in choosing the right door closer for your space. For manufacturers, understanding the relationship between spring size and door grade is key to providing tailored solutions for their clients.
Spring size is an essential feature in door closers. It determines the force needed to open and close the door. Essentially, the spring controls how hard the door pushes against the opening force. The door closer grade, on the other hand, is about how many cycles the door can handle before showing signs of wear.
Difference between spring size and grade:
Spring size refers to the amount of tension needed to control the door's movement.
Door closer grade measures the durability of the closer by how many times it can open and close before performance degrades.
Spring size and door closer grade go hand-in-hand, but while the grade tells you about the product's lifespan, the spring size ensures the closer has the right force to function properly.
How spring size affects the force required to open and close doors:
Larger doors or heavier doors require stronger springs to close properly. Smaller doors may not need as much force, so a smaller spring will suffice.
The spring size ensures that a door closer can handle different levels of door weight and friction caused by the door material or weatherstripping.
When choosing the right spring size for your door closer, it's essential to match it to the door width and the type of door. Here's a breakdown:
| Door Width | Recommended Spring Size | Suggested Grade | Reason |
|---|---|---|---|
| 24"–28" | Spring Size 1 | Grade 3 | Suitable for light interior doors |
| 28"–32" | Spring Size 2 | Grade 2 | Common for standard office doors |
| 32"–36" | Spring Size 3 | Grade 2 or 1 | Used for medium to heavy doors |
| 36"–42" | Spring Size 4 | Grade 1 | Heavy-duty applications, exterior doors |
| 42"–48" | Spring Size 5 | Grade 1 | Large, heavy doors requiring more closing force |
Matching the right spring size to your door ensures the closer can handle the force needed for smooth operation while also keeping the door functional for a long time.
While spring size controls the force required to open and close the door, the grade of the closer ensures long-term reliability. Here's how they work together:
Spring size and Grade 1:
Grade 1 closers need stronger springs because they are tested for 2 million cycles. These are designed for high-traffic or heavy doors that require more force to function properly.
Spring size and Grade 2:
Grade 2 closers work best with medium-sized springs, as they need to be durable yet efficient for medium-traffic spaces.
Spring size and Grade 3:
Grade 3 closers typically require smaller springs, as they are designed for low-traffic areas. These springs provide enough force to ensure the door closes without being overpowered.
Choosing the right spring size ensures that the door closer functions optimally for both your specific door and traffic needs.
While understanding door closer grades is important, there are a few common misconceptions that might lead you to overpay for a product or pick the wrong one. Let's clear up some of these myths.
Many people assume Grade 1 door closers are the best option for every door. While they're incredibly durable and built for high-traffic areas, that doesn't always mean they're necessary.
When Grade 1 may not be necessary:
If you're installing a door in a low-traffic area like a storage room or a bathroom, a Grade 1 closer may be overkill. Instead, a Grade 3 closer will do the job just fine and save you money.
Grade 1 closers are designed for 2 million cycles, making them ideal for heavy use, but if your door won't see much action, there's no need to spend extra on such a high-end option.
Cost vs. necessity: Is Grade 1 overkill for some situations?
Grade 1 closers can be expensive. While they are long-lasting, you don't need to spend more money than necessary if the door won't be used frequently. For doors in moderate traffic environments, Grade 2 might be more than enough.
Another misconception is that there is one universal standard for all door closers. In reality, there's a lot of variety depending on the manufacturer and application.
Understanding why door closers vary by manufacturer and application:
Different manufacturers may use slightly different testing methods, or they may focus on specific performance aspects. For example, one brand's Grade 1 may be slightly more durable than another's, depending on how the cycle tests are performed.
Application matters too. A door closer in a fire-rated door will be tested for different conditions than a closer used on an office door. The ANSI/BHMA 156.4 standard provides a good baseline, but manufacturers can still tailor their products to meet different needs.
| Factor | Impact on Door Closers |
|---|---|
| Manufacturer | Variations in design and testing methods |
| Application | Different environments require different performance criteria (e.g., fire-rated, high-traffic) |
| Standardization | While ANSI/BHMA sets the baseline, each brand may have unique features or quality control |
Knowing these differences helps you understand why not all door closers are created equal and why one brand or grade may be better for your specific needs than another.
Choosing the right door closer grade isn't always straightforward. It depends on several factors like door size, traffic levels, and even environmental conditions. Let's go over how to make the best choice for your building.
When selecting a door closer, you need to keep a few key factors in mind to ensure it meets your needs.
Factors to consider:
Door size: Larger doors, especially those made from heavy materials like wood or metal, need a stronger door closer. Smaller doors might only need a Grade 3 closer, which is less forceful.
Traffic frequency: High-traffic areas like shopping centers or offices need Grade 1 closers to handle constant use. For lower-traffic areas, Grade 2 or Grade 3 might be better.
Location: Exterior doors, or those exposed to the elements, should have higher-grade closers (like Grade 1) since they need to endure tougher conditions.
Impact of environmental factors:
Wind: Wind can push doors open, which means the closer needs more force to close the door against that pressure. If your door is exposed to wind, consider a Grade 1 closer.
Stack pressure: This refers to pressure from air conditioning or heating systems. If air pressure can affect the door's performance, a stronger closer will help ensure it closes properly.
Friction: The materials and design of the door and frame can cause more friction, which could require a stronger spring or higher-grade closer.
To determine which door closer grade is best for your space, consider the following questions:
How often will the door be used?
Is the door exposed to outdoor elements like wind or rain?
What is the size and weight of the door?
Is the door in a high-traffic area like an office or a low-traffic area like a bathroom?
By answering these questions, you can figure out whether you need a Grade 1, Grade 2, or Grade 3 closer. Higher grades are meant for more demanding environments, while lower grades work best for areas with light traffic.
Here are some examples to help you decide which grade to choose:
Grade 1: Best for exterior doors in commercial settings
Commercial entrances that handle thousands of people per day need a Grade 1 door closer. These are tested for 2 million cycles and can withstand the wear and tear of constant use.
High-traffic public spaces like shopping malls, airports, and hospitals also require Grade 1 closers to ensure durability.
Grade 2: Ideal for office buildings, restrooms, or hallways
Grade 2 closers are a good choice for office doors, restroom doors, and hallways. They handle 1 million cycles and are designed for moderate traffic.
These closers provide a good balance between durability and cost, making them perfect for spaces with daily use but less foot traffic than high-traffic public areas.
Grade 3: Perfect for residential or low-traffic spaces
For doors in homes or storage rooms where there is little foot traffic, a Grade 3 door closer is ideal. These are designed to handle 500,000 cycles, making them perfect for light-duty environments.
Interior doors in low-traffic spaces are well-suited to Grade 3 closers, as they won't be subjected to constant opening and closing.
| Door Type | Recommended Grade | Why |
|---|---|---|
| Commercial entrances | Grade 1 | High traffic, need durable performance |
| Office buildings | Grade 2 | Moderate traffic, balanced performance |
| Residential doors | Grade 3 | Low traffic, lighter-duty usage |
By considering these factors and examples, you can easily match the right grade of door closer to your specific needs, ensuring it performs effectively for years to come.
Door closers are designed to make life easier by ensuring doors close securely. However, they can encounter issues over time. Understanding why they fail and how to prevent problems can save you time and money. Let's explore some of the most common issues and how to avoid them.
Door closers are built to last, but a few factors can cause them to fail prematurely.
Common reasons:
Improper installation: If the door closer is installed incorrectly, it may not function properly, causing it to wear out faster.
Lack of maintenance: Door closers, like any other mechanical component, require regular maintenance. Failure to inspect and maintain them can lead to performance issues.
Wrong grade selection: Choosing the wrong grade for your door can cause a closer to wear out quickly. For example, using a Grade 3 closer on a high-traffic door will lead to premature failure.
Taking care of your door closers can extend their lifespan. Regular maintenance ensures smooth operation and reduces the need for costly repairs.
Simple maintenance tips:
Lubricate regularly: Apply a lubricant to the closer's moving parts every few months to keep it functioning smoothly.
Check for proper tension: Over time, door closers may lose tension. Adjust the tension settings to ensure the door closes properly without slamming or failing to close fully.
Clean the closer: Dust and dirt can affect the performance of the closer. Clean it regularly to ensure it operates smoothly.
Importance of regular inspections and adjustments:
Inspect regularly: Check the door closer's condition every 6 months to identify any signs of wear and tear. This helps catch issues before they become serious problems.
Adjust settings: Ensure the closer's closing speed and latching speed are adjusted correctly. If it's too fast or too slow, it could cause damage to the closer or door frame.
If your door closer stops working or starts leaking fluid, it's a sign of mechanical failure. Here's how to deal with it:
How to spot leaks or mechanical failure:
Fluid leaks: If you notice fluid puddling around the door closer, it's leaking hydraulic fluid. This means the closer's seals are damaged.
Sticking or slow movement: If the door is slow to close or sticks, the internal components might be worn or dirty.
Difficulty in closing: If the door won't close properly or needs excessive force to do so, the closer may need to be adjusted or repaired.
When to call a professional for repair or replacement:
If the door closer has severe leakage, or internal parts are damaged, it's time to call in a professional. They can inspect and either repair or replace the closer.
If the mechanical failure is due to improper installation or incorrect grade selection, a professional can help fix the problem and ensure the right closer is chosen.
| Problem | Signs to Watch For | Solution |
|---|---|---|
| Fluid leaks | Puddles of fluid around the closer | Call a professional to replace seals or the closer |
| Slow or sticking movement | Door moves slowly or sticks when closing | Clean, adjust tension, or replace parts |
| Inconsistent closing | Door won't close properly, needs excessive force | Adjust settings or replace the closer |
By addressing these issues early on, you can keep your doors functioning properly and avoid costly repairs.
Choosing the right door closer grade is essential to ensure smooth and efficient door operation. Here's a quick recap of the key points to help you make the best choice for your needs:
Grade 1 is ideal for high-traffic environments like commercial entrances, public buildings, and exterior doors. It's designed to handle heavy use and harsh conditions, with a testing standard of 2 million cycles.
Grade 2 is suitable for medium-traffic areas such as office buildings, restrooms, and hallways. It offers a good balance of durability and cost, tested for 1 million cycles.
Grade 3 is perfect for low-traffic spaces, such as residential doors or storage areas. These closers are tested for 500,000 cycles and are built for light-duty use.
When choosing the right grade, consider the following:
Door size: Larger, heavier doors need stronger closers (Grade 1).
Traffic frequency: High-traffic areas demand Grade 1 closers, while lower-traffic environments can use Grade 2 or 3.
Location: Exterior doors or areas exposed to weather conditions need higher-grade closers to withstand the elements.
If you're unsure about which door closer grade to choose, reaching out to a professional can help. Experts can recommend the right grade based on your building's specific needs, ensuring optimal performance and longevity for your doors.
For more guidance, feel free to contact professionals who can assist you in selecting the right door closer for your space.
: +86-139 2903 7292
