180 Degree White EN1935 Fire 3D Adjustable Concealed Hinge-DDCH008-G40

Euro Concealed Door Hinges (often referred to as concealed hinges or European hinges) are a type of hinge commonly used in modern cabinetry and furniture. They are designed to be hidden from view when the door is closed, providing a sleek, clean appearance.
  • DDCH008-G40

  • D&D Hardware

  • Wooden Door, Metal Door, Steel Door, Interior Door, outer Door

  • BS EN1935, EN1634 fire rated 132mins

  • Zinc alloy

  • SSS , PSS , PVD , PB, AB , AC , MB

  • T/T, L/C, D/P, Western Union

  • Jiangmen /Guangzhou / Shenzhen , China

  • 200,000/Month

Availability:
Quantity:

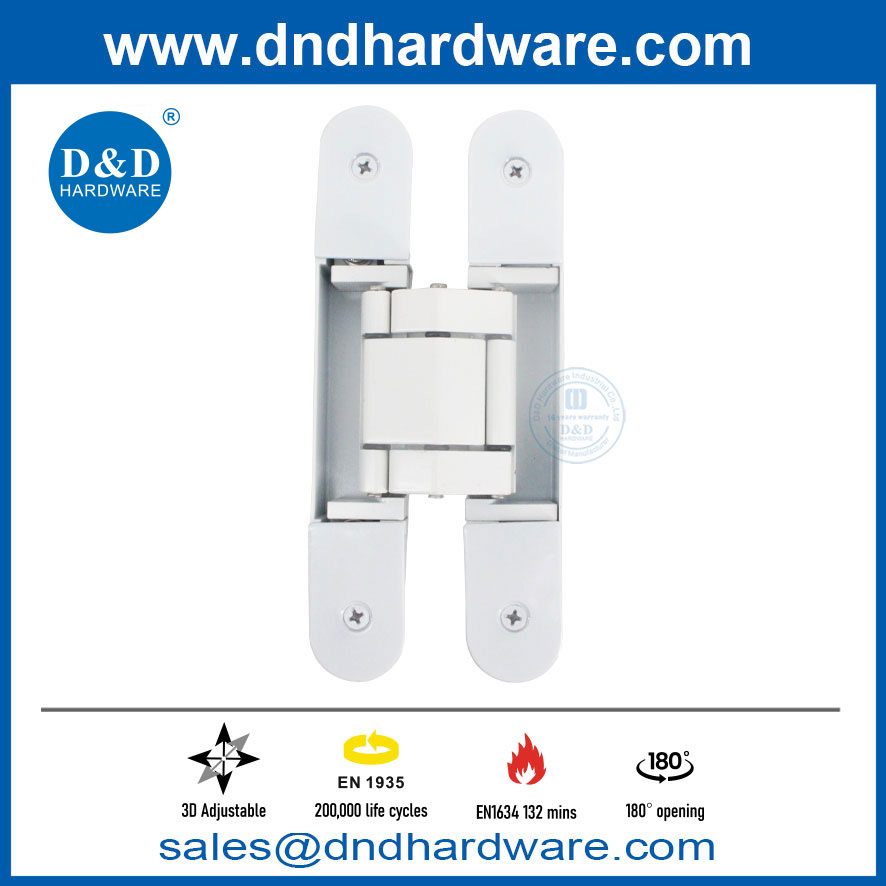

180 Degree White EN1935 Fire 3D Adjustable Concealed Hinge-DDCH008-G40



180 degree concealed Hinge for wooden door is a popular hinge, it is durable and easy to use. As a professional hinge supplier in China, we provide customers various quality Heavy Duty Invisible Hinge and they apply to different commercial of doors. The Invisible Hinge for Metal Door is one kind of our Stainless Steel Hinge. The material of 3D Door Hinge is Zinc Alloy, so it can keep the original shape very well. It won't turn yellow or rust. The Invisible Hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of 180 degree 3D Adjustable concealed Hinge for wooden door become old and bad. 180 degree heavy duty Golden 3D Adjustable concealed Hinge for wooden door can also keep long-term lubrication, make you convenient to open and close the door. The concealed Hinge for wooden door is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.

concealed hinge manufacturer

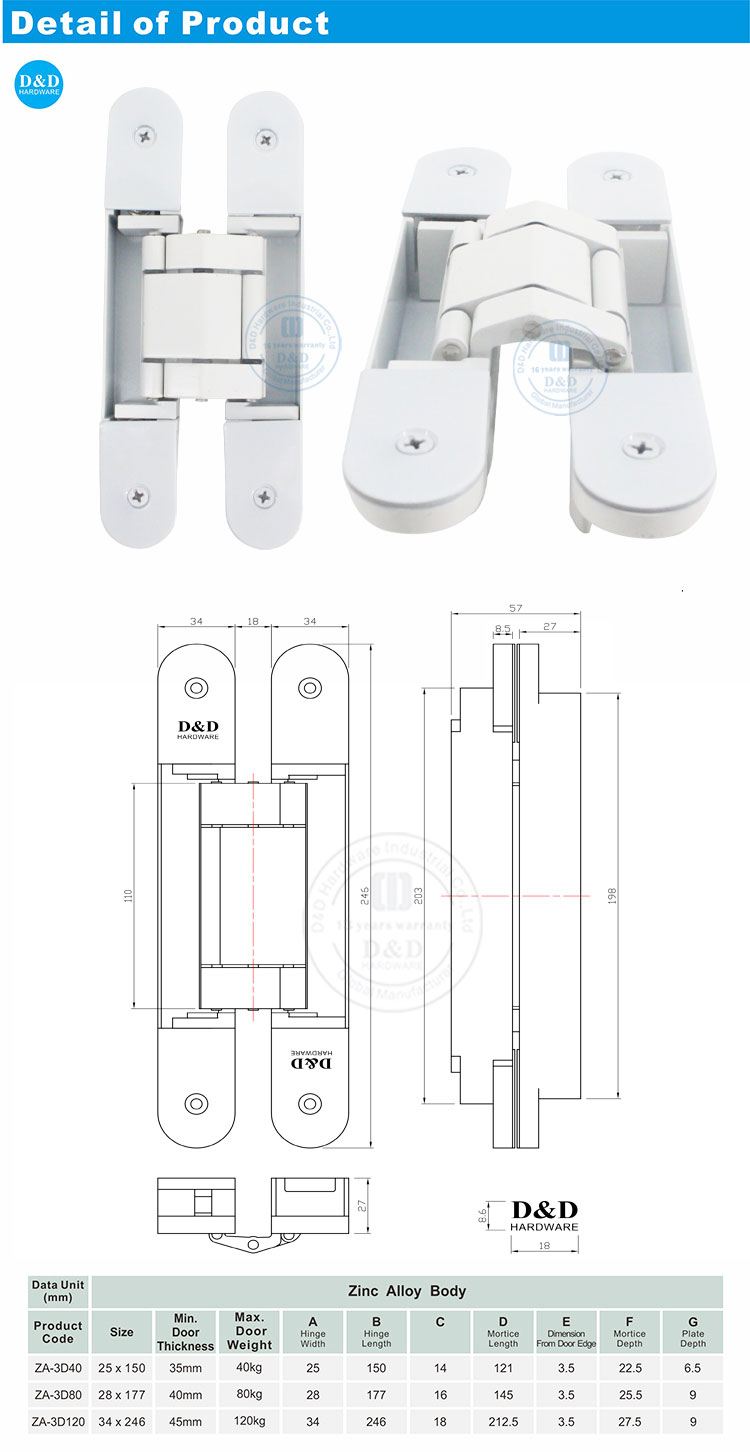

Product Overview


Product name

180 Degree White EN1935 Fire 3D Adjustable Concealed Hinge-DDCH008-G40

Product Model  DDCH008-G40
Material Zinc Alloy

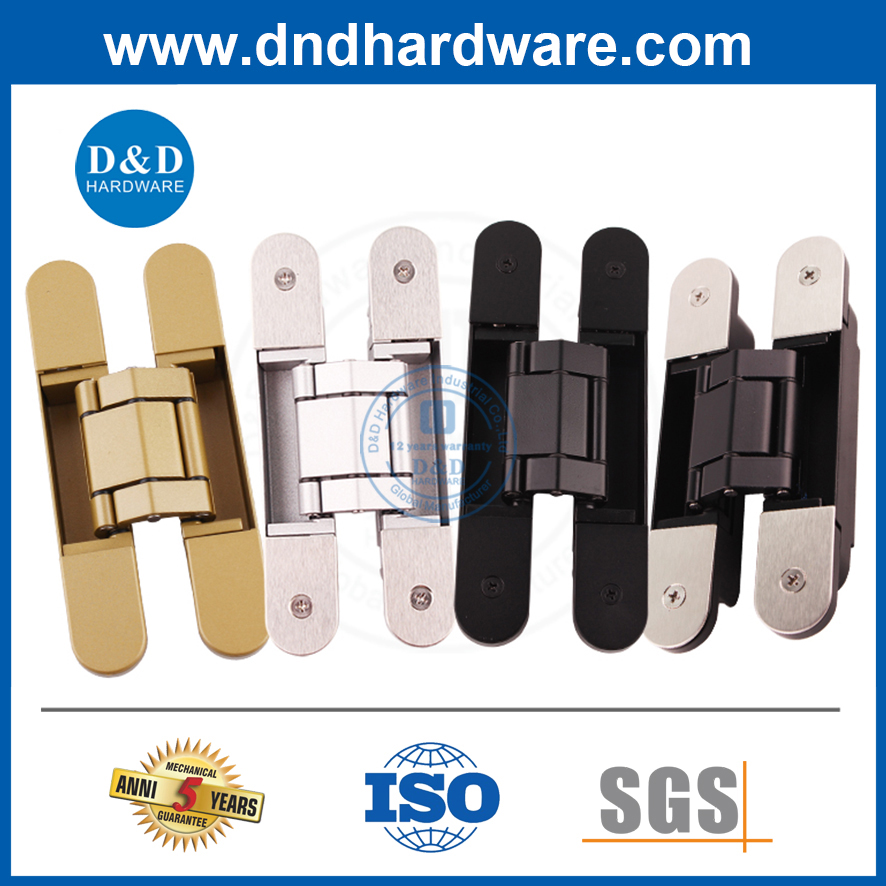

Finish  SC , SNP, Gold,Black, AB, AC
Certification BS EN1935, EN1634 fire rated 132mins
Suitable for Wooden door, Steel door, profile door , folding door

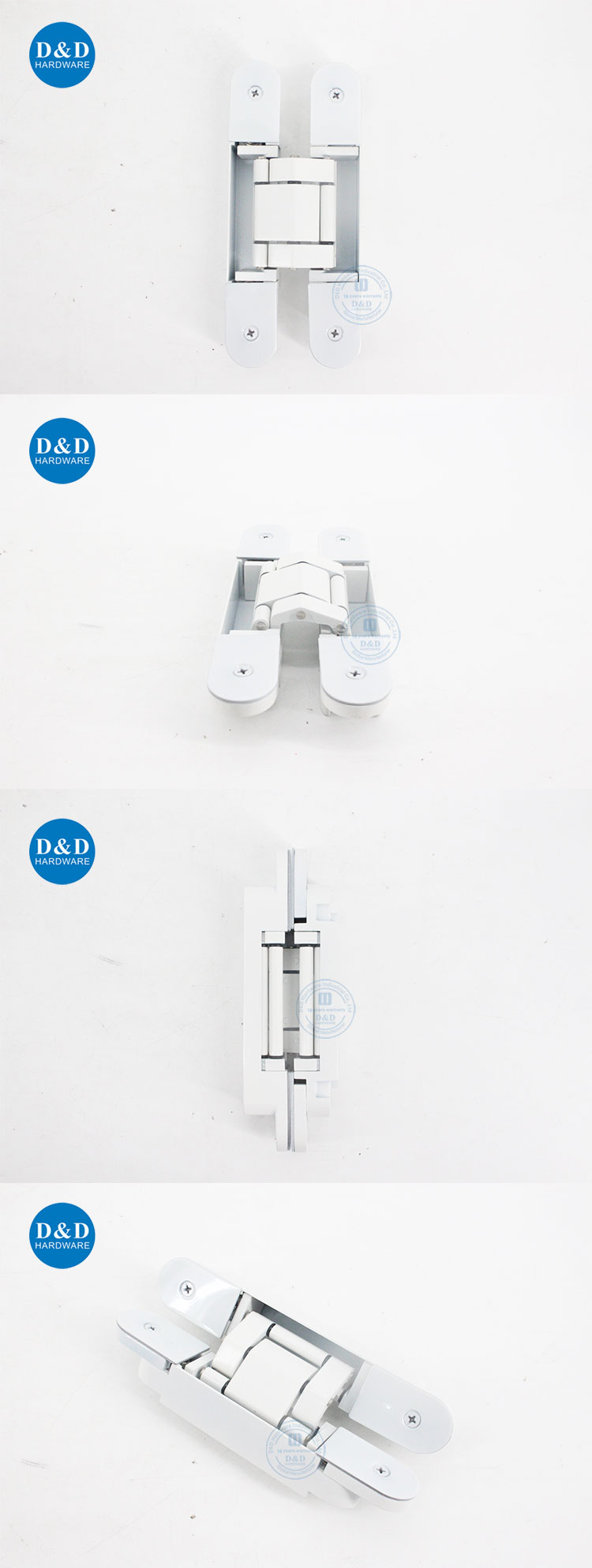

D&D concealed hingeFire door hinge

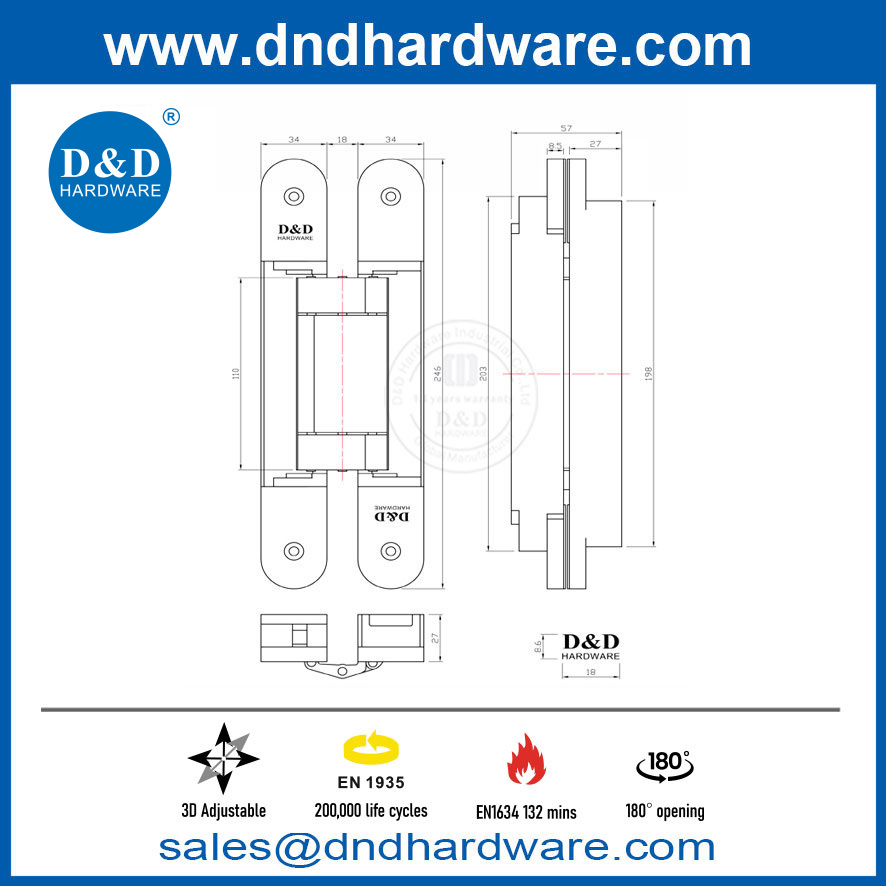

The installation Door Hinge-D&D Hardware


Packaging & Shipping
MOQ  500 Pairs
Package One pair/white box or color box or Blister card in Standard export carton
Sample time 5-7 working days
Production lead time 30-35 days
Shipping Port  Jiangmen , China   / Shenzhen , China .


Contact us



 Concealed Door Hinge

180 Degree White EN1935 Fire 3D Adjustable Concealed Hinge-DDCH008-G40


1.Concealed invisible hinges are designed to give dependable operations for years.



2.Standard Hinges are made of high strength plated stainless steel and heavy duty zinc alloy casting.



3.When closed, the concealed/invisible hinge can not be seen or tampered with



4.When opened , the riveted hinge pin is non-removable.



5.All hinges have been designed to give smooth performance



6.For flush timber or metal Door & Frames.



7.For DIN left hand and DIN right hand use





D&D Hardware specialized in Stainless Steel hardware products for Wooden Doors& Metal Doors, such as Door Locks, Door Hinge, Lever Handles, Door Closer, Panic Exit Device, Door stopper, Flush Bolt, etc.

The Stainless Steel Euro Door Hinge that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.


More door hardware items include:

1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13

2.Concealed Hinge- BS EN1935, EN1634 Fire Rated

3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901

4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated

5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125

6. Door Closer – CE BS EN 1154 & UL 10C R40717

7. Lock Cylinder-BS EN1303, EN1634 Fire Rated

8. Door Viewer - UL Listed UL 10C Fire Rated R41286

9. Glass Hardware / Bathroom Hardware / Barn Door Hardware


D&D Hardware-Cycle Test Report for 3D Concealed Hinge-DDCH008-ZA-3D40D&D Hardware-Fire Test Report for 3D Concealed Hinge-60KG+80KG+100KGD&D Hardware-Fire Test Report for 3D Concealed Hinge-DDCH008-ZA-3D40D&D Hardware-Fire Test Report for 3D Concealed Hinge-DDCH008-ZA-3D120
