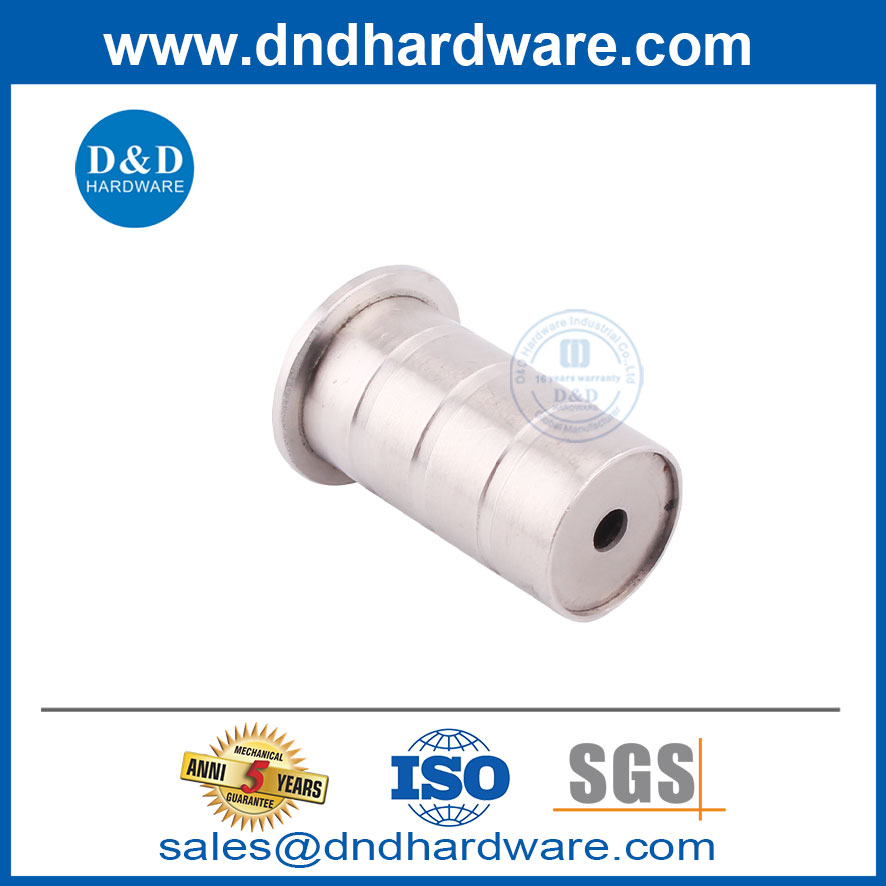

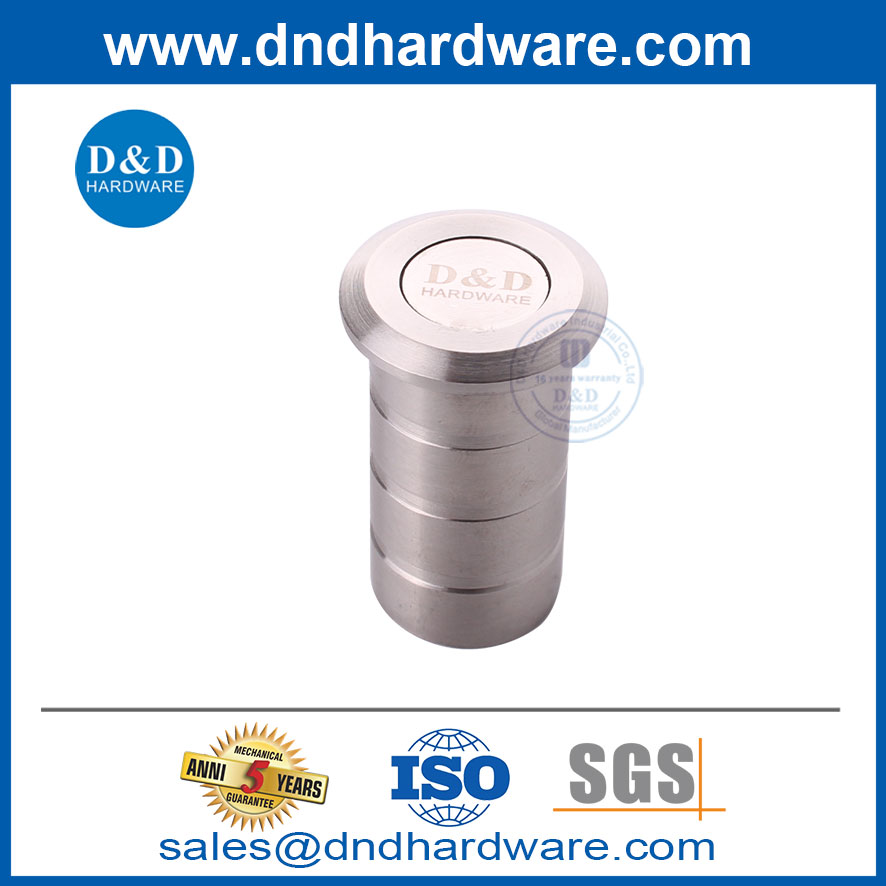

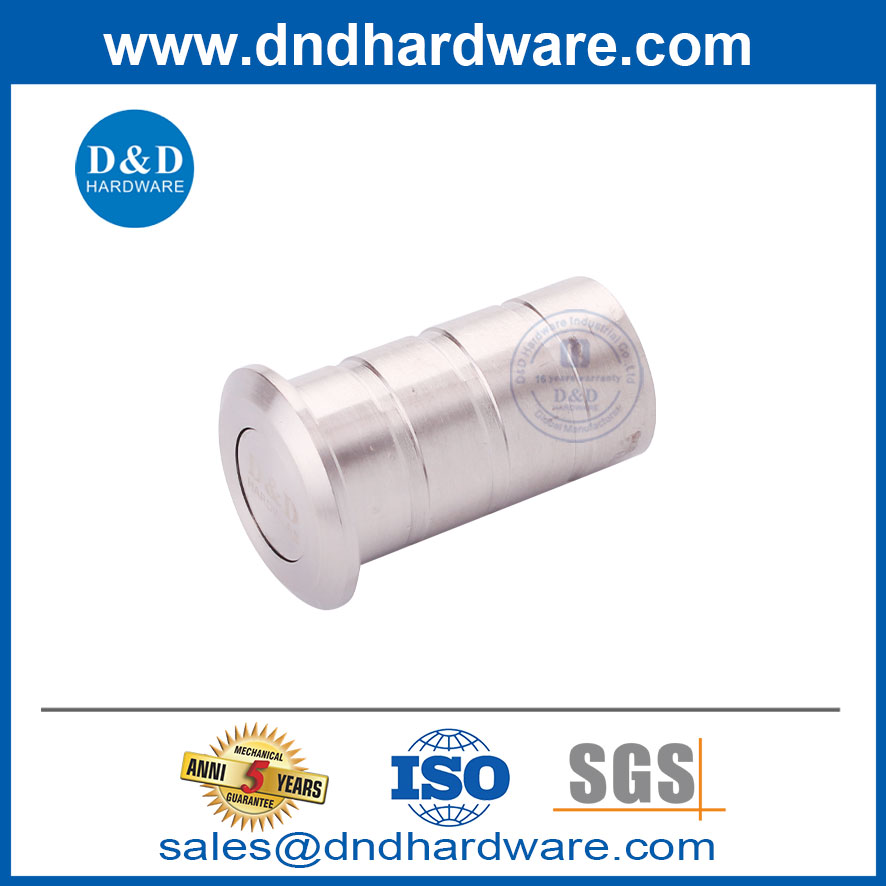

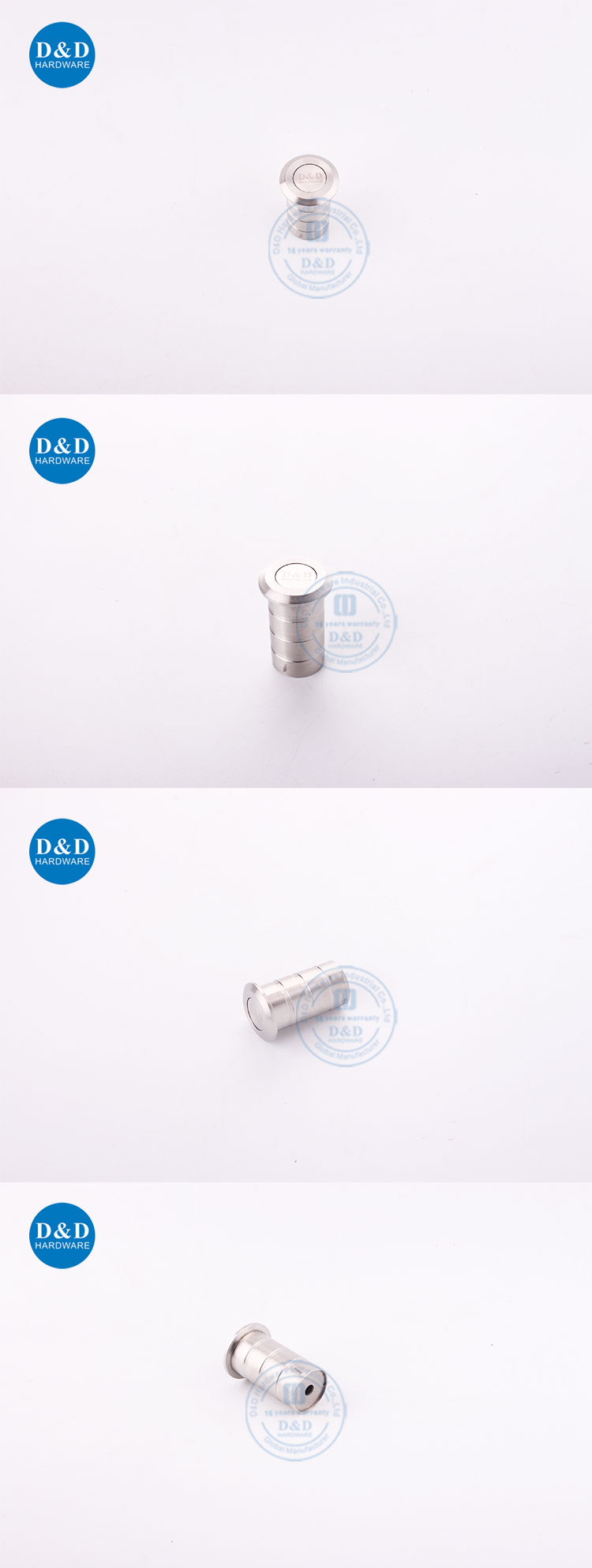

Satin Stainless Steel Flush Bolt Dust Proof Strike for Internal Door-DDDP002

Product Features

1. Precise dimensions, compatible with multiple types of door bodies

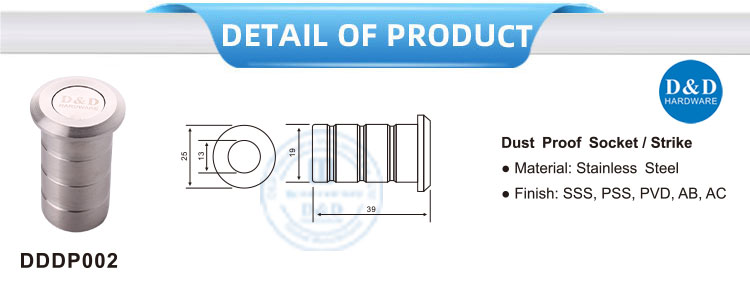

This flush bolt dust proof strike has a size of 39mm × 19mm, optimized for the travel of standard concealed bolt lock tongues. It is deeply compatible with door frame grooves (5-12mm depth) and is compatible with two common door body materials: wooden and steel doors. Its compact structure does not occupy additional space, and its precise linkage with the hidden pin lock body enhances the stability of the door when closed.

2. Stainless steel substrate, wear-resistant and corrosion-resistant

The main body is made of stainless steel material, with high surface hardness and impact resistance, which can resist friction scratches caused by daily door opening and closing, and extend the service life of accessories. It has excellent corrosion resistance and can maintain a smooth surface even after long-term use in humid or salt spray environments, reducing functional degradation caused by rust. It is suitable for complex use scenarios such as coastal areas or industrial plants, providing long-lasting and reliable sealing support for doors.

3. SSS finish, low-key, practical and beautiful

The surface is treated with Satin Stainless Steel (matte stainless steel) technology, which has a soft luster and combines anti fingerprint and easy cleaning characteristics. Its matte finish can weaken metal reflections and seamlessly blend with modern industrial, minimalist, or Nordic decoration styles, enhancing the overall aesthetic of the door. At the same time, the surface texture is delicate and not easy to accumulate dust. Daily maintenance only requires wiping with a soft cloth to restore cleanliness, meeting the dual needs of users for functionality and appearance.

Product application

1. Fire isolation passages in commercial buildings

In commercial areas such as shopping centers and office buildings, flush bolt dust proof strikes are used in conjunction with concealed bolt locks to effectively fill gaps at the top or bottom of double doors, preventing smoke from fires from spreading through door gaps to adjacent areas. Its sealing design ensures critical time for personnel evacuation, while reducing damage to goods and equipment caused by fires and enhancing overall building safety.

2. High end residential privacy protection doors

In residential scenes such as villas and apartments, the flush bolt dust proof strike can be combined with concealed door locks in bedrooms and bathrooms to reduce door opening and closing noise through sealed design. Its matte stainless steel appearance harmonizes with modern home style, enhancing the texture of the door and meeting users' dual pursuit of privacy protection and quality of life.

Installation Guide

The installation of flush bolt dust proof strike needs to be carried out after the fixing of the concealed bolt lock body is completed. The steps are as follows:

1.Positioning installation hole: Align the dust collector base with the reserved groove position on the door frame, ensuring that it is aligned with the travel of the hidden pin lock tongue, and mark the fixed hole position of the base with a marker pen.

2.Drilling fixation: Use an electric drill to drill a 3mm diameter installation hole at the marked location (depth adjusted according to screw length), thread the matching stainless steel screw through the base hole, and tighten the door frame to secure it.

3.Debugging sealing: Close the door leaf and check if the contact surface between the dust collector and the door frame is tightly fitted. If there is a gap, adjust the base position or add or remove gaskets to ensure the sealing effect.

4.Tip: It is recommended to clean the surface of the door frame before installation to avoid dust affecting the fixing effect; If the door frame material is a hollow structure, it needs to be reinforced with expansion screws.
