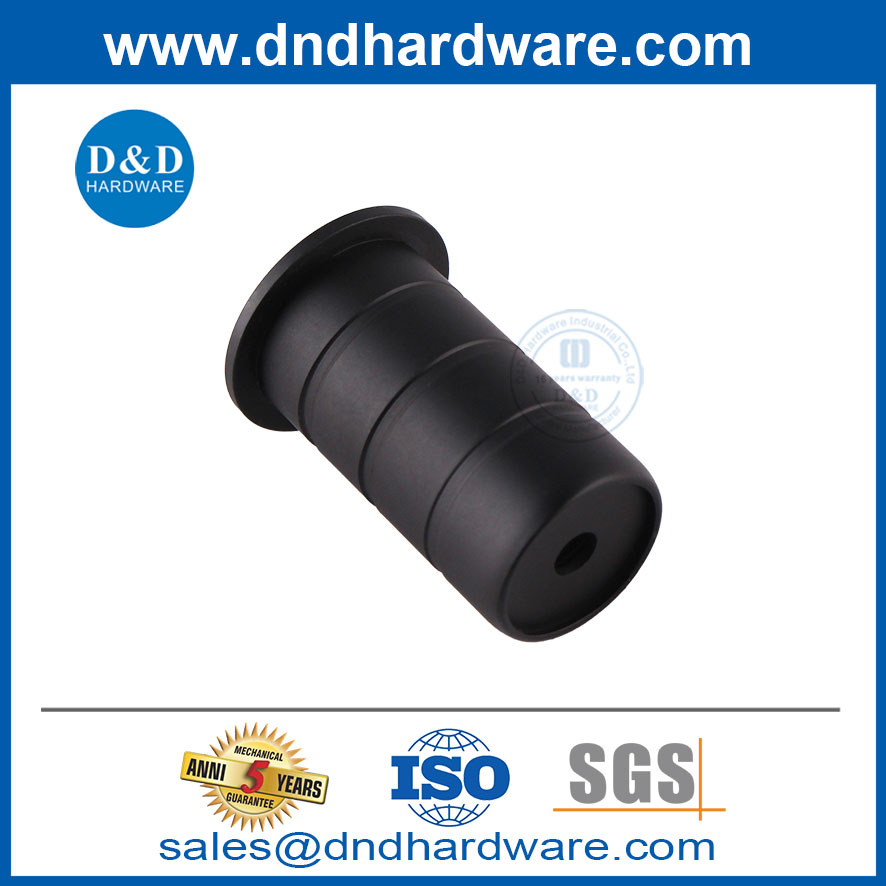

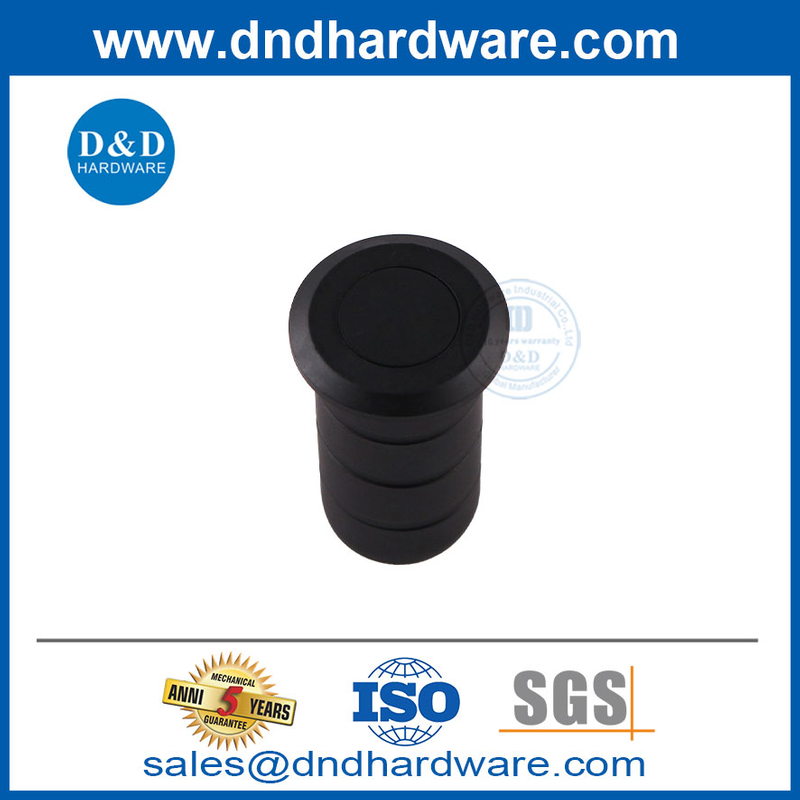

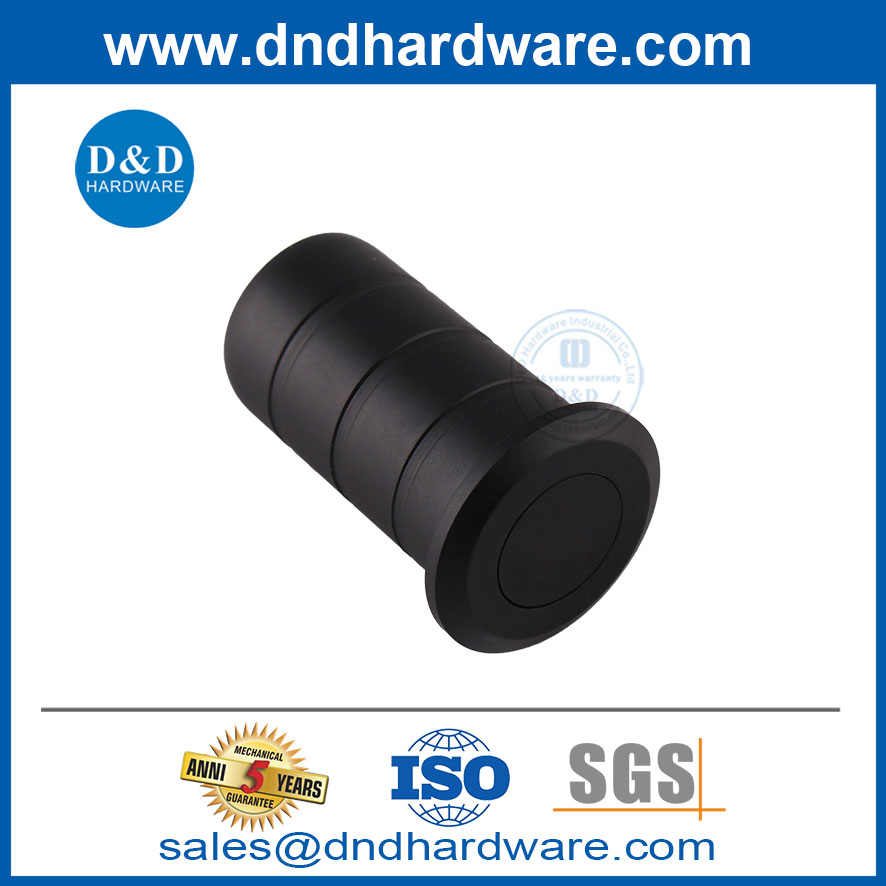

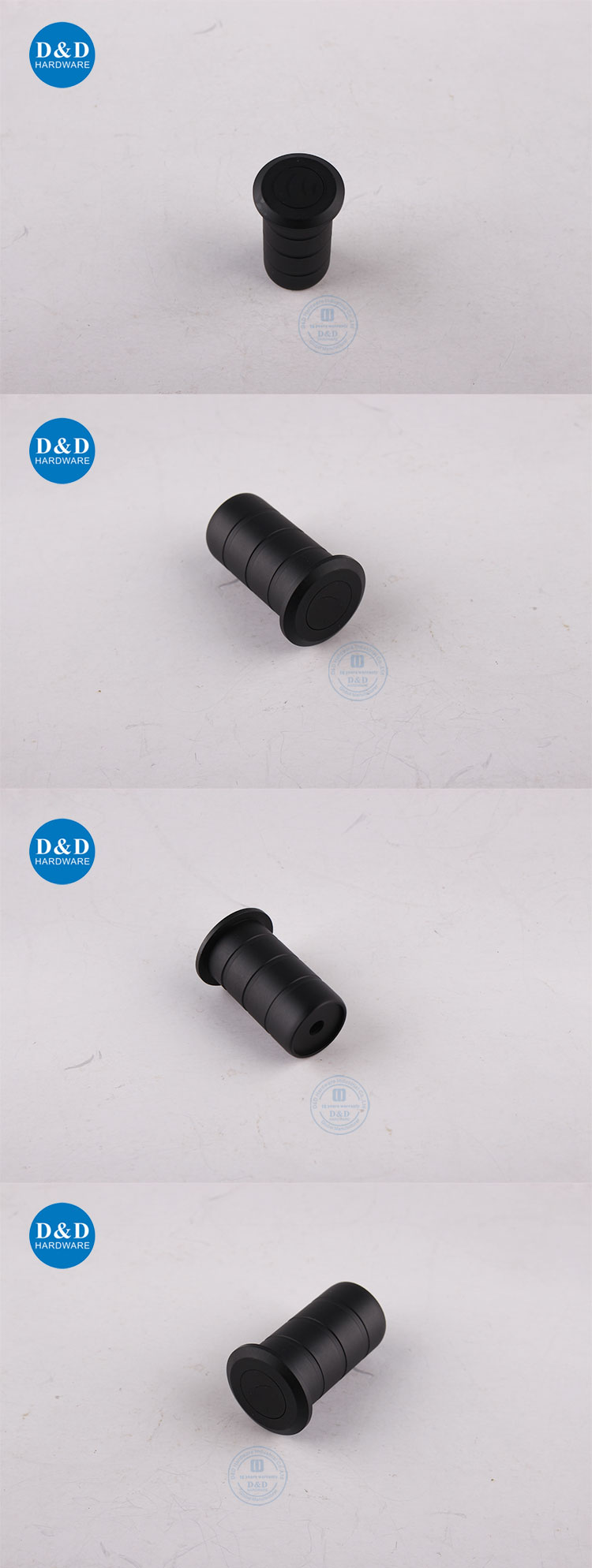

Matte Black Stainless Steel Flush Bolt Dust Proof Socket for Wooden Door-DDDP002

Product Features

1. Micro structure design, suitable for multiple door types

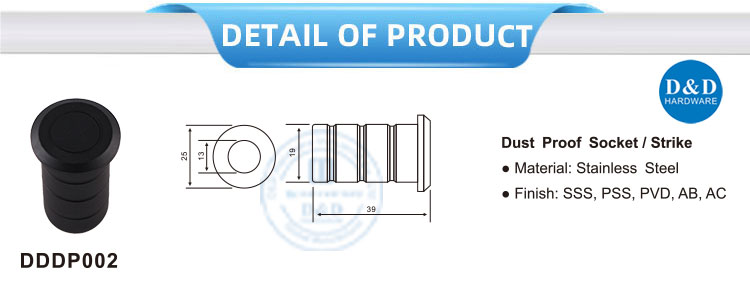

The size of this flush bolt dust proof socket is 39mm × 19mm, optimized for the travel of standard concealed bolt lock tongues, and deeply compatible with door frame grooves (fitting depth 5-12mm), compatible with both wooden and steel doors. Its microstructure does not occupy additional space, especially suitable for narrow frame doors or retro style doors. After installation, the gap uniformity of the door seam is ≤ 0.5mm, avoiding sealing failure due to size deviation, ensuring precise matching with the hidden pin lock body, and improving the stability of the door body when closed.

2. Made of stainless steel material, durable and corrosion-resistant

The main body is made of stainless steel material, with high surface hardness and impact resistance, which can resist friction scratches caused by daily door opening and closing, and extend the service life. It has excellent corrosion resistance and can maintain a smooth surface even after long-term use in humid or salt spray environments, reducing functional degradation caused by rust. It is suitable for complex scenarios such as coastal areas, industrial plants, or basements, providing long-lasting sealing support for fire doors.

3. Matte black surface treatment, low-key and beautiful

The surface adopts Matt Black technology, with low glossiness and no reflection, which can weaken the presence of metal accessories and seamlessly integrate with industrial style, modern minimalist or dark decoration styles. Its matte finish is less likely to reveal fingerprints and stains, and daily maintenance only requires wiping with a soft cloth to restore cleanliness. At the same time, the black coating can cover installation marks and enhance the overall aesthetics of the door.

4. Flexible installation, adaptable to multiple scene requirements

The product supports both horizontal and vertical installation, and can be adapted to various positions on the top, bottom, or sides of the door. The fixed bracket is designed with a long strip adjustment hole, allowing for installation error compensation of ± 2mm. Even if there is slight deformation in the door frame, it can be fine tuned to ensure precise docking between the dust seat and the lock tongue, reducing installation difficulty and improving construction efficiency.

Application scenarios

1. Clean areas in medical institutions

In places such as hospital operating rooms and pharmacies that require strict dust control, the flush bolt dust proof socket can effectively fill the gap between doors by cooperating with the concealed bolt lock body.

2. Control of server room environment

For scenarios such as data centers and server rooms that are sensitive to temperature and humidity, this accessory reduces air conditioning leakage through a sealed design (with an energy-saving effect of about 8-12%), while preventing external dust from entering the interior of the equipment, thereby extending the hardware's lifespan. Its compact structure is compatible with standard cabinet door sizes, and after installation, it does not affect the flexibility of door opening and closing, ensuring data storage stability.

3. High end residential audio-visual space

In the audiovisual room or study scene of villas and apartments, the flush bolt dust proof socket can be combined with soundproof door locks to reduce door opening and closing noise through sealed design, while preventing external light interference. Its matte black appearance blends with dark colored walls to enhance spatial privacy and meet users' pursuit of immersive experience.

Installation Guidelines

The flush bolt dust-proof socket must be installed after securing the hidden pin lock body. Follow these procedures:

1. Positioning Alignment
Align the dust-proof seat assembly with the pre-cut groove on the door frame, ensuring precise correspondence with the lock tongue's operational path. Mark the screw hole locations using a marking tool, accommodating both horizontal and vertical installation orientations.

2. Fastening Procedure
Drill a 3mm diameter pilot hole at each marked position using a power drill, with depth matching the screw length. Secure the assembly with provided stainless steel screws, tightening fully. For hollow door frames, reinforce with expansion anchors to ensure structural integrity.

3. Sealing Verification
Close the door and inspect the contact interface between the dust-proof seat and lock tongue. If gaps persist, adjust the seat position or incorporate/remove shims as needed to achieve complete surface contact and optimal sealing performance.
