SS304 UL Fire Touch Bar Panic Device Hardware-DDPD002

Strictly according to international Standard, such as the UL Listed 10C,ANSI, Grade 1 standard.

  • DDPD002

  • D&D Hardware

  • Wooden Door, Metal Door, Steel Door, Interior Door, Outer Door

  • UL Listed, ANSI-A156.3

  • SS Grade 304 and painted steel

  • SSS , PSS , PVD , AB , Silver , Gold

  • T/T, L/C, D/P, Western Union

  • Jiangmen /Guangzhou / Shenzhen , China

  • 200,000/Month

Availability:
Quantity:
Inquire Add to Basket

SS304 UL Fire Touch  Bar Panic Device Hardware-DDPD002

Stainless Steel Emergency Escape Device is a popular Panic Exit Device, it is durable and easy to use. As a professional Panic Exit Device supplier in China, we provide customers various quality Emergency Escape Device and they apply to different commercial of doors. The Escape Device for metal door is one kind of our UL Listed Escape Device. The material of Metal door Emergency Escape Device is Stainless Steel, so it can keep the original shape very well. It won't turn yellow or rust. The UL certificate Emergency Escape Device can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of metal door escape device become old and bad. The SS304 Metal Emergency Escape Device is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.

Product Description



Product name SS304 UL Fire Touch  Bar Panic Device Hardware-DDPD002
Product Model  DDPD002
Certification

UL Listed, 3 hours fire-rated, high quality assurance;

ANSI-A156.3 Grade 1.
Door Width

650mm＜ ≤1320mm
Door Height ≤2133mm
Max. Door weight(kg) 200kg
Max. Door Leaf Thickness 50 mm
Non-handed Design Suitable with out alteration for left or right hand applications.
Material SS Grade 304 and painted steel,Security Anti-thrust latch
Finish  Satin stainless steel, Polished stainless steel,Antique Brass,Silver, PVD
Standard UL Listed, ANSI-A156.3.
Suitable for Wooden door, Metal door, Fire rated door, Escape door, Exit Door

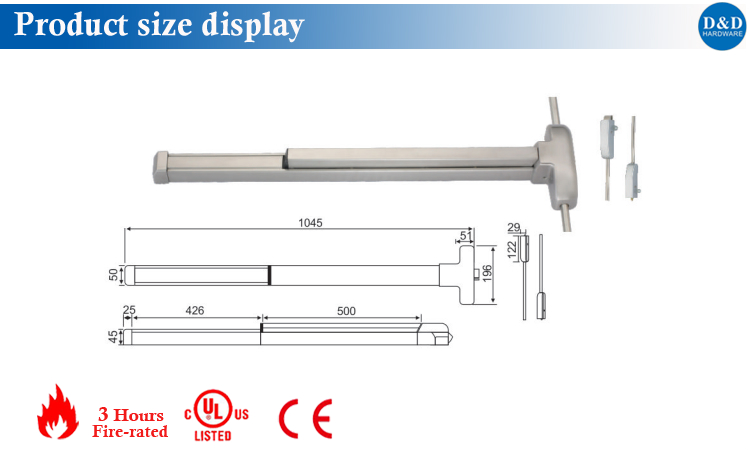

 Hinge size




Packaging & Shipping


SS304 UL Fire Touch  Bar Panic Device Hardware-DDPD002


MOQ  50 Pieces
Package One piece/white box or color box or Blister card in Standard export carton
Sample time 5-7 working days
Production lead time 45-60 days
Shipping Port  Jiangmen , China   / Shenzhen , China .


Test

The Test of CE Stainless Steel Mortise Lock from D&D Hardware

Company Information



D&D Hardware Manufacturer





Our Services



D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.

More door hardware items include:
1. Stainless Steel Door Hinge- UL Listed & Fire Rated & CE Certificate
2. Door Locks - CE EN12209 Fire Rated
3. Stainless Steel Door Handles- BS EN 1906
4. Panic Exit Device- UL Listed & CE Certificate
5. Door Closers – UL Listed & Fire Rated & CE Certificate
6. Glass Hardware / Bathroom Hardware



Contact us



 The Contact of D&D Hardware

SS304 UL Fire Touch  Bar Panic Device Hardware-DDPD002


1.Accordingly UL list & Fire rate standard,BHMA ANSI Grade 1 standard, UL305, UL10C, ANSI A156.3 standard.



2. Lock point 1



3. Standard doors (single leaf or double leaf)



4. Door width from 650mm to 1300mm
    Door leaf thickness up to 50mm
    Door weight up to 2100mm



5. Max door weight 200kg



6. Non hand design



7. Security anti-thrust latch



8. Material SUS304 & Satin finish


BS EN1125 Panic Exit Device-D&D HardwareBS EN1125 Panic Exit Device（2）-D&D HardwarePanic Exit Device-D&D HardwarePanic Exit Device(2)-D&D Hardware


D&D Hardware specialized in Stainless Steel hardware products for Wooden Doors& Metal Doors, such as Door Locks, Door Hinge, Lever Handles, Door Closer, Panic Exit Device, Door stopper, Flush Bolt, etc.

The Stainless Steel Euro Door Hinge that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.


More door hardware items include:
1. Stainless Steel Door Hinge- UL Listed & Fire Rated & CE Certificate
2. Door Locks - CE EN12209 Fire Rated
3. Stainless Steel Door Handles- BS EN 1906
4. Panic Exit Device- UL Listed & CE Certificate
5. Door Closers – UL Listed & Fire Rated & CE Certificate

6. Glass Hardware / Bathroom Hardware


Escape Exit Door Hardware-D&D Hardwar
