DDDC057
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Outer Door
UL Listed , UL10C Fire Rated 3 hour, UL File No.R40717
Aluminum alloy
Jiangmen /Guangzhou / Shenzhen , China
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

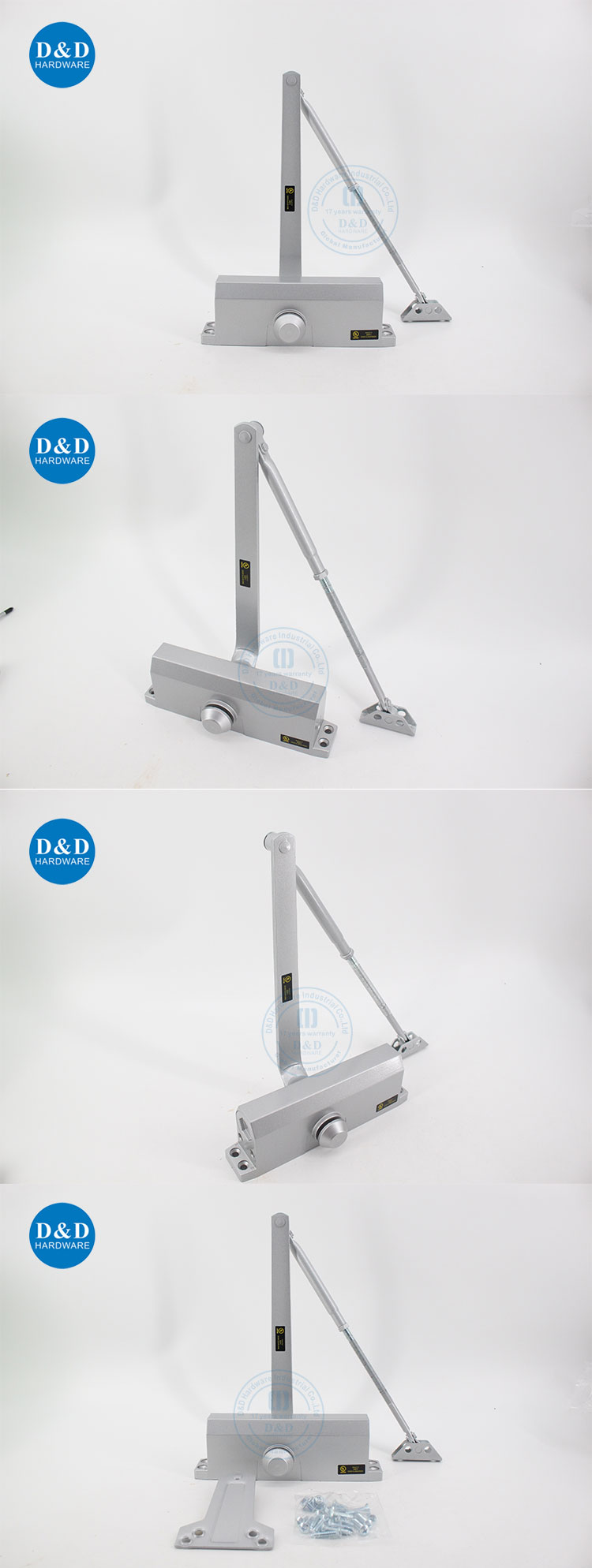

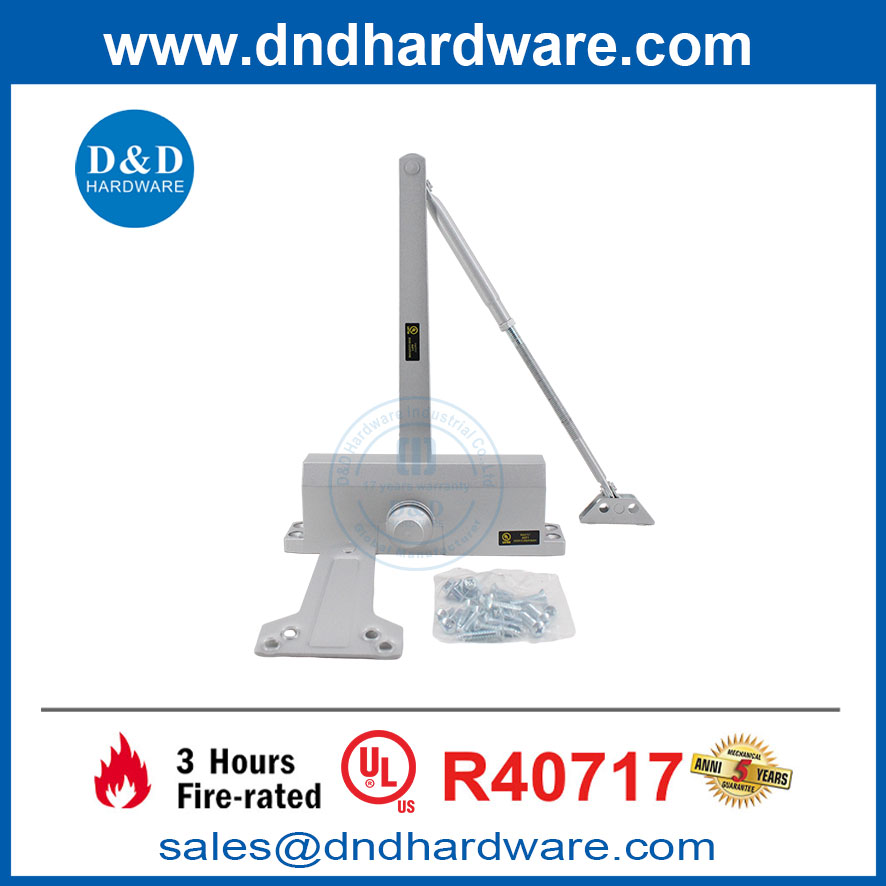

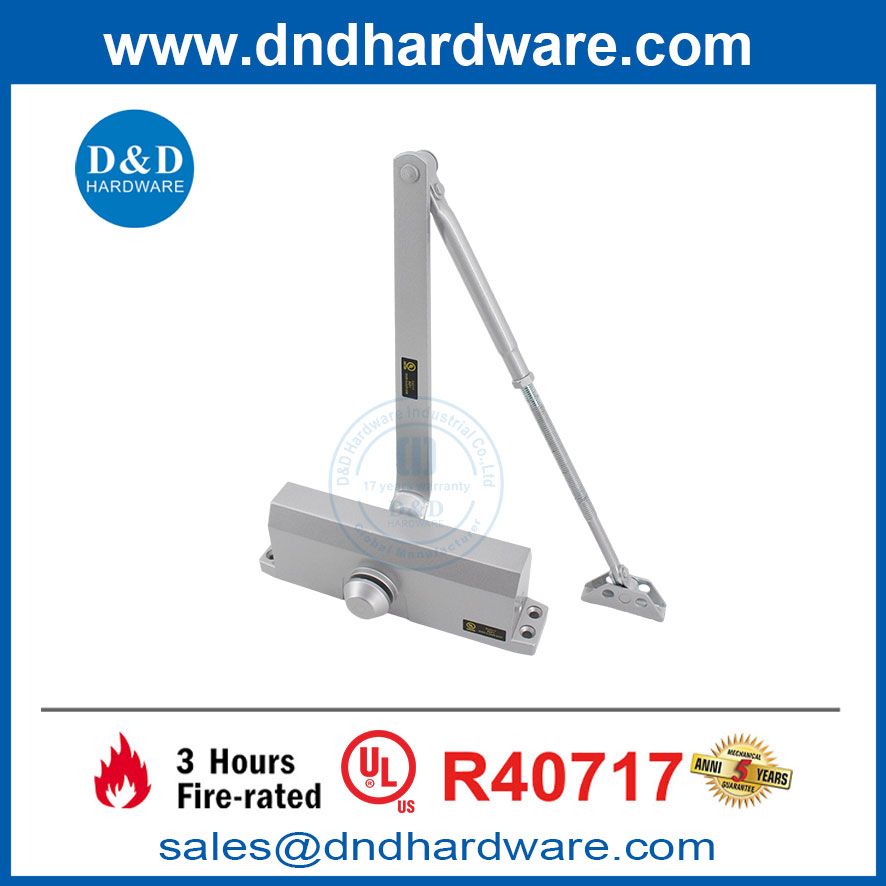

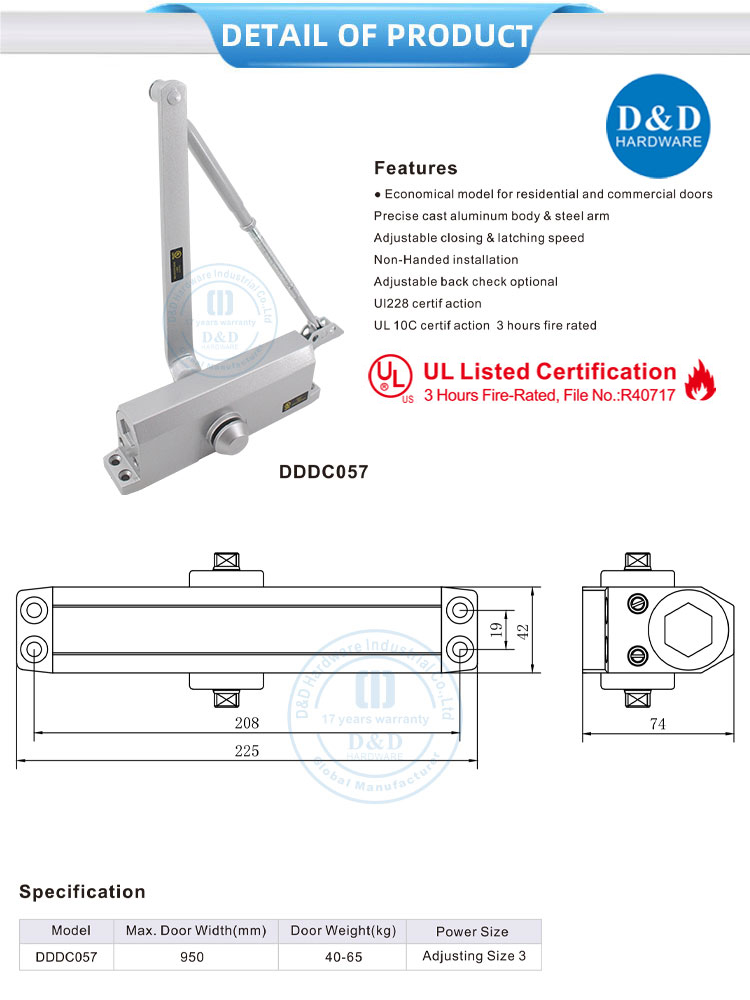

| Product name | Fire Products Adjustable UL 180 Degree Automatic Hydraulic Arm Door Closer |
| Product Model | DDDC057 |
| Material | Aluminum alloy |
Max.opening Angle | 180 degree |
Speed control | two way speed adjustable |
Certification | UL Listed, UL File No.:R40717, UL 10C 3 Hour Fire Rated |
| Suitable for | Wooden door, Metal door, fire rated door . |
principle of operation
Structural composition
The main components include supporting guide, transmission gear, return spring, one-way valve, rack plunger, throttle valve core, housing, connecting rod and so on. The shell is fixed on the door frame, and the connecting rod connects the door leaf and the door frame.
Opening process
When the door is opened, the connecting rod drives the transmission gear to rotate and drives the rack plunger to move to the right.
The spring is compressed, the hydraulic oil in the right chamber is compressed, the one-way valve is opened, and the hydraulic oil flows from the right chamber to the left chamber.
Closing process
The spring releases elastic potential energy, pushes the plunger to move to the left, and drives the transmission gear and the connecting rod to rotate in the opposite direction, thus realizing the automatic closing of the door.
Hydraulic oil flows back through the throttle valve core and gap to form resistance, control the closing speed and avoid violent impact.
Buffer and adjustment
The throttle valve can adjust the return speed of hydraulic oil, so as to control the closing speed of different travel sections (such as fast closing in the front section and slow buffering in the back section).
Users can adjust the door closing strength (by changing the position of the connecting rod) and speed (by adjusting the throttle valve) as required.
| MOQ | 100PCS |
Package | 1 Set / white box in standard export carton |
| Sample Time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen, China / Shenzhen, China |
Our service
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
1. Door Hinge- UL Listed UL10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2. Door Locks - CE EN12209 UKCA Fire Rated & UL 10C R40901
3. Door Handles- BS EN 1906 Grade 4, EN1634 Fire Rated
4. Panic Exit Device- UL Listed R40486 & UL305 SA45817 & CE BS EN1125
5. Door Closer – CE BS EN 1154 & UL10C R40717
6. Lock Cylinder-BS EN1303, EN1634 Fire Rated
7. Door Viewer - UL Listed UL 10C Fire Rated R41286
8. Glass Hardware / Bathroom Hardware
| Product name | Fire Products Adjustable UL 180 Degree Automatic Hydraulic Arm Door Closer |
| Product Model | DDDC057 |
| Material | Aluminum alloy |
Max.opening Angle | 180 degree |
Speed control | two way speed adjustable |
Certification | UL Listed, UL File No.:R40717, UL 10C 3 Hour Fire Rated |
| Suitable for | Wooden door, Metal door, fire rated door . |
principle of operation
Structural composition
The main components include supporting guide, transmission gear, return spring, one-way valve, rack plunger, throttle valve core, housing, connecting rod and so on. The shell is fixed on the door frame, and the connecting rod connects the door leaf and the door frame.
Opening process
When the door is opened, the connecting rod drives the transmission gear to rotate and drives the rack plunger to move to the right.
The spring is compressed, the hydraulic oil in the right chamber is compressed, the one-way valve is opened, and the hydraulic oil flows from the right chamber to the left chamber.
Closing process
The spring releases elastic potential energy, pushes the plunger to move to the left, and drives the transmission gear and the connecting rod to rotate in the opposite direction, thus realizing the automatic closing of the door.
Hydraulic oil flows back through the throttle valve core and gap to form resistance, control the closing speed and avoid violent impact.
Buffer and adjustment
The throttle valve can adjust the return speed of hydraulic oil, so as to control the closing speed of different travel sections (such as fast closing in the front section and slow buffering in the back section).
Users can adjust the door closing strength (by changing the position of the connecting rod) and speed (by adjusting the throttle valve) as required.
| MOQ | 100PCS |
Package | 1 Set / white box in standard export carton |
| Sample Time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen, China / Shenzhen, China |
Our service
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
1. Door Hinge- UL Listed UL10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2. Door Locks - CE EN12209 UKCA Fire Rated & UL 10C R40901
3. Door Handles- BS EN 1906 Grade 4, EN1634 Fire Rated
4. Panic Exit Device- UL Listed R40486 & UL305 SA45817 & CE BS EN1125
5. Door Closer – CE BS EN 1154 & UL10C R40717
6. Lock Cylinder-BS EN1303, EN1634 Fire Rated
7. Door Viewer - UL Listed UL 10C Fire Rated R41286
8. Glass Hardware / Bathroom Hardware
