When it comes to fire safety, every component of a building's infrastructure matters. Fire doors play a critical role in containing fire and smoke, giving occupants time to evacuate safely. However, to function correctly, fire doors must remain closed, or close automatically during a fire. This is where a door holder becomes essential. Whether you're specifying products for a new project or upgrading your building to meet compliance standards, understanding the importance of fire door holders is key.
In this in-depth guide, we'll explore everything you need to know about door holders on fire doors, from their function and types to installation and maintenance. Additionally, we'll address whether all doors need them and how manufacturers, wholesale buyers, and those purchasing in bulk can make cost-effective and compliant decisions.
A fire door holder is a device designed to hold a fire door open under normal conditions and release it automatically during a fire. These devices are often connected to a building's fire alarm system. Once the alarm is triggered, the door holder releases, allowing the fire door to close—thereby containing fire and smoke.
These holders are essential in high-traffic areas such as hospitals, schools, hotels, and office buildings where doors are frequently left open for convenience, but still need to close in emergencies. Door holders ensure both safety and accessibility without compromising fire protection measures.
Fire doors are only effective when closed. A door holder ensures that the door remains open when needed but can close automatically when danger arises. Their importance lies in:
Preventing the spread of fire and smoke: With properly functioning door holders, the fire door can close automatically, forming a barrier against smoke and flames.
Improving building accessibility: Fire doors can be heavy and difficult to maneuver, especially for individuals with mobility issues. Door holders make it easier for everyone to move freely.
Increasing energy efficiency: In HVAC-controlled environments, controlled airflow becomes easier with strategic use of door holders.
Compliance with regulations: Fire codes often require automatic closing mechanisms on fire doors. Installing a compliant door holder ensures adherence to local and international safety standards.
For wholesale buyers and manufacturers, understanding these benefits helps in offering products that are not only functional but critical for safety compliance.
Not all doors require fire door holders. Only fire-rated doors that serve as part of a building's fire protection system need them. These include:
Corridor doors in hospitals and schools
Stairwell doors in multi-level buildings
Doors separating different fire compartments
Doors in high-traffic commercial buildings
However, even in these cases, the installation of a door holder is not always mandatory unless the door is meant to be held open for operational convenience. In such scenarios, using a door holder that complies with fire codes becomes essential.
Understanding various types of door holders available in the market helps in selecting the right product for your application. Below, we break down the most common types:
One of the most common types, the magnetic door holder consists of an electromagnet and an armature plate. When powered, the magnet holds the door open. Upon power loss or fire alarm activation, the magnet deactivates, allowing the door to close.
Pros: Easy to install, reliable, integrates well with alarm systems
Cons: Requires wiring and constant power supply

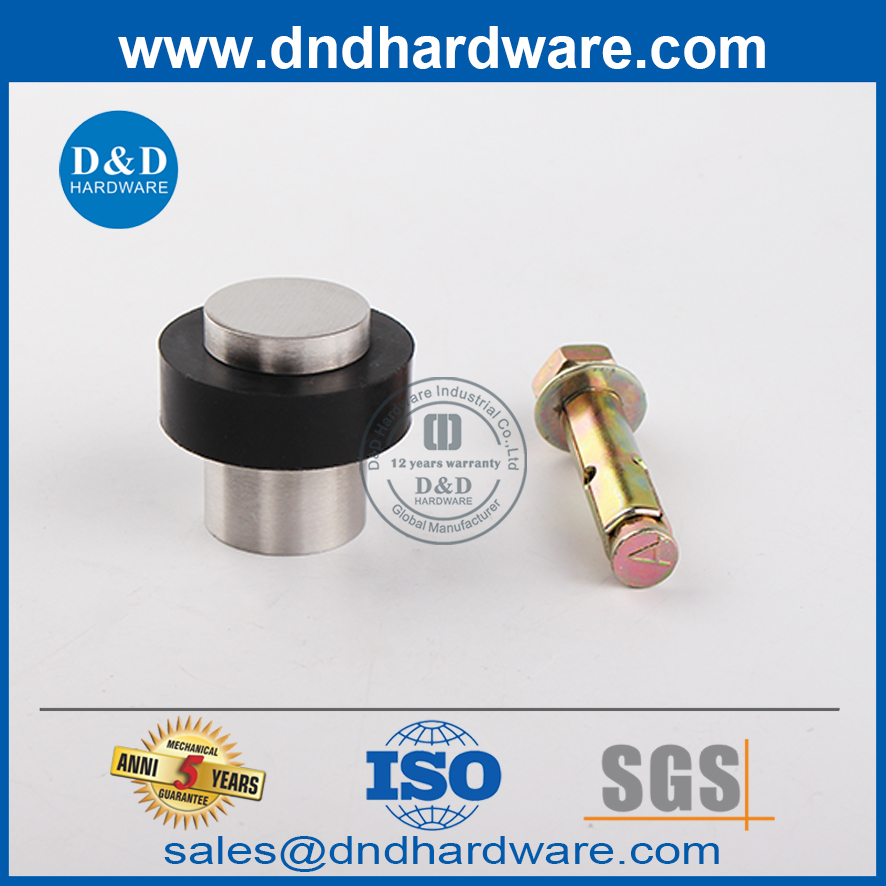

A floor mounted door stop is a mechanical solution that restricts door movement to avoid wall damage. Although not a door holder in the traditional sense, it can work in tandem with magnetic holders to secure the door in an open position.
Pros: Simple design, no power required
Cons: Does not retain the door in an open position during emergencies

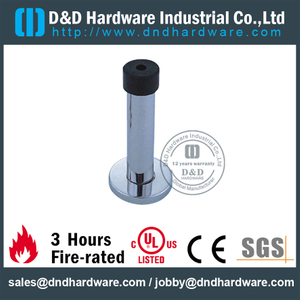

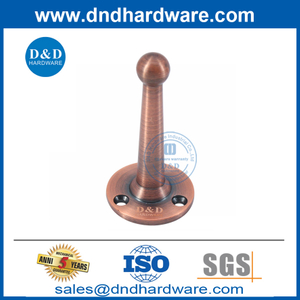

Similar to the floor-mounted variant, a wall mounted door stop prevents the door from swinging too far. Some versions include magnets or catches to hold the door open.
Pros: Space-saving, easy to install
Cons: Limited fire safety utility if not integrated with fire alarm

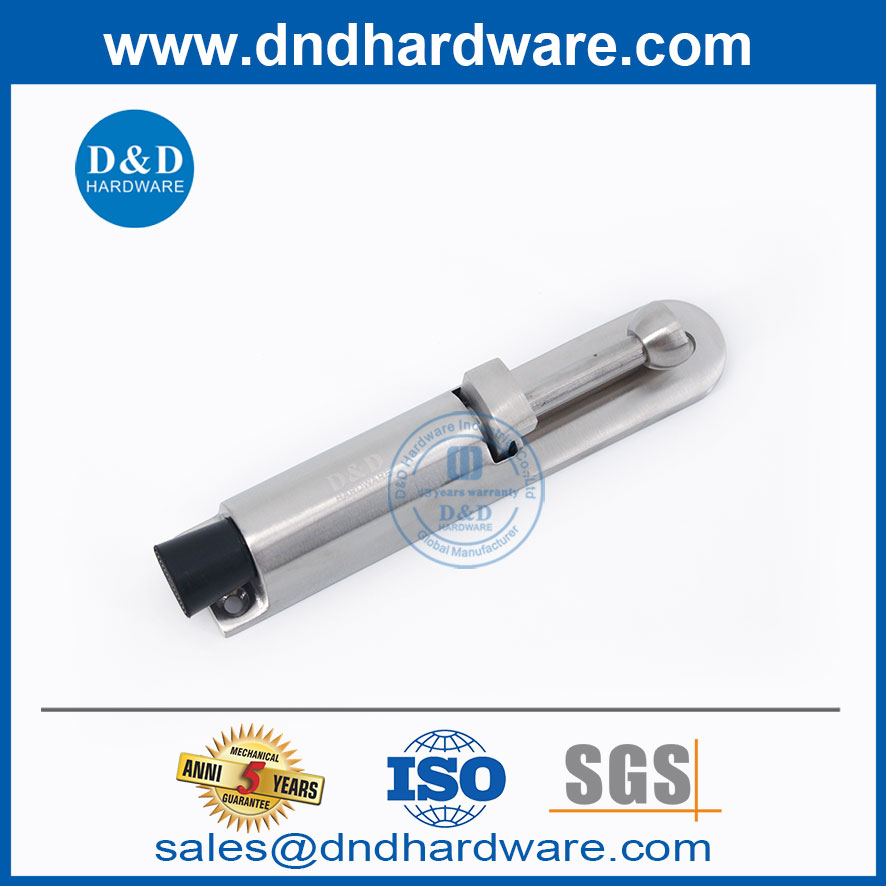

Foot operated door stops are manually operated devices that use a foot pedal to lock a door in place. They are not recommended for use on fire doors unless explicitly approved for such use.
Pros: Hands-free operation
Cons: Not compliant with many fire safety codes
These devices listen for the sound of a fire alarm and release the door when the alarm sounds. No wiring is needed.
Pros: Wireless, easy to install
Cons: Prone to false releases if not calibrated properly
These advanced systems communicate wirelessly with the fire alarm system. When the alarm is triggered, the door holder releases the door automatically.
Pros: No wiring, easy retrofit solutions
Cons: Higher cost, battery maintenance required
Fire doors can only be left open under two conditions:
Held open by a compliant door holder: This must be an approved device integrated with a fire alarm system or acoustic monitoring.
Under direct supervision: In cases such as maintenance or temporarily high traffic, a fire door can be propped open but must not be left unattended.
Never use wedges or props to hold open fire doors, as this is unsafe and non-compliant. Many fire incidents have had severe consequences due to improperly held-open doors.
Identify whether the door is fire-rated and determine the best location for the door holder installation. Consider traffic patterns, wall space, and alarm system access.
You'll typically need:
Power drill
Screws and anchors (as per manufacturer specification)
Screwdriver
Level
Wiring tools (if applicable)
Personal Protective Equipment (PPE)
Clean the mounting surface on both the door and wall/floor. Ensure they are dry and free of dust or grease.
Use a level and pencil to mark the points where the door holder and armature will be mounted. Make sure the positions align perfectly to allow a secure hold.
Drill holes as marked, ensuring not to damage the door's fire-resistant core or surrounding surfaces. Use a bit size recommended by the door holder manufacturer.
Use the provided mounting hardware to attach the retainer mechanism to the door. Make sure all screws are tight and the retainer is flush with the surface.
If the door holder is electrically powered, connect it to the building's fire alarm system. Follow wiring diagrams provided by the manufacturer.
Trigger the fire alarm system to ensure the door holder releases the door as intended. Repeat several times for consistency.
Record the installation details, date, and device type. Include this documentation in the building's fire safety records.
Most modern retainers are designed for straightforward installation, making them ideal for bulk installations by contractors or wholesale buyers.
Integration with alarms ensures automatic release in emergencies, enhancing safety.
Improving accessibility is part of modern building code requirements.
Non-compliance can result in fines, insurance issues, or legal consequences.
They ensure that doors serve their intended purpose during emergencies.
Doing so can render your fire protection plan ineffective.
This ensures proper installation and warranty protection.
Weak or damaged surfaces can compromise safety.
Using incompatible hardware can lead to malfunction.
Routine checks are necessary to ensure reliability.
Safety should always be a priority during installation.
Installing the right door holder on a fire door is not just a matter of convenience—it's a safety imperative. Whether you are a facility manager, contractor, or wholesale distributor, understanding the various types of fire door holders, how they function, and how to install them ensures that your buildings stay safe and compliant.
Modern solutions like wireless and acoustic door retainers make it easier than ever to retrofit existing structures without compromising fire safety. For those looking to purchase in bulk or source directly from a manufacturer, companies like D&D Hardware, a professional door holder manufacturer based in China, offer high-quality products at affordable prices, ideal for both small and large-scale projects.
Q1: Can I install a door holder on any door?
A: No, door holders should only be installed on fire-rated doors if they are compliant with fire safety regulations.
Q2: What's the difference between a door stop and a door holder?
A: A door stop prevents the door from hitting walls, while a door holder holds the door open and releases it during emergencies.
Q3: Are wireless fire door holders reliable?
A: Yes, when installed and maintained properly, wireless door holders are both convenient and reliable.
Q4: Can I buy fire door holders in bulk?
A: Absolutely. Many wholesale and manufacturer outlets offer bulk pricing for large orders, making it cost-effective for commercial projects.
Q5: Do I need a fire door holder in residential buildings?
A: It's uncommon for residential buildings to require them, but in multi-unit dwellings or homes with special accessibility needs, they might be beneficial.
Q6: How do I maintain a door holder?
A: Regularly check for wear, ensure the connection to the alarm system is functioning, and clean the device to prevent dust accumulation.
Q7: Where can I find a reliable manufacturer for door holders?
A: D&D Hardware is a reputable door holder manufacturer in China known for high-quality, affordable products suitable for wholesale and bulk orders.
