DDSS001-ANSI-2
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Outer Door
ANSI GRADE 1,UL Listed/UL 10C,3 Hours Fire Rated
Stainless Steel 304 / 316 / 201
SSS , PSS , PVD , PB, AB , AC, SC, PC, SB, MB
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

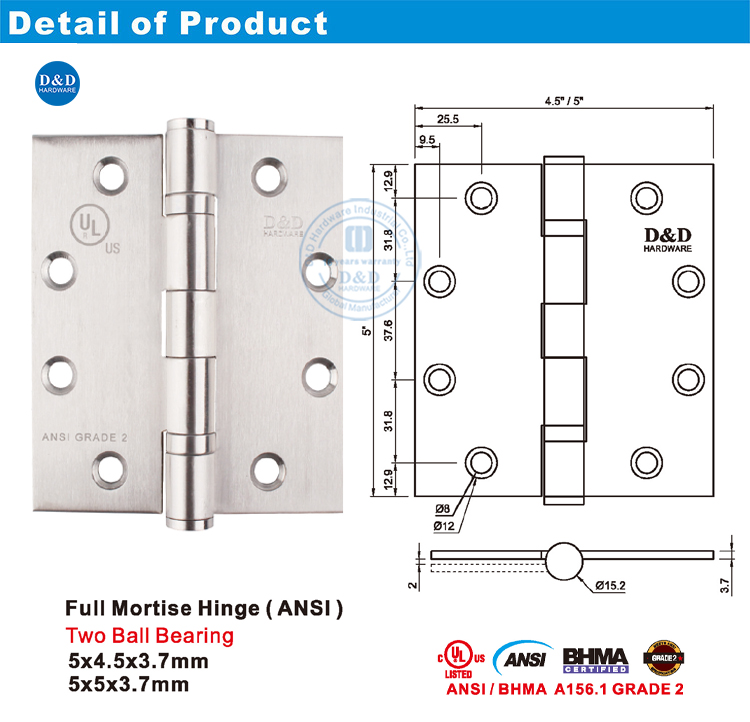

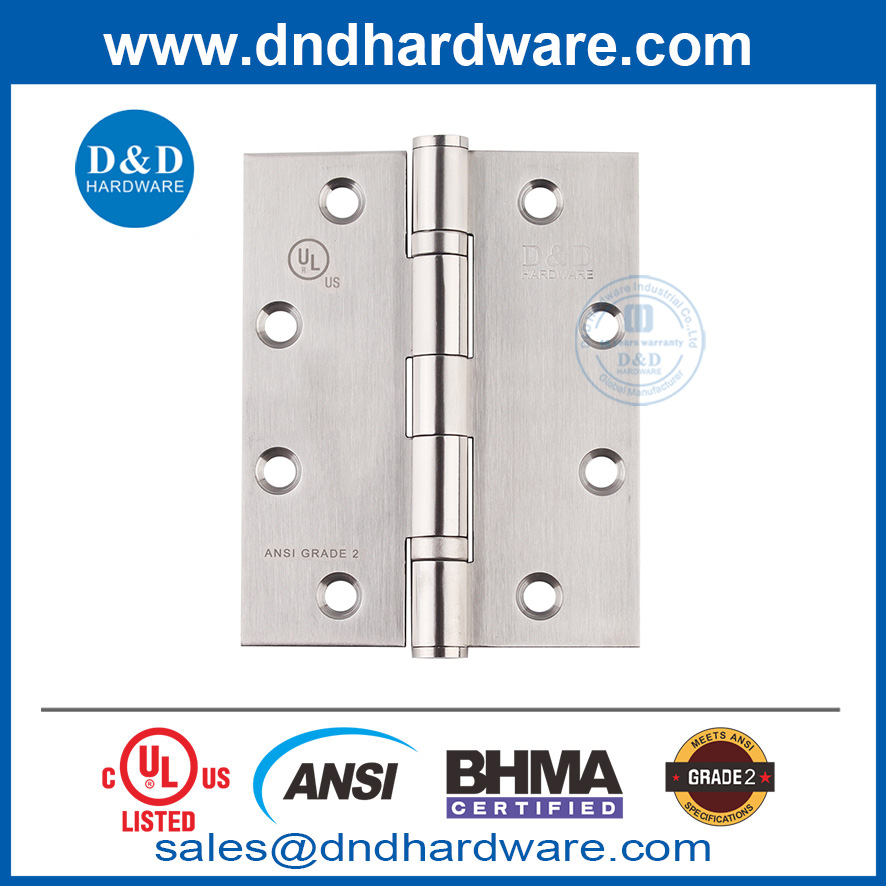

Stainless Steel 5 Inch ANSI BHMA Grade 2 Fire Rated Door Hinge for East Middle Market-DDSS001-ANSI-2
Fire Rated Hinge is a popular hinge, it is durable and easy to use. As a professional hinge supplier in China, we provide customers various quality Ball Bearing Hinge and they apply to different commercial of doors. The Classical Ball Bearing Hinge is one kind of our Fire Rated Hinge. The material of 5 Inch Door Hinge is stainless steel, so it can keep the original shape very well. It won't turn yellow or rust. The UL Door Hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of Interior Door Hinge become old and bad. The Ball Bearing Hinge can also keep long-term lubrication, make you convenient to open and close the door. The Stainless Steel Door Hinge is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.
Product Overview
The D&D range of architectural hinges is manufactured to the highest engineering standards and designed to offer a high price/ performance ratio.

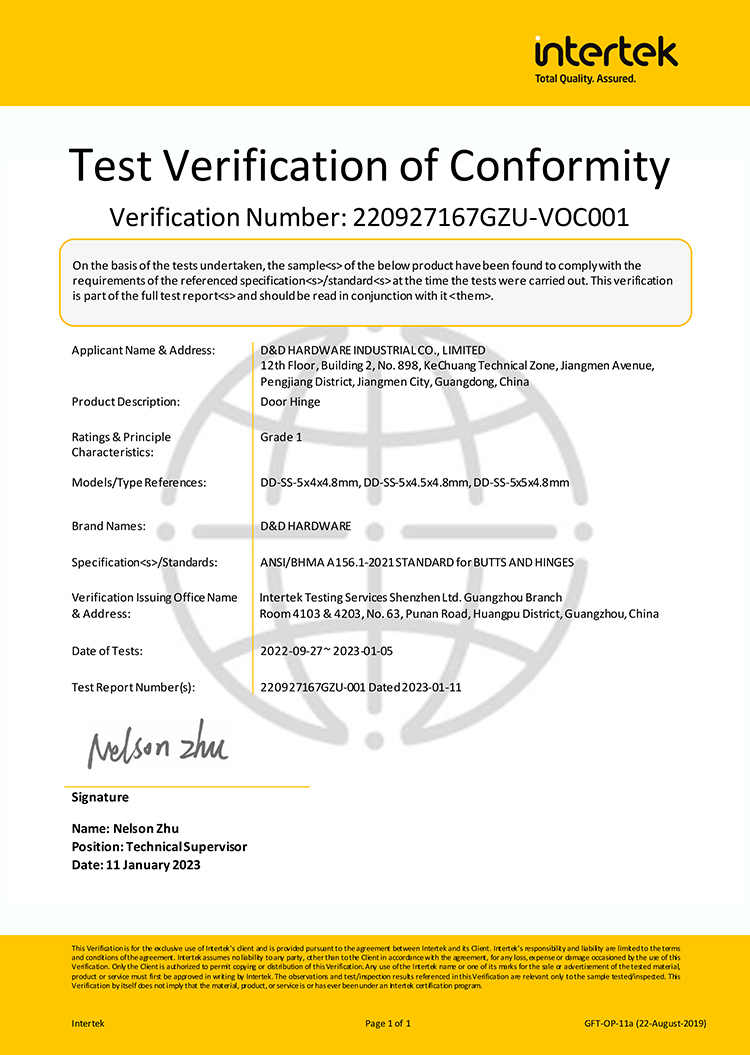

They have been successfully type tested to all the requirements of BS EN 1935, UL 10C, 3 hours Fire Rate.
Stainless steel leaf, fix/loos /loose non-rising/non-removable pin, ball bearing/washers, flat/ rivet/ball/crown tip and screw provide enhanced durability and security.
Product name | Stainless Steel 5 Inch ANSI BHMA Grade 2 Fire Rated Door Hinge for East Middle Market-DDSS001-ANSI-2 |
Certification | ANSI/BHMA GRADE 2，UL Listed / UL10C , 3 Hours Fire Rated |
Cycle-test | Grade2: 1,500,000 cycles test |
UL File Number | R38013 |
Notify Body | UL From U.S.A |

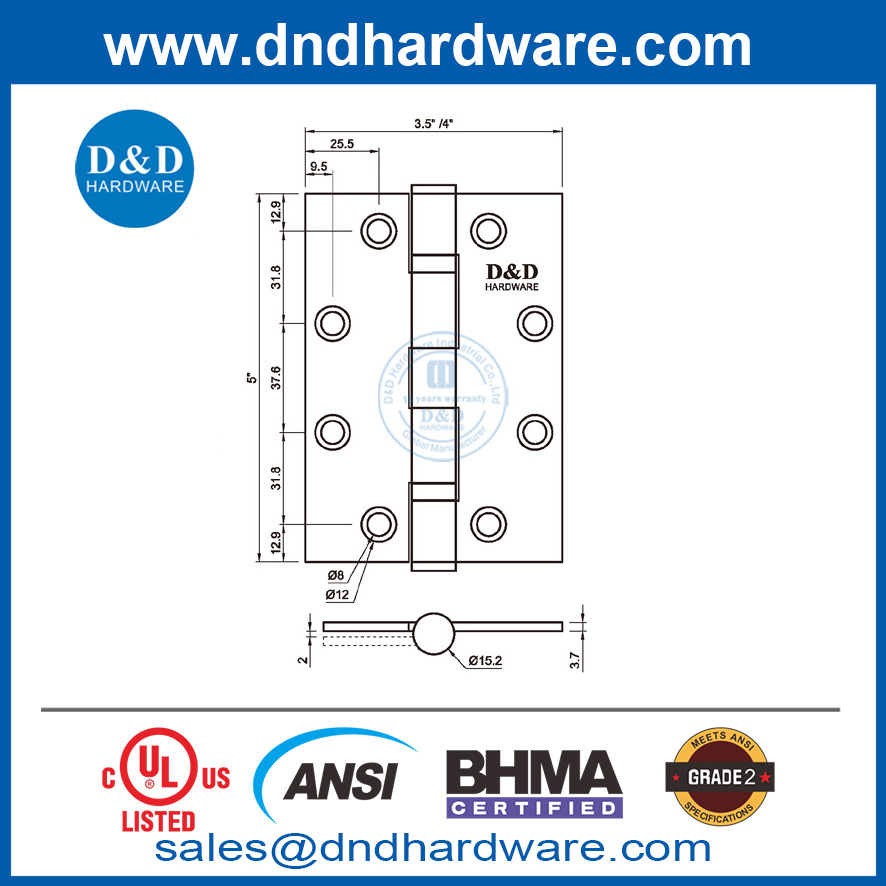

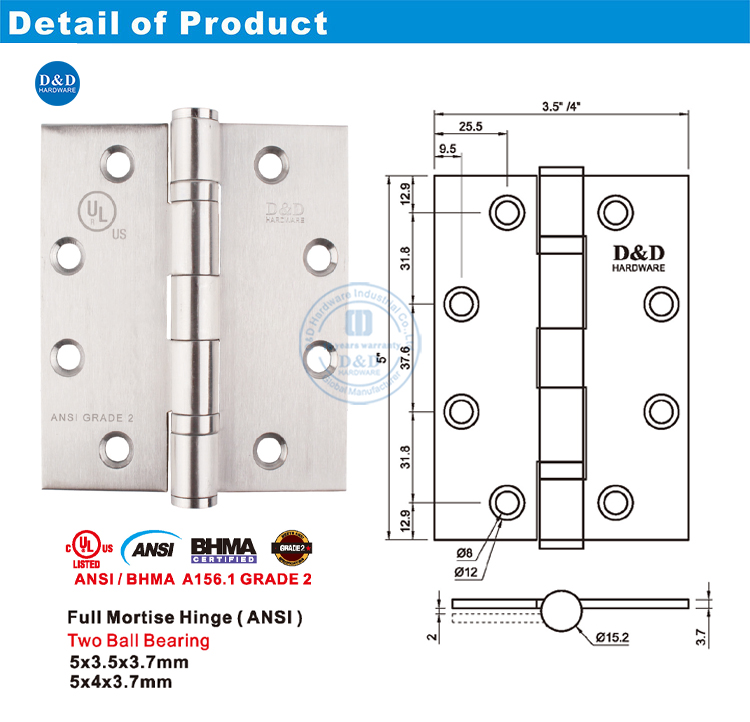

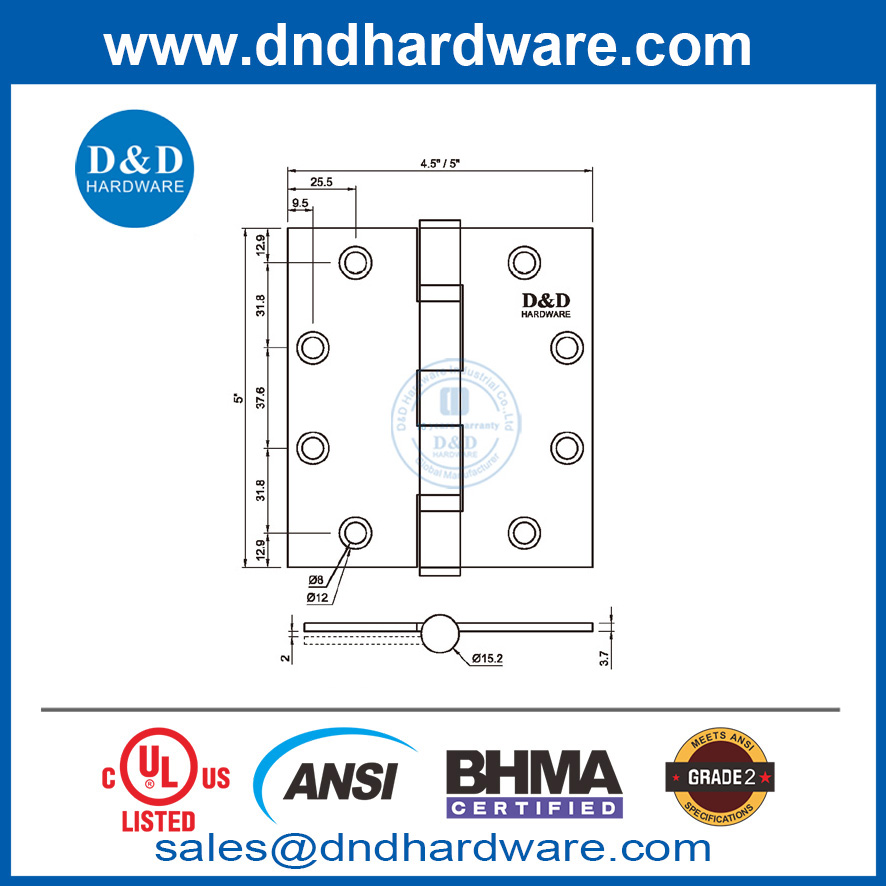

Size | 4.5"x4.0"x3.4mm 4.5"x4.5"x3.4mm 5.0"x3.5"x3.7mm 5.0"x4.0"x3.7mm 5.0"x4.5"x3.7mm 5.0"x5.0"x3.7mm |
Material | Stainless Steel 201, 304 or 316 |
Fitting | Flat tip, ball bearing, fix pin, screws |
Finish | Satin stainless steel, Polished stainless steel, Polished brass, Chrome-plated(polish chrome plate&satin chrome plate), Antique brass, Antique copper, Matt balck, Physical Vapor Deposition |
Color | Silver,Black, Golden, Antique Brass, Antique Copper |
Suitable for | Wooden door, Metal door, Steel door , Fire rated door |
Packaging & Shipping
5 Inch ANSI BHMA Grade 1 Fire Door Hinges for Hotel Apartment-DDSS001-ANSI-1
MOQ | 500 Pairs |
Package | One pair/white box or color box or Blister card in Standard export carton |
Sample time | 5-7 working days |
Production lead time | 30-35 days |
Shipping Port | Jiangmen , China / Shenzhen , China . |
