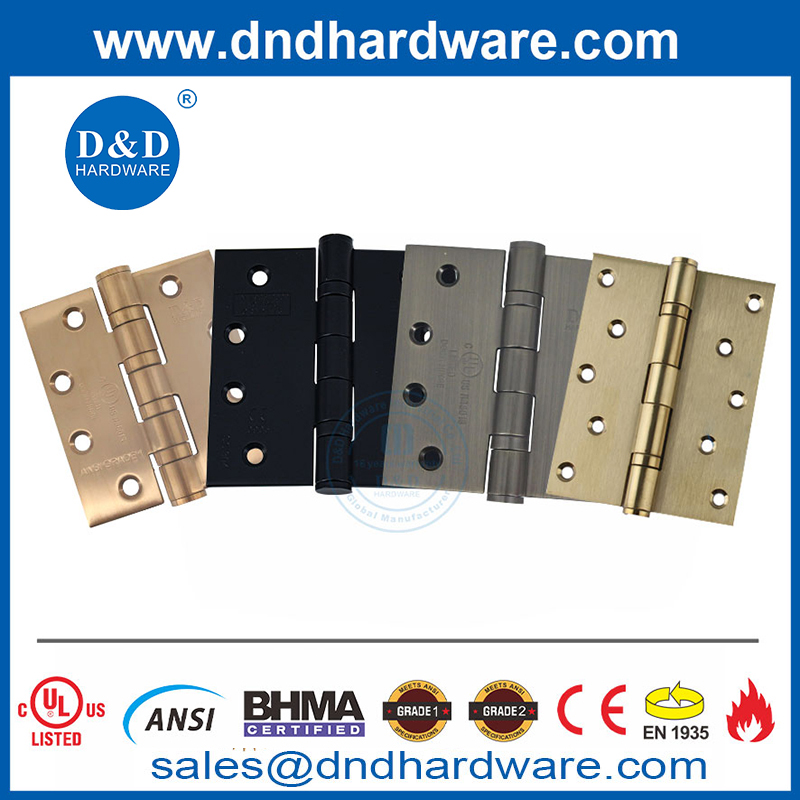

ANSI UL Fire Rated Door Hinges Types Ball Bearing Hinge for Healthcare-DDSS001-FR-4X3.5X3.0

Technical Specifications

Certification Information: The product holds dual UL/cUL certification, conforming to UL 10C standards with a fire rating of 3 hours. Certification document number R38013 may be verified on the UL official website. This certification ensures compliance with North America's most stringent fire safety standards, providing purchasers with comprehensive compliance assurance.

Material Specification: Constructed from Grade 316 stainless steel, this medical-grade material offers exceptional corrosion resistance and antibacterial properties.

Dimension Parameters: Standard dimensions of 4 inches × 3.5 inches, with a thickness of 3.0mm. All dimensional tolerances are controlled within ±0.1mm to ensure installation precision.

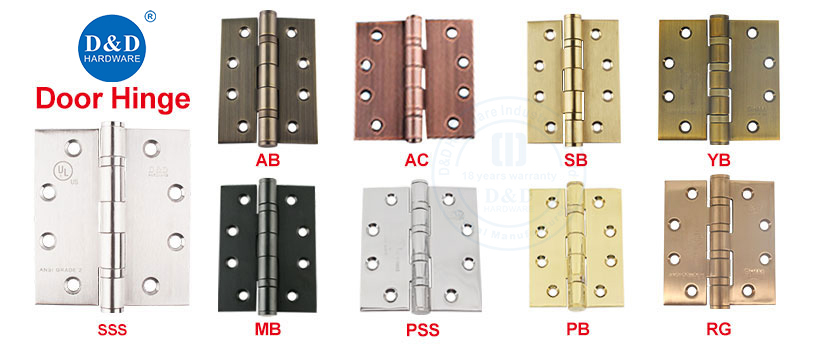

Surface Finish: Satin stainless steel treatment enhances aesthetic appeal while facilitating easy cleaning and sterilisation, meeting healthcare hygiene requirements.

Applications: Designed specifically for healthcare institutions including hospitals, clinics, and care homes. Also suitable for commercial and residential buildings to fulfil diverse fire safety needs.

Product Features

Medical-Grade Material Assurance: Our fire-rated door hinges utilise 316 medical-grade stainless steel, offering superior corrosion resistance and antibacterial properties compared to standard 304 stainless steel. The special alloy formulation withstands disinfectant corrosion, ensuring long-term preservation of appearance and performance.

Ultra-Quiet Operation: Incorporating precision dual ball bearings and sound-dampening shims, opening and closing noise remains below 30 decibels. This silent operation is particularly suited to healthcare environments, providing patients with a tranquil recovery space while extending product longevity.

Antimicrobial Surface Treatment: Surfaces undergo specialised antibacterial processing to effectively inhibit bacterial proliferation. The smooth, non-porous satin finish prevents bacterial harbouring, facilitating effortless daily disinfection and cleaning to meet the highest hygiene standards in healthcare settings.

Intelligent Safety Design: Incorporates an integrated safety pin anti-disengagement system, maintaining structural integrity even during intense fire exposure. Each fire-rated door hinge features a visual wear indicator, enabling maintenance personnel to promptly assess usage status and schedule timely replacement.

How to Use&Install

Pre installation inspection: After unboxing, first check the product's UL certification mark and document number R38013 to confirm that the product meets the requirements for use in medical settings. Check whether the surface of the fire rated door hinges is intact and whether the installation hole spacing matches the door leaf. Prepare medical grade stainless steel installation screws and specialized installation tools.

Accurate positioning marking: Determine the installation quantity based on the door weight, and it is recommended to install 4 fire rated door hinges per medical door. Use a laser level to ensure that all installation points are absolutely vertical. The upper hinge is 10cm away from the top of the door, and the lower hinge is 15cm away from the bottom of the door. The middle two are evenly distributed, and each drilling position is accurately marked.

Professional installation program: First install the door frame part, then install the door leaf part, ensuring that the bearings of all fire rated door hinges are facing the same direction. Use a torque screwdriver to tighten the screws to the recommended torque (2.5N · m), avoiding over tightening or over loosening. After installation, check the fit between the hinges and the door leaf/frame to ensure there are no gaps.

Final test adjustment: Conduct at least 100 opening and closing tests to check if the operation is smooth and silent. Test the retention performance of the door leaf at different positions and adjust to ensure there is no self opening or closing phenomenon. Finally, use a spirit level to confirm the verticality of the door leaf, and complete all installation records and acceptance procedures.

Value Proposition

Reduce operating costs: The long lifespan and low maintenance requirements of Fire Door Hinges significantly reduce total cost of ownership. Medical grade materials resist disinfectant corrosion, reduce replacement frequency, and save significant maintenance costs for buyers.

Enhance safety level: The product is certified by UL to ensure full compliance with medical building regulations and reduce compliance risks. Excellent fire resistance provides the highest level of safety assurance for buildings and enhances overall safety levels.

Enhance market competitiveness: Using certified Fire Door Hinges can elevate product quality and help buyers win more medical projects. UL certification has become an important quality endorsement, enhancing customer trust.

Simplify the procurement process: We provide a one-stop solution that simplifies the supply chain management for buyers, from products to technical support. Stable product quality ensures smooth project progress and reduces procurement risks.
