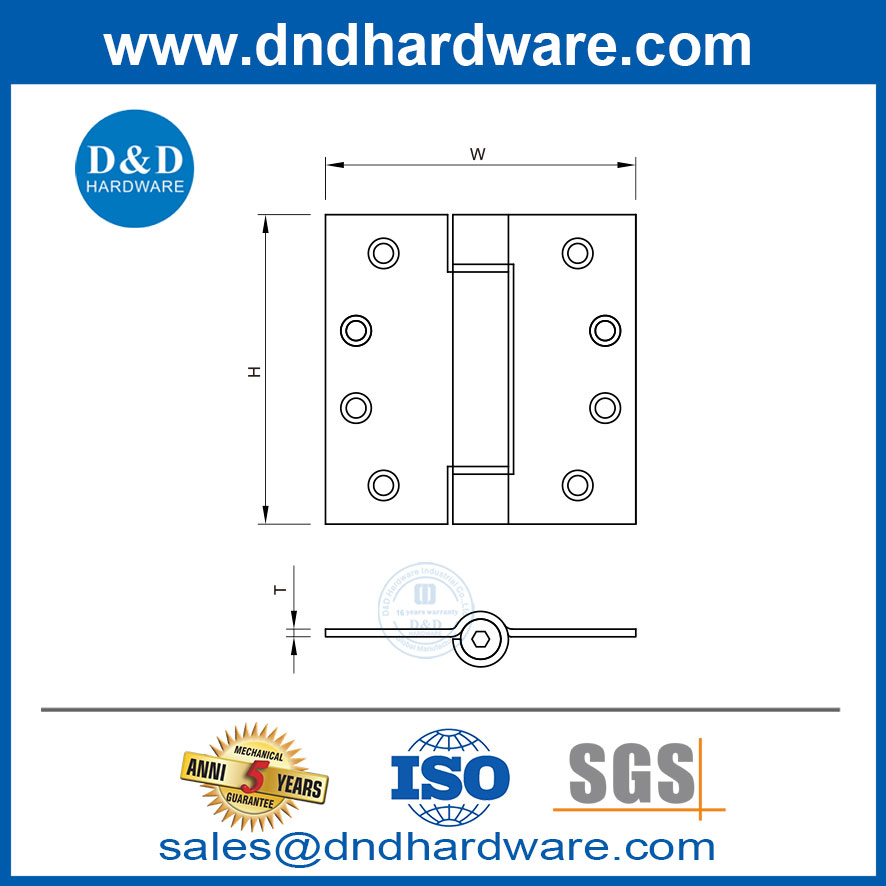

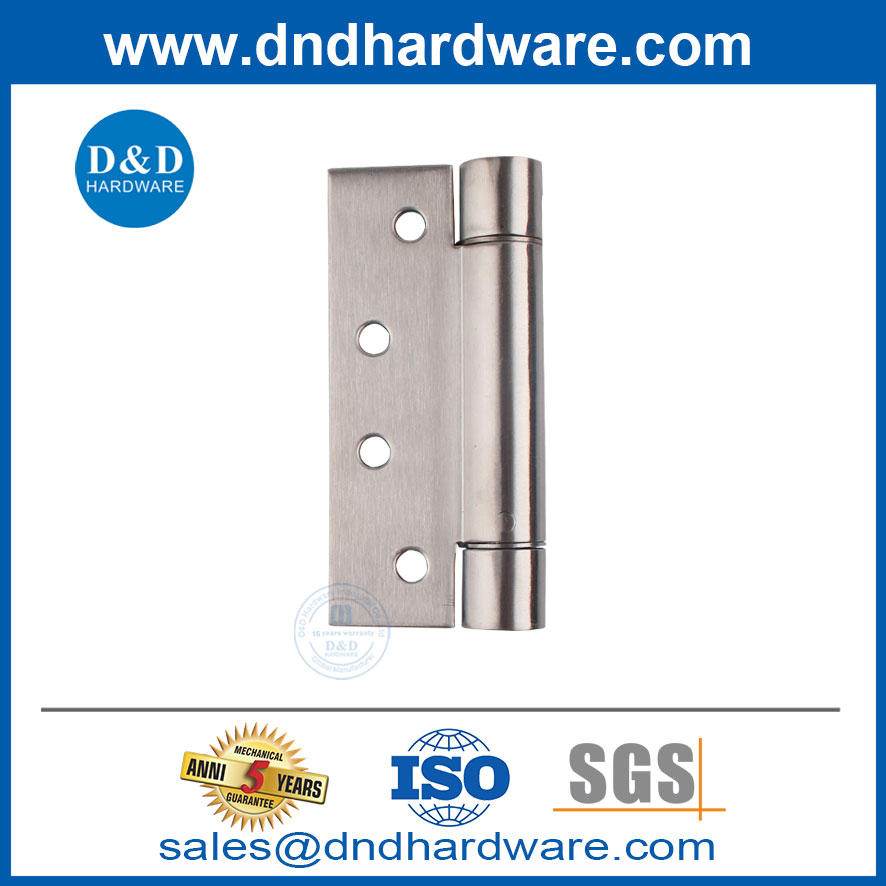

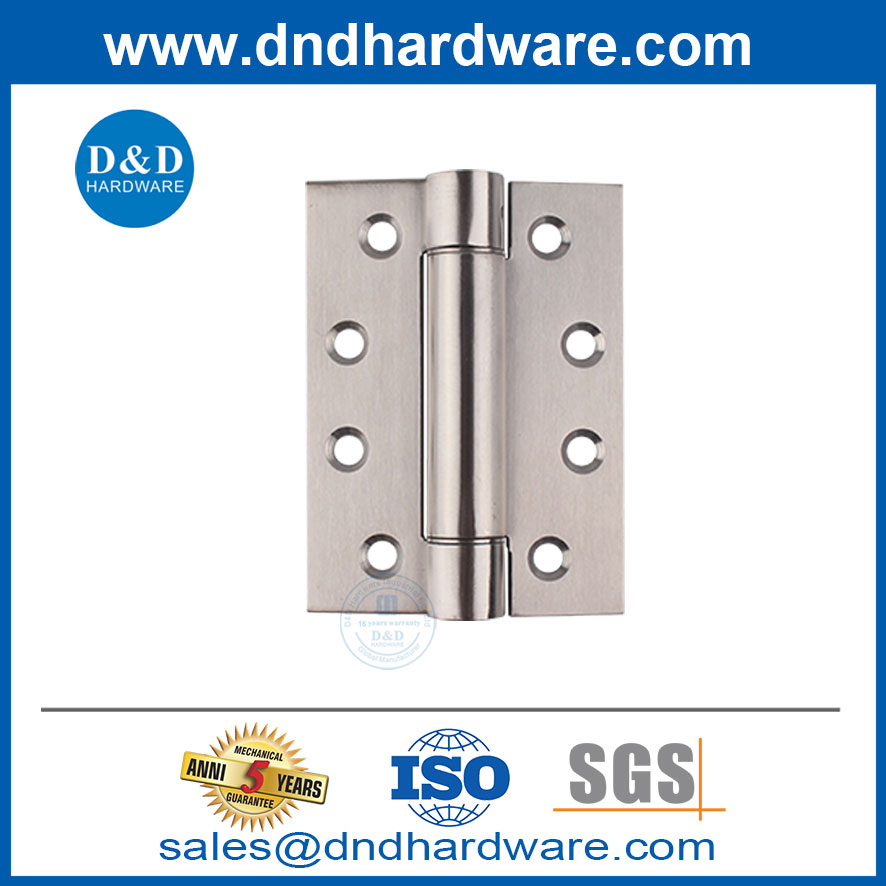

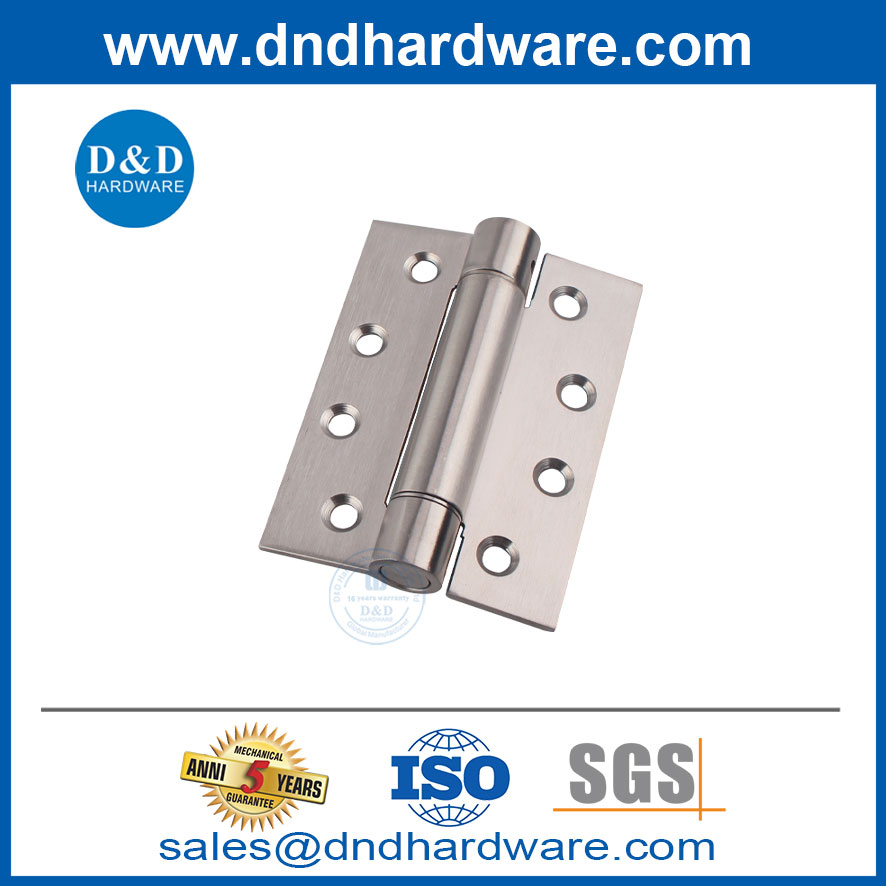

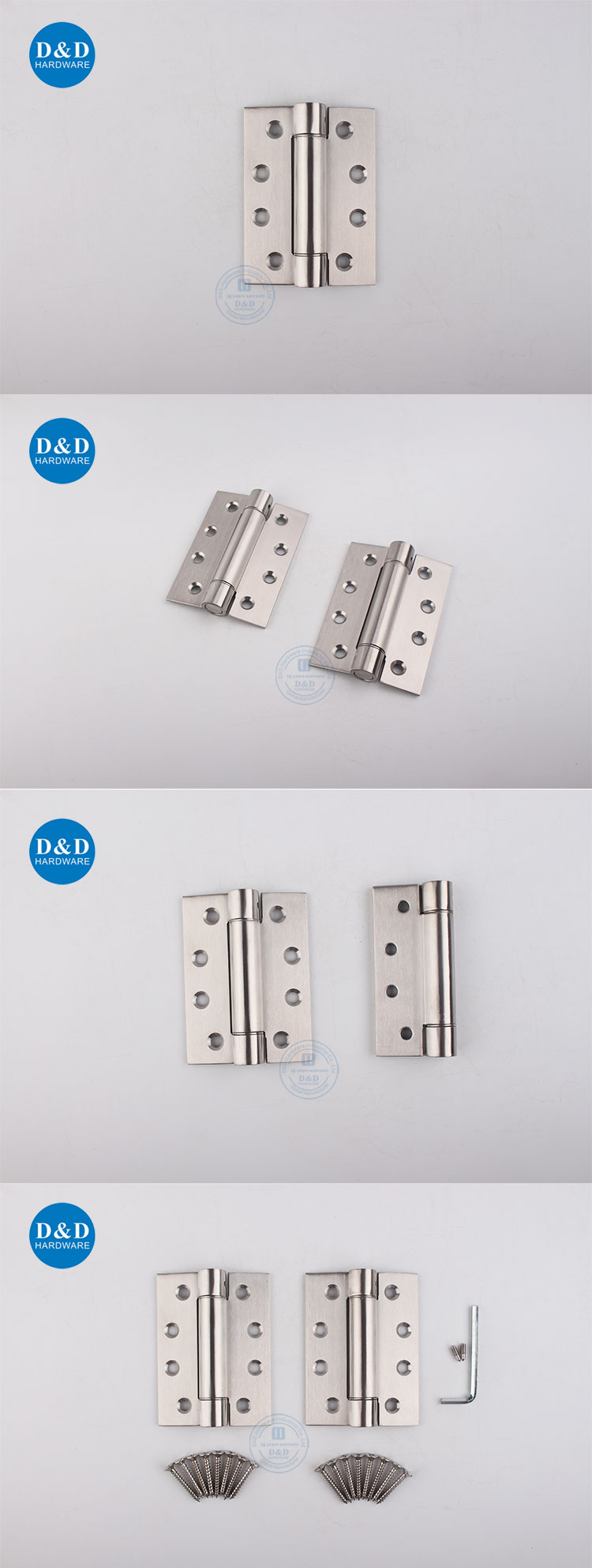

Stainless Steel Adjustable Self Closing Spring Door Hinge for Passage Door-DDSS033

Single Action Spring Door Hinge is a special hinge integrated with a spring mechanism, whose core function is to automatically close the door in one direction through the built-in spring. The explanation is provided from four dimensions: design principle, functional features, application scenarios, and advantages:

1. Design Principle

Unidirectional Spring Mechanism: Unlike traditional hinges, the single action spring door hinge embeds a unidirectional spring within the hinge barrel. When the door is pushed open, the spring is compressed and stores energy; after releasing the door, the spring releases the energy, pushing the door back to the closed position automatically.

Simplified Structure: No additional door closer is required; the hinge itself accomplishes the closing function, saving space and cost.

2. Functional Features

Unidirectional Swing: The door can swing only in one direction (e.g., inward or outward), suitable for scenarios where the opening direction needs to be controlled (such as fire doors and emergency exits).

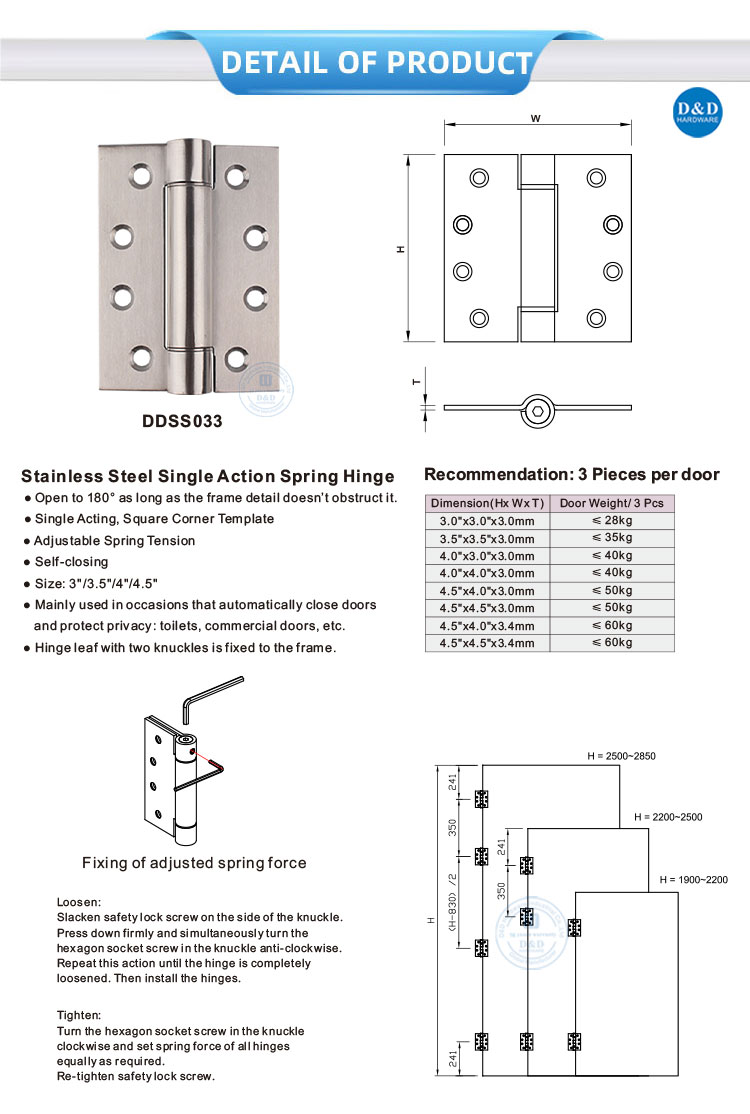

Adjustable Tension: Some models support spring tension adjustment, allowing users to modify the closing speed and force according to door weight and usage frequency, preventing damage to the door frame or noise.

Durability: Made of corrosion-resistant materials such as stainless steel or brass, these hinges can withstand high-frequency use (e.g., 400-500 openings per day), suitable for commercial locations.

3. Application Scenarios

Commercial Buildings: Entrance doors of restaurants and cafés often use double action hinges for bidirectional passage, but single action hinges are suitable for areas needing controlled traffic direction (e.g., kitchen back doors).

Residential: Entrance doors, bathroom doors, and other doors that require automatic closing, enhancing convenience and safety.

Public Facilities: Places like hospitals and schools where doors must remain closed (e.g., fire doors), complying with fire safety regulations.

4. Core Advantages

Cost Efficiency: The integrated spring design eliminates the cost of additional door closers, simplifies installation, and requires low maintenance.

Space Optimization: No exposed door closer, providing a cleaner door appearance, suitable for environments with high aesthetic requirements.

Safety: Automatic closing prevents the door from remaining open for long periods, reducing safety hazards (such as children entering or fire spreading).

Comparison with Double Action Spring Hinges
