SS304 Double Action Spring Hinge for Swing Door-DDSS038

SS304 Double Action Spring Hinge for Swing Door-DDSS038

Stainless Steel Spring Hinge is a popular hinge, it is durable and easy to use. As a professional hinge supplier in China, we provide customers various quality Door Hinge and they apply to different commercial of doors. The Double Action Spring Hinge is one kind of our Door Hinge. The material of spring Hinge is stainless steel, so it can keep the original shape very well. It won't turn yellow or rust. The spring Hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of Door Hinge become old and bad. The Spring Hinge can also keep long-term lubrication, make you convenient to open and close the door. The Door Spring Hinge is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.

Product Overview

Product name	SS304 Double Action Spring Hinge for Swing Door-DDSS038
According to Standard	UL Listed / UL10C , CE EN1935

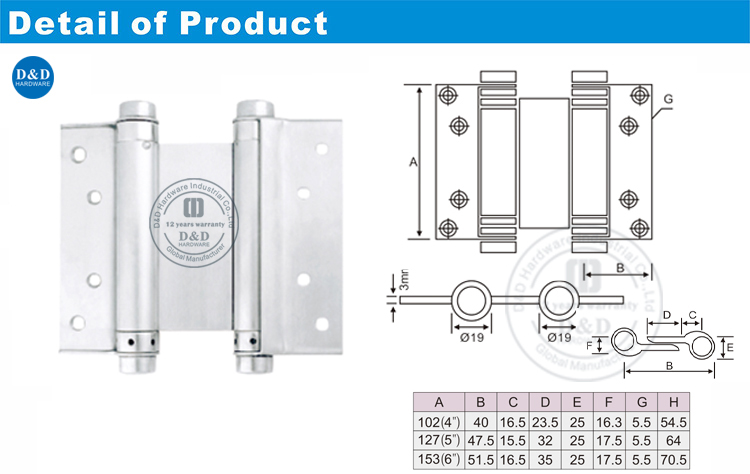

Item	A          B         C      D       E       F     G       H 102(4")   40       16.5   23.5  25   13.6   5.5    54.5 127(5")   47.5    15.5   32     25   17.5   5.5    64 153(6")   51.5    16.5   35     25   17.5   5.5    70.5
Material	Stainless Steel 201, 304 or 316
Fitting	Screws
Finish	Satin stainless steel, Polished stainless steel, Polished brass,Chrome-plated(polish chrome plate&satin chrome plate), Antique brass, Antique copper,  Matt black, Physical Vapor Deposition
Suitable for	Wooden door, Metal door, Steel door etc.

Packaging & Shipping

SS304 Double Action Spring Hinge for Swing Door-DDSS038

MOQ	500 Pairs
Package	One pair/white box or color box or Blister card in Standard export carton
Sample time	5-7 working days
Production lead time	30-35 days
Shipping Port	Jiangmen , China   / Shenzhen ,   China .
