DDAL19 F19
D&D Hardware
Wooden Door, Metal Door
UL listed, ANSI A156.13 Grade 1
Stainless Steel 304
SSS , PSS , PVD , PB, AB , AC , MB
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Availability: | |
|---|---|
| Quantity: | |
In an era where building safety and privacy protection are receiving increasing attention, a top-notch door lock for private spaces like bedrooms is of paramount importance. Our mortise door lock, model DDAL19, specifically designed for the American market, stands out as an exceptional choice due to its outstanding fire resistance and user-friendly operational features, ensuring both safety and privacy in bedrooms.For further information, please contact us.

Product Overview
Product name | UL Listed Fire Rated Privacy Bedroom Mortice Door Lock for American Market-DDAL19 F19 |
Product Model | DDAL07 F07 |
Certification and Compliance | ANSI/BHMA A156.13-2005 Grade 1, UL Fire Rated Certificated |
Finish | SSS , PSS , PVD , PB, AB , AC , MB |

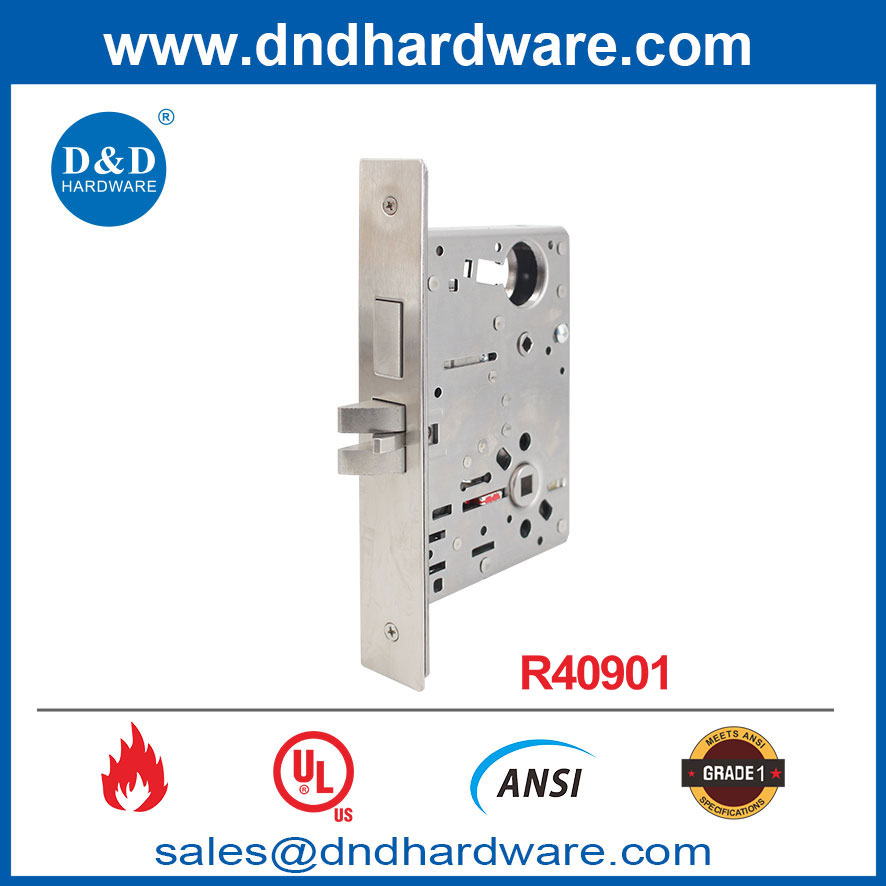

Lockcase | Heavy Gauge Stainless Steel For Corrosion Resistance |
Deadbolt | Solid Casting SUS304, Project 1"(25.4mm) |
Latchbolt | Solid Casting SUS304, Project 3/4"(19mm), Anti-Friction Two Pieces and Can be Reversible |
Auxiliary Latchbolt | Stainless steel |
Forend | Stainless steel Grade 304 |
Strike | Stainless steel Grade 304, Non-Handed |
Door Thickness | 45mm to 55mm As Standard |
Backset | 2-3/4” (70mm) |
Center to Center | 3-5/8”(92mm) |
Door Handing | Left Hand and Right Hand |
Application | Wood Door ,Metal Door ,Fire Rated Door etc. |





Packaging & Shipping
MOQ | 200PCS |
Package | 1pc /poly bag,white box / color inner box,Standard export Carton . |
Sample time | 5-7 working days |
Production lead time | 30-35 days normally |
Shipping Port | Jiangmen , China / Shenzhen , China |

Test

Company Information

D&D Product
The products that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE EN1125
6. Door Closer – CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Door Viewer - UL Listed UL 10C Fire Rated R41286
9. Glass Hardware / Bathroom Hardware / Barn Door Hardware
Contact us

In an era where building safety and privacy protection are receiving increasing attention, a top-notch door lock for private spaces like bedrooms is of paramount importance. Our mortise door lock, model DDAL19, specifically designed for the American market, stands out as an exceptional choice due to its outstanding fire resistance and user-friendly operational features, ensuring both safety and privacy in bedrooms.For further information, please contact us.

Product Overview
Product name | UL Listed Fire Rated Privacy Bedroom Mortice Door Lock for American Market-DDAL19 F19 |
Product Model | DDAL07 F07 |
Certification and Compliance | ANSI/BHMA A156.13-2005 Grade 1, UL Fire Rated Certificated |
Finish | SSS , PSS , PVD , PB, AB , AC , MB |
Lockcase | Heavy Gauge Stainless Steel For Corrosion Resistance |
Deadbolt | Solid Casting SUS304, Project 1"(25.4mm) |
Latchbolt | Solid Casting SUS304, Project 3/4"(19mm), Anti-Friction Two Pieces and Can be Reversible |
Auxiliary Latchbolt | Stainless steel |
Forend | Stainless steel Grade 304 |
Strike | Stainless steel Grade 304, Non-Handed |
Door Thickness | 45mm to 55mm As Standard |
Backset | 2-3/4” (70mm) |
Center to Center | 3-5/8”(92mm) |
Door Handing | Left Hand and Right Hand |
Application | Wood Door ,Metal Door ,Fire Rated Door etc. |





Packaging & Shipping
MOQ | 200PCS |
Package | 1pc /poly bag,white box / color inner box,Standard export Carton . |
Sample time | 5-7 working days |
Production lead time | 30-35 days normally |
Shipping Port | Jiangmen , China / Shenzhen , China |

Test

Company Information

D&D Product
The products that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE EN1125
6. Door Closer – CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Door Viewer - UL Listed UL 10C Fire Rated R41286
9. Glass Hardware / Bathroom Hardware / Barn Door Hardware
Contact us

This door lock has earned the UL certification and boasts a UL 10C fire rating, capable of withstanding fire for up to 3 hours. In the event of a fire, it can effectively prevent the spread of flames and smoke, buying precious escape time for occupants and significantly safeguarding lives. Its remarkable fire-resistant performance is attributed to the careful selection of high-quality materials and exquisite manufacturing processes, ensuring stable operation even under extreme high-temperature conditions.
In terms of functional design, the DDAL19 door lock takes full account of users' daily convenience and privacy needs. It is equipped with a lever handle that can be operated from either side of the door. With a simple turn of the handle, you can effortlessly control the latch bolt, enabling smooth opening and closing of the door.
In addition to the regular latch bolt operation, this door lock features a deadbolt function. The deadbolt can be engaged using the interior turn mechanism. When you require enhanced security within the bedroom, a simple rotation is all it takes to lock the deadbolt, effectively preventing unauthorized entry from the outside and adding an extra layer of protection. Meanwhile, considering emergency situations, an emergency release device is installed on the exterior. In case of someone being trapped inside the bedroom during an emergency, external personnel can quickly unlock the door using this device, facilitating rescue operations.
Notably, the interior lever of the door lock has a simultaneous operation function. When you turn the interior lever, it not only controls the retraction and extension of the latch bolt but also retracts the deadbolt simultaneously. This one-touch operation allows for quick and easy door opening, greatly enhancing user convenience.
Choose the DDAL19 mortise door lock, and you're choosing a perfect blend of safety, privacy, and convenience.
This door lock has earned the UL certification and boasts a UL 10C fire rating, capable of withstanding fire for up to 3 hours. In the event of a fire, it can effectively prevent the spread of flames and smoke, buying precious escape time for occupants and significantly safeguarding lives. Its remarkable fire-resistant performance is attributed to the careful selection of high-quality materials and exquisite manufacturing processes, ensuring stable operation even under extreme high-temperature conditions.
In terms of functional design, the DDAL19 door lock takes full account of users' daily convenience and privacy needs. It is equipped with a lever handle that can be operated from either side of the door. With a simple turn of the handle, you can effortlessly control the latch bolt, enabling smooth opening and closing of the door.
In addition to the regular latch bolt operation, this door lock features a deadbolt function. The deadbolt can be engaged using the interior turn mechanism. When you require enhanced security within the bedroom, a simple rotation is all it takes to lock the deadbolt, effectively preventing unauthorized entry from the outside and adding an extra layer of protection. Meanwhile, considering emergency situations, an emergency release device is installed on the exterior. In case of someone being trapped inside the bedroom during an emergency, external personnel can quickly unlock the door using this device, facilitating rescue operations.
Notably, the interior lever of the door lock has a simultaneous operation function. When you turn the interior lever, it not only controls the retraction and extension of the latch bolt but also retracts the deadbolt simultaneously. This one-touch operation allows for quick and easy door opening, greatly enhancing user convenience.
Choose the DDAL19 mortise door lock, and you're choosing a perfect blend of safety, privacy, and convenience.
