English
 |
DDIG006
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Exterior Door
Expandable Graphite
Black
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|
Fire Rated Intumescent Gasket Door Viewer Peephole Protection Kit-DDIG006

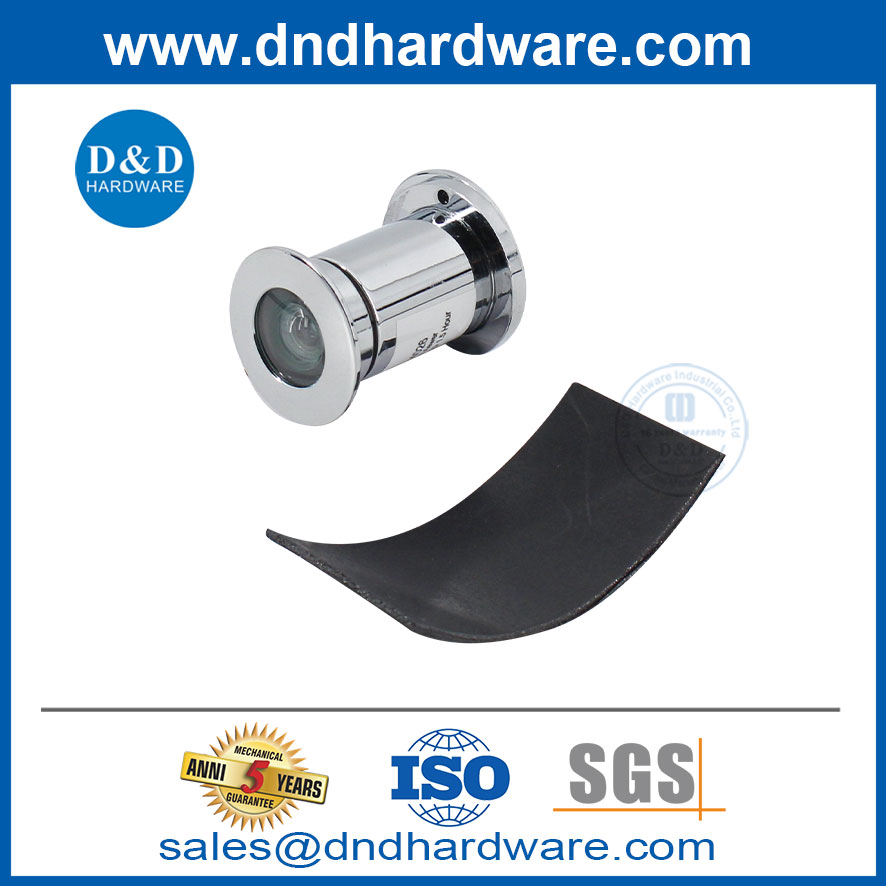

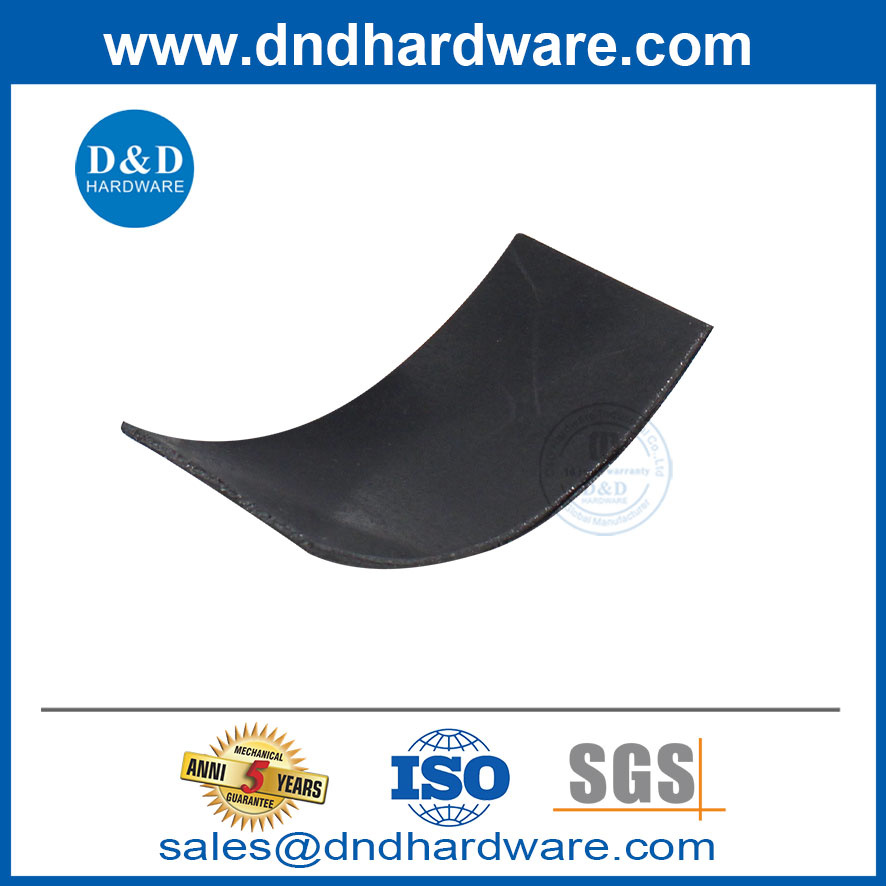

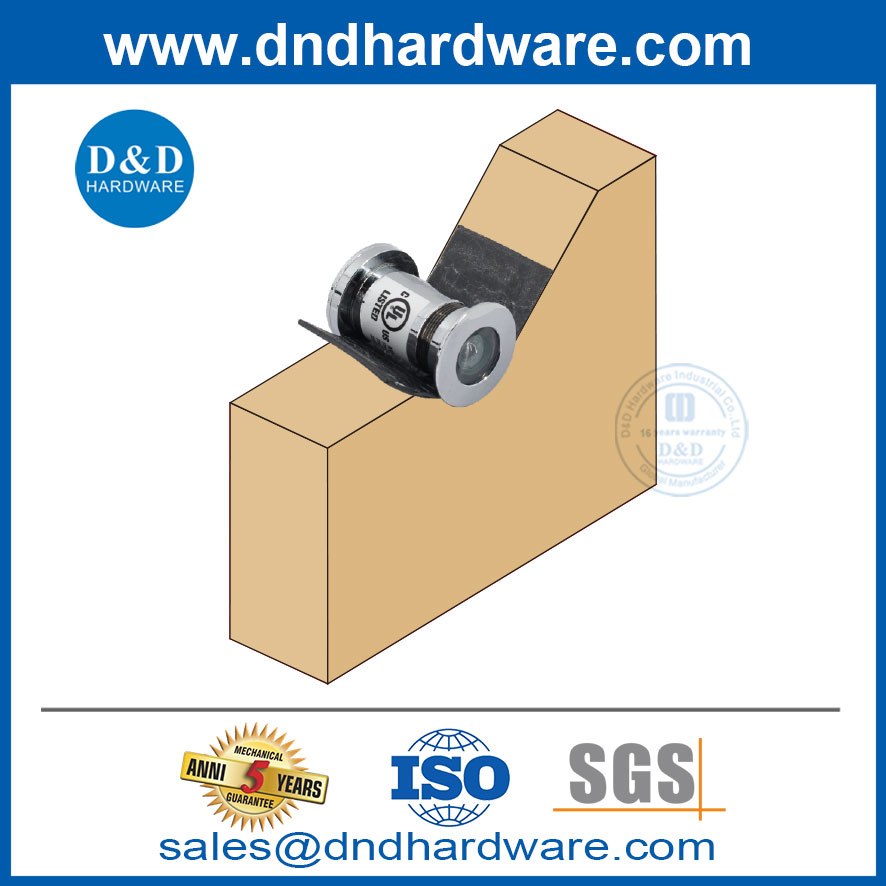

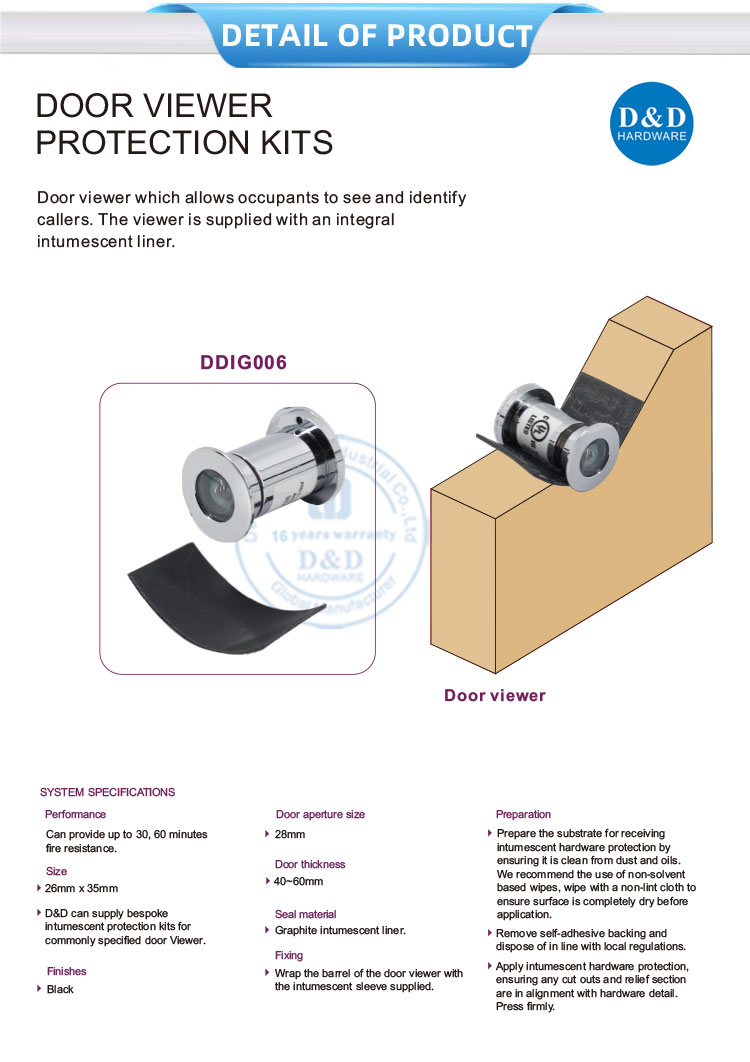

D&D DDIG006 Fire Rated Door Viewer Protection Kit is an intumescent graphite liner set for fire door peepholes, equipped with an integrated fireproof sleeve delivering 30/60-minute fire resistance. Standard dimension 26mm×35mm, fits 28mm door aperture & 40–60mm thick fire doors with black finish; custom sizes are available. This self-adhesive expandable graphite gasket wraps around door viewer barrels easily after dry surface cleaning, ideal for fire-resistant wooden/metal door hardware to meet fire safety standards, enabling safe visitor identification while blocking flame & smoke spread.
Product Overview
| Product name | Fire Rated Intumescent Gasket Door Viewer Peephole Protection Kit-DDIG006 |
| Product Model | DDIG006 |
| Material | Expandable Graphite |
| Size | 26x35mm |
| Suitable for | Wooden door, Steel door, Metal door etc |
Packaging & Shipping
| MOQ | 500 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
Company Information
Our Services
D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE BS EN1125
6. Door Closer - CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
