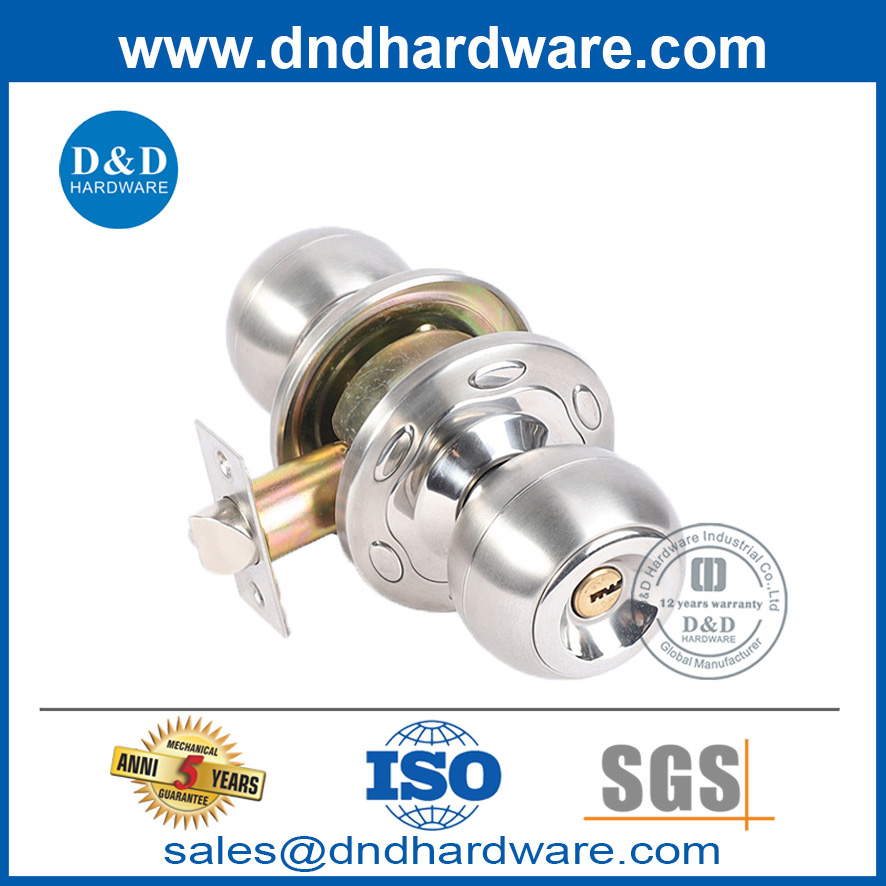

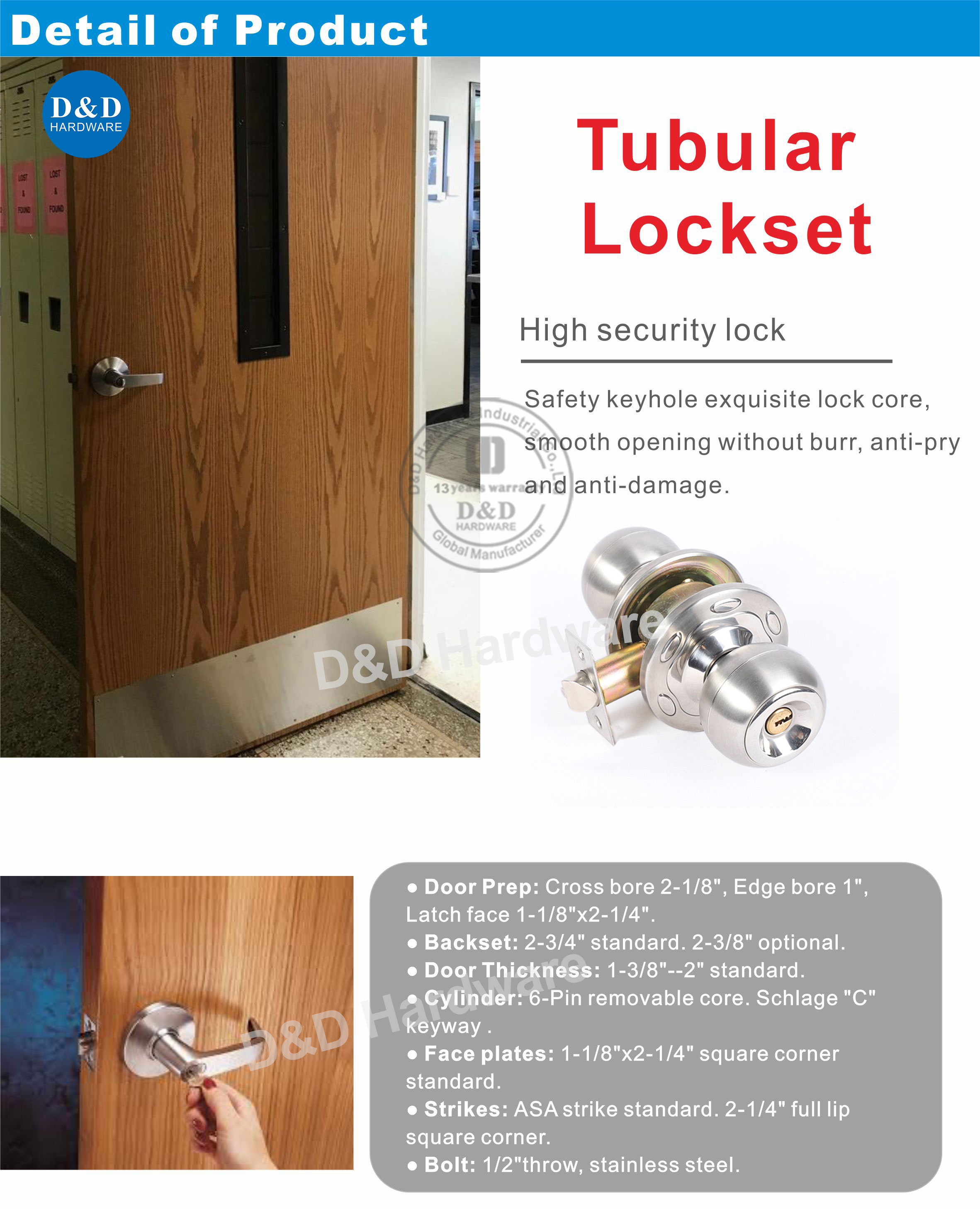

Silver Color Best Knob Lockset in Zinc Alloy for Exterior Doors-DDLK048

The spherical handle lock is a classic door lock type that combines a spherical structure with handle functionality. Its simple design, convenient operation, and broad applicability make it a common choice for homes, offices, and similar settings. The following provides a detailed introduction covering its structure, operating principle, features, application scenarios, and advantages and disadvantages:

I. Structural Components

1. External Spherical Handle

Positioned on both sides of the door, typically comprising a sphere approximately 5-7 centimetres in diameter. Constructed primarily from metals such as stainless steel, zinc alloy, or copper, the surface undergoes polishing or electroplating to achieve a smooth finish.

The sphere connects to the internal lock cylinder via a spindle; rotating the sphere actuates the extension and retraction of the latch bolt.

2. Lock Cylinder and Latch

Lock Cylinder: Positioned on the interior side of the door, it contains the keyhole (or knob). The latch's operation is controlled by turning the key or directly rotating the knob.

Latch: Comprises two types:

- Falling bolt: Automatically extends for routine locking; retracts upon gentle door push for convenient access.

- Deadbolt: Manually extended via key or knob for enhanced security against forced entry.

3. Lock Body and Mounting Base

Lock Body: Concealed within the door, containing mechanical components such as gears and springs that transmit rotational force from the knob to the latch.

4. Mounting Base: Secured to the door panel, ensuring stable connection between the lock body and knob. Typically accommodates standard door thicknesses (e.g., 35–50 millimetres).

II. Operating Principles

1. Locking Procedure

Rotate the exterior ball to a specific angle (typically 90 degrees), causing the latch bolt to extend and engage within the door frame's lock hole, thereby securing the door.

For enhanced security, rotate the interior knob to fully extend the square bolt.

2. Unlocking Procedure

Routine Opening: Gently push the door; the diagonal bolt automatically retracts, permitting door opening.

Full Unlocking: Insert the key and turn (or rotate the interior knob) to retract the square bolt, ensuring the door can be fully opened.

III. Core Features

1. User-Friendly Operation

The ergonomic ball design enables effortless rotation without complex movements, making it suitable for elderly users and children.

The automatic retraction of the deadbolt simplifies daily access, enhancing user experience.

2. Simple Structure, High Durability

The streamlined mechanical design minimises failure rates, ensuring long-term use without jamming or damage.

The metal ball is wear-resistant and corrosion-resistant, adapting to diverse environments (e.g., damp bathrooms, exterior doors).

3. Moderate Security

The basic ball-shaped handle lock provides fundamental protection via the deadbolt, suitable for low-risk settings (e.g., bedroom or office interior doors).

Upgraded versions can incorporate Grade C lock cylinders, square bolts, or anti-pry designs to enhance burglary resistance.

4. Flexible Aesthetics

Diverse surface treatments (e.g., brushed, gold-plated, antique finishes) complement various interior styles (modern, vintage, industrial).

Colour options (e.g., silver, black, bronze) cater to personalised preferences.

IV. Application Scenarios

1. Domestic Settings

Bedroom doors: Ensure privacy and prevent disturbances during night-time locking.

Bathroom doors: Moisture-resistant designs (e.g., stainless steel) suit humid environments; retractable deadbolts prevent accidental locking.

Entrance doors (low security requirements): Serve as supplementary locks complementing main security door locks.

2. Commercial Settings

Office interior doors: Partition workspaces to maintain independent working areas.

Meeting room doors: Temporarily lock to prevent meeting interruptions.

Public area doors: Such as changing rooms and storage rooms, providing basic security.
