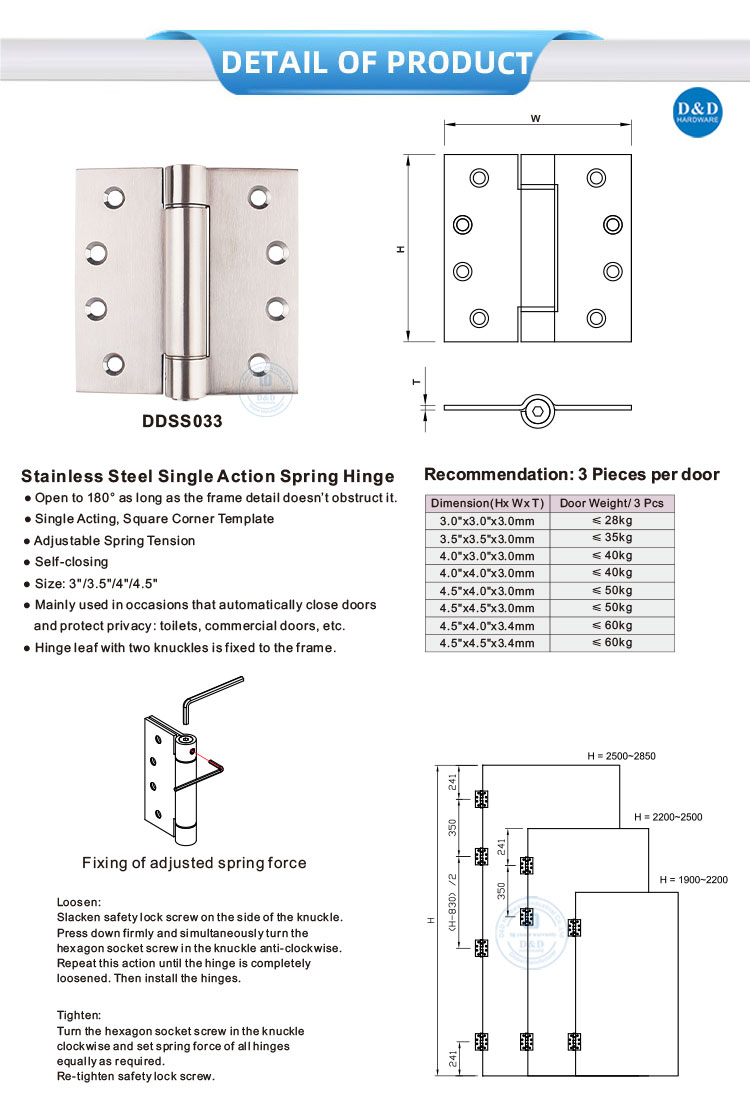

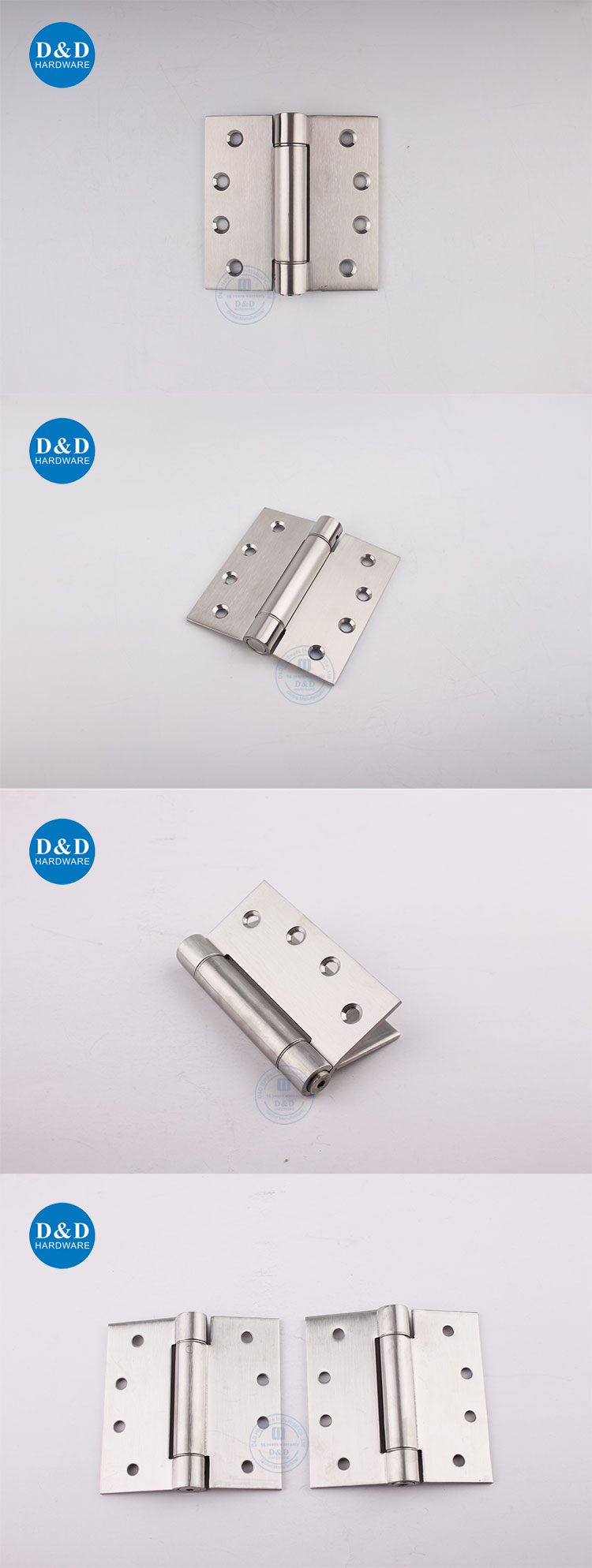

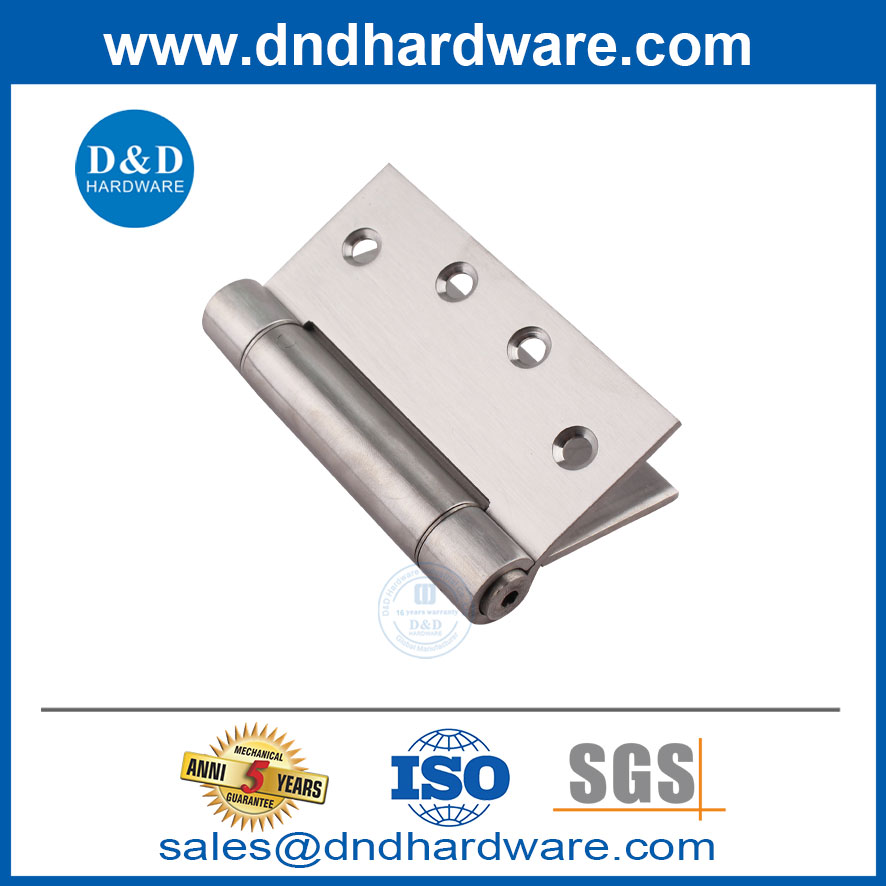

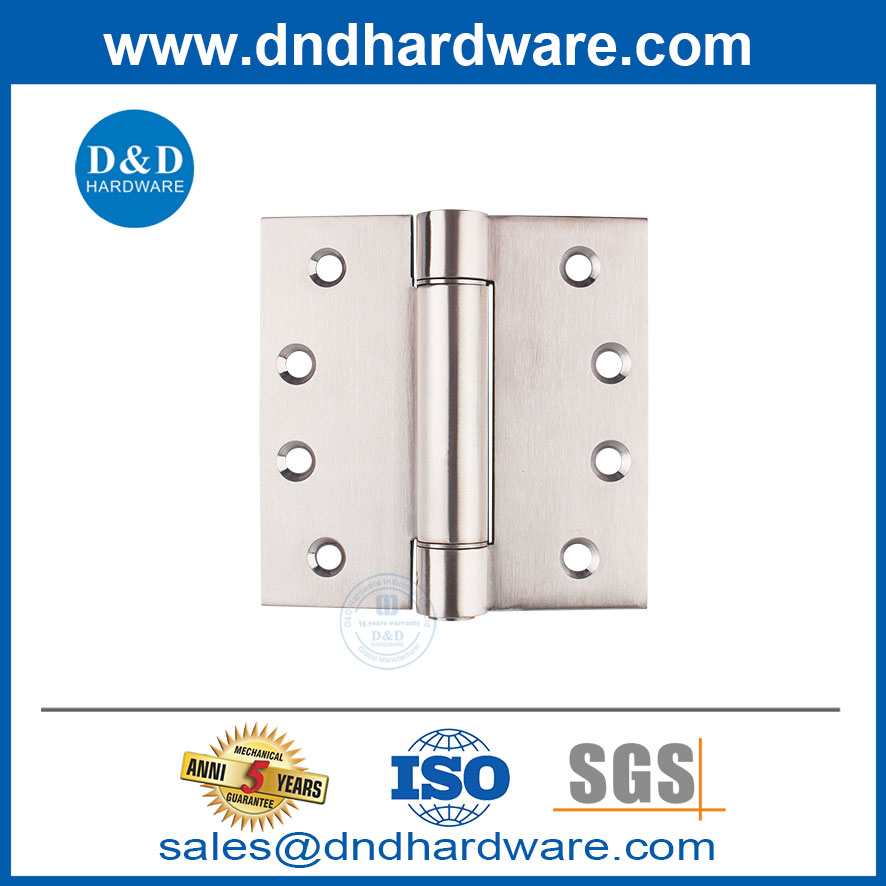

Self Closing Door Hinges 4 Inch Adjustable Stainless Spring Hinge Commercial-DDSS033

How It Works: Core Mechanics

1. Spring-Loaded Design

• The hinge houses a coiled spring within its barrel. When the door is pushed open, the spring compresses, storing mechanical energy.

• Upon release, the spring’s stored energy generates a force that smoothly pulls the door back to its frame, ensuring it latches securely.

2. Directional Control

• Engineered for unidirectional movement, the hinge restricts the door to swing in only one direction (e.g., inward or outward). This prevents unintended opening or obstruction in tight spaces.

3. Customizable Tension

• Many models feature an adjustable tension screw, allowing users to fine-tune the spring’s resistance. This ensures optimal performance for doors of varying weights—from lightweight interior doors to heavier fire-rated or commercial doors.

Key Features & Benefits

• Automatic Closure: Eliminates the need for manual closing, reducing wear on door frames and enhancing energy efficiency (e.g., in climate-controlled rooms).

• Safety Compliance: Ideal for fire doors, which must remain closed to prevent smoke or flame spread. The hinge’s reliability ensures doors self-close during emergencies.

• Noise Reduction: Prevents doors from slamming shut, making it suitable for quiet environments like libraries, hospitals, or offices.

• Low Maintenance: Constructed from materials like stainless steel or brass, these hinges resist corrosion and require minimal upkeep.

Common Applications

Single action spring hinges are ubiquitous in settings requiring controlled access or safety:

• Commercial Spaces:

• Restroom stall doors (ensuring privacy and hygiene).

• Restaurant kitchen doors (preventing cross-contamination between dining and prep areas).

• Office conference room doors (maintaining confidentiality).

• Residential Settings:

• Screen doors (keeping pests out while allowing ventilation).

• Pantry or laundry room doors (preventing odor or noise leakage).

• Public Facilities:

• Fire doors in schools, hospitals, or theaters (meeting safety regulations).

Single Action vs. Double Action Hinges

The primary distinction lies in directional flexibility:

• Single Action:

• Restricts movement to one direction (e.g., inward only).

• Prioritizes controlled closure and safety.

• Common in scenarios where bidirectional swing is unnecessary or hazardous (e.g., stairwell doors).

• Double Action:

• Allows 360-degree swing (like saloon doors).

• Suited for high-traffic areas requiring bidirectional access (e.g., café kitchens or retail stores).

• Uses dual springs to manage movement in both directions.

Why Choose a Single Action Spring Hinge?

For environments demanding precision, safety, and simplicity, this hinge is the go-to solution. Its ability to ensure doors remain closed when not in use—without manual intervention—makes it indispensable in both residential and commercial projects. Whether upgrading a home entryway or retrofitting a commercial building, the single action spring hinge offers reliability, ease of installation, and long-term cost savings.
