DDSS026-4x3x2.5
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Outer Door
Stainless Steel 304 / 316 / 201
SSS , PSS , PVD , PB, AB , AC, SC, PC, SB, MB
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
Availability: | |
---|---|
Quantity: | |

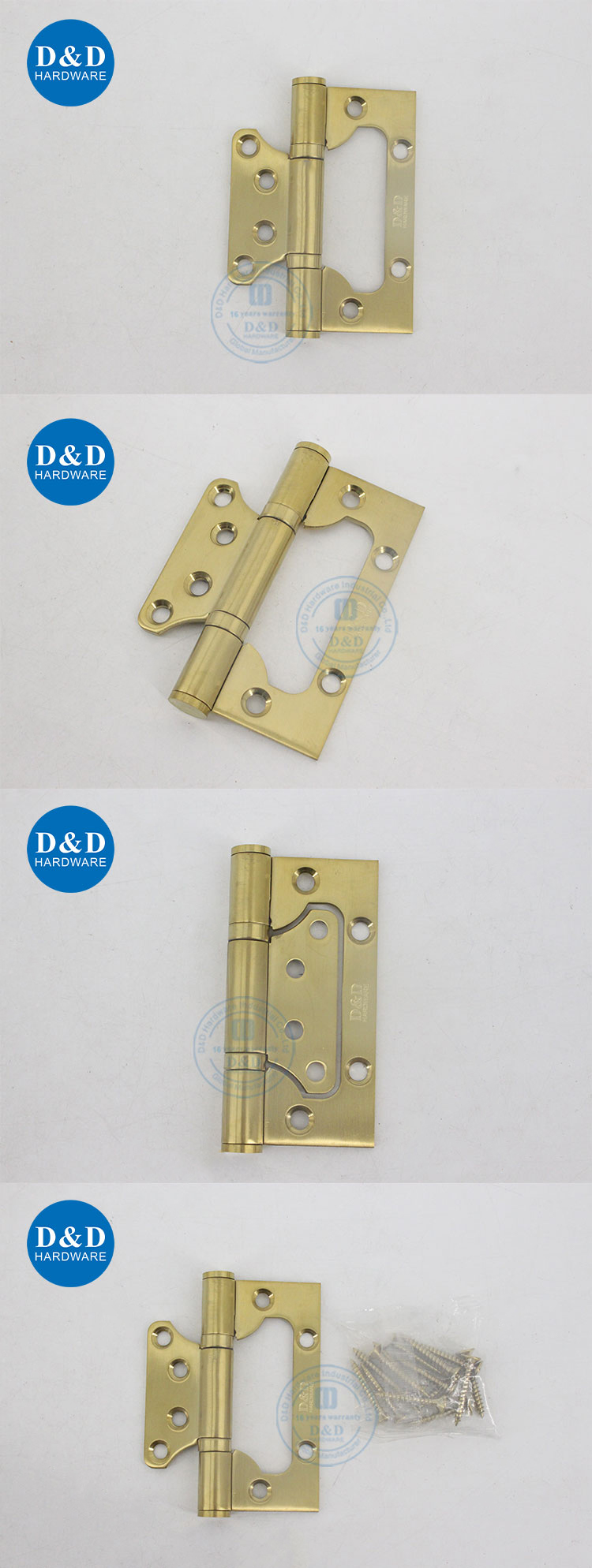

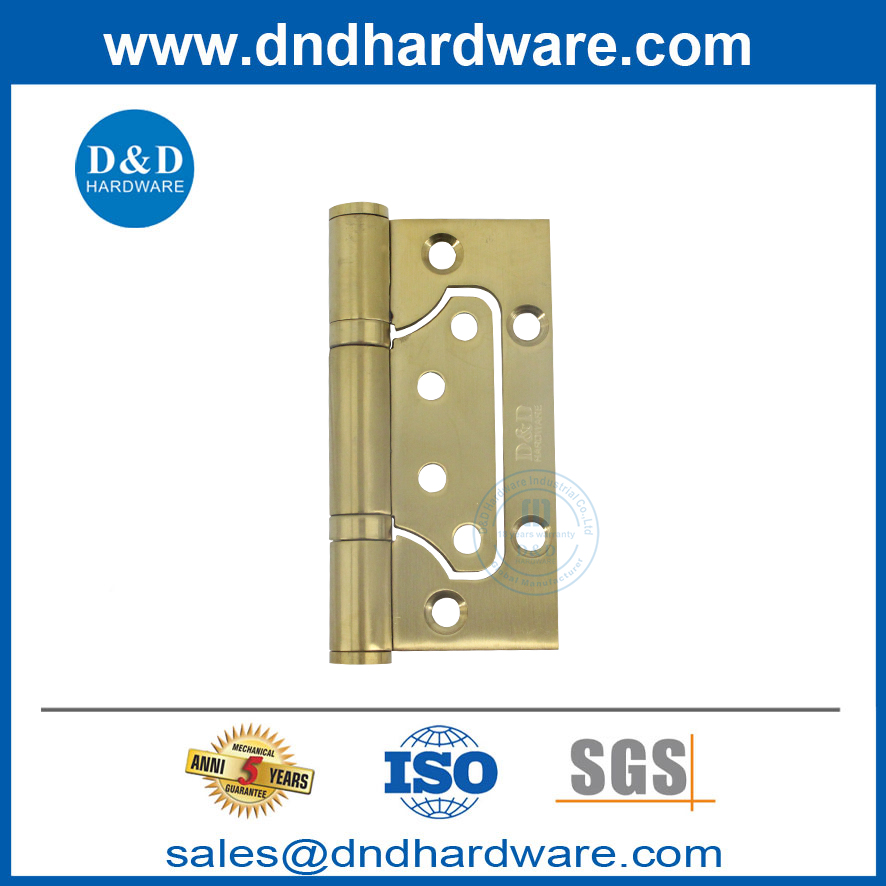

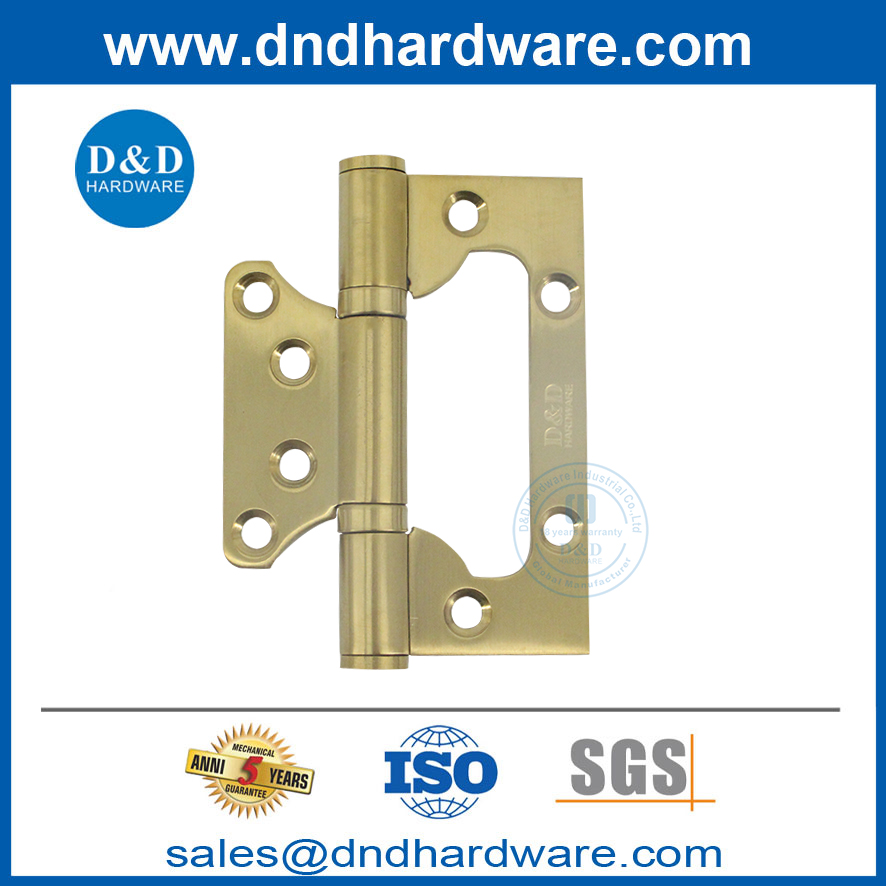

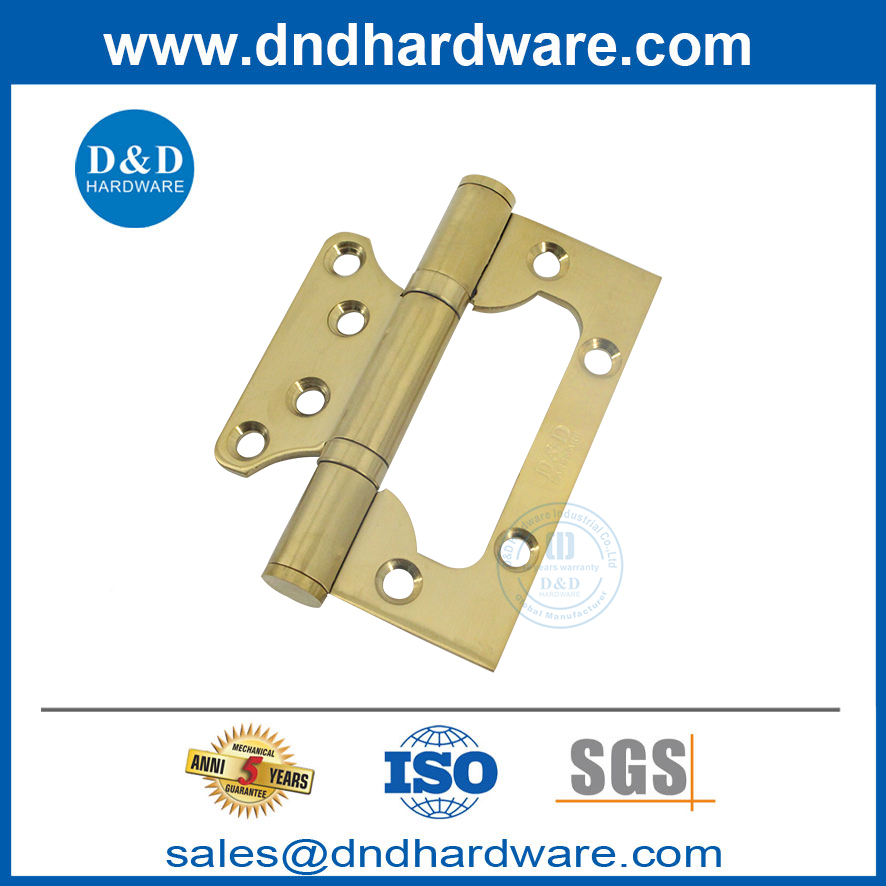

We have launched this satin brass flush door hinge specifically for the Middle East market, particularly high-end projects in Saudi Arabia. Designed with a luxurious golden finish and practical flush-mounted construction, these hinges cater to the local market's dual pursuit of opulent aesthetics and spatial efficiency. Constructed from robust base materials and finished with a durable satin brass coating, the product boasts an elegant hue that resists fingerprint marks. As a Flush Door Hinge, its core advantage lies in achieving perfectly flush installation between door panels and frames, creating exceptionally clean and crisp visual lines. This makes it ideal for modern minimalist and luxurious decorative styles. We are committed to providing contractors and buyers with hardware solutions that elevate project aesthetics while delivering outstanding functionality, ensuring every batch maintains the highest quality standards. For further information, please contact us.
Product Overview | |

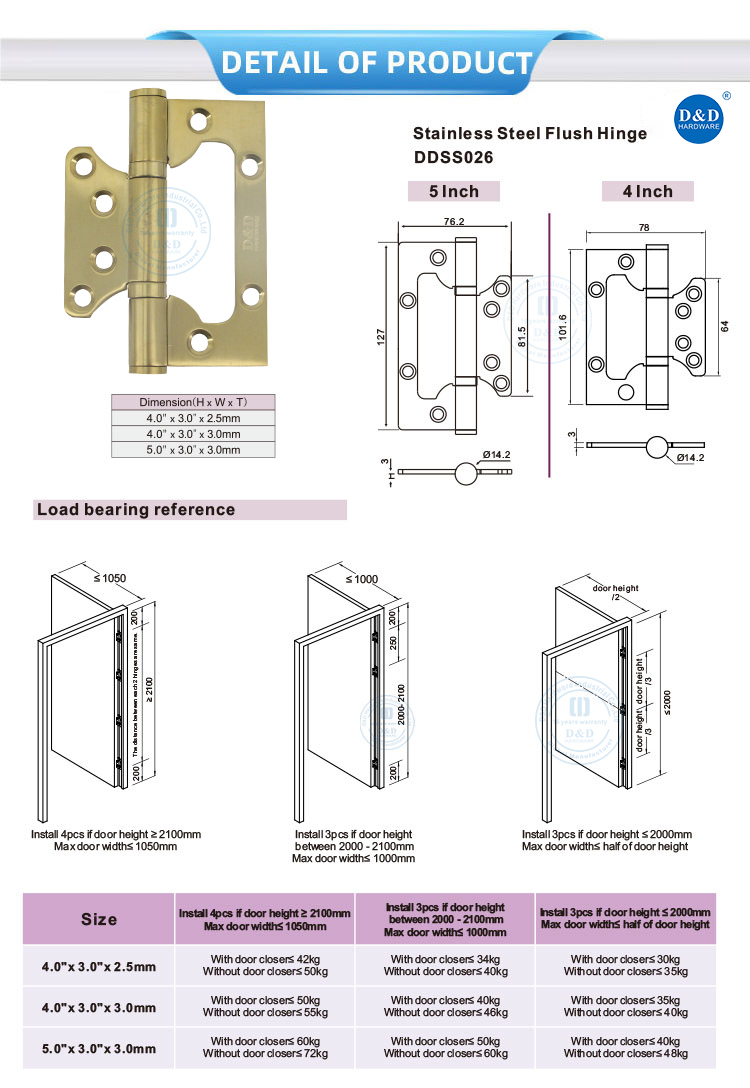

Product Name | Satin Brass Lash Hinge Golden Flush Door Hinges for Saudi Arabia-DDSS026 |
Product Model | DDSS026-4x3x2.5 |
Size | 4.0"x3.0"x2.5mm 4.0"x3.0"x3.0mm 5.0"x3.0"x3.0mm |
Material | Stainless Steel 201, 304 or 316 |
Fitting | Flat tip, ball bearing, fix pin, screws |
Finish | Satin stainless steel, Polished stainless steel, Polished brass, Chrome-plated(polish chrome plate&satin chrome plate), Antique brass, Antique copper, Matt black, Physical Vapor Deposition |
Color | Silver,Black, Golden, Antique Brass, Antique Copper |
Suitable for | Wooden door, Metal door, Steel door , Fire rated door |
Packaging & Shipping | |
MOQ | 500 Pieces |
Package | One pair/white box or color box or Blister card in Standard export carton |
Sample time | 5-7 working days |
Production lead time | 30-35 days |
Shipping Port | Jiangmen , China / Shenzhen , China . |
The products that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE EN1125
6. Door Closer – CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Door Viewer - UL Listed UL 10C Fire Rated R41286
9. Glass Hardware / Bathroom Hardware / Barn Door Hardware
We have launched this satin brass flush door hinge specifically for the Middle East market, particularly high-end projects in Saudi Arabia. Designed with a luxurious golden finish and practical flush-mounted construction, these hinges cater to the local market's dual pursuit of opulent aesthetics and spatial efficiency. Constructed from robust base materials and finished with a durable satin brass coating, the product boasts an elegant hue that resists fingerprint marks. As a Flush Door Hinge, its core advantage lies in achieving perfectly flush installation between door panels and frames, creating exceptionally clean and crisp visual lines. This makes it ideal for modern minimalist and luxurious decorative styles. We are committed to providing contractors and buyers with hardware solutions that elevate project aesthetics while delivering outstanding functionality, ensuring every batch maintains the highest quality standards. For further information, please contact us.
Product Overview | |
Product Name | Satin Brass Lash Hinge Golden Flush Door Hinges for Saudi Arabia-DDSS026 |
Product Model | DDSS026-4x3x2.5 |
Size | 4.0"x3.0"x2.5mm 4.0"x3.0"x3.0mm 5.0"x3.0"x3.0mm |
Material | Stainless Steel 201, 304 or 316 |
Fitting | Flat tip, ball bearing, fix pin, screws |
Finish | Satin stainless steel, Polished stainless steel, Polished brass, Chrome-plated(polish chrome plate&satin chrome plate), Antique brass, Antique copper, Matt black, Physical Vapor Deposition |
Color | Silver,Black, Golden, Antique Brass, Antique Copper |
Suitable for | Wooden door, Metal door, Steel door , Fire rated door |
Packaging & Shipping | |
MOQ | 500 Pieces |
Package | One pair/white box or color box or Blister card in Standard export carton |
Sample time | 5-7 working days |
Production lead time | 30-35 days |
Shipping Port | Jiangmen , China / Shenzhen , China . |
The products that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE EN1125
6. Door Closer – CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Door Viewer - UL Listed UL 10C Fire Rated R41286
9. Glass Hardware / Bathroom Hardware / Barn Door Hardware
Product Highlights
Elegant Appearance: Featuring a luxurious satin brass finish, these Flush Door Hinges deliver a soft, sophisticated golden luster. This treatment not only complements popular Middle Eastern decor styles but also offers a more scratch-resistant texture than high-gloss plating, ensuring long-lasting visual appeal in door areas.
Space-Saving: Thanks to its flush-mounted design, this hinge ensures the door panel sits perfectly level with the frame after installation. This eliminates the protrusion issue common with traditional hinges, making it ideal for narrow hallways, compact cabinetry, and any project demanding maximum space utilization.
Installation Simplicity: The design prioritizes installation efficiency. As Flush Door Hinges, they typically eliminate the need for complex deep mortises in both door frames and panels. This streamlines construction steps, saving valuable labor and time costs while accelerating project timelines.
Modern Design: Clean, flat lines give these Flush Door Hinges a distinct contemporary aesthetic. It seamlessly integrates into contemporary interior design styles, whether minimalist or light luxury, serving as a finishing touch that elevates the overall aesthetic quality of the space.
Versatile Application: Featuring classic, universal dimensions, this Flush Door Hinge flexibly accommodates various interior doors, cabinet doors, and partition systems. From residential bedroom doors to decorative partitions in commercial spaces, it delivers reliable performance support.
Durable Construction: We prioritize long-term performance. The hinge features thickened plates and a precision-engineered pivot pin, ensuring structural stability and smooth operation during frequent use. This effectively prevents door sagging and extends service life.
Product Features
Embedded Structure Principle: The core of these Flush Door Hinges lies in their unique “butterfly” or “folding” design. During installation, the hinge's two leaves are secured to the door panel and the interior of the door frame respectively, connected via the pivot pin. This allows the door panel to seamlessly embed into the frame when closed, achieving a perfectly flush appearance. Compared to traditional hinges requiring mortise cuts, this design minimizes structural damage to the door itself and enables faster installation.
Finish Advantages: Our satin brass finish serves more than aesthetic purposes. Its specially treated surface offers superior corrosion resistance and fingerprint resistance, making it ideal for Saudi Arabia's climate. Compared to standard electroplated coatings, it maintains its color longer, resists dullness from daily contact, and requires minimal maintenance.
Universal Compatibility Design: The dimensions of these Flush Door Hinges are market-proven for exceptional versatility. They offer excellent compatibility with standard interior wood doors, MDF doors, and even customized decorative partitions. This simplifies inventory management for buyers, as a single product meets diverse project requirements.
Quality Detail Control: We pursue perfection in every production detail. For instance, the hinge's pivot shaft undergoes precision grinding to ensure smooth, quiet operation. Installation holes are precisely positioned for quick alignment. These seemingly minor details collectively deliver reliable quality and user experience that surpass ordinary market competitors.
Application Scenarios
High-end hotel rooms in Saudi Arabia: In five-star hotel projects in Jeddah or Riyadh, this Flush Door Hinges can be used for room doors, bathroom doors and mini-bar doors. Its golden tone can show luxury temperament, while the flat design ensures the fluency and safety of corridors and indoor spaces, and enhances the overall living experience of guests.
Luxury residence and villa: For local high-end residential projects in Saudi Arabia, it will add a sense of exquisiteness to bedroom doors and walk-in cloakroom doors. Embedded installation makes the door leaf and wall line blend together, which is very suitable for the ultimate pursuit of space and detail quality in modern luxury houses.
Shopping Center Boutique: In a brand store or jewelry store in a large shopping mall, this Flush Door Hinges is an ideal choice for display cabinets, fitting rooms or backstage entrances. Its unobtrusive design can make consumers completely focus on the goods, while the golden details can set off the high-end atmosphere of the store.
Office building and clubhouse: partition door for management office, meeting room or private clubhouse in high-grade office building. It can effectively improve the professional image and decoration level of the business environment, and its quiet and smooth characteristics also ensure the tranquility of the working and negotiation environment.
Installation & Usage Guidelines
Preparation: First, make sure that the thickness and flatness of the door leaf and door frame meet the installation requirements. Count the required quantity of Flush Door Hinges and supporting screws. Prepare a cross screwdriver, a pencil for marking, and a level to ensure the verticality of installation.
Positioning and marking: put the door leaf in the door frame correctly. Take a Flush Door Hinges, one blade of which is close to the side of the door leaf and the other blade is close to the inside of the door frame, and adjust it to the ideal position. With a pencil, through the screw holes in the hinge, accurately mark all the points that need to be drilled on the door and door frame.
Fixation and inspection: Pre-drill the pilot hole with a suitable drill bit, which can make the screw easier to screw in and prevent the wood from cracking. Then, align the hinge blades in position and fasten them one by one with the provided screws. It may be easier to fix the door leaf part first and then the door frame part. Finally, check whether the door leaves open and close smoothly and ensure the installation is firm.
Value Proposition
Enhance the value of the project: Using this Flush Door Hinges can immediately improve the visual grade of the door and window system, make it a delicate highlight of the project, and help your final product establish a high-quality and high-standard image in the market.
Optimize the installation efficiency: the design of slotting-free or shallow slotting significantly simplifies the installation process and reduces the technical requirements and man-hour consumption. This means that your construction team can complete the installation task faster, thus effectively controlling labor costs and accelerating project delivery.
Enhance the space function: The flat embedded design is not only beautiful, but also more practical. It eliminates the potential safety hazards and space obstacles caused by the protrusions, and makes the area around the door leaf more fully utilized, especially suitable for the design scheme with limited space.
Ensure stable supply: As a professional manufacturer, we can ensure stable product quality and continuous supply of bulk goods. This provides reliability for your project planning and supply chain management, and avoids the project delay caused by parts problems.
Product Highlights
Elegant Appearance: Featuring a luxurious satin brass finish, these Flush Door Hinges deliver a soft, sophisticated golden luster. This treatment not only complements popular Middle Eastern decor styles but also offers a more scratch-resistant texture than high-gloss plating, ensuring long-lasting visual appeal in door areas.
Space-Saving: Thanks to its flush-mounted design, this hinge ensures the door panel sits perfectly level with the frame after installation. This eliminates the protrusion issue common with traditional hinges, making it ideal for narrow hallways, compact cabinetry, and any project demanding maximum space utilization.
Installation Simplicity: The design prioritizes installation efficiency. As Flush Door Hinges, they typically eliminate the need for complex deep mortises in both door frames and panels. This streamlines construction steps, saving valuable labor and time costs while accelerating project timelines.
Modern Design: Clean, flat lines give these Flush Door Hinges a distinct contemporary aesthetic. It seamlessly integrates into contemporary interior design styles, whether minimalist or light luxury, serving as a finishing touch that elevates the overall aesthetic quality of the space.
Versatile Application: Featuring classic, universal dimensions, this Flush Door Hinge flexibly accommodates various interior doors, cabinet doors, and partition systems. From residential bedroom doors to decorative partitions in commercial spaces, it delivers reliable performance support.
Durable Construction: We prioritize long-term performance. The hinge features thickened plates and a precision-engineered pivot pin, ensuring structural stability and smooth operation during frequent use. This effectively prevents door sagging and extends service life.
Product Features
Embedded Structure Principle: The core of these Flush Door Hinges lies in their unique “butterfly” or “folding” design. During installation, the hinge's two leaves are secured to the door panel and the interior of the door frame respectively, connected via the pivot pin. This allows the door panel to seamlessly embed into the frame when closed, achieving a perfectly flush appearance. Compared to traditional hinges requiring mortise cuts, this design minimizes structural damage to the door itself and enables faster installation.
Finish Advantages: Our satin brass finish serves more than aesthetic purposes. Its specially treated surface offers superior corrosion resistance and fingerprint resistance, making it ideal for Saudi Arabia's climate. Compared to standard electroplated coatings, it maintains its color longer, resists dullness from daily contact, and requires minimal maintenance.
Universal Compatibility Design: The dimensions of these Flush Door Hinges are market-proven for exceptional versatility. They offer excellent compatibility with standard interior wood doors, MDF doors, and even customized decorative partitions. This simplifies inventory management for buyers, as a single product meets diverse project requirements.
Quality Detail Control: We pursue perfection in every production detail. For instance, the hinge's pivot shaft undergoes precision grinding to ensure smooth, quiet operation. Installation holes are precisely positioned for quick alignment. These seemingly minor details collectively deliver reliable quality and user experience that surpass ordinary market competitors.
Application Scenarios
High-end hotel rooms in Saudi Arabia: In five-star hotel projects in Jeddah or Riyadh, this Flush Door Hinges can be used for room doors, bathroom doors and mini-bar doors. Its golden tone can show luxury temperament, while the flat design ensures the fluency and safety of corridors and indoor spaces, and enhances the overall living experience of guests.
Luxury residence and villa: For local high-end residential projects in Saudi Arabia, it will add a sense of exquisiteness to bedroom doors and walk-in cloakroom doors. Embedded installation makes the door leaf and wall line blend together, which is very suitable for the ultimate pursuit of space and detail quality in modern luxury houses.
Shopping Center Boutique: In a brand store or jewelry store in a large shopping mall, this Flush Door Hinges is an ideal choice for display cabinets, fitting rooms or backstage entrances. Its unobtrusive design can make consumers completely focus on the goods, while the golden details can set off the high-end atmosphere of the store.
Office building and clubhouse: partition door for management office, meeting room or private clubhouse in high-grade office building. It can effectively improve the professional image and decoration level of the business environment, and its quiet and smooth characteristics also ensure the tranquility of the working and negotiation environment.
Installation & Usage Guidelines
Preparation: First, make sure that the thickness and flatness of the door leaf and door frame meet the installation requirements. Count the required quantity of Flush Door Hinges and supporting screws. Prepare a cross screwdriver, a pencil for marking, and a level to ensure the verticality of installation.
Positioning and marking: put the door leaf in the door frame correctly. Take a Flush Door Hinges, one blade of which is close to the side of the door leaf and the other blade is close to the inside of the door frame, and adjust it to the ideal position. With a pencil, through the screw holes in the hinge, accurately mark all the points that need to be drilled on the door and door frame.
Fixation and inspection: Pre-drill the pilot hole with a suitable drill bit, which can make the screw easier to screw in and prevent the wood from cracking. Then, align the hinge blades in position and fasten them one by one with the provided screws. It may be easier to fix the door leaf part first and then the door frame part. Finally, check whether the door leaves open and close smoothly and ensure the installation is firm.
Value Proposition
Enhance the value of the project: Using this Flush Door Hinges can immediately improve the visual grade of the door and window system, make it a delicate highlight of the project, and help your final product establish a high-quality and high-standard image in the market.
Optimize the installation efficiency: the design of slotting-free or shallow slotting significantly simplifies the installation process and reduces the technical requirements and man-hour consumption. This means that your construction team can complete the installation task faster, thus effectively controlling labor costs and accelerating project delivery.
Enhance the space function: The flat embedded design is not only beautiful, but also more practical. It eliminates the potential safety hazards and space obstacles caused by the protrusions, and makes the area around the door leaf more fully utilized, especially suitable for the design scheme with limited space.
Ensure stable supply: As a professional manufacturer, we can ensure stable product quality and continuous supply of bulk goods. This provides reliability for your project planning and supply chain management, and avoids the project delay caused by parts problems.
