DDDP003
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, outer Door
Brass
CP,SN,PB,MB,PVD,AB,AC
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

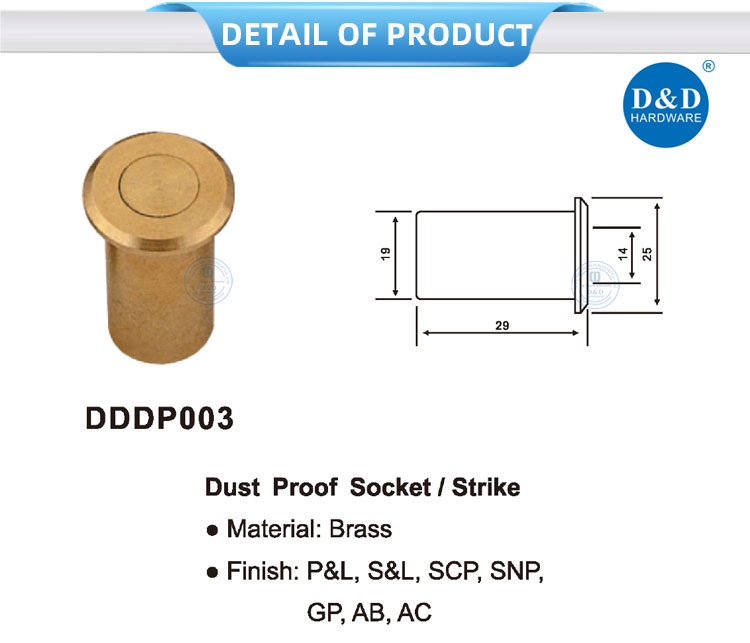

This brass dust proof socket is designed for commercial building doors and is the core dust proof component used in conjunction with the latch. The product is cast in high-quality brass material, the surface is nickel-plated, which has both corrosion resistance and mechanical strength, and the size is 29mm×19mm, which accurately adapts to the mainstream latch specifications. Its core design is a spring-loaded seal structure, when the latch is retracted, the built-in plunger automatically falls back to the threshold plane, forming a tight physical barrier that effectively blocks dust, debris and insects from entering the latch hole. Compared with the traditional open latch holder, this dust-proof socket completely solves the problems of latch jamming and wear caused by the accumulation of foreign objects through a dynamic sealing mechanism, ensuring that the door body opens and closes smoothly.
The product is installed at the bottom of the door frame or at the corresponding latch position, and when used with the flush bolt, it forms a complete dustproof closure system. Brass not only provides stable mechanical support, but also has natural antibacterial properties suitable for medical, food processing, and other scenarios where hygiene conditions are demanding. Standard screw holes are reserved on the surface of the socket, which is compatible with mainstream installation specifications in the market and simplifies the construction process.
For further information, please contact us.
Product Parameter | |
Product Name | Different Design Brass Commerical Door Flush Bolt Dust Proof Socket |
Product Model | DDDP003 |
Material | Brass |
Finish | Satin Nickle, Gold Plated, Chrome Plated, Antique Brass, Antique Copper, Matt Black |
Suitable for Door | Wood door and Steel door |
Packaging & Shipping | |
MOQ | 500 Pieces |
Package | 1pc /poly bag,white box / color inner box,Standard export Carton . |
Sample Time | 5-7 working days |
Production Lead Time | 30-35 days normally |
Shipping Port | Jiangmen , China / Shenzhen , China / Guangzhou , China |
D&D Product
The products that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE EN1125
6. Door Closer – CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Door Viewer - UL Listed UL 10C Fire Rated R41286
9. Glass Hardware / Bathroom Hardware / Barn Door Hardware
This brass dust proof socket is designed for commercial building doors and is the core dust proof component used in conjunction with the latch. The product is cast in high-quality brass material, the surface is nickel-plated, which has both corrosion resistance and mechanical strength, and the size is 29mm×19mm, which accurately adapts to the mainstream latch specifications. Its core design is a spring-loaded seal structure, when the latch is retracted, the built-in plunger automatically falls back to the threshold plane, forming a tight physical barrier that effectively blocks dust, debris and insects from entering the latch hole. Compared with the traditional open latch holder, this dust-proof socket completely solves the problems of latch jamming and wear caused by the accumulation of foreign objects through a dynamic sealing mechanism, ensuring that the door body opens and closes smoothly.
The product is installed at the bottom of the door frame or at the corresponding latch position, and when used with the flush bolt, it forms a complete dustproof closure system. Brass not only provides stable mechanical support, but also has natural antibacterial properties suitable for medical, food processing, and other scenarios where hygiene conditions are demanding. Standard screw holes are reserved on the surface of the socket, which is compatible with mainstream installation specifications in the market and simplifies the construction process.
For further information, please contact us.
Product Parameter | |
Product Name | Different Design Brass Commerical Door Flush Bolt Dust Proof Socket |
Product Model | DDDP003 |
Material | Brass |
Finish | Satin Nickle, Gold Plated, Chrome Plated, Antique Brass, Antique Copper, Matt Black |
Suitable for Door | Wood door and Steel door |
Packaging & Shipping | |
MOQ | 500 Pieces |
Package | 1pc /poly bag,white box / color inner box,Standard export Carton . |
Sample Time | 5-7 working days |
Production Lead Time | 30-35 days normally |
Shipping Port | Jiangmen , China / Shenzhen , China / Guangzhou , China |
D&D Product
The products that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE EN1125
6. Door Closer – CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Door Viewer - UL Listed UL 10C Fire Rated R41286
9. Glass Hardware / Bathroom Hardware / Barn Door Hardware
