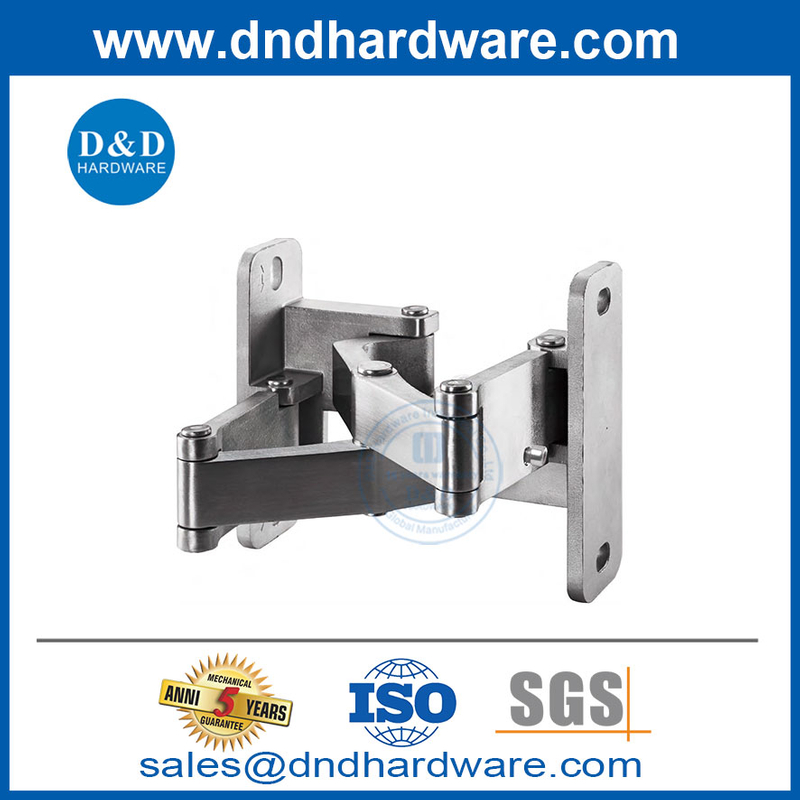

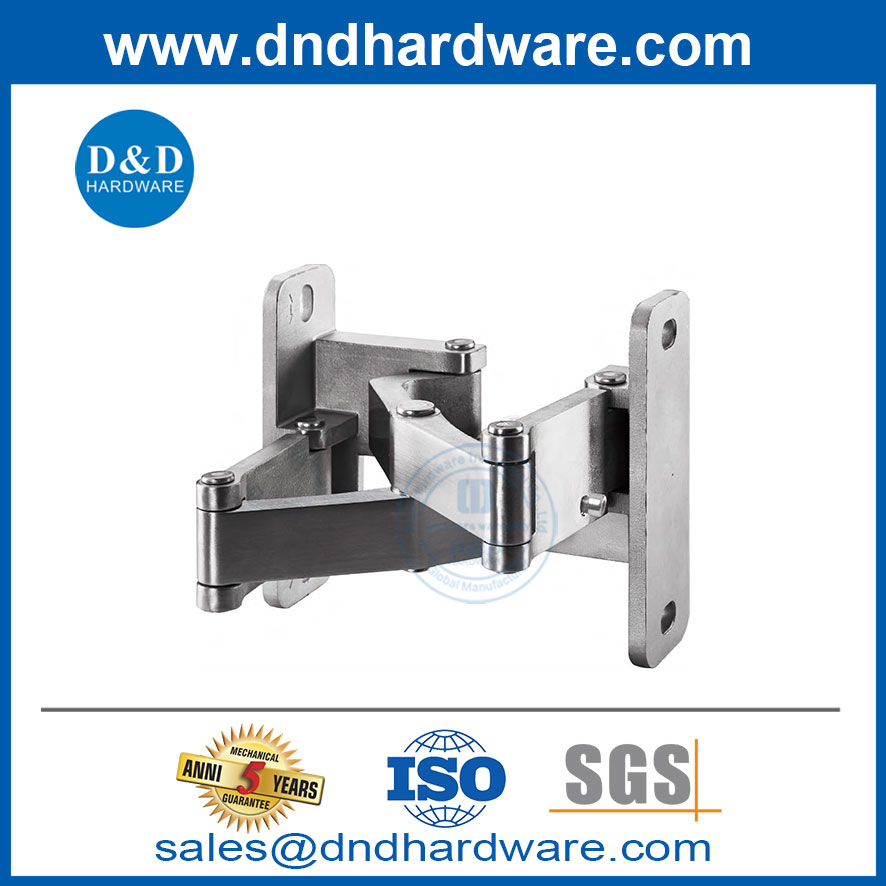

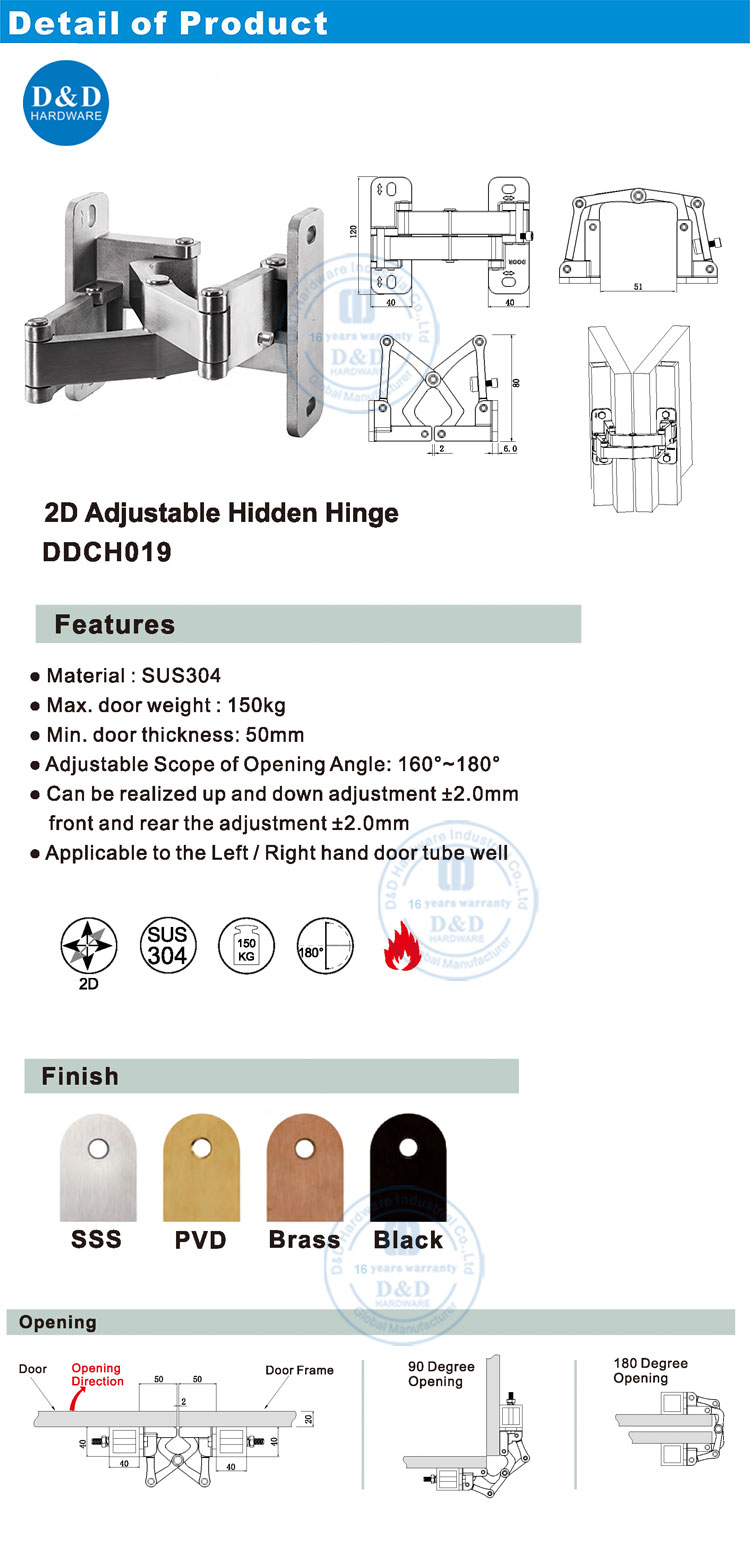

2D Adjustable Hidden Hinge 150KG SS Heavy Duty Door Concealed Hinge DDCH019

The 2D adjustable concealed hinge is a type of hinge that combines the function of two-dimensional adjustment with a concealed installation design. It is widely used in modern furniture, architectural doors and windows, and special scenarios. Its core feature lies in achieving bidirectional adjustment in both horizontal and vertical directions through a precise structure, while maintaining a simple appearance and functionality. The following will explain it from five aspects: definition, structure, function, application scenarios, and advantages.

I. Definition and Classification

2D adjustable dark hinges belong to a type of concealed hinges. The term "2D" indicates the ability to adjust in two dimensions (typically in the horizontal and vertical directions), while "dark hinge" emphasizes that the hinge body is hidden inside the door frame or door panel after installation, covered only by a small gap or decorative cover, achieving a seamless visual effect. Based on the adjustment method and load-bearing capacity, they can be classified into light, medium, heavy, and super-heavy types. For example, the TE240 model from German SIMONSWERK can bear a load of 40kg and is suitable for ordinary interior doors.

II. Structure and Adjustment Mechanism

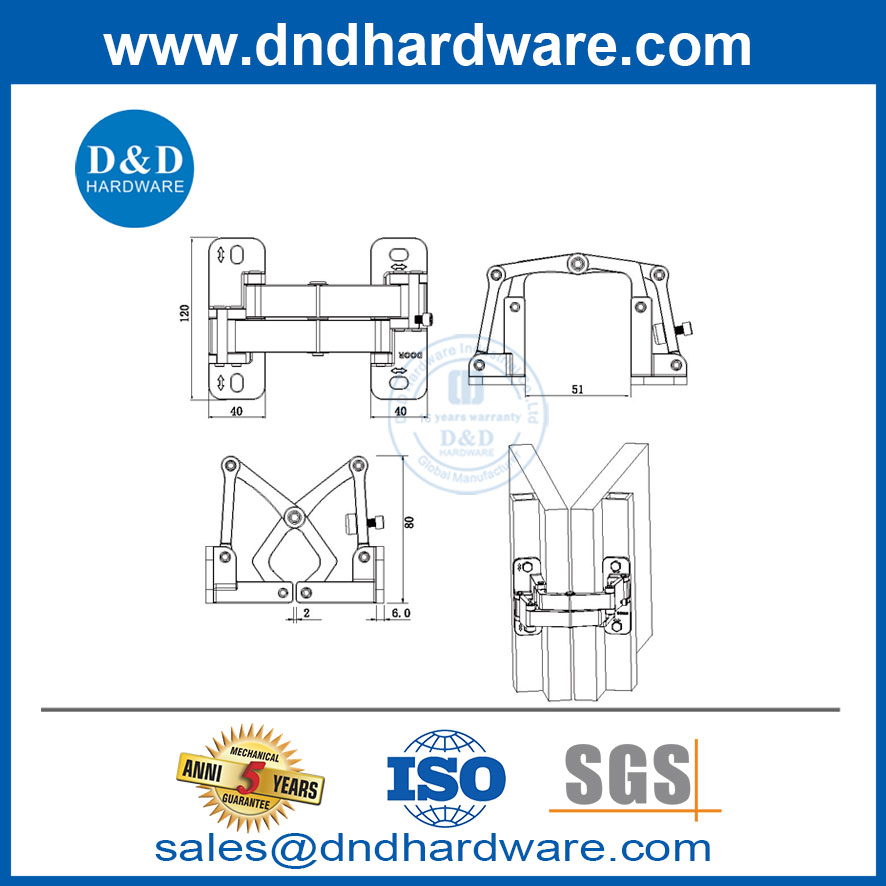

Core Components

Composed of a hinge cup, connecting rod, hinge arm, base, and adjustment screws, etc. The hinge cup is embedded in the door panel, and the base is fixed to the door frame. Through the precise machined positioning pins and pin holes (with a gap controlled within 0.1mm), the stability after adjustment is ensured.

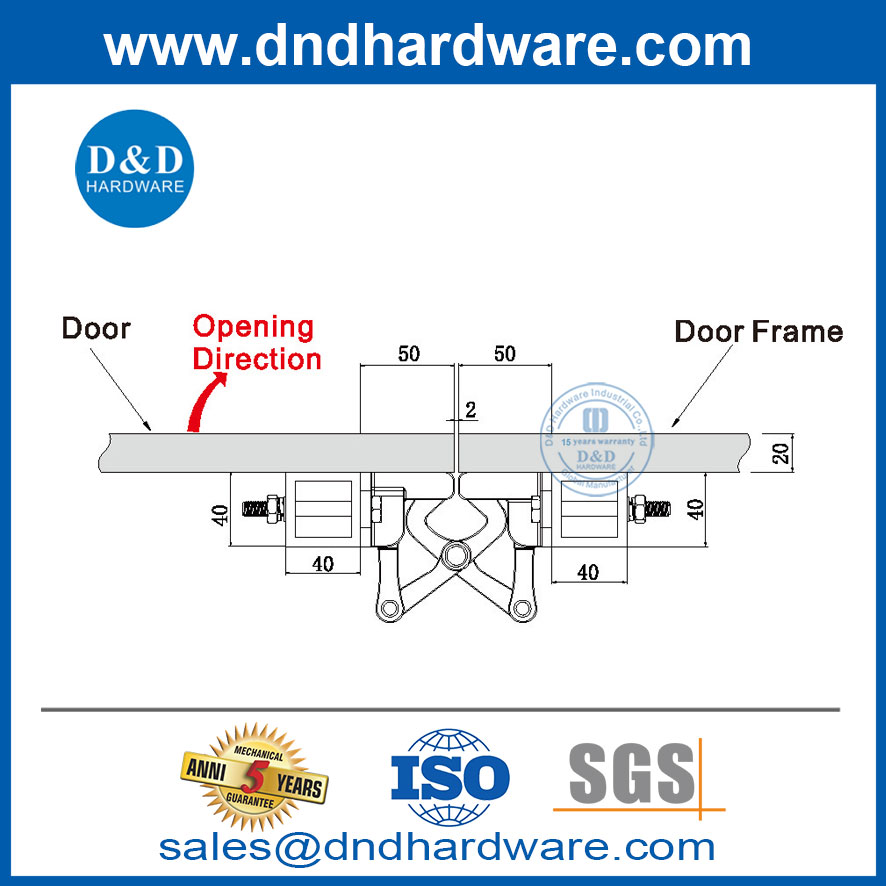

Two-dimensional Adjustment Principle

-Horizontal Adjustment: Through the horizontal screws on the base, the left-right spacing between the door panel and the door frame can be finely adjusted to eliminate installation errors or adapt to wall deformation.

-Vertical Adjustment: Using the longitudinal screws on the hinge arm, the height of the door panel can be adjusted to solve the problem of door panel sagging caused by uneven ground or door frame settlement.

-Angle Adjustment: Some models (such as three-dimensional adjustable concealed hinges) also support precise control of the opening angle to meet special scene requirements.

III. Functional Characteristics

-Hidden Installation

The hinge body is hidden between the door frame and the door panel, maintaining the purity of the design lines, suitable for high-end homes, commercial display cabinets, and museum display cabinets, etc., which have extremely high requirements for aesthetics.

-High Load-bearing Capacity and Durability

Using 304 stainless steel and 201 stainless steel mixture materials, combined with precise casting technology, the structural strength is ensured. For example, the precision cast concealed hinge can bear 150kg weight on door panel, and through the multi-point contact bearing design, stress is dispersed, extending the service life.

-Dust Prevention and Safety

The hidden design avoids dust accumulation, reducing maintenance frequency; without exposed components, the risk of clothing or fingers being caught is reduced, especially suitable for families with children.

-Modular and Detachable

Through the interlocking structure and positioning pins, the door panel can be easily removed without disassembling the hinge base, facilitating cleaning, maintenance, or space reorganization.

IV. Application Scenarios

-High-end Homes

The 2D adjustable concealed hinges are used in minimalist style cabinets and wardrobe doors to achieve seamless aesthetic effects while meeting the durability requirements for frequent opening and closing.

-Commercial Spaces

Retail store display cabinets and museum display cabinets utilize the hidden feature to focus the audience's attention on the exhibits; the detachable design is convenient for quick replacement of exhibits or layout adjustment.

-Special Environments

In medical institutions, the requirement for a clean environment makes the hidden hinges with no dead corners perfectly suitable; for food processing places, the corrosion resistance requirement is met through stainless steel material.

V. Summary of Advantages

-Aesthetics: Hidden installation eliminates visual interference, enhancing the overall design texture.

-Functionality: Two-dimensional adjustment precisely solves installation errors, ensuring smooth operation of the door panel.

-Durability: High-strength materials and precise craftsmanship guarantee no deformation during long-term use.

-Safety: Anti-clamping design protects users, especially suitable for public spaces.

-Flexibility: Detachable structure reduces maintenance costs and adapts to dynamic usage requirements.
