Escape Gallery Single Fire Rated Steel Door Ironmongery for Gymnasium

Views:22     Author:Site Editor     Publish Time: 2018-04-18      Origin:Site

Escape Gallery Single Fire Rated Steel Door Ironmongery

Fire Exit Hardware is an exit device which is tested for both panic and fire conditions and is required to be used on fire doors where panic hardware is required by code or desired for durability.  D&D Hardware escape gallery door hardware solution does just that for you. As an complete solution, you can view the perfect door hardware combination for safety.

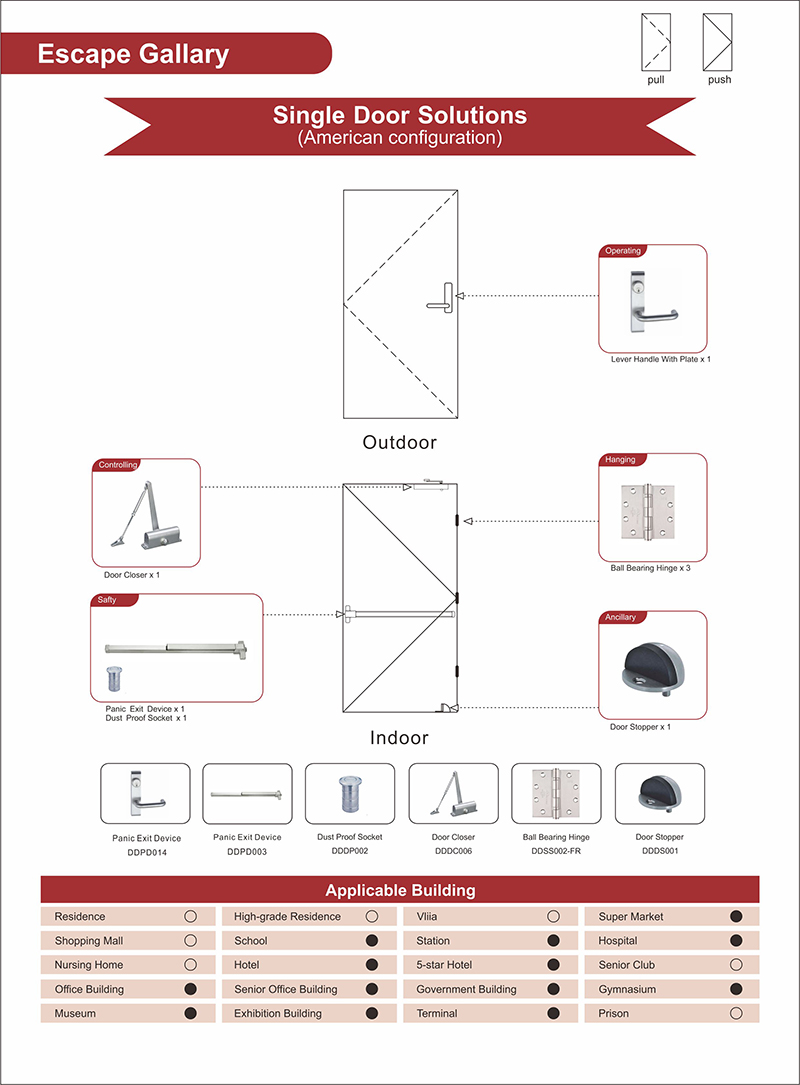

Escape passage - American steel fire door

D&D Hardware offers a wide range of security door hardware options for escape gallery that helps the building to solve several safety problems. The fire door hardware are the backbone of any security door solution. Since all of the hardware is mounted on, mortised into or connected to either the door or frame, it is extremely important the proper configuration is determined from the beginning.


Wide range of gallery door hardware certified & tested by International Certifying agencies like CE, EN and UL, are being offered along with Door Control Devices for all types of Fire Rated Doors. The range of the escape gallery hardware includes lever handle with plate, panic exit device, ball bearing hinge, door closer, door stopper, dust proof socket & accessories. The article is aim to introduce you the American configuration hardware of Escape Gallery Single Door.


Door Design Requirements

Door Type

Steel Fire Rated Door

Door Leaf

Single Leaf

Opening

Flat-opening

Direction

Unidirection

Connection

Tongue and Groove

Fire-rated

Required



Door Hardware Design Requirements


Lock Configuration

Outdoor

Opening

Lever Handle with Panic



Indoor

Opening

Panic Exit Device



Access Control

Not required

Other

Stainless Steel



European Standard of Door Hardware



DDSS002FR





                                               A 156.1

                                               A 156.7



DDPD014










                                             A 156.13













                                                 A 156.4





DDPD003








                                             A 156.3








                                             A 156.16



Applicable Buildings of Fire Rated Door Hardware

Super Market

School

Station

Hospital

Hotel

5-star hotel

Office Building

Senior Office Building

Government Building

Gymnasium

Museum

Exhibition Building

Terminal






Here the following is a detailed introduction to high-quality hardware that involved in American configuration escape gallery single door hardware solution.

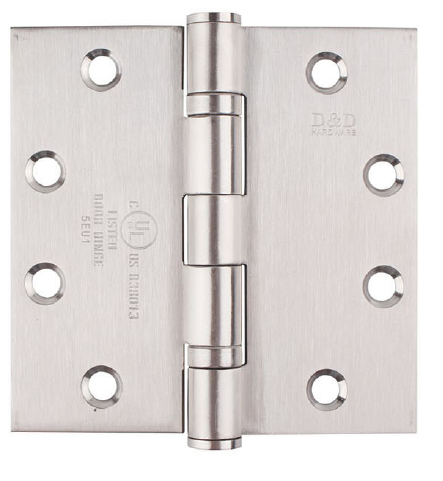

01 Ball Bearing Hinge


Stainless Steel Ball Bearing Hinge is good for gallery hardware solution, it is durable and easy to use. The Ball Bearing Hinge for Single Doors is one kind of our UL Listed Device. The material of Ball Bearing Hinge is Stainless Steel, so it can keep the original shape very well and it has 3 Hours Fire-rated. The UL certificate Ball Bearing Hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of UL certificate Ball Bearing Hinge become old and bad. The Stainless Steel Ball Bearing Hinge is smooth and easy to install and use, it can bring you high security and beauty for door.


02 Door Closer


Aluminium Door Closer is belong to escape gallery door hardware solution, it is important and pratical.The Door Closer can afford 40-65kg of the door which less than 950mm width. The material of Door Closer is Aluminium, so it can keep the original shape very well and also keep long-term lubrication.The Door Closer can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of Door Closer become old and bad. The Door Closer is smooth and easy to install and use, it can bring you high security and beauty for door.

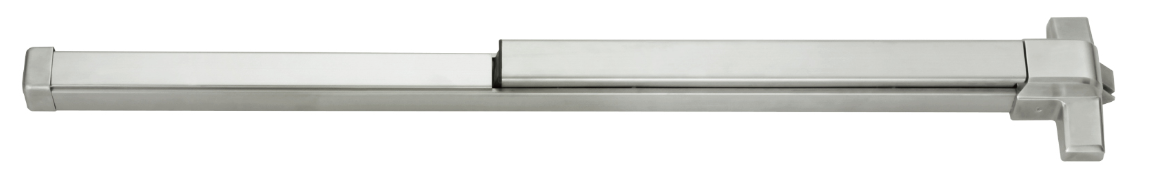

03 Panic Exit Device

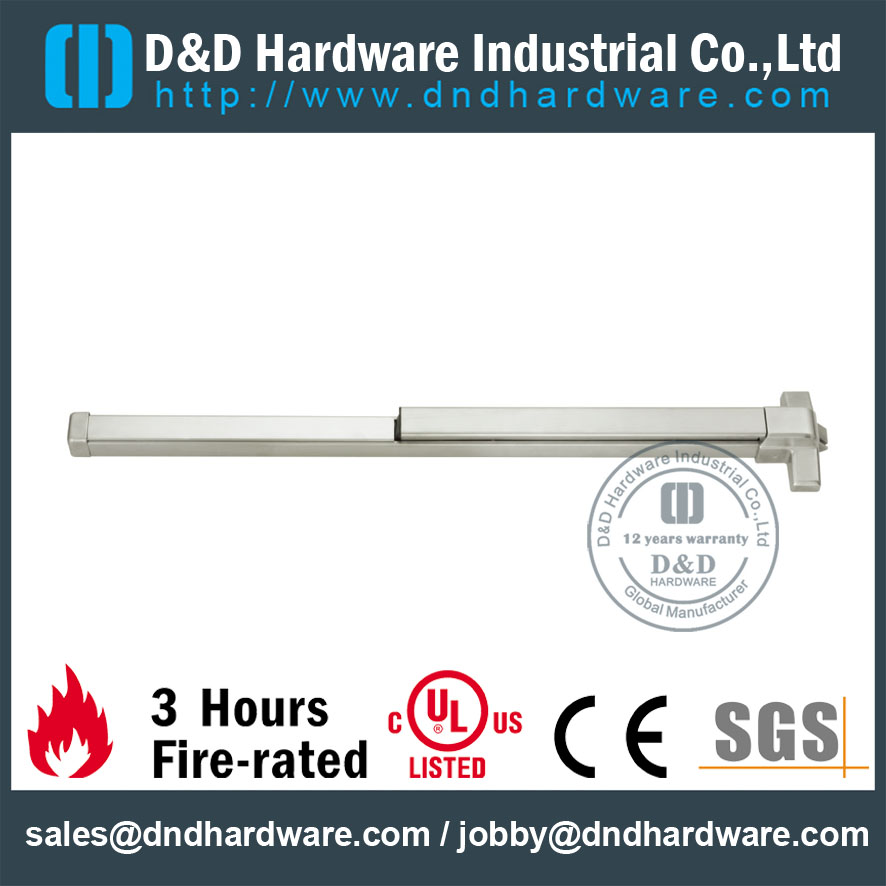

UL-Panic-Device-DDPD003

Stainless Steel Panic Exit Device is top-rated for escape gallery door hardware solution, it is durable and easy to use. As a professional Panic Exit Device supplier in China, we provide customers various quality Exit Panic Device and they apply to different commercial doors. The Exit Device is one kind of our UL Listed Exit Device. The material of Panic Exit Device is Stainless Steel, so it can keep the original shape very well. It won't turn yellow or rust. The UL certificate Panic Exit Device can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of UL Single Doors Exit Device become old and bad. The SS304 Single Doors Exit Device is smooth and easy to install and use, it can bring you high security and beauty for your door.

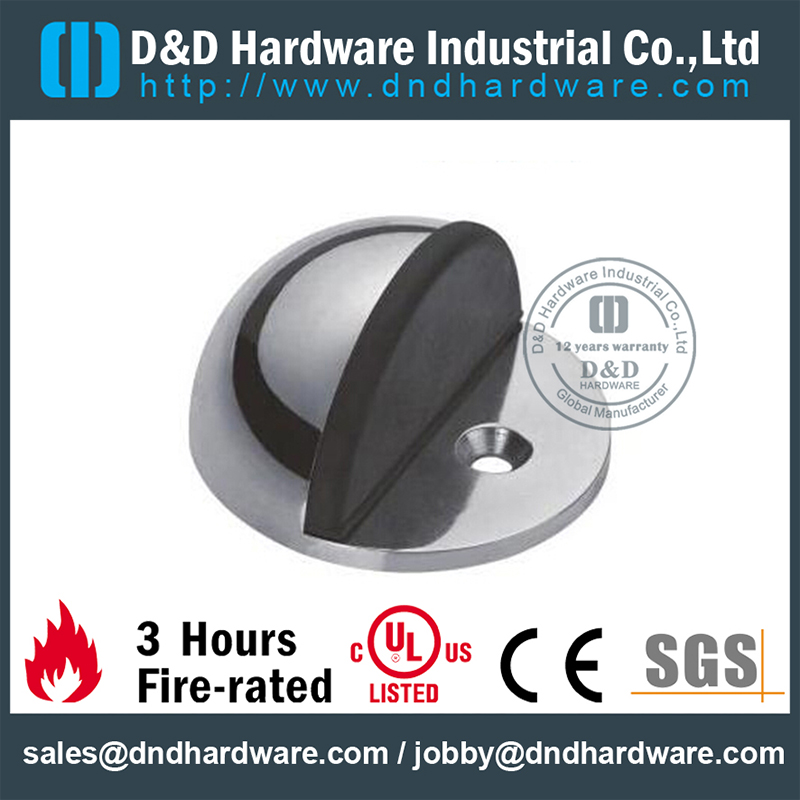

04 Door Stopper

DDSS001网站

Antirust Hemisphere Door Stopper plays an important role in escape gallery door hardware solution, is not only durable but also pratical. The Hemisphere Door Stopper is one of our Floor Mounted Type Door  Stopper. It has two regular sizes: 45x25mm and 46x28mm. If you want to other size, it is welcome. The material of Door Stopper is Stainless Steel, so it can keep the original shape very well can also keep smooth surface for a long time. The most important thing is it won't turn yellow or rust, so you can't often change it which make you convenient. The Hemisphere Door Stopper  is smooth and easy to install and use, it can bring you high security and beauty for your door.


05 Dust Proof Socket


Antirust Dust Proof Socket is an important part of escape gallery door hardware solution, it is durable and small. The Dust Proof Socket is one kind of our device . The material of Dust Proof Socket is Antirust, so it can keep the original shape very well. It won't turn yellow or rust. The Dust Proof Socket can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of Dust Proof Socket become old and bad. The Dust Proof Socket is smooth and easy to install and use, it can bring you high security and beauty for door.



Through the understanding of the single-door configuration hardware of the escape channel, the single-door configuration hardware of the escape channel consists of a nos lever handle with a plate, three nos ball bearing hinges, a nos door closing device, a nos emergency exit device, a nos dustproof socket and a nos door plug. These top - of - the - line door hardware will help keep doors secure and open interconnecting, and you deserve to have them.


Whether you need metal, wood or glass door hardware, D&D hardware can provide you with the right solution. Every door hardware solution is designed to help you choose the most perfect door hardware package more conveniently and save time. If you want to know more about door solutions, welcome to contact us, we will respond to your needs, and provide you with the solution you seek.
