What level of door hardware can be installed on fire doors?

Fire door is one of the measures for building fire separation. It plays an important role in preventing the spread and spread of smoke and fire and reducing the loss.Some items of building hardware are essential to ensure that the fire resisting door stays closed in its frame in a fire emergency.



In order for the fire door to function for a long time in the event of a fire, the door hardware on the fire door must also be able to function normally even in a fire. Let us understand what level of hardware on the fire door can be installed on the fire door:

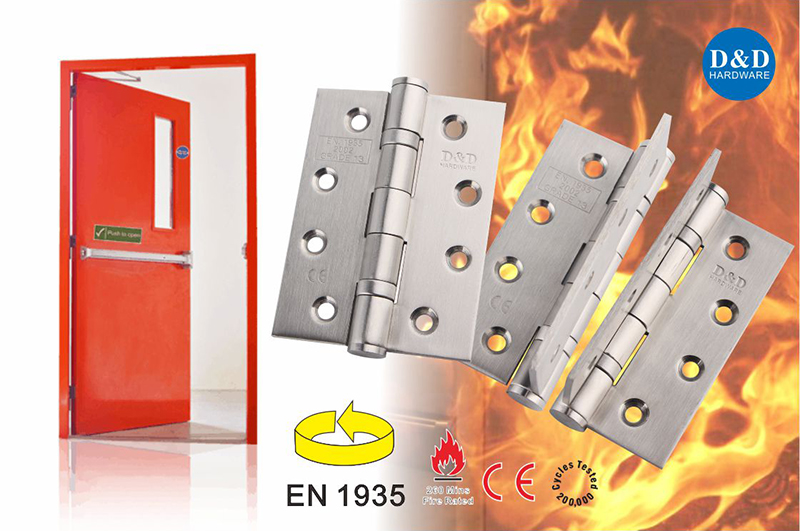

1.Door Hinge

When used on fire-resisting doors the hinge must be CE Marked to BS EN 1935 and have demonstrated its ability to be suitable for the intended purpose, by inclusion in the satisfactory fire test to BS EN 1634-1 or BS EN 1634-2, on a type of door assembly and configuration in which it is proposed to be used. An approved third-party certification or testing body should provide this evidence.

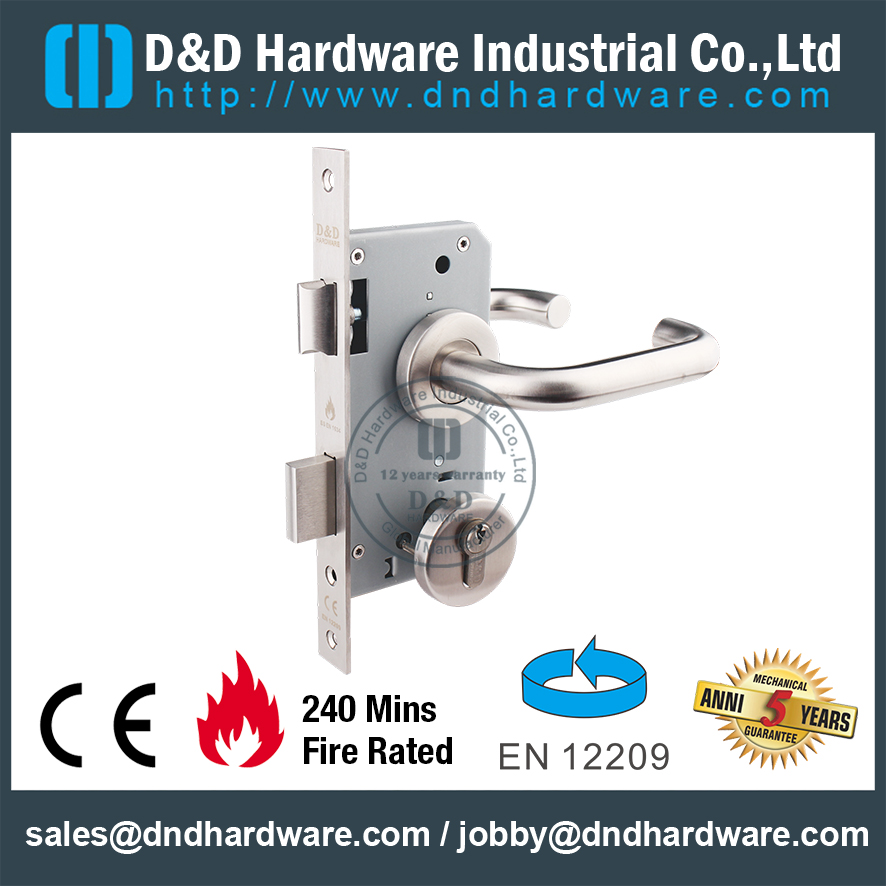

2.Door Lock

The lock must have demonstrated its suitability for the intended purpose by inclusion in satisfactory fire tests to BS EN 1634-1 or BS EN 1634-2, on a type of door and configuration in which it is proposed to be used. This evidence should be provided by an approved third-party certification or testing body.

Locks with low melting point (less than 800°C, or 900oC for steel doors over 90 minutes resistance) components, which are critical to the retention of the door in the closed position, should NOT be used unless proven by specific tests.

Where security is in conflict with easy egress, a full risk assessment should be made. Doors that are normally unlocked when the building or area is occupied may be fitted with locks for out-of-hours security. A thumb-turn on the inside of the door will give means of escape to anyone inadvertently locked in. Where the door will be normally locked during occupation, e.g. a dispensary or a wages office, then hardware such as panic escape devices to BS EN 1125 or emergency exit devices to BS EN 179 should be used escape panic device.

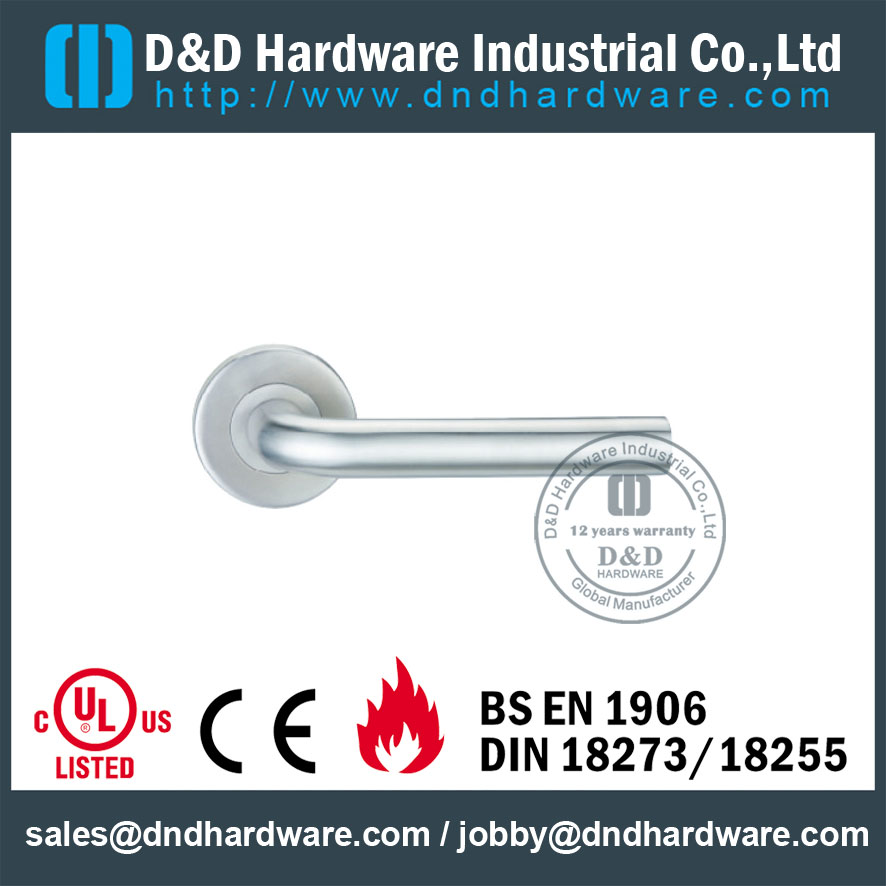

3.Lever Handle

Fire-resisting doors usually incorporate either， lever handles or knobs if the doors are latched.

Lever handles and knobs should comply fully with:

•BS EN 1906 - Building hardware - Lever handles and knobs,

• preferably, this evidence should be provided by an approved third party certification or testing body.





4.Door Closer

Fire-resisting doors (other than those to locked cupboards, service ducts, and internal doors in flats and dwelling houses) are usually required to be self-closing, in accordance with building regulations, the door closing device and its accessories:

• must be CE Marked to BS EN 1154 - Building hardware -Controlled door closing devices.

• And preferably, should be provided with additional product certification by an approved third party certification body.

The product and any accessories must have demonstrated their suitability for the intended purpose, by inclusion in satisfactory fire tests to BS EN 1634-1 or BS EN 1634-2, on a type of door and configuration in which will be used. This evidence should be provided by an approved third party certification or testing body.





Door hardware is available to meet a variety of performance and durability levels, and selection of appropriate products will save on maintenance costs and, when put to the ultimate test, will save lives.



D&D Hardware provides highly reliable products that can be used for a long time. D&D's fireproof hardware products and fire doors have passed the fire door test EN1634, meet the EN/CE form test requirements, and are certified by a third-party certification body. (Hinge-BSEN1935; Door Closer-BS EN1154; Mortise Lock-BS EN12209; Escape Bar-BS EN1125) While adapting to the convenient and reliable door configuration schemes of public buildings and industrial places, it brings you the best cost performance and high quality The quality and long service life. We can provide a complete set of fire door hardware solutions for people circulation, bringing you the best price-performance ratio.

For further information about fire rated hardware or any of our services, click here.
