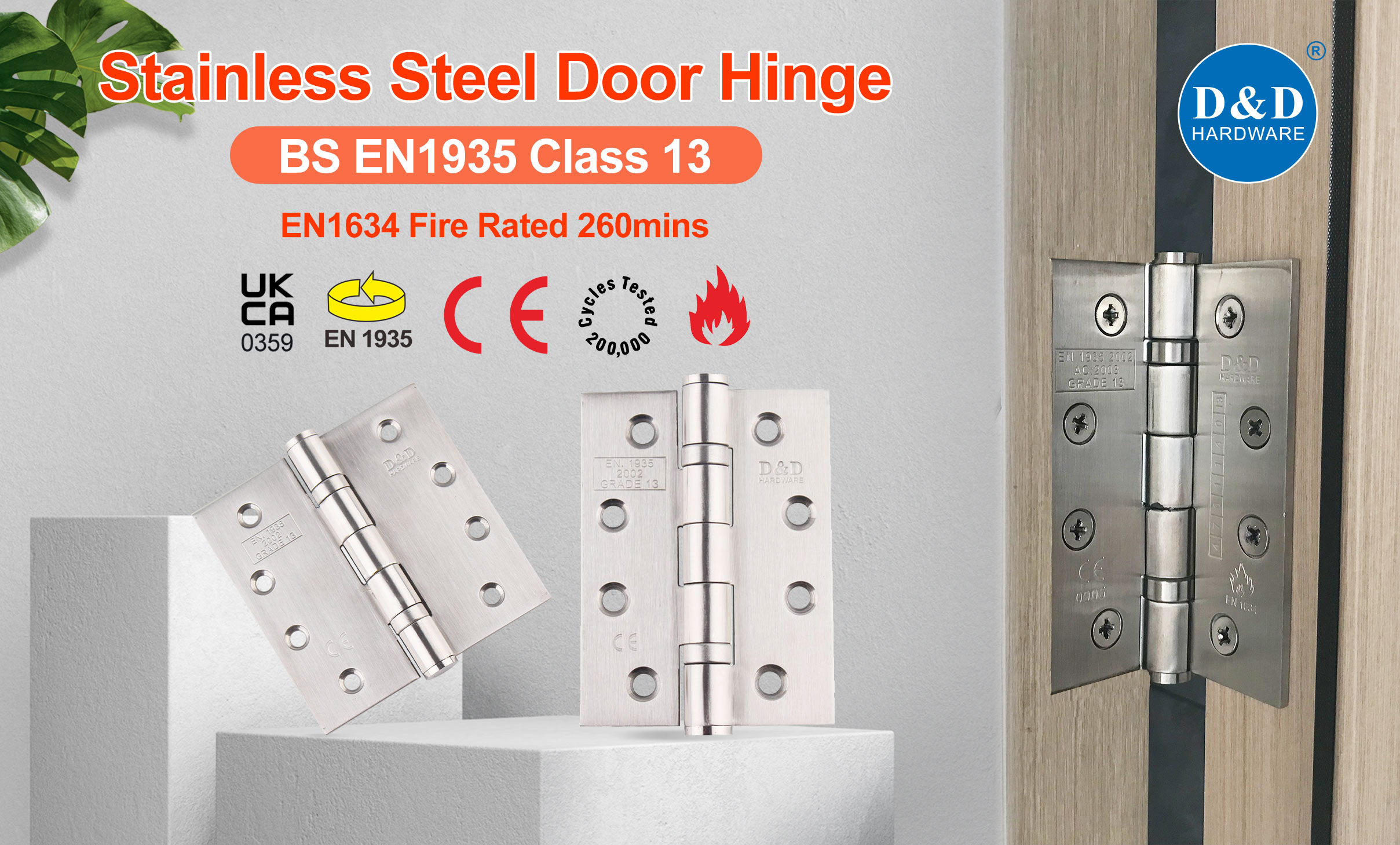

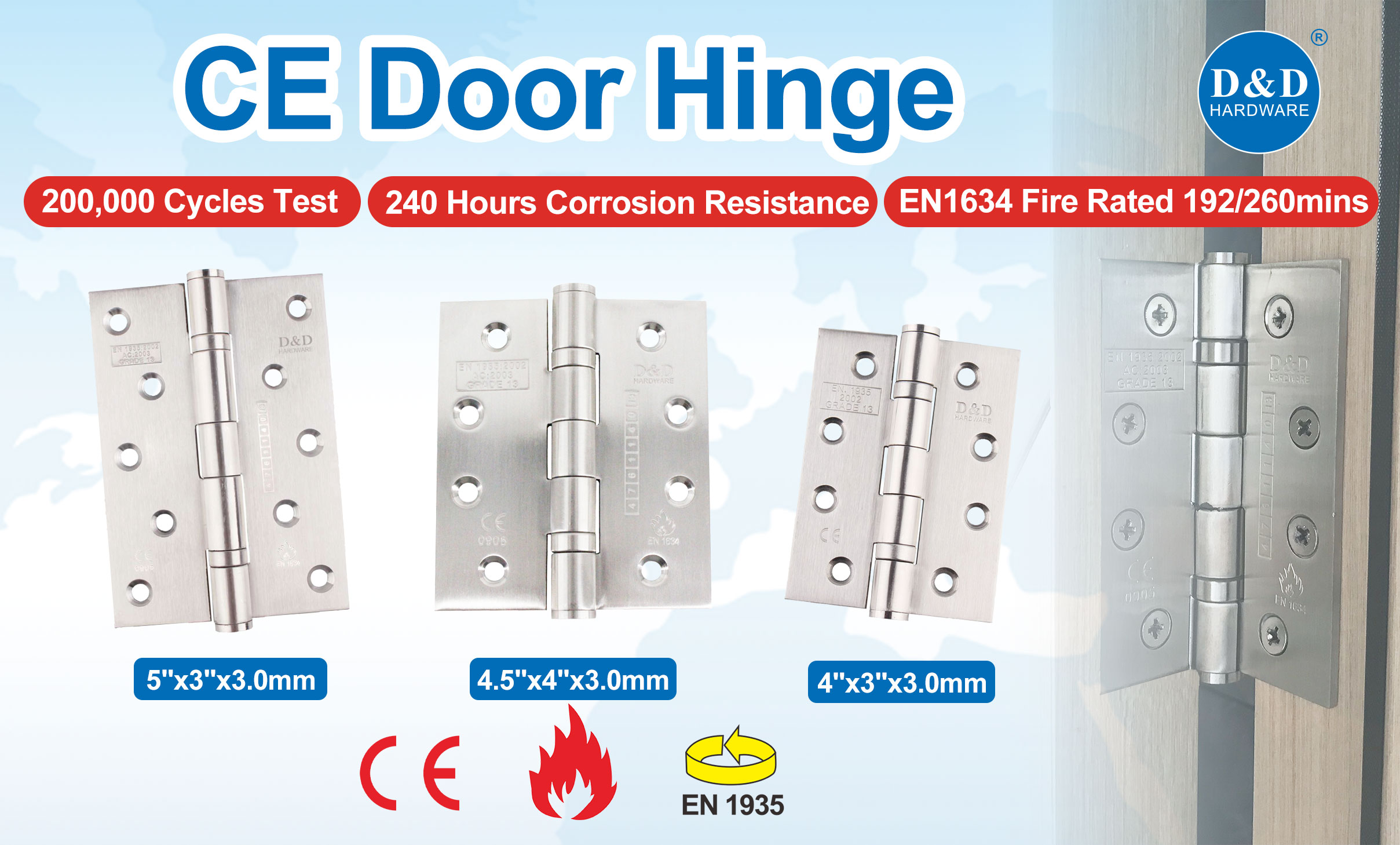

CE Door Hinges have been successfully tested to BS EN 1935 (Class 476114013), EN1634 Fire Rated 260mins. Tested to over 200,000 cycles. Double ball bearing, fire knuckle hinge. Suitable for fire/smoke resistant doors.

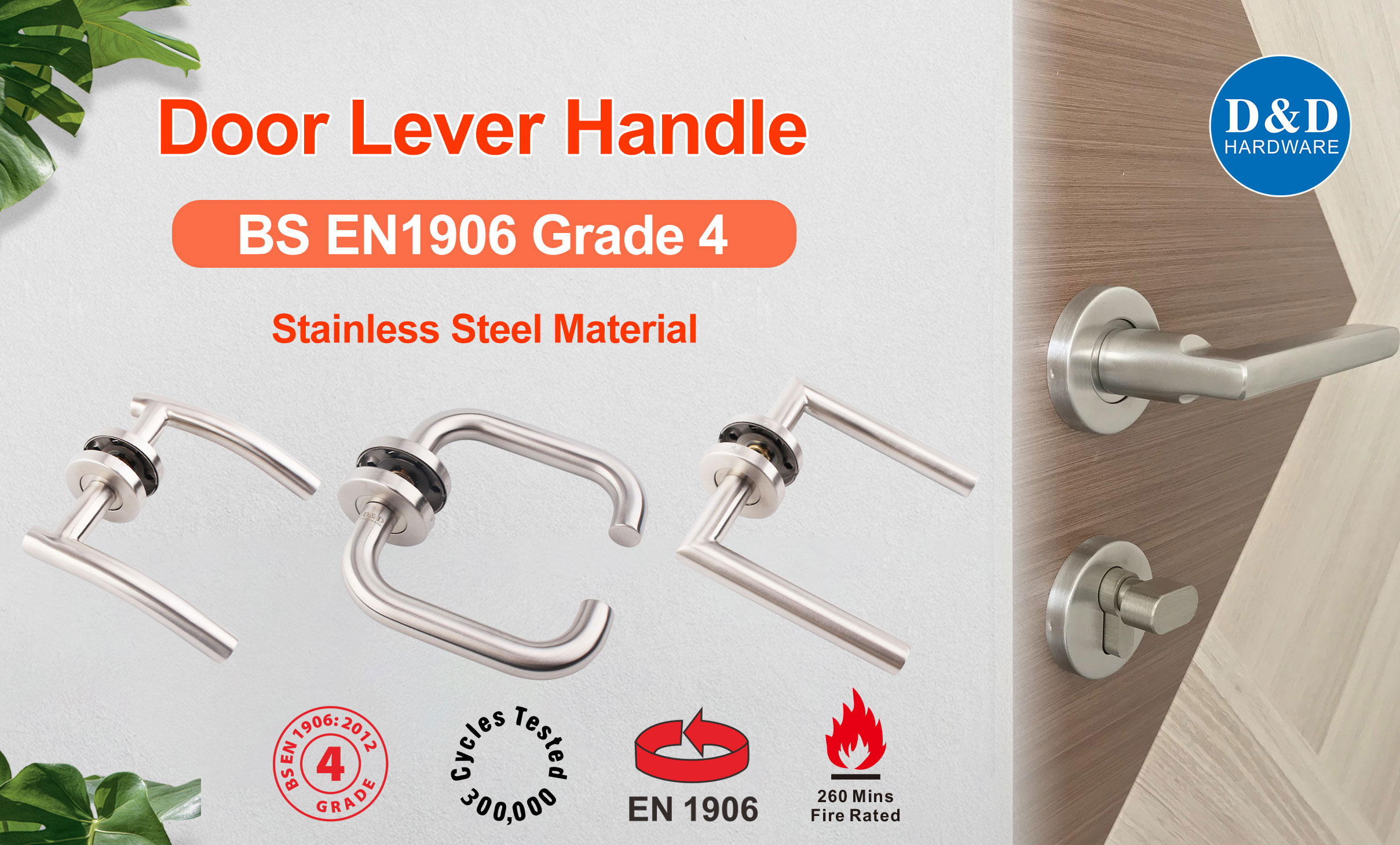

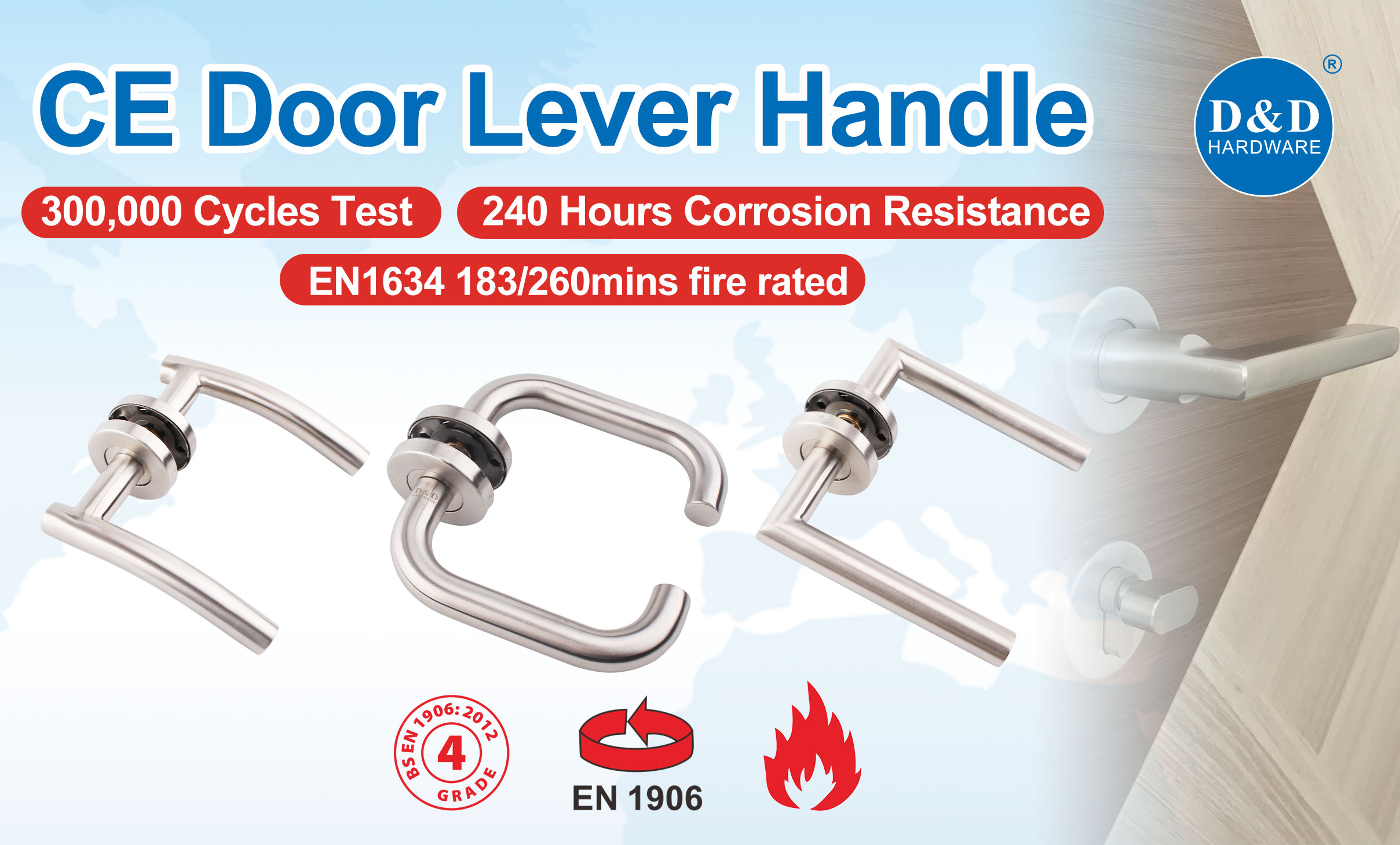

Door Lever Handles certified in compliance with BS EN1906:2012 Class 4(47-1140B) , have been successfully tested to 300,000 cycles. Stainless steel material,hollow lever handle. Suitable for frequent violent usage.

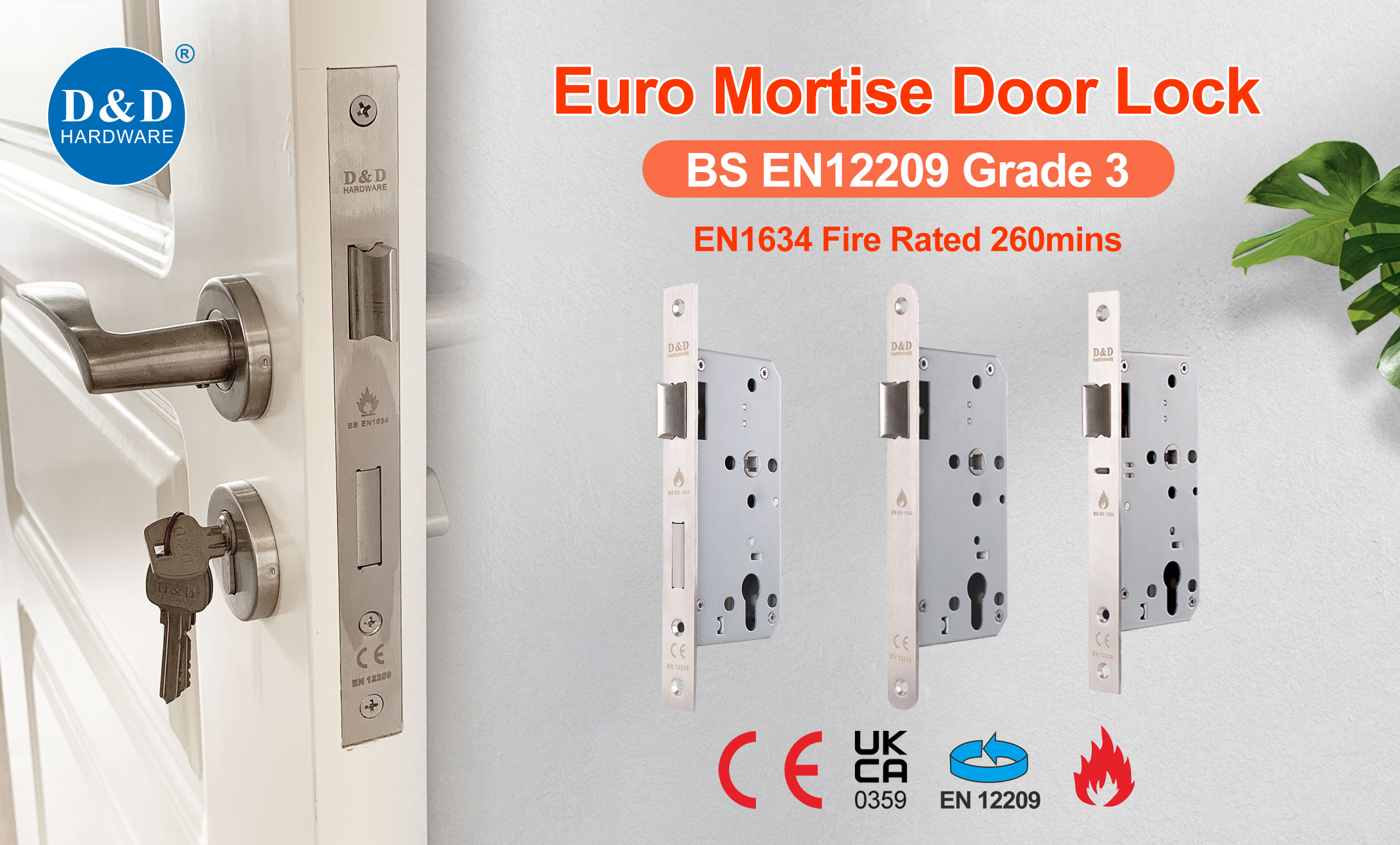

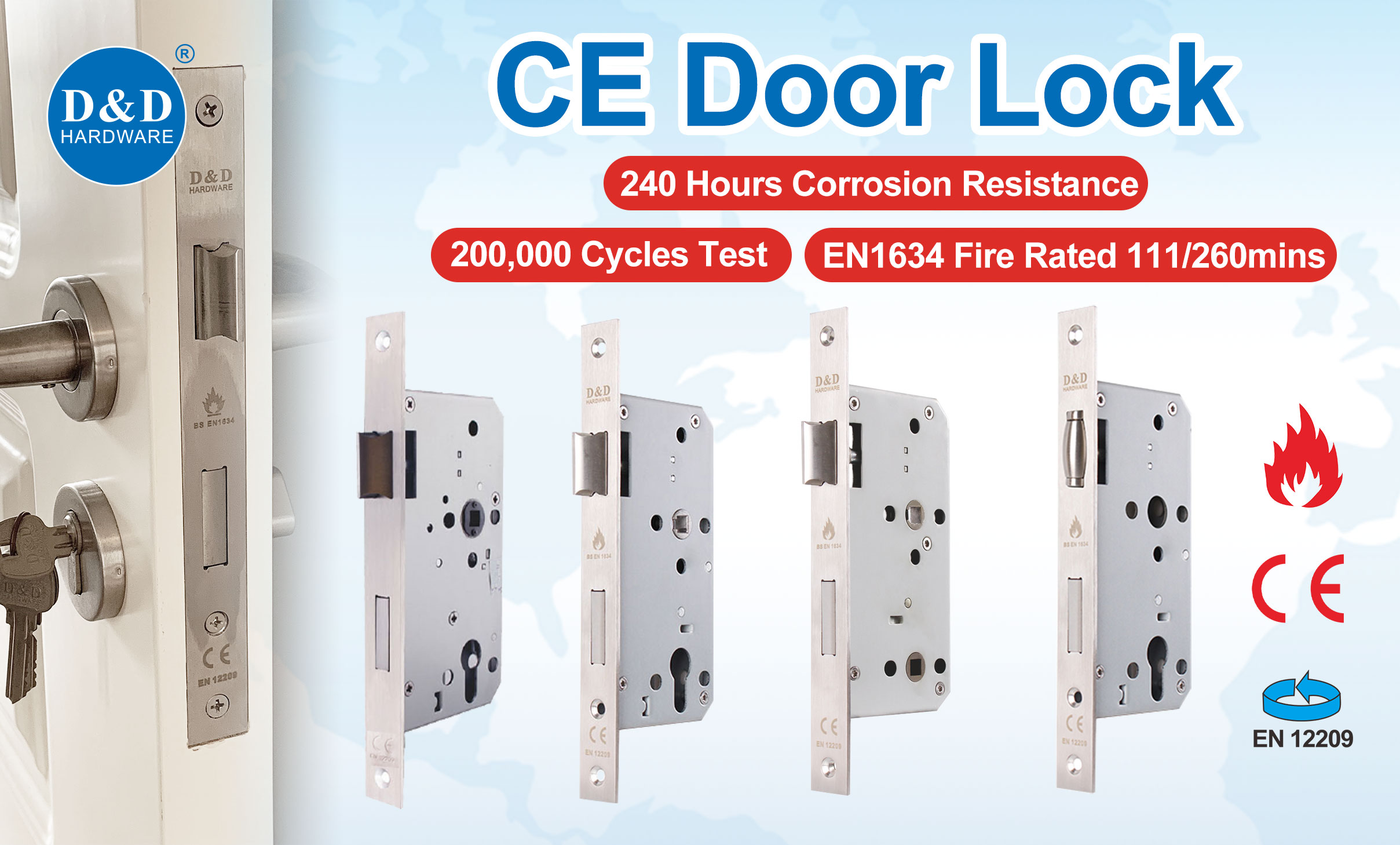

CE mark European mortise locks have been successfully tested for conformity to all the requirements of BS EN12209/DIN 18251,11 Classification:3X910G3BC20, EN1634 260 Minutes Fire Rated, EN1670: 240 hours Corrosion Resistance.

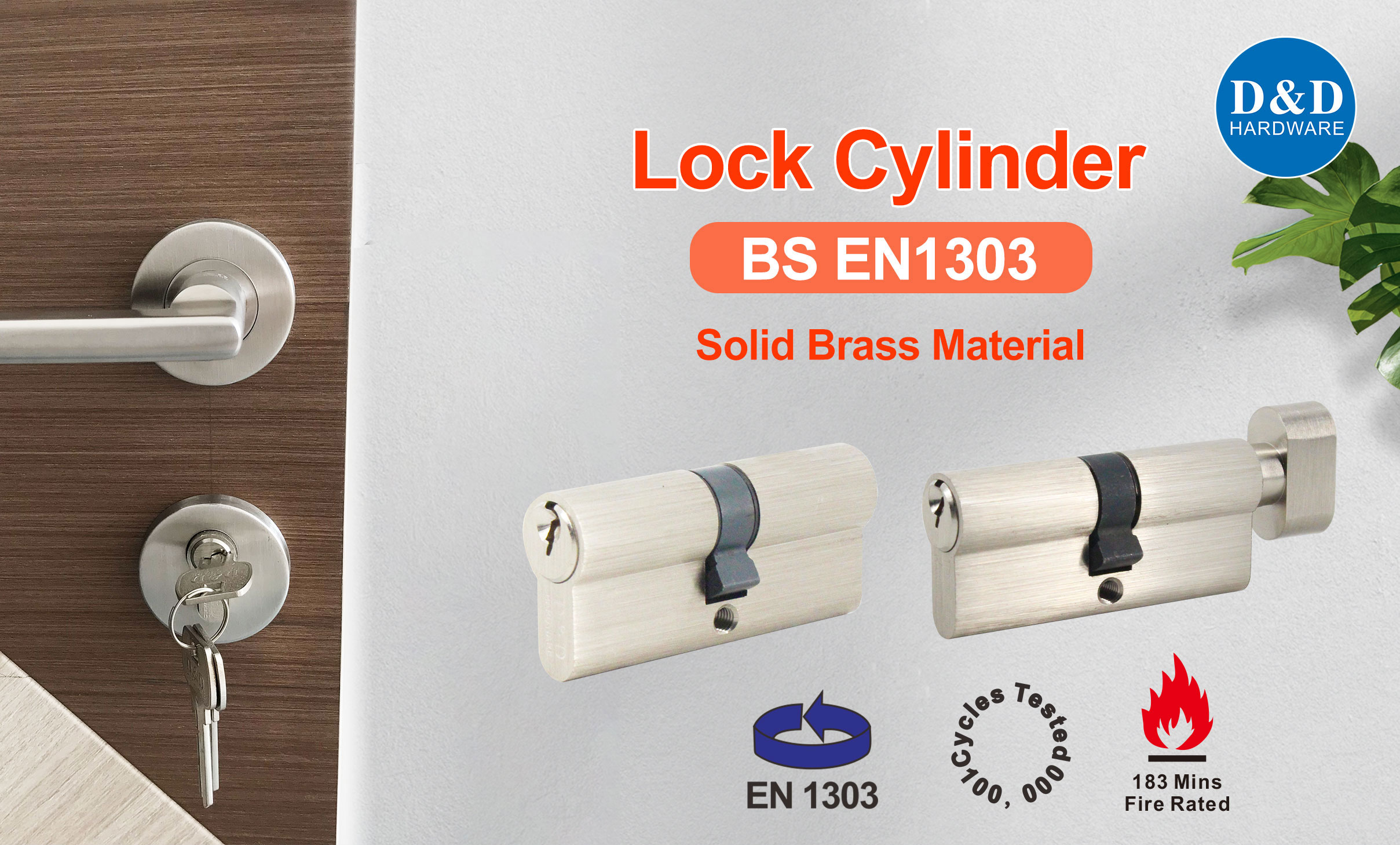

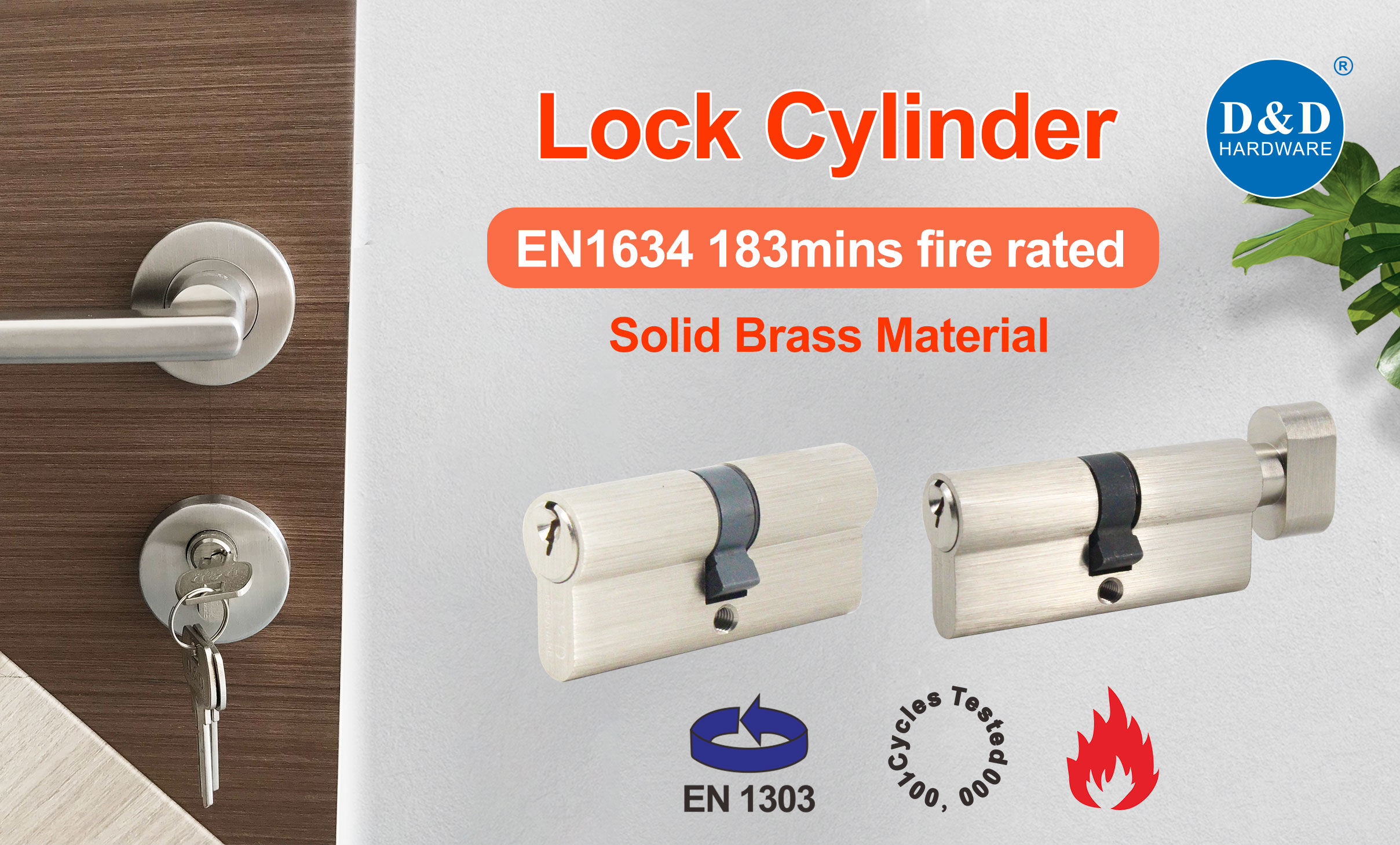

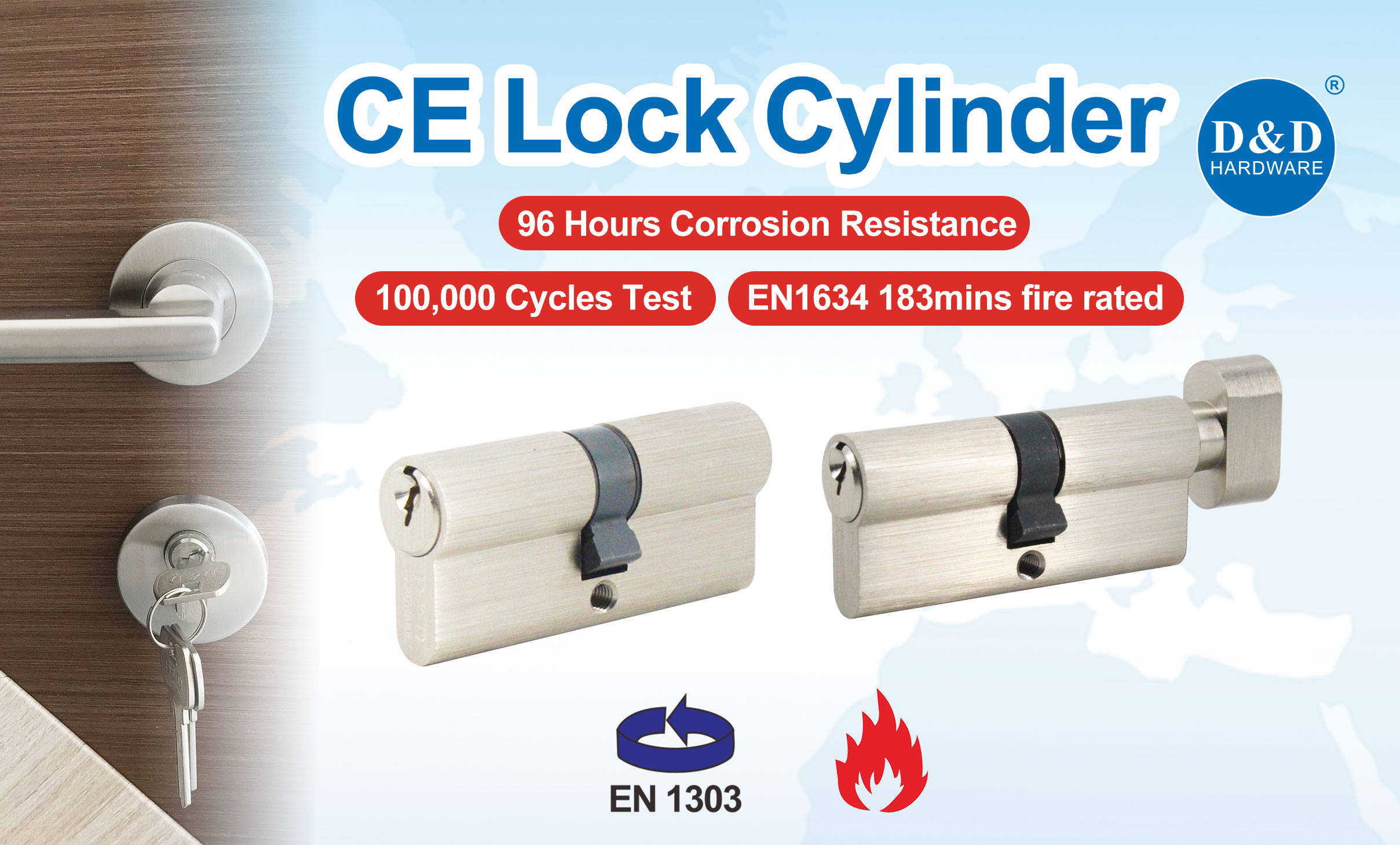

BS EN1303 and DIN 18252/09-1999 Standards Lock Cylinder, high quality solid brass body, 30 degree offset cam inhibits knock through. 6 pins standard, 10 pin high security with two lin pins, other sizes available.
Storeroom - Single Metal Door Solutions – European standard
Door design consideration mainly as below:
1, Where the building and inner door located
2, Number of times a door opens and closes
3, It is a fire resistant and heat insulated door
Main concern points for this configuration are:
1, Manageable
2, Security
Door opening & closing description:
Latch bolt operated by key from outside or by lever inside. Outside lever always inoperative. Auxiliary deadlocks latch bolt when door is closed. Inside lever is always free for immediate egress.
Fire-rated doors must be equipped with a self-closing or automatic-closing device to ensure
the door is kept in the closed and latched position.
This configuration is suitable for below applications:
| School | Prison | Super market | Air-port building |
| 5-stars hotel | Museum | Elderly house | Shopping mall |
| Stadium | Hospital | High-end office building | Hotel |
| Station | Office Building | exhibition center | Government building |
HANGING - Hinge - DDSS001-CE
D&D 2 ball bearing butt hinge can be in grade 201/304/316 stainless steel material, square corner, template drilled, button tipped five knuckles, conforming to CE (260 minutes fire rated), with CE Mark, suitable for use on fire/non-fire rated/ smoke check doors up to 120 kg, with suitable screw pack.

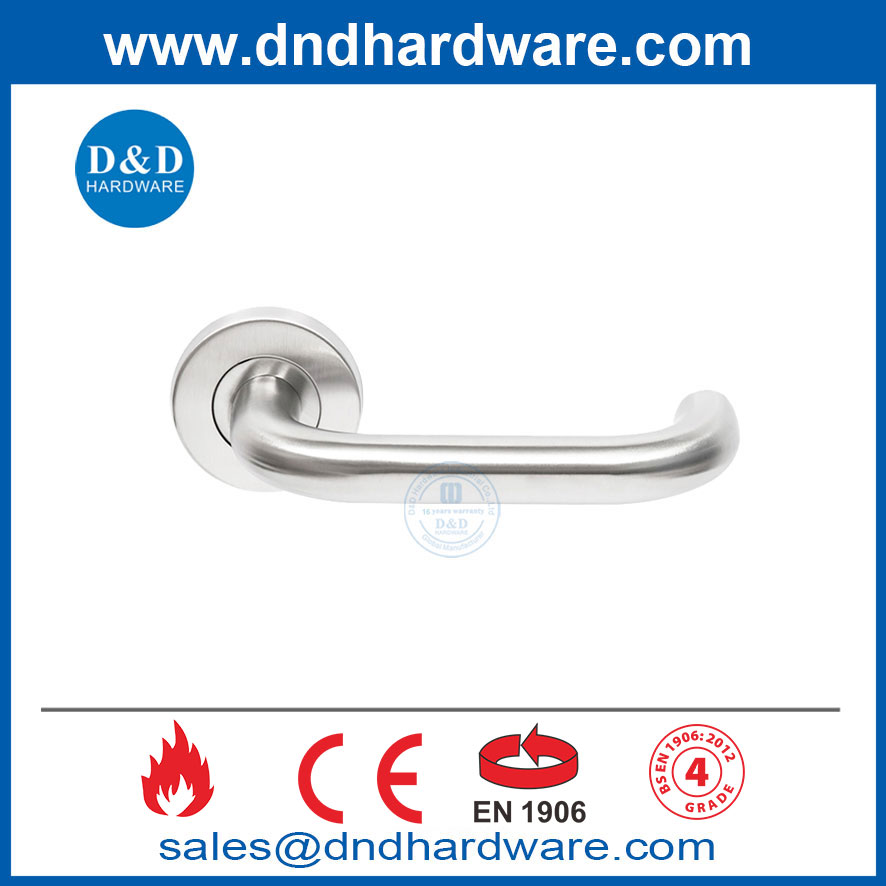

OPERATING - Lever handle-DDTH001
D&D U shape"Lever Handle", 19 x 140mm diameter, in grade 304/316 stainless steel material(rust resist grade), SSS finish, on dia53 x 9mm size SSS finish concealed roses fixing with Cylinder escutcheon, comply to EN1906 standard, CLASS 4, with suitable screw pack.
SECURING – Night latch lock -DDML014
D&D adjustable power size 3-4, suitable for max door width from 950mm to 1100mm, suitable for max door weight from 60kg to 80kg, size L248xW44.5xH72mm, in aluminum material silver finish, UL listed (3 hour fire rated), parallel arm, non-hold open function, adjustable closing and latching speed, standard top jamb, push side installation, packed with suitable screw pack.
PROTECTION - Door stop-DDDS001
D&D 44mm diameter x 25mm height, half-moon type floor mounted comes with screws for fixing, in SUS304/316 stainless steel material, SSS finish, pack with suitable screw pack.
SECURING - Lock cylinder-DDLC010
D&D half cylinder with key- cylinder 35/10mm (45mm) 6 pins with 3 differ keys, packed with fixing screw.

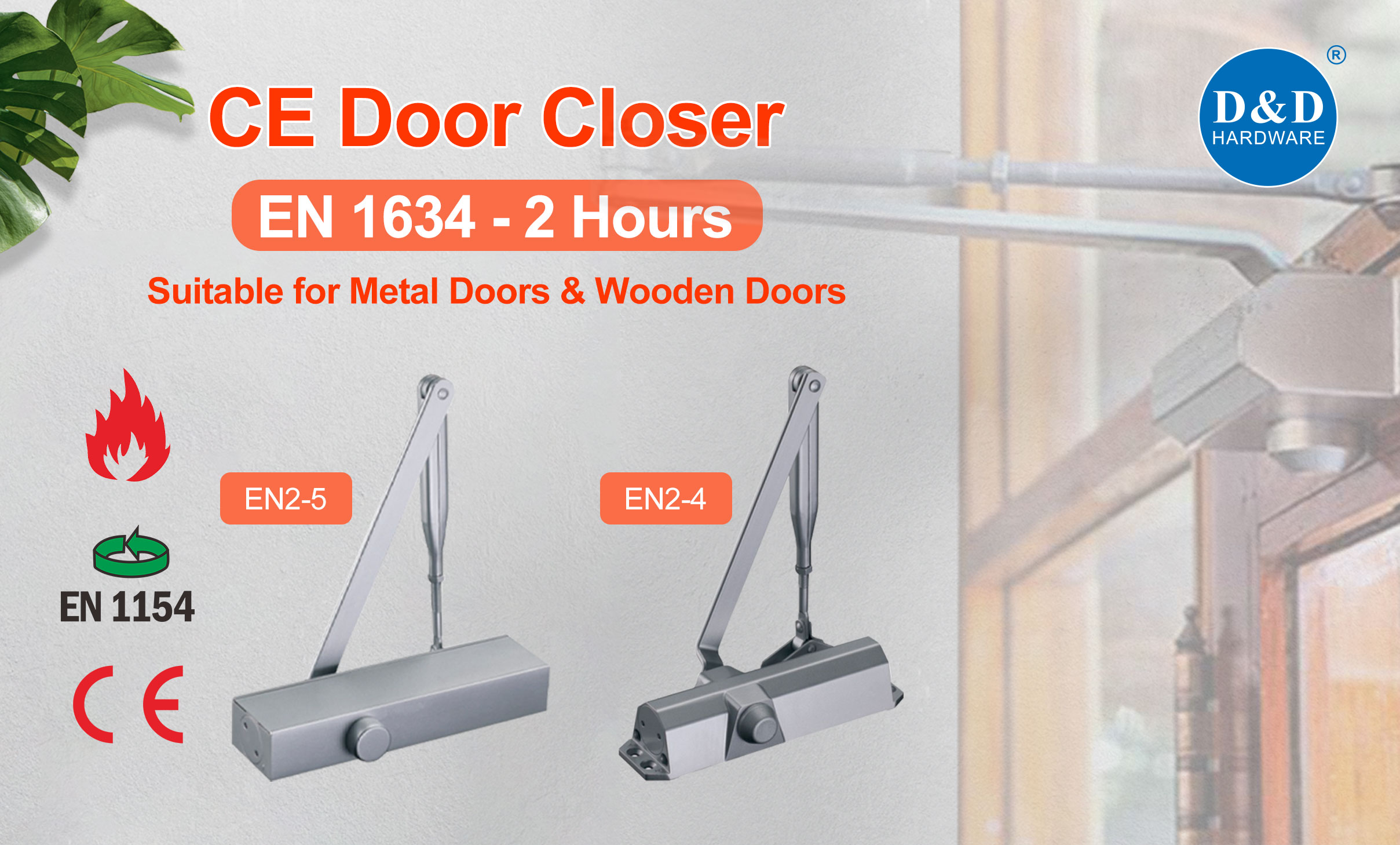

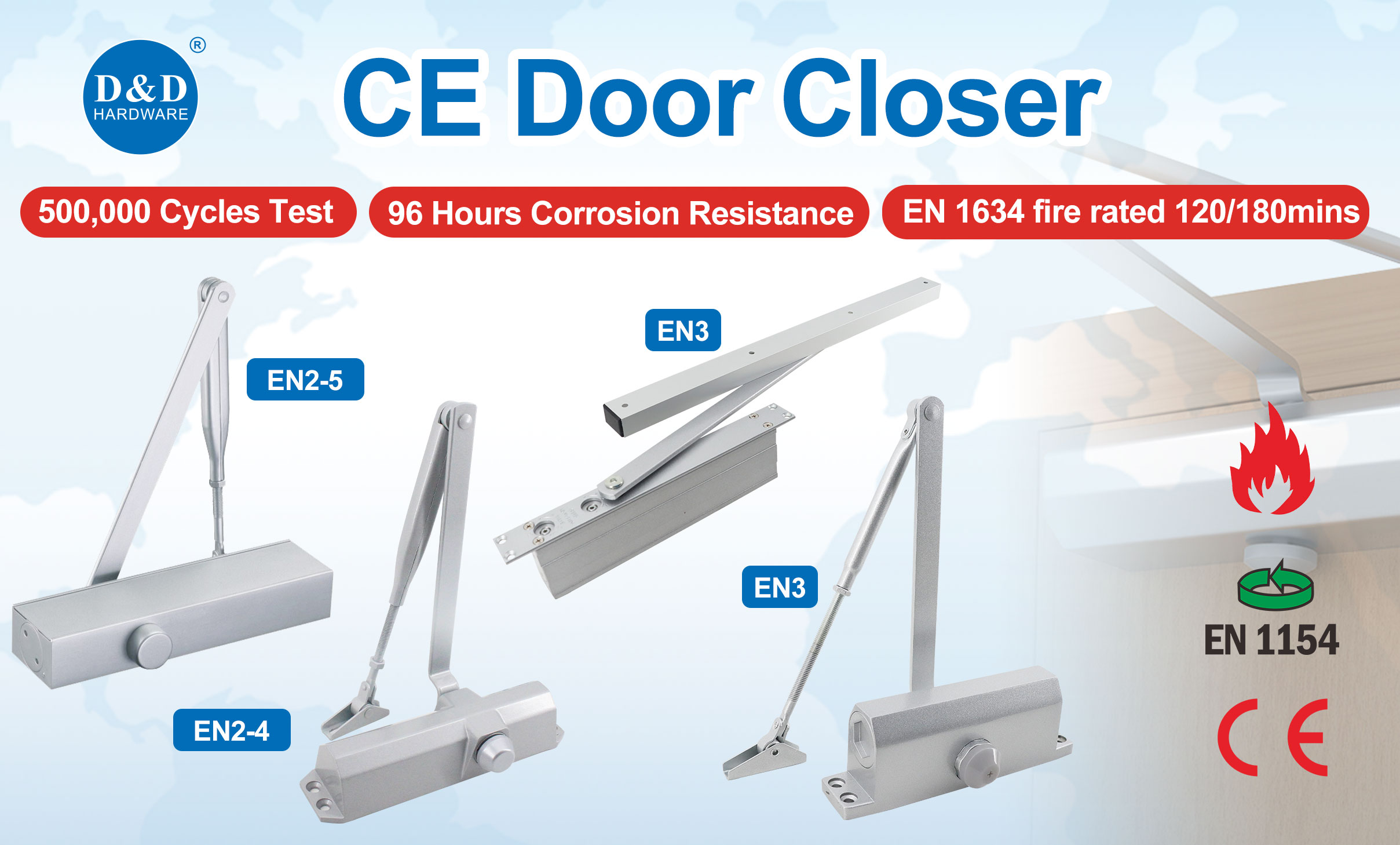

CONTROLING – Door closer-DDDC017
D&D adjustable power size 3-4, suitable for max door width from 950mm to 1100mm, suitable for max door weight from 60kg to 80kg, size L248xW44.5xH72mm, in aluminum material silver finish, CE certified, parallel arm, non-hold open function, adjustable closing and latching speed, standard top jamb, push side installation, packed with suitable screw pack.
Office - Single Wood Door Solution – European standard
This configuration is suitable for below applications:
| School | High-class club | Super market | Air port |
| 5-star hotel | Museum | Nursing home | Shopping mall |
| Sport stadium | Hospital | High-class office building | Hotel |
| Station | Office Building | exhibition center | Government building |
HANGING - Hinge DDSS001-CE
D&D 2 4”x3”x3.0mm-2 ball bearing butt hinge can be in grade 201/304/316 stainless steel material, square corner, template drilled, button tipped five knuckles, conforming to BS EN 1935-Grade 13, EN1634-260 minutes fire rated, with CE Mark.
CONTROLLING - Door closer
EN3-4, suitable for door width from 950mm to 1100mm, suitable for door weight from 60kg to 80kg, size L248xW44.5xH72mm, in aluminum material silver finish, CE certified (60 minutes fire rated).
Suggestion: If there is a privacy requirement, can equip with a self-closing door closer.
SECURING - Cylinder - DDLC004
D&D single cylinder with thumb turn- cylinder 35/35mm (70mm) 6 pins with 3 differ keys, comply with British Standard EN 1303, packed with fixing screw.
OPERATING - Lever handle - DDTH001
D&D U shape “LEVER HANDLE”, 19*140mm diameter, in grade 304/316 stainless steel material(rust resist grade), SSS finish, on dia53 x 9mm size SSS finish concealed roses fixing with Cylinder escutcheon, comply to EN1906 standard, CLASS 4, with suitable screw pack.
SECURING - Mortise lock - DDML009
D&D Fire rated Sash Lock - 55mm backset x CTC72mm c/w square front plate, holed for Euro-profile cylinder & 8mm x 8mm follower, Bolt through hardware fixings / Comply with British Standard EN 12209 Grade 3- CE Marked - Fire rated 260 minutes, with suitable screw pack.
ANCILLARY - Door stop -DDDS010
D&D 30mm diameter x 40mm height, floor mounted door stopper comes with screws for fixing, in SUS304/316 stainless steel material, SSS finish.
Building owners understand that keeping down maintenance costs necessitates vigilance through charge of building systems to handle support efficiency.
D&D key systems improve control by restricting access through optimized key management to central areas of those buildings. Only the right personnel are authorized minimizing potential misuse of services and possible liability.
Conference room, office, showroom,Stairwells, pipe chases, electrical, rooms, custodial equipment, communicating closets, elevator controls, pipes and HVAC are every area requiring protection , and D&D hardware gets the retrofit capability to secure most of these areas.
Security needs for healthcare centers are more critical than ever. A growing amount of crimes have been committed in practices and hospitals. Concerns about access to health records, pharmaceuticals, acute care centers, operating rooms, bio hazard and lab facilities call for high security systems.
To meet the needs of a fast growing population requiring medical caution many geriatric providers are protecting their centers with high security lock systems to mitigate potential issues in addition to maintaining a safe perimeter to prevent patients or clients by wandering away from their chambers and quarters.
D&D key systems improve control by restricting access through optimized key management to central areas of those buildings.Only the right personnel are authorized minimizing potential misuse of services and possible liability.
Stairwells, pipe chases, electrical, rooms, custodial equipment, communicating closets, elevator controls, pipes and HVAC are every area requiring protection , and D&D hardware gets the retrofit capability to secure most of these areas.
D&D Hardware has been at the forefront of driving key innovation within the hospitality and entertainment industries by providing hotels and properties with products that increase guest satisfaction, thereby increasing their overall value. Our team of experts continues to use the most advanced technologies to offer security, compliance and peace of mind to both hospitality providers and their guests.
D&D provides the hospitality door hardware solutions to help you create a welcoming and open space that is also secure, quiet, accessible and energy efficient.
Most government entities possess a wonderful demand for security along with a superior degree of flexibility. The system has to be field proven, safe and easy to administrate.
Police stations, courts, fire & emergency first responders are all services with very specific security requirements.
It is important that the system can be accommodated to accommodate the situation and also some other hazards that they may encounter.
Military facilities cover a broad selection of activities, large geographical footprint, and buildings using different operational requirements. Offices, training centres and exercise are as need high security protection against unauthorized access...
Entertainment & Leisure Facilities Stadiums, arenas and theaters serve many people with exceptional access and egress needs together with time and volume considerations that dictate the access rights provided.
School facilities The buildings have to be shielded unauthorized people, theft or vandalism.
Sports centers Sports centers have rental locations and luxury boxes that require suitable but detailed access control.
The right security in the right place With D&D’s product solutions, you have the right security while in the right place.
Universities Higher educational institutions are available to the population they serve and may become the aim for crimes of opportunity.
