DDSS001-ANSI-2--4.5x4.5x3.4
D&D Hardware
Wooden Door, Metal Door, Steel Door, Interior Door, Outer Door
ANSI GRADE 2,UL Listed/UL 10C,3 Hours Fire Rated
Stainless Steel 304 / 316 / 201
SSS , PSS , PVD , PB, AB , AC, SC, PC, SB, MB
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

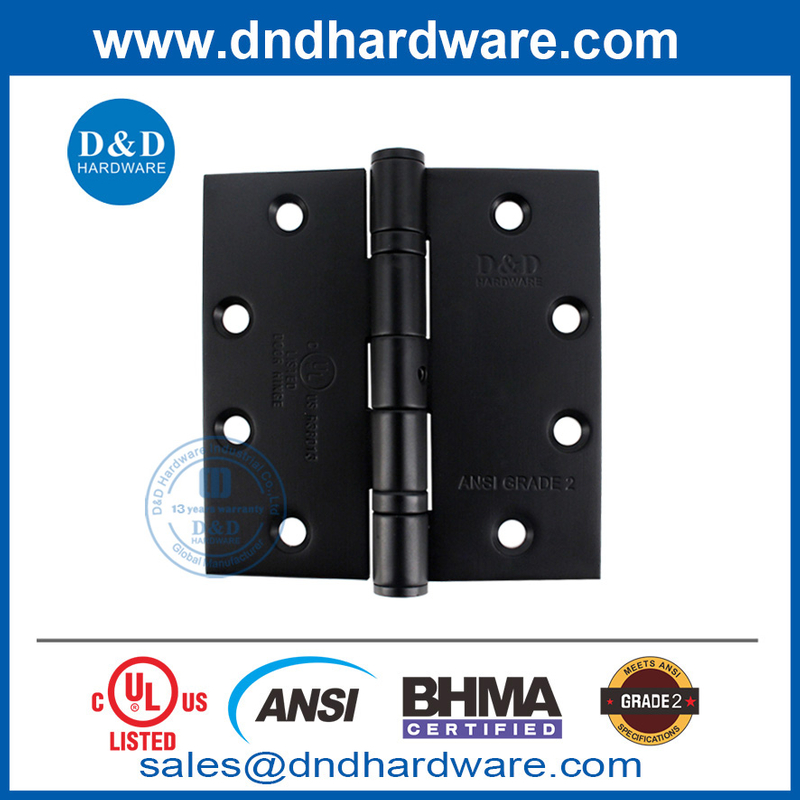

SS304 Commercial Door Hinge Black ANSI BHMA Fire Rated External Door Hinge with NRP-DDSS001-ANSI-2-4.5x4.5x3.4
Stainless Steel Black Door Hinge is a popular hinge, it is durable and easy to use. As a professional hinge supplier in China, we provide customers various quality Ball Bearing Hingeand they apply to different commercial of doors. The Ball Bearing Hinge is one kind of our UL Listed Door Hinge. The material of Commercial Door Hinge is stainless steel, so it can keep the original shape very well. It won't turn yellow or rust. The Door Hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of Ball Bearing Hinge become old and bad. The External Door Hinge can also keep long-term lubrication, make you convenient to open and close the door. The Fire Rated Hinge is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.
Product Overview
The D&D range of architectural hinges is manufactured to the highest engineering standards and designed to offer a high price/ performance ratio.
They have been successfully type tested to all the requirements of BS EN 1935, UL 10C, 3 hours Fire Rate.
Stainless steel leaf, fix/loos /loose non-rising/non-removable pin, ball bearing/washers, flat/ rivet/ball/crown tip and screw provide enhanced durability and security.
Product name | SS304 Commercial Door Hinge Black ANSI BHMA Fire Rated External Door Hinge with NRP-DDSS001-ANSI-2-4.5x4.5x3.4 |
Certification | BHMA/ANSI A.156.1 Grade 2 UL Listed / UL10C , 3 Hours Fire Rated,UL File Number:R38013 |

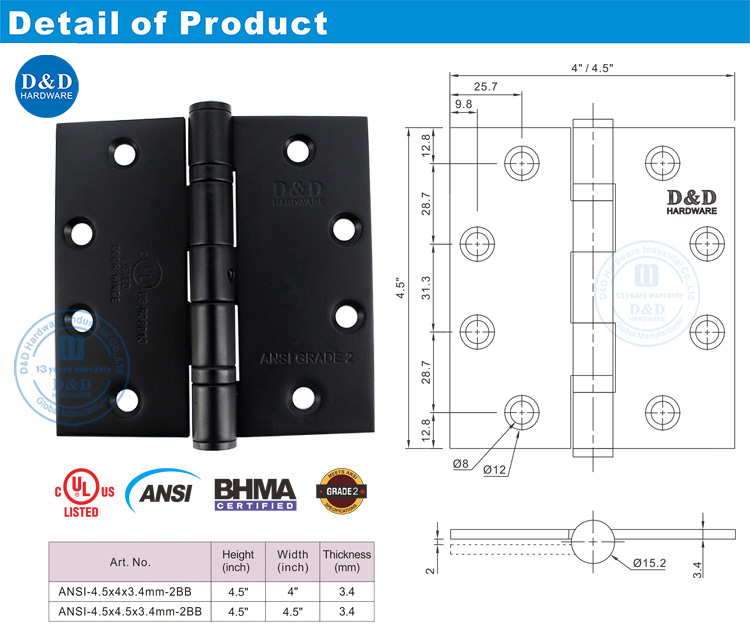

ANSI Grade 2 item | 4.5"x4.0"x3.4mm 4.5"x4.5"x3.4mm 5.0"x3.5"x3.7mm 5.0"x4.0"x3.7mm 5.0"x4.5"x3.7mm 5.0"x5.0"x3.7mm |
UL certificate item | 4.0"x3.0"x3.0mm 4.0"x3.5"x3.0mm 4.0"x4.0"x3.0mm 4.5"x4.0"x3.0mm 4.5"x4.5"x3.0mm 4.5"x4.0"x4.6mm 4.5"x4.0"x3.4mm 4.5"x4.5"x3.4mm 4.5"x4.5"x4.6mm |
Material | Stainless Steel 201, 304 or 316 |
Fitting | Flat tip, ball bearing, fix pin, screws |
Finish | Satin stainless steel, Polished stainless steel, Polished brass, Chrome-plated(polish chrome plate&satin chrome plate), Antique brass, Antique copper, Matt balck, Physical Vapor Deposition |
Color | Silver,Black, Golden, Antique Brass, Antique Copper |
Suitable for | Wooden door, Metal door, Steel door , Fire rated door |
Packaging & Shipping
SS304 Commercial Door Hinge Black ANSI BHMA Fire Rated External Door Hinge with NRP-DDSS001-ANSI-2-4.5x4.5x3.4
MOQ | 500 Pieces |
Package | One pair/white box or color box or Blister card in Standard export carton |
Sample time | 5-7 working days |
Production lead time | 30-35 days |
Shipping Port | Jiangmen , China / Shenzhen , China . |
